Allen-Bradley 1747-L531 — SLC 5/03 8K Processor Module | SLC 500 Platform
Engineering Background: The Allen-Bradley SLC 500 series has been a backbone of discrete and process control automation since the early 1990s, deployed across hundreds of thousands of installations in petrochemical refining, electric power generation, municipal water treatment, and continuous manufacturing. Within the SLC 500 architecture, the processor module is the sole determinant of program memory capacity, communication capability, and scan-cycle performance. The 1747-L531 occupies the mid-tier of the SLC 5/03 family, providing 8K words of user program memory with full DH-485 and RS-232 (DF1) communication — the configuration most commonly specified for standalone machine control and distributed I/O networks of moderate complexity.
Product Positioning: The 1747-L531 is distinguished from the entry-level 1747-L511 (4K) by doubling available program memory, and from the 1747-L532 (16K) by targeting applications where 8K words is sufficient and cost optimization is a priority. It is the correct selection when the control program requires structured text subroutines, PID loops, and message (MSG) instructions to peer controllers, but does not demand the extended memory of the L532/L533. The upper boundary condition is approximately 500 I/O points and 10–15 concurrent MSG instructions; beyond this, the L532 or SLC 5/04 (DH+) platform should be evaluated.
Complete Technical Specifications
Electrical
- User Program Memory: 8K words (8,192 words)
- Data Table Memory: 3K words (shared with program memory)
- I/O Capacity: Up to 4,096 I/O points (local + remote)
- Communication Port 1: RS-232 (DF1 Full/Half Duplex, DH-485, ASCII)
- Communication Port 2: DH-485 (1,200 / 2,400 / 9,600 / 19,200 bps)
- Backplane Current Draw: 800 mA @ 5 VDC
- Power Supply Compatibility: 1746-P1, 1746-P2, 1746-P3, 1746-P4
- Battery Backup: Lithium, 1747-BA (user-replaceable, retains program on power loss)
- Scan Time: Approximately 1 ms per 1K words of logic
- Instruction Set: Full SLC 500 instruction set including PID, MSG, FAL, FSC, DDT
Mechanical

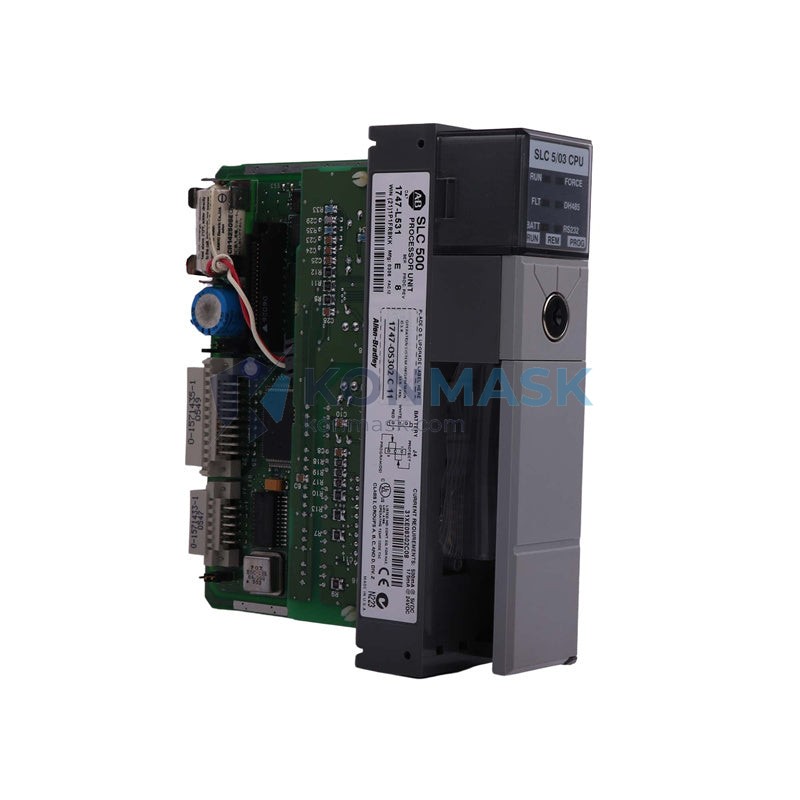

- Form Factor: Single-slot SLC 500 processor module
- Compatible Chassis: 1746-A4, 1746-A7, 1746-A10, 1746-A13
- Weight: Approximately 250 g
- Mounting: DIN rail or panel mount via chassis

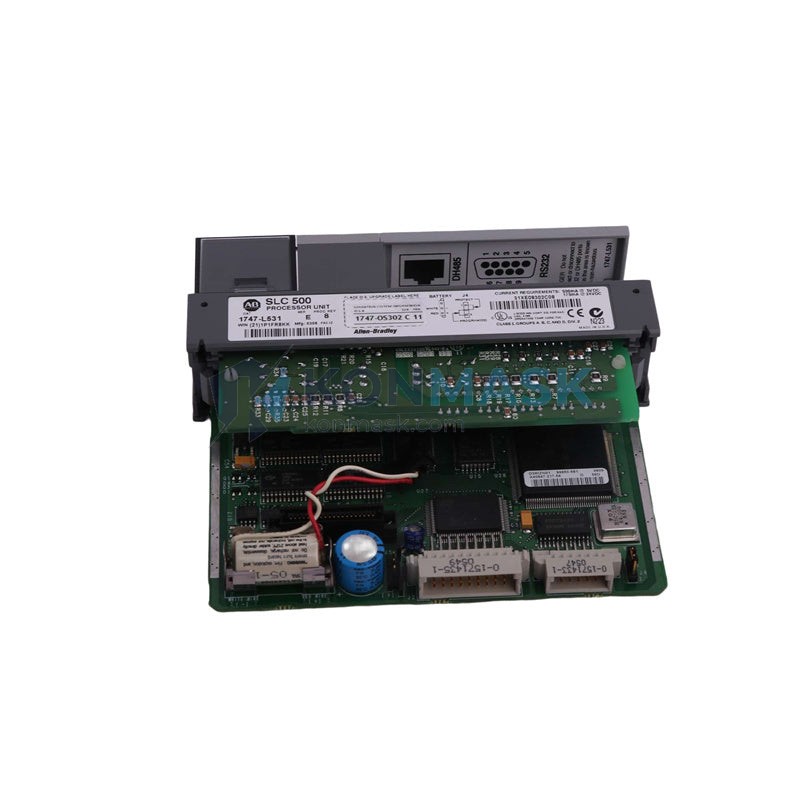

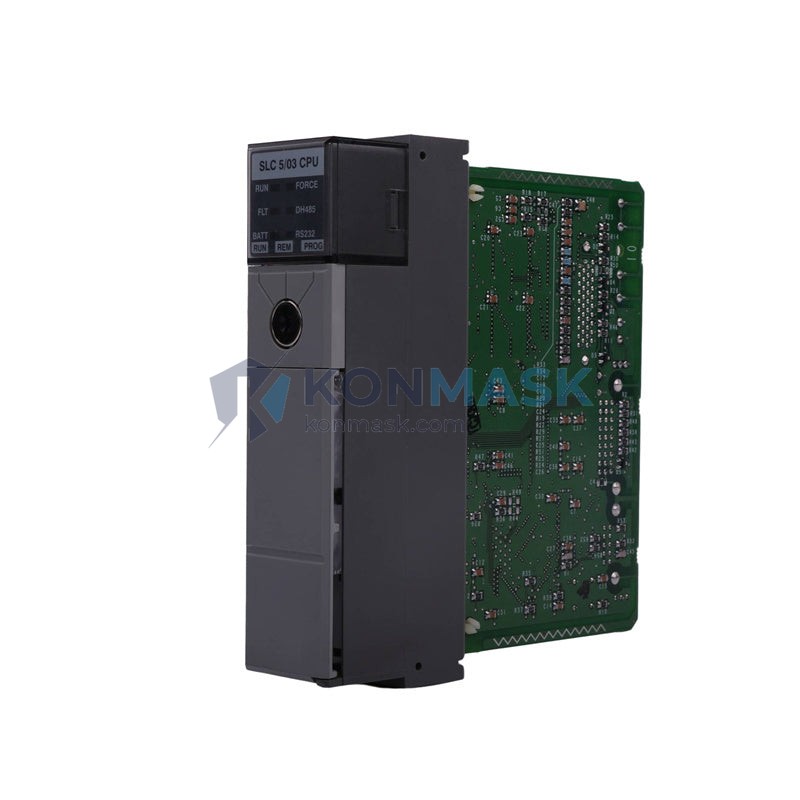

- Front Panel: Run/Fault/Battery/Force/DH-485 status LEDs; keyswitch (RUN / PROG / REM)
Environmental
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +85 °C
- Relative Humidity: 5% to 95% non-condensing
- Vibration: 2 g @ 10–500 Hz (IEC 68-2-6)
- Shock: 30 g operational (IEC 68-2-27)
- Pollution Degree: 2 (IEC 664)
- Altitude: Up to 2,000 m without derating
Certifications
- UL Listed: UL 508 (Industrial Control Equipment)
- CE Marked: EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- CSA Certified: C22.2 No. 142
- RoHS Compliant (per Rockwell Automation product compliance records)
Specification data sourced from Rockwell Automation Publication 1747-UM011 (SLC 500 Modular Hardware Style User Manual) and 1747-TD001 (SLC 500 Selection Guide). Cross-reference against the specific firmware revision label on the unit before installation.
Proven Application Environments
- Petrochemical Refining: Crude distillation unit pump control panels — continuous 24/7 operation with PID loop management for flow and pressure regulation under high-ambient-temperature enclosure conditions.
- Electric Power Generation: Coal/gas-fired boiler auxiliary systems — coordinating feed-water pump sequencing and burner management interlocks via DH-485 network to SCADA HMI.
- Municipal Water Treatment: Lift station and clarifier drive control — standalone processor managing VFD start/stop, level sensor inputs, and alarm relay outputs with minimal I/O count.
- Pharmaceutical Manufacturing: Clean-in-place (CIP) skid automation — executing timed wash sequences with MSG instructions reporting batch data to a supervisory SLC 5/04 controller.
- Automotive Assembly: Conveyor indexing and part-presence verification stations — high-speed discrete I/O scanning with force functions used during maintenance and changeover.
- Food & Beverage Processing: Pasteurization line temperature control — PID instruction managing steam valve position with RS-232 data logging to plant historian via DF1 protocol.
Engineering Advantages
- For applications requiring peer-to-peer messaging across a multi-node DH-485 network, this processor module supports up to 6 concurrent MSG instructions, because the SLC 5/03 communication co-processor handles network transactions independently of the ladder scan cycle.
- For installations in high-vibration environments such as compressor skids, this processor module maintains program integrity without data corruption, because the lithium battery-backed CMOS RAM retains all data table values through power interruptions and mechanical shock events up to 30 g.
- For maintenance teams requiring online program edits without process shutdown, this processor module supports full online editing in REM RUN mode, because the SLC 5/03 instruction set includes online edit capability for all standard ladder rungs.
- For OEM machine builders targeting global markets, this processor module simplifies compliance documentation, because it carries simultaneous UL, CSA, and CE certifications covering North American and European installation requirements.
- For facilities standardized on RSLogix 500 programming software, this processor module integrates without additional driver configuration, because RSLogix 500 natively supports all SLC 5/03 firmware revisions via the 1747-UIC or 1784-U2DHP USB adapter.
- For retrofit projects replacing older SLC 5/01 or 5/02 processors, this processor module accepts existing ladder programs with minimal modification, because the SLC 500 instruction set is backward-compatible across the 5/01 through 5/05 processor family.
System Architecture & Signal Flow
In a typical SLC 500 system, field signals enter through 1746-series I/O modules seated in the chassis. The 1747-L531 processor reads the I/O image table each scan cycle, executes the user ladder program in memory, and writes output states back to the I/O image. Communication transactions (MSG instructions, DF1 packets) are handled by the onboard communication co-processor and do not interrupt the ladder scan. The DH-485 port connects directly to an AIC+ (1761-NET-AIC) link coupler for multi-drop network topologies; the RS-232 port connects to HMI panels (PanelView 300–1000), programming terminals, or modems.
Compatible Modules: All 1746-series I/O modules (digital, analog, specialty); 1747-SDN DeviceNet Scanner; 1747-SN Remote I/O Scanner; 1746-BAS BASIC Module. Compatibility is assured because all modules communicate via the SLC 500 backplane protocol, which is fixed across the product family.
Substitution Conditions: The 1747-L532 (16K) is a direct drop-in replacement when program memory expansion is required — same physical slot, same firmware family, same RSLogix 500 project file format. The 1747-L541 (SLC 5/04, 16K, DH+) is the appropriate upgrade path when DH+ network connectivity or higher I/O density is required, but requires chassis and power supply re-evaluation.
Sourcing & Quality Verification
Units offered through Konmask.com are sourced from decommissioned OEM production lines, authorized surplus distributors, and controlled industrial asset recovery channels. Each unit undergoes a documented pre-shipment process:
- Visual Inspection: Examination of PCB, connector pins, keyswitch, and front-panel LEDs for physical damage, corrosion, or counterfeit indicators (label font, serial number format, Rockwell hologram verification).
- Power-On Functional Test: Unit is installed in a 1746-A4 test chassis with a known-good 1746-P2 power supply. Processor is powered, firmware revision is recorded, and all status LEDs are verified against expected behavior.
- Communication Port Test: RS-232 and DH-485 ports are tested using RSLinx Classic with a 1747-UIC adapter. Successful node address assignment and online connection to RSLogix 500 are confirmed.
- Battery Check: Lithium battery voltage is measured; units with batteries below 2.8 V are shipped with a new 1747-BA replacement battery included.
Documentation available upon request: Test report with firmware revision and serial number; Rockwell Automation product traceability data (where available); Certificate of Conformance; export compliance classification (ECCN EAR99).
Procurement Process
- Inquiry & Confirmation: Submit the required quantity, acceptable firmware revision range, and any application-specific requirements (e.g., battery included, specific keyswitch position) via the contact form or email. A technical confirmation of stock availability and unit condition is returned within 24 hours.
- Order & Documentation: Purchase order is accepted via standard B2B terms. Proforma invoice, packing list, and test report are issued prior to shipment. Export documentation (commercial invoice, country of origin certificate) is prepared for international orders.
- Shipment & Support: Units are shipped in anti-static packaging with foam cushioning. Post-delivery technical support covers installation verification, RSLinx driver configuration, and firmware revision compatibility questions — available via email at support@konmask.com or by phone at +0086 19859288691.
Technical FAQ
- Q: Is the 1747-L531 compatible with all 1746-series I/O modules, including analog and specialty types?
- A: Yes. The 1747-L531 supports all 1746-series I/O modules that communicate via the standard SLC 500 backplane. This includes analog modules (1746-NI4, 1746-NO4I), high-speed counter modules (1746-HSC), and DeviceNet scanner modules (1747-SDN). The only constraint is total backplane current budget, which is determined by the chassis power supply selected.
- Q: Can the 1747-L531 directly replace a 1747-L511 (4K) or 1747-L521 (8K, older revision) in an existing installation?
- A: The 1747-L531 is a direct physical replacement for any SLC 5/03 processor (L511, L514, L521, L531, L532, L533) in the same chassis slot. The existing RSLogix 500 project file (.RSS) can be downloaded to the L531 without modification, provided the program size does not exceed 8K words. If replacing an L511 (4K), verify that the existing program is within the 8K memory boundary before download.
- Q: Is the 1747-L531 suitable for SIL-rated safety applications or ATEX-classified hazardous area installations?
- A: The 1747-L531 is not SIL-rated and is not certified for use as a safety instrumented system (SIS) component under IEC 61511. For safety-critical loops, a dedicated safety PLC (e.g., Allen-Bradley GuardLogix or Safety SLC) is required. For hazardous area installations, the processor must be housed in a certified purged-and-pressurized enclosure (NEMA 4X/IP66 with Ex p certification); the module itself does not carry ATEX or IECEx certification.
