Motor Speed Control Solution — Allen-Bradley AB20AD3P4A0AYNNNC0 | PowerFlex 70 Series
Where This Product Is Used

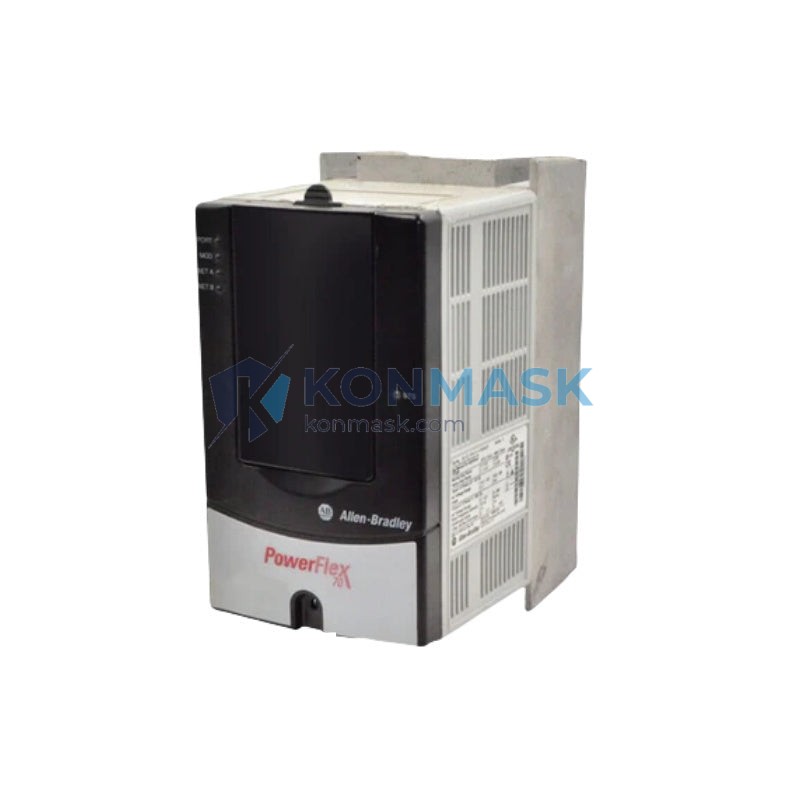

The Allen-Bradley PowerFlex 70 AC Drive (Catalog No. AB20AD3P4A0AYNNNC0) is engineered for precise variable-speed motor control across demanding industrial environments. Typical deployment scenarios include:
- Conveyor & Material Handling Systems — Smooth acceleration/deceleration control for belt conveyors, roller tables, and sortation lines in warehousing and manufacturing.
- Pump & Fan Applications — Energy-saving flow regulation in HVAC systems, cooling towers, water treatment plants, and process fluid handling.
- Packaging Machinery — Precise speed synchronization for filling, sealing, and labeling equipment on high-throughput production lines.
- Machine Tool & CNC Auxiliary Drives — Spindle cooling fans, coolant pumps, and auxiliary axis drives requiring compact, reliable VFD control.
- Food & Beverage Processing — Hygienic-area motor control for mixers, augers, and transfer conveyors where consistent torque is critical.
- OEM Control Panels — Panel-mount integration in custom automation cabinets where Frame A footprint and standard I/O are required.
Technical Specifications
| Catalog Number | 20AD3P4A0AYNNNC0 |
| Series / Family | PowerFlex 70 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Output Power | 2 HP (1.5 kW) |
| Input Voltage | 480 VAC, 3-Phase |
| Output Current (Continuous) | 3.4 A |
| Input Frequency | 50 / 60 Hz |
| Frame Size | Frame A |
| Enclosure Rating | IP20 / Open Type |
| Control Method | Sensorless Vector / V/Hz |
| Output Frequency Range | 0 – 400 Hz |
| Communication | None (Base Unit — A0 option) |
| Brake Transistor | Not included (external resistor option) |
| Ambient Temperature | 0 °C to +50 °C (operating) |
| Weight (approx.) | 2.7 kg |
Why Engineers Specify This Model
- Compact Frame A Footprint — Minimizes panel real estate without sacrificing performance; ideal for space-constrained enclosures.
- Sensorless Vector Control — Delivers high starting torque and stable speed regulation without encoder feedback, reducing system complexity and cost.
- DriveExplorer / Studio 5000 Compatible — Seamless integration into existing Allen-Bradley control architectures with familiar commissioning tools.
- Built-in EMC Filter (Y option) — Reduces conducted emissions, simplifying CE compliance and minimizing external filter BOM.
- Extensive Parameter Set — Over 200 programmable parameters enable fine-tuned adaptation to application-specific torque, speed, and protection requirements.
- Proven Global Install Base — Millions of PowerFlex 70 units deployed worldwide; broad field service knowledge and spare-parts availability.
Complete System Bill of Materials
For a fully operational PowerFlex 70 drive system, engineers typically specify the following complementary components:
- Input Line Reactor — 1321-3R2-B (reduces harmonic distortion and protects drive input)
- Dynamic Braking Resistor — AK-R2-091P3 or equivalent (for applications requiring fast deceleration)
- Remote HIM (Human Interface Module) — 20-HIM-A3 or 20-HIM-C6S (remote panel-mount operator interface)
- DeviceNet / EtherNet/IP Communication Module — 20-COMM-D / 20-COMM-E (for networked control architectures)
- Output Motor Cable — Shielded VFD-rated cable, 600V, per IEC/NEC requirements
- Fused Disconnect / MCP — 140M series Motor Circuit Protector sized to 3.4 A output
- Grounding Kit — Per Rockwell Automation installation guidelines for EMC compliance
Compliance & Industry Standards
- UL 508C — Power Conversion Equipment
- CE Marking — Low Voltage Directive (LVD) 2014/35/EU & EMC Directive 2014/30/EU
- IEC 61800-3 — Adjustable Speed Electrical Power Drive Systems (EMC)
- IEC 61800-5-1 — Safety requirements for adjustable speed drive systems
- RoHS Compliant
- C-Tick (Australia/New Zealand)
Quality Assurance & Sourcing
At Konmask.com, every unit of the AB20AD3P4A0AYNNNC0 is subject to our multi-stage verification protocol before dispatch:
- Visual Inspection — Label authenticity, housing integrity, connector condition, and firmware version verification.
- Functional Power-On Test — Drive powers up, displays correct firmware, and responds to parameter read/write commands.
- Traceability Documentation — Batch records and sourcing chain documentation available upon request for regulated industries.
- Secure Packaging — Anti-static bag, foam-lined carton, and moisture-barrier packaging for international transit.
We source exclusively from authorized distributors, verified surplus channels, and factory-direct inventory. Counterfeit-free guarantee backed by our return policy.
How to Source This Part
- Add to Cart — Click the purchase button above to place your order directly on Konmask.com.
- Request a Quote — For volume orders (5+ units), OEM projects, or blanket PO arrangements, contact support@konmask.com for preferential pricing.
- Lead Time — In-stock units ship within 1–3 business days. Express DHL/FedEx international shipping available.
- Payment — T/T (Wire Transfer), PayPal, and major credit cards accepted. LC available for orders above USD 5,000.
- Export Compliance — We handle export documentation (commercial invoice, packing list, CO) for cross-border shipments.
Application-Specific FAQ
Q: Can the AB20AD3P4A0AYNNNC0 control a single-phase motor?
A: No. This drive is designed for 3-phase AC induction motors. For single-phase motor control, a different drive family is required.
Q: Is a communication module included?
A: The base catalog number (A0 option) does not include a communication adapter. DeviceNet (20-COMM-D), EtherNet/IP (20-COMM-E), and other adapters are available as separate accessories.
Q: What is the maximum cable length between drive and motor?
A: Rockwell Automation recommends a maximum of 50 m (164 ft) for unfiltered drives. With an output filter, cable runs up to 300 m are achievable. Always use shielded VFD-rated cable.
Q: Can this drive be used in a hazardous (classified) location?
A: The IP20 open-type enclosure is not rated for hazardous locations. For Zone 1/2 or Division 1/2 areas, the drive must be installed in a certified explosion-proof enclosure.
Q: Is the unit compatible with Rockwell’s Studio 5000 / Logix Designer?
A: Yes. With an appropriate communication module installed, the PowerFlex 70 integrates fully with ControlLogix and CompactLogix platforms via Add-On Profiles (AOPs).
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a 12-month warranty against manufacturing defects. Warranty claims are processed within 5 business days of receipt of the returned unit.
