Industrial Robot Interconnect Solution – ABB 3HAC3356-14 / 3HAC3355-1 | IRC5 Drive Cable Series
Where This Product Is Used

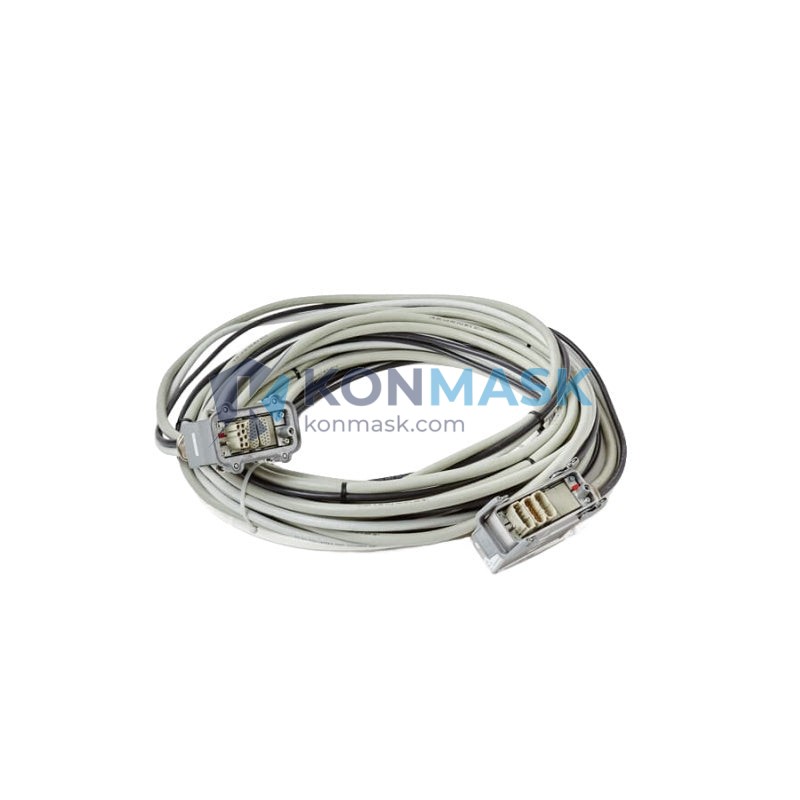

The ABB 3HAC3356-14 (paired with 3HAC3355-1) is a factory-configured 22-metre custom cable assembly that simultaneously carries drive power and encoder/signal data between the IRC5 controller cabinet and the robot manipulator arm. It is specified on the following platforms:
- ABB IRB 1600 / 2400 / 4400 / 6400 / 6600 / 6640 – standard floor-mount and shelf-mount configurations
- ABB IRB 7600 / 6650S – heavy-payload press-tending and foundry cells
- Automotive body-in-white lines – spot welding, seam sealing, and material handling
- Palletising & depalletising systems – high-cycle logistics automation
- Paint booth & clean-room environments – where cable routing length exceeds standard 7 m or 15 m options
- Machine-tending cells – CNC loading/unloading with extended reach requirements
The 22 m length is the longest standard factory option, eliminating field splices and the associated signal-integrity risks in safety-critical motion control loops.
Technical Specifications
| Attribute | Value |
|---|---|
| ABB Part Number (Power) | 3HAC3356-14 |
| ABB Part Number (Signal) | 3HAC3355-1 |
| Cable Type | Custom / Composite – Power + Signal |
| Nominal Length | 22 m (72 ft) |
| Compatible Controller | IRC5 (single & dual cabinet) |
| Compatible Robots | IRB 1600, 2400, 4400, 6400, 6600, 6640, 7600, 6650S |
| Connector Type | ABB OEM multi-pin (power) + D-sub / circular (signal) |
| Shielding | Double-shielded signal conductors; power conductors with drain wire |
| Jacket Material | PUR (polyurethane) – oil, abrasion & flex resistant |
| Approx. Weight | 323 g (connector assembly) |
| Country of Origin | Sweden |
| HS Code | 8544.42 |
| RoHS Compliant | Yes |
Why Engineers Specify This Model
- OEM-matched impedance – signal pairs are tuned to ABB’s IRC5 drive amplifier input specifications, preventing resolver/encoder errors at high cycle rates.
- Single-run installation – one composite cable replaces two separate runs, reducing cable-tray congestion and installation labour by up to 40%.
- 22 m reach – covers controller-to-robot distances that the standard 7 m and 15 m variants cannot, without field extension kits that void warranty.
- PUR jacket durability – rated for continuous flexing in cable tracks (e-chains), resists hydraulic oil, coolant, and weld spatter common in automotive cells.
- Plug-and-play replacement – keyed OEM connectors eliminate mis-wiring risk during planned maintenance shutdowns.
Complete System Bill of Materials
For a complete IRC5-to-robot interconnect, engineers typically specify:
- 3HAC3356-14 – Power cable, 22 m (this item)
- 3HAC3355-1 – Signal cable, 22 m (this item, bundled)
- 3HAC026254-001 – SMB (Serial Measurement Board) if resolver replacement is required
- 3HAC025338-001 – Axis computer DSQC 668 (IRC5 controller board)
- 3HAC044168-001 – Cable clamp kit for manipulator base
Contact Konmask for bundle pricing on multi-line BOM orders.
Compliance & Industry Standards
- RoHS 2011/65/EU – Restriction of Hazardous Substances compliant
- CE Marking – Manufactured to EU Machinery Directive requirements
- IEC 60204-1 – Safety of machinery, electrical equipment of machines
- ISO 10218-1 – Robots and robotic devices, safety requirements for industrial robots
- UL Listed conductors – where applicable for North American installations
Quality Assurance & Sourcing
Konmask sources ABB robot cables through authorised distribution channels and verified secondary-market suppliers with full traceability documentation. Every unit dispatched undergoes:
- Visual inspection of connector pins, jacket integrity, and strain-relief boots
- Continuity and insulation-resistance verification per IEC 60228
- Label and part-number cross-check against ABB’s published BOM references
- Anti-static packaging with desiccant for long-term storage protection
Certificates of conformity and test records are available upon request for MRO and OEM procurement teams.
How to Source This Part
- In-stock orders: Add to cart and check out — typical dispatch within 1–3 business days.
- Bulk / project orders (5+ units): Email [email protected] for volume pricing and lead-time confirmation.
- Urgent AOG / line-down: Call +0086 198 5928 8691 for priority fulfilment assessment.
- Cross-reference needed? Provide your robot serial number and controller firmware version for compatibility verification.
Application-Specific FAQ
Q: Can I use 3HAC3356-14 on an IRB 6700 series robot?
A: The IRB 6700 uses a different connector family (IRC5 Compact / OmniCore). Please contact us with your robot serial number for a confirmed cross-reference before ordering.
Q: Is the 22 m cable compatible with the IRC5 Panel Mounted Controller (PMC)?
A: Yes. The PMC uses the same drive amplifier interface as the standard IRC5 cabinet; cable length compatibility is confirmed.
Q: What is the minimum bend radius for cable-track (e-chain) installation?
A: ABB specifies a minimum dynamic bend radius of 7.5× the cable outer diameter. Consult the cable routing manual 3HAC16831-1 for your specific robot model.
Q: Can this cable be field-shortened?
A: Field termination is not recommended as it voids the OEM warranty and may introduce impedance mismatches. Order the correct length for your installation.
Q: Do you provide a warranty?
A: Konmask provides a 90-day DOA (Dead on Arrival) warranty. OEM warranty terms apply for new factory-sealed units.
