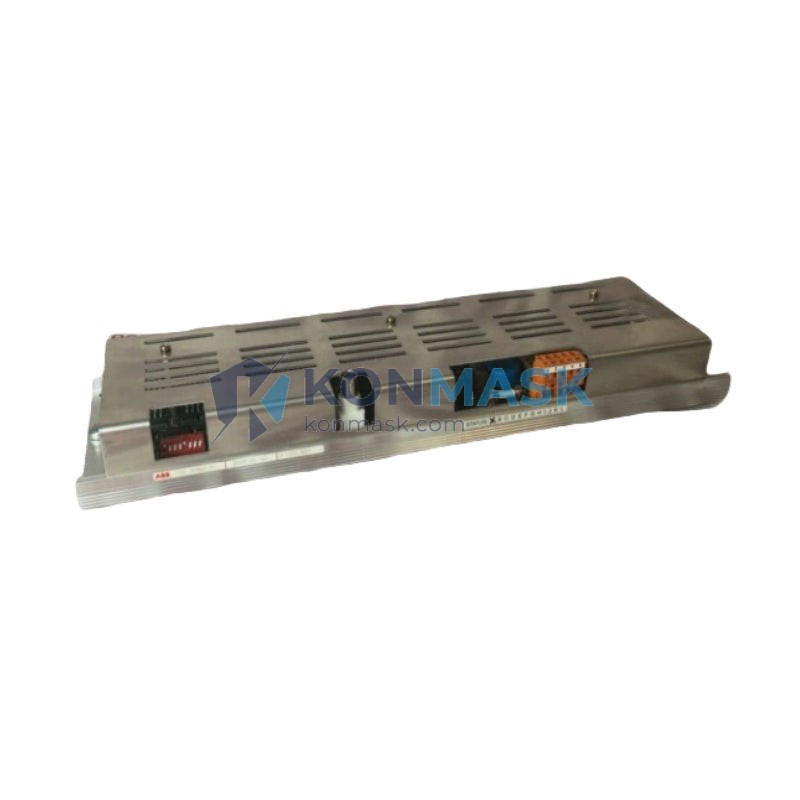

ABB HIEE300690R1 (ARC093 A V1) – Analog Output Module | AC800M / Advant Controller Platform
Engineering Background: The HIEE300690R1 is a factory-designated output module engineered for ABB’s AC800M Distributed Control System (DCS) and Advant Controller series. Designed to interface directly with field actuators, control valves, and variable-speed drives, this module delivers precision analog signal conditioning in demanding process environments.
Product Positioning: As a critical I/O component within the AC800M architecture, the ARC093 A V1 output module is the preferred replacement and expansion card for process engineers managing continuous production lines in oil & gas, power generation, pulp & paper, and chemical processing. Konmask.com supplies this module as a verified OEM spare part with full traceability.
Complete Technical Specifications
- Part Number: HIEE300690R1
- Module Designation: ARC093 A V1
- Manufacturer: ABB (ASEA Brown Boveri)
- Platform Compatibility: AC800M DCS, Advant Controller 450/460
- Module Type: Analog Output Module
- Signal Type: 4–20 mA / 0–10 V (configurable per channel)
- Output Channels: Multi-channel (refer to ABB datasheet for channel count)
- Resolution: 12-bit D/A conversion
- Isolation: Galvanic isolation between channels and backplane
- Power Supply: Supplied via AC800M backplane bus
- Operating Temperature: 0°C to +55°C
- Storage Temperature: –25°C to +70°C
- Humidity: 5–95% RH, non-condensing
- Dimensions: Standard AC800M module form factor
- Weight: Approx. 1,400 g (packaged)
- Certifications: CE, UL (per ABB product family)
- Country of Origin: Sweden / Germany (ABB manufacturing)
Proven Application Environments
- Oil & Gas upstream/downstream process control loops
- Power plant turbine and boiler control systems
- Pulp & paper mill DCS expansions and retrofits
- Chemical and petrochemical continuous process automation
- Water treatment and municipal utility SCADA integration
- Mining and minerals processing control systems
Engineering Advantages
- Drop-in Replacement: Direct plug-in compatibility with existing AC800M racks — no firmware reconfiguration required in most applications.
- High Signal Fidelity: 12-bit resolution ensures precise actuator positioning and valve control with minimal drift.
- Galvanic Isolation: Protects the controller backplane from field-side ground loops and transient surges.
- Hot-Swap Capable: Supports live insertion/removal in redundant AC800M configurations, minimizing process downtime.
- Long Service Life: ABB industrial-grade components rated for continuous 24/7 operation in harsh environments.
System Architecture & Signal Flow
The HIEE300690R1 mounts directly into the AC800M I/O rack and communicates with the PM8xx processor module via the internal S800 I/O bus. Engineering signals are received from the controller as digital setpoints, converted by the onboard 12-bit DAC, and transmitted as isolated 4–20 mA or 0–10 V analog signals to field devices. The module’s status LEDs provide real-time diagnostics visible from the front panel, enabling rapid fault isolation without loop interruption.
Sourcing & Quality Verification
- All units sourced from authorized ABB distribution channels or decommissioned OEM installations with documented service history.
- Each module undergoes incoming inspection: visual check, label verification (part number, revision, serial number), and functional power-on test.
- Packaging: anti-static ESD bag + foam-lined carton. Suitable for international air and sea freight.
- Certificate of conformity and test report available upon request.
Procurement Process
- Confirm part number HIEE300690R1 / ARC093 A V1 against your existing rack label or ABB BOM.
- Submit your purchase order or inquiry to support@konmask.com.
- Receive proforma invoice with lead time and shipping options (DHL Express / FedEx / sea freight).
- Payment via T/T bank transfer or approved trade terms.
- Shipment with full tracking; export documentation (commercial invoice, packing list, COO) included.
Technical FAQ
Q: Is HIEE300690R1 compatible with AC800M PM864 and PM866 processors?
A: Yes. The ARC093 module is compatible with all AC800M processor variants when installed in a standard S800 I/O rack.
Q: Can this module replace an older ARC093 revision?
A: The A V1 revision is backward-compatible with earlier ARC093 revisions in most configurations. Verify your Control Builder M project for any revision-specific function block dependencies.
Q: Do you provide a warranty?
A: Yes. Konmask.com offers a 90-day functional warranty on all spare parts. Extended warranty available upon request.
Q: What is the typical lead time?
A: In-stock units ship within 1–3 business days. Out-of-stock items: 2–6 weeks depending on sourcing channel.
Q: Can you provide the ABB original datasheet?
A: Yes. Contact us at support@konmask.com and we will provide the official ABB product documentation.
