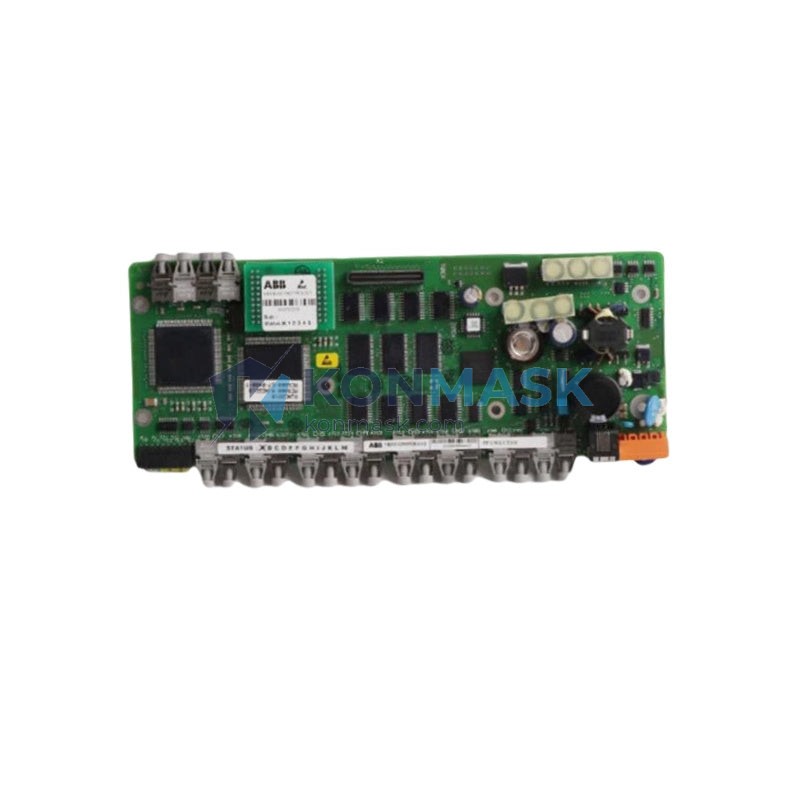

ABB SDCS-PIN-205B-COAT (3ADT220090R0035) DC Drive Interface Board | Replacement, Equivalent & Selection Guide
The ABB SDCS-PIN-205B-COAT (part number 3ADT220090R0035) is a conformal-coated pulse interface board designed for ABB DCS800 series DC drives. It serves as the critical link between the drive control unit and encoder/pulse feedback devices, enabling precise speed and position control in demanding industrial environments. This page provides a comprehensive replacement, equivalent, and selection reference for procurement engineers and automation specialists.
Technical Specifications
- Manufacturer: ABB
- Part Number: SDCS-PIN-205B-COAT
- Order Code: 3ADT220090R0035
- Series: DCS800 DC Drive Spare Parts
- Board Type: Pulse Interface / Encoder Feedback Board
- Coating: Conformal coated (enhanced environmental protection)
- Compatible Drive Series: ABB DCS800
- Condition: New / Genuine OEM
- Weight: ~700 g (packaged)
- Origin: ABB Group (EU/Global manufacturing)
Compatible Replacement & Equivalent Models
When the SDCS-PIN-205B-COAT is unavailable or under evaluation, the following models may serve as functional equivalents or direct replacements depending on your drive configuration:
- SDCS-PIN-205A — Non-coated predecessor; functionally equivalent, lower environmental rating
- SDCS-PIN-205B — Standard (non-coated) version of the same board generation
- SDCS-PIN-48 — Earlier-generation pulse interface board for DCS400/DCS500 series (verify compatibility)
- SDCS-PIN-51 — Alternative encoder interface for specific DCS800 configurations
- 3ADT220090R0001 / R0002 — Earlier order-code revisions; confirm hardware revision before substitution
⚠ Always verify firmware version, encoder type (HTL/TTL), and pulse count compatibility before substituting any interface board.
Why Choose the Original SDCS-PIN-205B-COAT
- Conformal coating provides superior protection against humidity, dust, and corrosive atmospheres vs. standard variants
- Genuine ABB OEM part — guaranteed compatibility with DCS800 firmware and hardware revisions
- Plug-and-play replacement — no parameter re-tuning required when replacing like-for-like
- Full ABB traceability — serial number, batch code, and CE/UL certification documentation available
- Reduced commissioning risk — eliminates compatibility unknowns associated with third-party alternatives
Typical Applications
- Paper & pulp mill winder/unwinder drives
- Steel rolling mill main drive systems
- Crane and hoist DC drive retrofits
- Extruder and mixer drives in chemical processing
- Marine propulsion and auxiliary DC drive systems
- Elevator and lift drive modernization projects
System Compatibility
- Primary: ABB DCS800 series (all power ratings)
- Encoder types supported: HTL (High Threshold Logic) and TTL incremental encoders
- Interface: D-sub connector to SDCS-CON-4 / SDCS-CON-F control board
- Not compatible with: DCS400, DCS550 (different board form factor)
Selection Guide
Use the following criteria to confirm the correct board for your application:
- Step 1 — Identify your drive: Confirm the drive nameplate shows DCS800 series.
- Step 2 — Check existing board label: Look for SDCS-PIN-205B or SDCS-PIN-205B-COAT on the installed board.
- Step 3 — Coating requirement: If the installation environment has humidity >85% RH, condensation risk, or chemical exposure — specify the -COAT variant.
- Step 4 — Encoder type: Confirm HTL or TTL encoder; both are supported by this board.
- Step 5 — Order code: Use 3ADT220090R0035 for the conformal-coated version.
Quality Assurance & Sourcing
- All units sourced through authorized ABB distribution channels or verified surplus with full traceability
- Pre-shipment inspection: visual, functional continuity, and packaging integrity check
- Anti-static packaging with humidity indicator card
- Certificate of conformity and original ABB documentation available on request
- Konmask.com specializes in industrial automation spare parts for ABB, Siemens, Schneider, and Rockwell platforms
How to Order
- Part Number: SDCS-PIN-205B-COAT
- Order Code: 3ADT220090R0035
- Contact: support@konmask.com | +0086 19859288691
- Lead Time: Contact us for current stock availability and lead time
- MOQ: 1 piece
- Add to cart directly, or send your BOM/RFQ to our team for volume pricing
Replacement & Compatibility FAQ
Q: Can SDCS-PIN-205B replace SDCS-PIN-205B-COAT?
A: Yes, functionally identical — the only difference is the conformal coating. Use the non-coated version only in clean, dry environments.
Q: Is this board compatible with DCS550 drives?
A: No. DCS550 uses a different interface board architecture. Contact us for the correct DCS550 spare part.
Q: Do you supply the matching SDCS-CON-4 control board?
A: Yes. Contact our team with your full drive BOM for a complete spare parts quotation.
Q: What is the warranty on this part?
A: 12-month warranty against manufacturing defects. Refer to our terms and conditions for full details.
Q: Can you provide an ABB certificate of origin?
A: Yes, available upon request for genuine OEM units.
