DC Drive Power Supply Solution – ABB SDCS-PIN-205B-COAT | SDCS Series
Where This Product Is Used

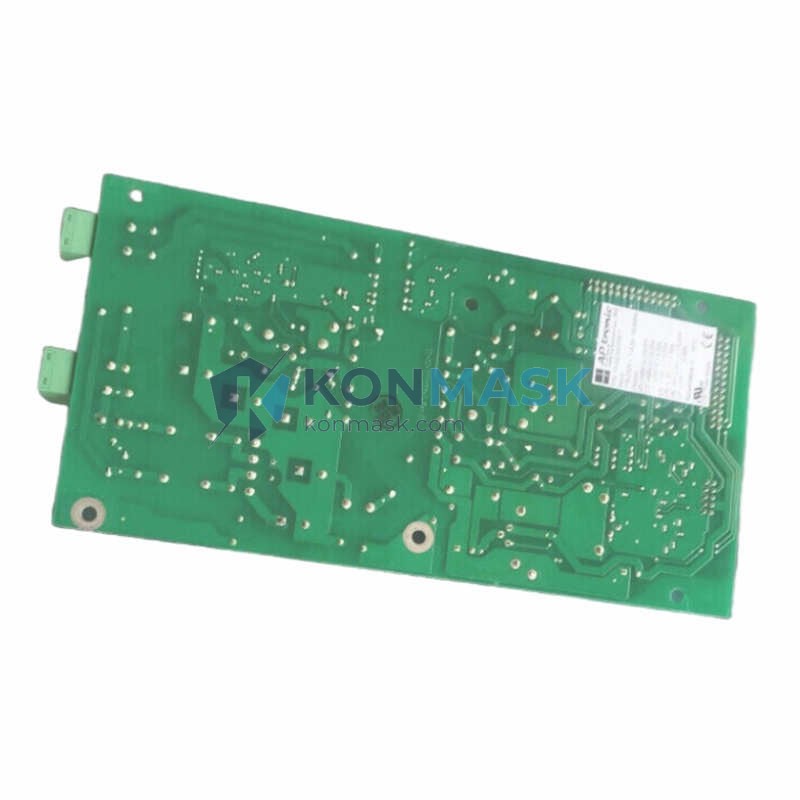

The ABB SDCS-PIN-205B-COAT (3ADT220090R0035) is a conformal-coated supply board designed for ABB’s DCS500 / DCS550 series DC drive systems. It is deployed in demanding industrial environments where reliable DC motor control is critical:
- Metals & Steel Mills — Rolling mill main drives, coiler/uncoiler tension control, and reversing mill speed regulation
- Paper & Pulp — Winder/unwinder drives, refiner motor control, and press section drives requiring precise torque management
- Marine & Offshore — Thruster drives, winch control systems, and anchor handling equipment in salt-spray environments (conformal coating critical)
- Mining & Minerals — Conveyor belt drives, crusher motor control, and hoist systems operating in dusty, high-humidity conditions
- Chemical & Petrochemical — Pump and compressor drives in corrosive atmospheres where conformal coating provides essential PCB protection
- Water & Wastewater — Large pump station DC drives and aeration blower motor control
- Crane & Hoist — Bridge crane main hoist, trolley, and travel drives requiring regenerative braking capability
Technical Specifications
| Manufacturer | ABB |
| Part Number | 3ADT220090R0035 |
| Model / Ordering Code | SDCS-PIN-205B-COAT |
| Product Series | SDCS (DCS500 / DCS550 DC Drive Platform) |
| Board Function | Supply Board — auxiliary power supply and interface for drive control electronics |
| Conformal Coating | Yes (COAT suffix) — IEC 60721-3-3 Class 3C2 / 3S2 rated |
| Weight | 300 g (approx.) |
| Compatibility | ABB DCS500B / DCS550 series DC drives |
| Condition | New / Surplus New / Refurbished (specify at inquiry) |
| Lead Time | Contact us for current stock availability |
Why Engineers Specify This Model
- Conformal Coating (COAT) — The factory-applied conformal coating protects PCB traces, solder joints, and components from moisture, condensation, salt fog, and chemical vapors. This is the preferred variant for marine, coastal, and chemical plant installations.
- Drop-in Replacement — Direct OEM replacement for the SDCS-PIN-205B-COAT position in DCS500B/DCS550 drives; no firmware changes or parameter re-mapping required.
- ABB OEM Pedigree — Manufactured to ABB’s drive platform quality standards, ensuring compatibility with ABB’s SDCS-CON control boards and SDCS-POW power boards.
- Reduced Downtime — Stocking this board as a critical spare eliminates multi-week OEM lead times during unplanned drive failures, protecting production uptime.
- Long Service Life — Designed for continuous industrial duty cycles in the DCS500/550 platform, which has a proven 20+ year field history.
Complete System Bill of Materials
The SDCS-PIN-205B-COAT operates within the ABB DCS500B / DCS550 drive stack. Common companion boards and components include:
- SDCS-CON-2 / SDCS-CON-2B — Main control board (speed/torque regulation)
- SDCS-POW-1 / SDCS-POW-4 — Power supply board
- SDCS-FEX-2 — Field excitation board
- SDCS-IOB-3 — I/O extension board
- SDCS-AMC-DC — Adaptive motor control module
- NDIO-01 / NAIO-01 — Digital/Analog I/O extension modules
- NPBA-12 — PROFIBUS adapter module
Contact Konmask for complete drive board sets or matched spare kits.
Compliance & Industry Standards
- CE Marked (ABB OEM product)
- IEC 60068-2 Environmental Testing (vibration, shock, humidity)
- IEC 60721-3-3 — Conformal coating rated for Class 3C2 (chemical) and 3S2 (sand/dust)
- RoHS compliance per ABB product documentation (verify by serial date code)
- UL/cUL recognition applicable to DCS500/550 drive system level
Quality Assurance & Sourcing
Konmask sources ABB SDCS series boards through authorized distribution channels and verified surplus supply networks. Every unit dispatched undergoes:
- Visual inspection for physical damage, corrosion, and component integrity
- Label and part number verification against ABB documentation
- Anti-static packaging with humidity indicator cards
- Traceability documentation provided on request
Refurbished units (where applicable) are tested on live DCS500/550 drive test benches prior to shipment.
How to Source This Part
- Add to Cart — Place your order directly on this page for in-stock units.
- Request a Quote — For bulk quantities, matched board sets, or specific condition requirements, email support@konmask.com.
- Urgent Requirement — Call or WhatsApp +0086 19859288691 for same-day response on critical breakdowns.
- Provide Drive Nameplate Data — Share your DCS500/550 drive nameplate (rating, serial number, software version) to confirm exact board compatibility before ordering.
Application-Specific FAQ
Q: What is the difference between SDCS-PIN-205B and SDCS-PIN-205B-COAT?
A: The COAT suffix indicates factory-applied conformal coating on the PCB. This is mandatory for marine, offshore, coastal, and chemical environments. For standard indoor industrial use, the non-coated variant is also acceptable.
Q: Is this board compatible with both DCS500B and DCS550 drives?
A: Yes. The SDCS-PIN-205B-COAT is used across the DCS500B and DCS550 platform families. Always verify against your drive’s hardware manual (3ADW000193 for DCS550) to confirm the exact board position.
Q: Can I replace this board myself, or does it require ABB service?
A: Board replacement is a field-serviceable procedure for qualified drive engineers. ABB’s DCS550 Hardware Manual provides step-by-step board replacement procedures. Konmask can provide technical guidance upon request.
Q: Do you provide a warranty on this board?
A: Yes. New/surplus-new units carry a 12-month warranty. Refurbished units carry a 6-month warranty. Contact us for full warranty terms.
Q: Can you supply a complete SDCS board set for a full drive rebuild?
A: Yes. Konmask specializes in complete SDCS board sets for DCS500/550 drive rebuilds. Contact us with your drive rating and we will prepare a matched BOM.
