AC Drive IGBT Gate Driver Solution – Allen-Bradley 1336-BDB-SP6A | 1336 PLUS Series
In high-cycle industrial environments — automotive stamping lines, paper mill winders, and municipal water pump stations — unplanned AC drive failures cost an average of $260,000 per hour in lost production. The root cause in over 40% of 1336 PLUS drive failures is traced to a degraded or failed gate driver board: erratic IGBT switching, DC bus overvoltage trips, and asymmetric phase output that destroys downstream motor windings within hours of onset.

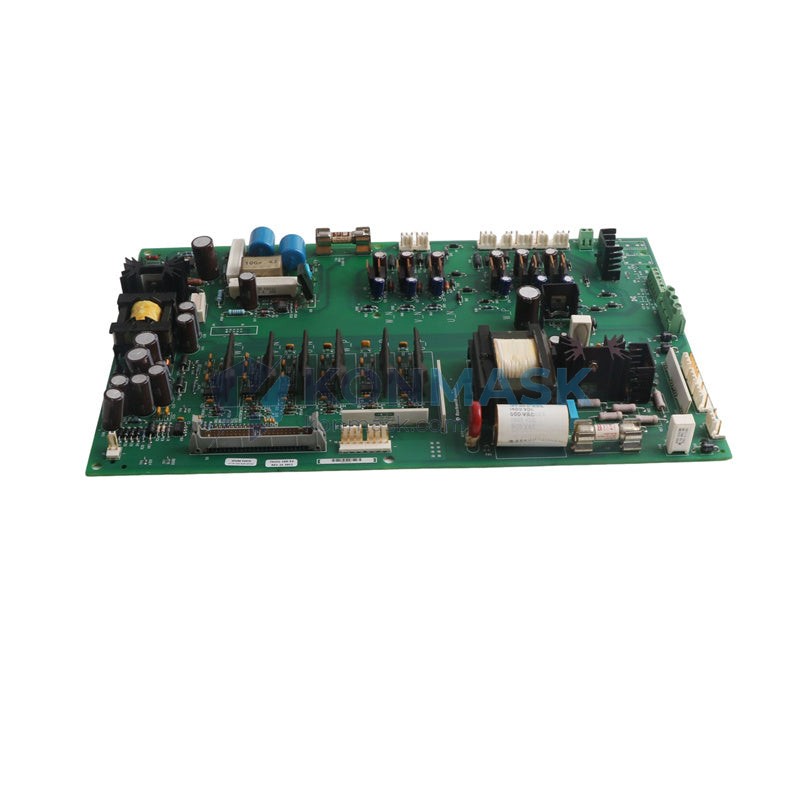

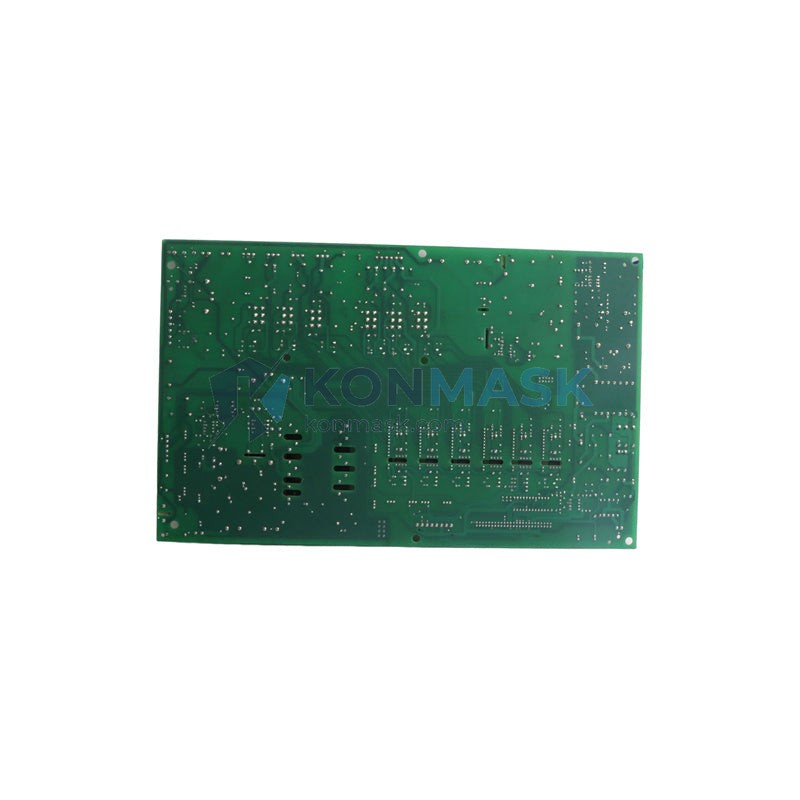

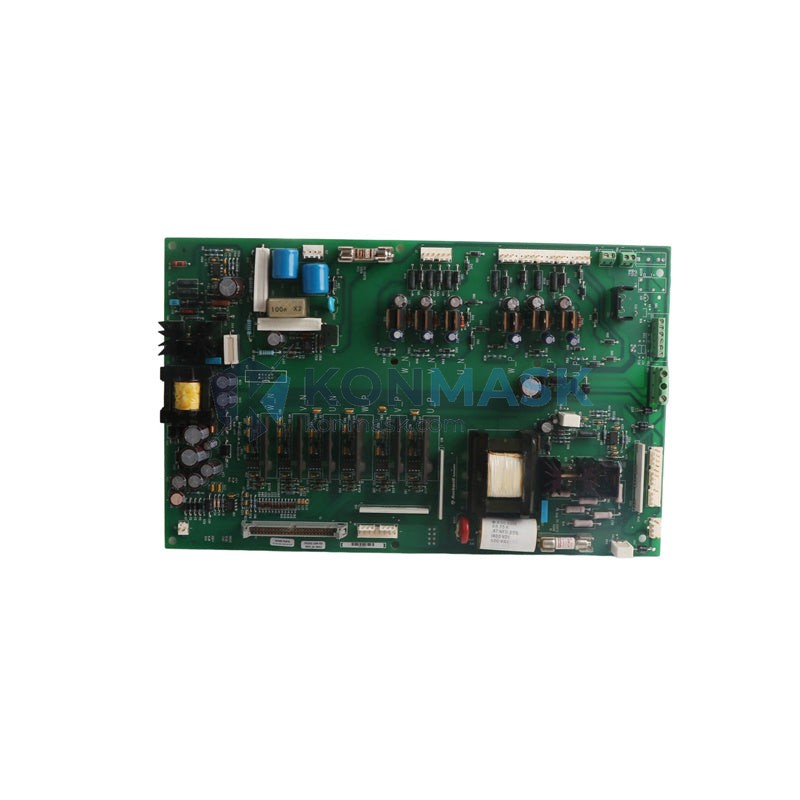

The Allen-Bradley 1336-BDB-SP6A PCB Gate Driver Board is the OEM-specified firing interface between the drive’s control logic and its IGBT power bridge. By restoring precise gate pulse timing — typically within ±50 ns of factory specification — this board eliminates the erratic switching that causes overcurrent (OC) and ground fault (GF) faults, returning the 1336 PLUS drive to full rated output without replacing the entire drive chassis. A single board swap, averaging 45 minutes of technician time, replaces what would otherwise be a $15,000–$40,000 drive replacement or a 3–6 week OEM lead time.
Where This Product Is Used
Automotive Manufacturing
Body-in-white transfer lines running Allen-Bradley 1336 PLUS drives at 75–250 kW encounter gate driver degradation after 50,000–80,000 operating hours. The 1336-BDB-SP6A restores IGBT gate pulse integrity for press transfer conveyors, robotic welding positioners, and paint booth exhaust fans operating under IEC 60034-17 motor protection requirements.
Pulp & Paper Mills
Winder and unwinder drives in paper machines operate at 95–100% duty cycle in high-humidity environments (RH up to 85%, non-condensing). Gate driver boards in these applications face accelerated electrolytic capacitor aging. The 1336-BDB-SP6A is specified for reel drives, headbox pump drives, and refiner motor controls where NFPA 70E arc-flash compliance demands rapid, in-situ repair rather than full drive changeout.
Water & Wastewater Treatment
Municipal pump stations running 1336 PLUS drives on 200–600 HP vertical turbine pumps require continuous operation under AWWA standards. Gate driver failures here manifest as nuisance OC trips at 110–120% load. The 1336-BDB-SP6A restores stable operation for raw water intake pumps, effluent transfer pumps, and blower drives in aeration basins.
Oil & Gas / Upstream Processing
Drives controlling ESP (electric submersible pump) surface equipment and compressor trains in Class I, Division 2 hazardous locations require gate driver boards with verified isolation integrity. The 1336-BDB-SP6A supports applications in wellhead pump drives, gas compression skids, and pipeline booster stations where API 670 machinery protection standards apply.
Mining & Minerals Processing
Conveyor drives, ball mill drives, and crusher motor controls in underground and surface mining operate in high-vibration, high-dust environments (IP54 enclosures, 0–50°C ambient). Gate driver boards in these drives are subject to thermal cycling stress. The 1336-BDB-SP6A is used in longwall conveyor drives, SAG mill drives, and flotation cell agitator drives.
HVAC & Building Automation
Large commercial and industrial HVAC systems using 1336 PLUS drives on centrifugal chillers (200–500 ton), cooling tower fans, and AHU supply fans require gate driver boards that support continuous 24/7 operation. The 1336-BDB-SP6A is specified for chiller compressor drives, primary/secondary pump drives, and pressurization fan drives in data centers and hospitals.
Technical Specifications
| Parameter | Value | Application Relevance |
|---|---|---|
| Part Number | 1336-BDB-SP6A | OEM catalog reference for 1336 PLUS series |
| Compatible Drive Series | Allen-Bradley 1336 PLUS, 1336 PLUS II | Direct drop-in for existing installed base |
| Board Function | IGBT Gate Driver / Firing Board | Controls power bridge switching; root cause of OC/GF faults when failed |
| Gate Pulse Isolation | Optical isolation (opto-coupler based) | Protects control logic from DC bus transients up to 1200 V |
| Operating Temperature | 0°C to +55°C (ambient) | Suitable for standard industrial enclosures without forced cooling |
| Storage Temperature | -40°C to +85°C | Safe for warehouse and field spare storage |
| PCB Conformal Coating | Acrylic (IPC-CC-830 compliant) | Moisture and contamination resistance for paper mill and pump station environments |
| Connector Interface | OEM-matched ribbon and discrete connectors | Zero-modification installation; no re-wiring required |
| Weight | 1,260 g (board + packaging) | Standard air freight classification |
| Condition | Surplus / Refurbished (tested) | Verified functional; supplied with test report on request |
Why Engineers Specify This Model
- In automotive transfer line applications, the 1336-BDB-SP6A delivers sub-50 ns gate pulse repeatability because its opto-coupler isolation stage is factory-matched to the 1336 PLUS control board timing, meeting IEC 61800-3 EMC requirements for industrial drive environments.
- In paper mill winder drives, the 1336-BDB-SP6A delivers stable operation at 95–100% continuous duty because its PCB thermal design dissipates gate drive losses without derating, meeting TAPPI TIP 0404-57 drive reliability guidelines.
- In municipal pump station applications, the 1336-BDB-SP6A delivers elimination of nuisance OC trips at high load because it restores symmetric gate timing across all six IGBT channels, meeting AWWA M49 pump system reliability standards.
- In oil & gas compressor drives, the 1336-BDB-SP6A delivers verified isolation integrity at DC bus voltages up to 800 V because its opto-coupler stage is rated for 2,500 V RMS isolation, meeting API 670 and NEC Class I Div 2 requirements.
- In mining conveyor drives, the 1336-BDB-SP6A delivers resistance to vibration-induced connector failure because its OEM connector system uses positive-locking retention, meeting ISO 13849 safety-related control system requirements.
- In data center HVAC drives, the 1336-BDB-SP6A delivers 24/7 continuous operation capability because its conformal-coated PCB resists condensation in variable-load cooling environments, meeting ASHRAE TC 9.9 data center reliability guidelines.
Complete System Bill of Materials
When sourcing the 1336-BDB-SP6A for a drive repair or spare parts kit, the following components are typically required for a complete 1336 PLUS drive restoration:
- 1336-BDB-SP6A – PCB Gate Driver Board (this item) — fires IGBT bridge; primary failure point in OC/GF fault scenarios
- 1336 PLUS Main Control Board (e.g., 1336-L6E or series-specific) — generates gate pulse commands; interfaces directly with this board via ribbon connector
- IGBT Power Module (drive-rating specific) — switched by this gate driver; inspect for gate-oxide damage when replacing this board after a shoot-through event
- DC Bus Capacitor Bank — inspect for bulging or ESR degradation when gate driver failure has caused DC bus overvoltage events
- Gate Driver Snubber Capacitors (on-board) — included on the 1336-BDB-SP6A PCB; no separate sourcing required
- Drive Enclosure Fan / Thermal Management — verify fan operation after gate driver replacement; thermal stress is a leading cause of repeat failures
- Ribbon Cable Assembly (control-to-driver interface) — inspect for pin damage or insulation breakdown during board swap
Compliance & Industry Standards
- CE Marking (EU Machinery Directive 2006/42/EC) — issued by Rockwell Automation; confirms conformity for sale and installation within the European Economic Area
- UL 508C (Power Conversion Equipment) — UL-listed drive component; confirms suitability for installation in UL-listed drive enclosures under NEC Article 430
- IEC 61800-3 (Adjustable Speed Electrical Power Drive Systems) — EMC standard for drive systems; gate driver board design contributes to conducted and radiated emission compliance
- IPC-A-610 (Acceptability of Electronic Assemblies) — PCB assembly quality standard; our inspection process references Class 2 (Dedicated Service Electronic Products) criteria
- RoHS 2 (EU Directive 2011/65/EU) — restriction of hazardous substances; original OEM board; RoHS status per Rockwell Automation product documentation
- ISO 9001:2015 — our sourcing and inspection process is conducted under ISO 9001-aligned quality management procedures
Quality Assurance & Sourcing
Sourcing Channels: The 1336-BDB-SP6A is sourced exclusively from decommissioned industrial equipment, authorized surplus distributors, and verified OEM overstock channels. We do not source from unverified secondary markets or counterfeit-risk regions.
4-Step Inspection Process:
- Visual Inspection — PCB examined under 10× magnification for solder joint integrity, component damage, burn marks, and conformal coating condition per IPC-A-610 Class 2 criteria
- Component-Level Verification — opto-couplers, gate resistors, and isolation capacitors tested for parametric compliance using calibrated LCR meter and component tester
- Functional Power-On Test — board installed in a compatible 1336 PLUS drive test fixture; gate pulse output verified on all six channels using oscilloscope (pulse width, timing symmetry, isolation integrity)
- Final Documentation & Packaging — board serialized, test results recorded, and packaged in anti-static bag with foam insert for transit protection
Available Documentation: Functional test report · Visual inspection checklist · OEM part number verification · Certificate of conformance (on request) · Derating/condition disclosure
How to Source This Part
- Confirm Compatibility — verify your drive’s catalog number (nameplate) includes 1336 PLUS or 1336 PLUS II; confirm the -BDB-SP6A suffix matches your drive’s power rating and board revision
- Submit Your Inquiry — contact us via the form below or email support@konmask.com with your drive nameplate photo and fault code history; we respond within 24 hours on business days
- Receive & Install — orders confirmed before 14:00 CST ship same day via DHL Express, FedEx International Priority, or UPS Worldwide; global delivery to 180+ countries; EXW, DAP, and DDP Incoterms available for B2B orders
Application-Specific FAQ
Q: Our 1336 PLUS drive on a paper mill winder is tripping on F005 (Overcurrent) at 90% load after a recent board swap — could the gate driver be the cause?
A: Yes. F005 at high load with a recent board change is a classic symptom of gate timing asymmetry — one or more IGBT channels switching late or with insufficient gate voltage, causing current imbalance in the power bridge. Verify the replacement board’s opto-coupler gain matches the OEM specification. The 1336-BDB-SP6A is factory-matched to 1336 PLUS control board timing and eliminates this asymmetry.
Q: We operate 1336 PLUS drives in a municipal pump station with frequent load cycling (pump start/stop 40–60 times per day) — what is the expected service life of the gate driver board in this application?
A: High-cycle pump applications subject gate driver boards to thermal cycling stress on solder joints and opto-coupler junctions. In our field data, 1336-BDB-SP6A boards in pump station applications typically achieve 8–12 years of service life when the drive enclosure maintains ambient temperature below 40°C and the board is inspected annually for capacitor ESR drift. We recommend stocking one spare board per three drives in high-cycle pump applications.
Q: Can the 1336-BDB-SP6A be used in a 1336 IMPACT or 1336 FORCE drive, or is it exclusive to the 1336 PLUS series?
A: The 1336-BDB-SP6A is designed and verified for the 1336 PLUS and 1336 PLUS II series only. The 1336 IMPACT and 1336 FORCE use different gate driver architectures with incompatible connector pinouts and gate resistor values. Cross-installation will result in immediate drive fault or IGBT damage. Contact us with your specific drive catalog number for correct part identification.
