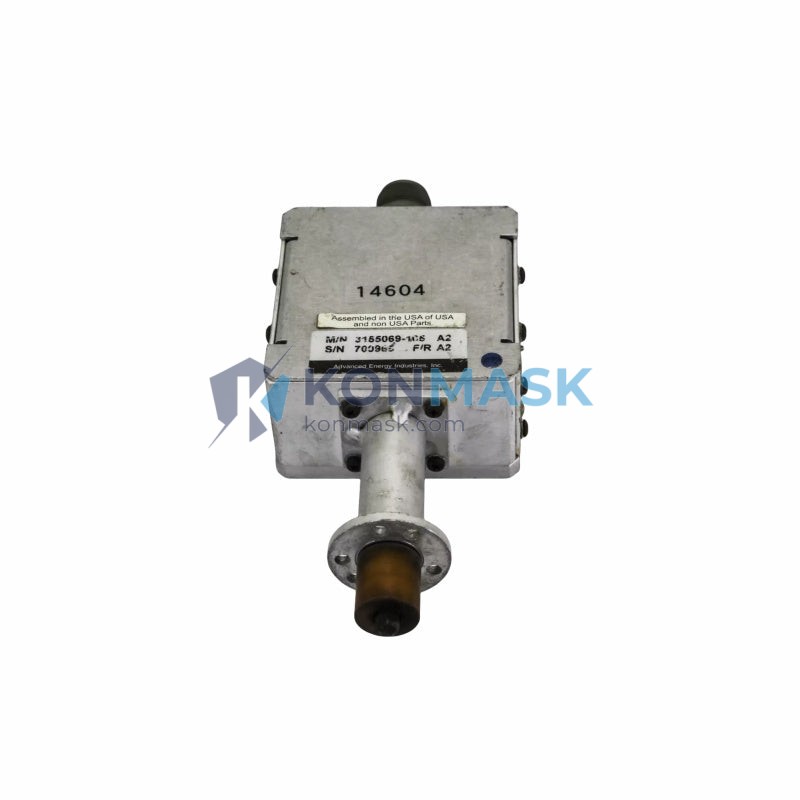

ADVANCED APEX 6-J14 13.56 MHz RF Impedance Match Network – APEX Series Energy CounterMatch
When an RF impedance match network fails on a plasma etch or CVD process tool, the entire production line stops. Unmatched impedance causes reflected power spikes that damage the RF generator, destabilize plasma, and trigger costly unplanned downtime — sometimes halting wafer output for hours or days. In high-volume semiconductor fabs, every minute of downtime translates directly into yield loss and missed delivery commitments. The ADVANCED APEX 6-J14 13.56 MHz Energy CounterMatch is the precision component that keeps your plasma process stable, your generator protected, and your throughput on target.
The APEX 6-J14 occupies a critical position within ADVANCED Energy’s flagship APEX Series — the industry benchmark for RF power delivery and impedance matching in semiconductor and advanced industrial plasma applications. Operating at the universally adopted 13.56 MHz ISM frequency, this unit is engineered for demanding etch, deposition, and surface treatment processes where impedance stability directly governs process repeatability. With cross-reference part numbers 3155069-105, 1110-00007, PC38-6, and 0020-36017, this module is a widely deployed component across global OEM platforms including Applied Materials, Lam Research, and Tokyo Electron tool families.
Technical Specifications
- Brand: ADVANCED Energy (ADVANCED)
- Model / SKU: APEX 6-J14
- Operating Frequency: 13.56 MHz
- Type: RF Impedance Match Network (Energy CounterMatch)
- Series: APEX Series
- Cross-Reference Part Numbers: 3155069-105 / 1110-00007 / PC38-6 / 0020-36017
- Weight: 2,600 g (approx.)
- Application: Plasma etch, CVD, PVD, surface treatment
- Condition: New / Refurbished / Tested — specify on inquiry
Note: All specifications are based on manufacturer documentation. Do not rely solely on this listing for engineering design decisions — always verify against the official ADVANCED Energy datasheet for your specific process tool revision.
Key Features & Benefits
- Precision Impedance Matching at 13.56 MHz: Minimizes reflected power, protecting your RF generator and maximizing power transfer efficiency to the plasma load.
- APEX Series Reliability: Engineered to ADVANCED Energy’s stringent quality standards, the APEX platform is trusted in thousands of semiconductor fabs worldwide.
- Multi-Part-Number Compatibility: Covers 3155069-105, 1110-00007, PC38-6, and 0020-36017 — simplifying procurement across different OEM tool revisions.
- Drop-In Replacement: Designed for direct substitution in compatible process tools without mechanical or electrical modification.
- Stable Process Performance: Consistent matching response reduces process drift, improving etch uniformity and deposition rate repeatability.
- Reduced Downtime Risk: Stocking a spare APEX 6-J14 eliminates extended lead-time exposure during unplanned failures.
Industry & Equipment Applications
- Semiconductor Manufacturing: Plasma etch (RIE, ICP, CCP), PECVD, PVD sputtering tools
- Flat Panel Display (FPD): Large-area plasma deposition systems
- Solar Cell Production: PECVD silicon nitride and amorphous silicon deposition
- Advanced Packaging: Wafer-level packaging etch and deposition processes
- R&D & University Labs: Plasma research systems requiring stable 13.56 MHz RF delivery
- Compatible OEM Platforms: Applied Materials, Lam Research, Tokyo Electron, Mattson, Axcelis, and other major process tool OEMs (verify compatibility with your specific tool model)
System Integration & Compatible Parts
The APEX 6-J14 is designed to integrate within ADVANCED Energy’s APEX RF power delivery ecosystem. Typical system configurations pair this match network with:
- ADVANCED Energy APEX RF Generators (13.56 MHz series)
- RF transmission cables and connectors rated for 13.56 MHz operation
- Plasma chamber electrode assemblies and electrostatic chuck (ESC) systems
- Process control interfaces compatible with ADVANCED Energy match network communication protocols
Contact our technical team at support@konmask.com to confirm compatibility with your specific tool configuration before ordering.
Our Quality Assurance Process
At Konmask.com, every ADVANCED Energy component we supply goes through a structured verification process before shipment:
- Source Verification: Parts are sourced from authorized distributors, certified refurbishers, or directly from OEM decommissioned tool inventories with traceable documentation.
- Visual & Physical Inspection: Each unit is inspected for mechanical integrity, connector condition, and absence of corrosion or damage.
- Functional Testing (where applicable): Refurbished units undergo bench testing to verify RF matching performance prior to shipment.
- Secure Packaging: Anti-static packaging with foam cushioning to prevent transit damage to sensitive RF components.
- Documentation: Test reports and condition certificates available upon request.
How to Order
- Submit an Inquiry: Email support@konmask.com or call +0086 19859288691 with your part number and required quantity.
- Receive a Quote: Our team will confirm availability, condition, lead time, and pricing within 1 business day.
- Confirm & Pay: We accept T/T (bank transfer), PayPal, and other B2B payment methods. Proforma invoice provided.
- Shipment & Tracking: Parts are shipped via DHL, FedEx, or UPS Express with full tracking. Export documentation included.
- After-Sales Support: Our technical team remains available post-delivery for integration questions.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, RF power, and automation components — not a general marketplace.
- Global B2B Export Experience: Serving semiconductor fabs, system integrators, and MRO teams across Asia, Europe, and the Americas.
- Fast Response: Inquiries answered within 24 hours. Urgent requirements handled same day.
- Competitive Pricing: Direct sourcing relationships allow us to offer market-competitive pricing without compromising on part quality.
- Reliable Logistics: Experienced in export compliance, customs documentation, and international freight for sensitive electronic components.
- Long-Term Partnership: We build relationships, not just transactions — repeat customers receive priority service and preferred pricing.
Frequently Asked Questions
- Q: Is the ADVANCED APEX 6-J14 a new or refurbished part?
- A: We supply both new and certified refurbished units depending on availability. Please specify your preference when submitting an inquiry, and we will confirm the condition and provide documentation accordingly.
- Q: Can you cross-reference part numbers 3155069-105, 1110-00007, PC38-6, and 0020-36017?
- A: Yes. All four part numbers refer to the same ADVANCED APEX 6-J14 13.56 MHz match network unit. We can supply against any of these references.
- Q: What is the lead time for this part?
- A: Lead time depends on current stock. In-stock units ship within 3–5 business days. Out-of-stock units typically have a 2–6 week lead time. Contact us for real-time availability.
- Q: Do you provide a warranty?
- A: Yes. Refurbished units carry a 90-day functional warranty. New units carry the manufacturer’s standard warranty. Terms are confirmed at the time of quotation.
- Q: Can you ship internationally?
- A: Yes. We ship worldwide via DHL, FedEx, and UPS Express. We handle all export documentation including commercial invoice, packing list, and certificate of origin.
- Q: How do I verify compatibility with my process tool?
- A: Please provide your tool model, OEM, and current match network part number. Our technical team will confirm compatibility before you commit to a purchase.
