Advanced Energy 2301350-A PCB Pinnacle Inverter Drive | Replacement, Equivalent & Selection Guide

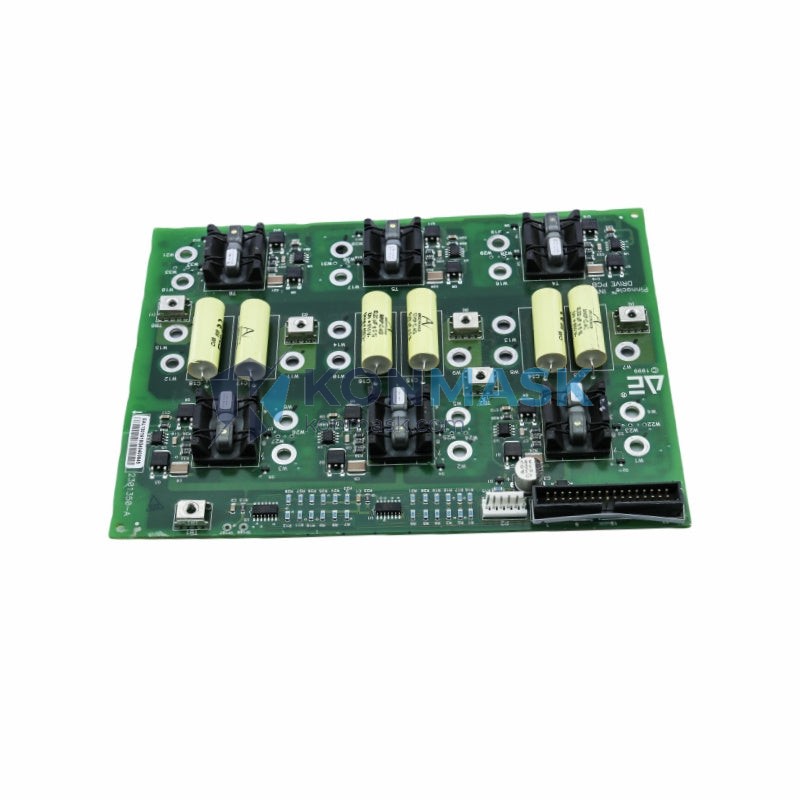

The Advanced Energy 2301350-A (also referenced as 90157017 / 173733-001 / TTLD13-11 / FIMS-F / 3881-020024-12) is a PCB Pinnacle Inverter Drive designed for precision RF power delivery in semiconductor processing and industrial plasma systems. Konmask.com supplies genuine and compatible-grade units with full traceability for B2B buyers worldwide.
Technical Specifications
- Manufacturer: Advanced Energy Industries, Inc.
- Part Number (Primary): 2301350-A
- Cross-Reference SKUs: 90157017 | 173733-001 | TTLD13-11 | FIMS-F | 3881-020024-12
- Type: PCB Pinnacle Inverter Drive Board
- Series: Pinnacle™ RF Power Supply Series
- Function: Inverter drive control board for RF power generation and regulation
- Form Factor: PCB Assembly
- Weight: 360 g (approx.)
- Condition Available: New, Refurbished, Tested-Used
Compatible Replacement & Equivalent Models
The following part numbers are confirmed cross-references or functional equivalents for the Advanced Energy 2301350-A. Always verify electrical and mechanical compatibility before substitution:
- 90157017 — Advanced Energy internal revision reference
- 173733-001 — OEM assembly cross-reference
- TTLD13-11 — Functional equivalent board designation
- FIMS-F — Field-interchangeable module reference
- 3881-020024-12 — Alternate manufacturer part number
Note: Konmask.com recommends confirming firmware revision and connector pinout before installing any replacement board.
Why Choose the Original Model
- Factory-calibrated inverter drive ensures stable RF output and minimal harmonic distortion
- Designed to meet Advanced Energy’s Pinnacle series power tolerance specifications
- Full OEM traceability — serial number, revision, and test records available on request
- Reduces system downtime risk compared to unverified third-party alternatives
- Backed by Konmask.com’s sourcing quality assurance process
Typical Applications
- Semiconductor wafer fabrication (CVD, PVD, etch processes)
- Plasma-enhanced deposition systems
- Industrial RF power supply maintenance and repair
- OEM equipment refurbishment for Advanced Energy Pinnacle platforms
- Research and laboratory plasma systems
System Compatibility
- Platform: Advanced Energy Pinnacle™ RF Power Supply
- Compatible Systems: Pinnacle 27, Pinnacle Plus, and related Pinnacle-series chassis
- Interface: Internal PCB slot — verify chassis revision before ordering
- Firmware: Confirm firmware version compatibility with your system controller
Selection Guide
Use the table below to select the correct part for your application:
- Need OEM exact match? → Order 2301350-A (primary SKU)
- Have cross-reference 90157017 or 173733-001? → Functionally equivalent; confirm PCB revision
- Replacing TTLD13-11 or FIMS-F? → Direct drop-in for most Pinnacle chassis; verify connector layout
- Budget-sensitive refurbishment? → Request tested-used grade with test report
- Unsure of compatibility? → Contact Konmask.com with your system model and serial number for expert verification
Quality Assurance & Sourcing
- All units sourced through verified industrial supply channels
- Pre-shipment inspection: visual, dimensional, and functional checks
- ESD-safe packaging with anti-static shielding bag and foam insert
- Certificate of conformance available upon request
- Traceability documentation provided for MRO and OEM customers
How to Order
- Confirm your part number: 2301350-A or accepted cross-reference
- Specify required condition: New / Refurbished / Tested-Used
- Add to cart or contact us for bulk pricing and lead time
- For urgent requirements, email [email protected] with your PO details
Replacement & Compatibility FAQ
Q: Is 90157017 a direct replacement for 2301350-A?
A: Yes, 90157017 is an internal Advanced Energy cross-reference and is functionally equivalent in most Pinnacle-series applications. Verify PCB revision before installation.
Q: Can FIMS-F replace 2301350-A in all Pinnacle chassis?
A: FIMS-F is a field-interchangeable module designation. Compatibility depends on chassis revision. Contact us for confirmation.
Q: Do you offer tested-used units with warranty?
A: Yes. Tested-used units come with a 90-day functional warranty and a test report. Contact us for availability.
Q: What is the lead time for new stock?
A: Typical lead time is 3–10 business days depending on stock status. Contact us for real-time availability.
Q: Can I return a part if it is not compatible?
A: Please verify compatibility before ordering. Contact [email protected] within 7 days of receipt for return authorization.
