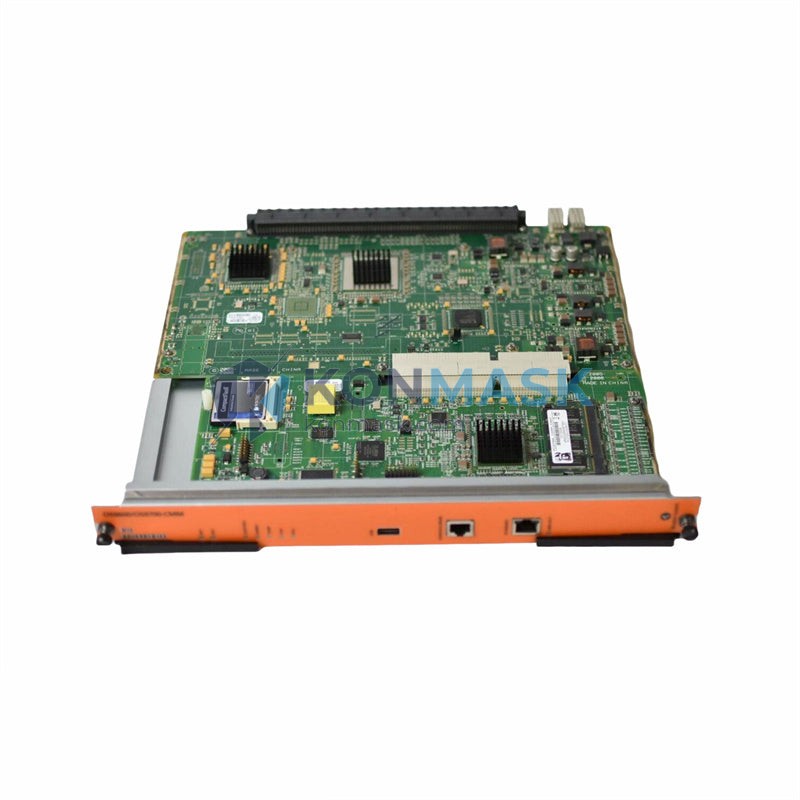

Alcatel OS9600/OS9700-CMM Chassis Management Module | Replacement, Equivalent & Selection Guide
The Alcatel OS9600/OS9700-CMM is the dedicated Chassis Management Module (CMM) for the Alcatel-Lucent OmniSwitch 9600 and OmniSwitch 9700 modular chassis platforms. It provides centralized control-plane management, redundancy switching, and system-level supervision for enterprise and carrier-grade network deployments. This page serves as a comprehensive selection and sourcing reference for procurement engineers, network integrators, and maintenance teams.
Technical Specifications
- Part Number: OS9600/OS9700-CMM
- Brand / Manufacturer: Alcatel-Lucent (Nokia)
- Module Type: Chassis Management Module (CMM)
- Compatible Chassis: OmniSwitch 9600, OmniSwitch 9700
- Function: Centralized system management, control-plane processing, redundancy failover
- Redundancy: Supports 1+1 CMM redundancy (primary + secondary)
- Management Interfaces: Console port, out-of-band Ethernet management
- Flash Storage: Onboard flash for OS image and configuration storage
- Weight: Approx. 1,350 g
- Form Factor: Hot-swappable blade module
- Condition Available: New / Refurbished / Tested
Compatible Replacement & Equivalent Models
When sourcing a replacement for the OS9600/OS9700-CMM, the following models are functionally equivalent or cross-compatible depending on chassis revision and software version:
- OS9600-CMM — CMM variant specific to OmniSwitch 9600 chassis
- OS9700-CMM — CMM variant specific to OmniSwitch 9700 chassis
- OS9600/OS9700-CMM-B — Revised hardware revision (B-suffix), backward compatible
- OS9800-CMM — Higher-capacity CMM for OS9800 chassis; not directly interchangeable but functionally analogous
- Third-party compatible CMMs — Select OEM-equivalent modules tested for OS9600/OS9700 slot compatibility
Always verify chassis hardware revision and AOS software version before substituting CMM modules. Contact support@konmask.com for cross-reference validation.
Why Choose the Original OS9600/OS9700-CMM
- Guaranteed Compatibility: Factory-matched to OS9600 and OS9700 chassis backplane specifications
- Stable Failover: Validated 1+1 redundancy with sub-second switchover for mission-critical uptime
- Full AOS Feature Support: Supports all Alcatel-Lucent AOS management features including SNMP, CLI, WebView, and OmniVista integration
- Long Service Life: Designed for 24/7 carrier and enterprise environments with extended MTBF ratings
- Firmware Upgrade Path: Supports in-service AOS upgrades without chassis downtime
Typical Applications
- Enterprise core and distribution layer switching infrastructure
- Campus network aggregation with high-availability requirements
- Data center top-of-rack and aggregation deployments
- Carrier and service provider edge switching
- Industrial automation network backbones requiring deterministic failover
- Spare/replacement module for existing OS9600/OS9700 installed base
System Compatibility
| Chassis Model | CMM Slot | AOS Version | Redundancy |
|---|---|---|---|
| OmniSwitch 9600 | CMM-A / CMM-B | AOS 6.x / 7.x | 1+1 supported |
| OmniSwitch 9700 | CMM-A / CMM-B | AOS 6.x / 7.x | 1+1 supported |
| OmniSwitch 9800 | Not compatible | — | — |
Selection Guide
Use the following criteria to confirm the correct CMM for your deployment:
- Step 1 — Identify chassis model: Confirm whether your chassis is OS9600 or OS9700 (label on chassis front panel)
- Step 2 — Check hardware revision: Locate the chassis revision label (Rev A / Rev B) to ensure CMM slot compatibility
-
Step 3 — Verify AOS version: Run
show systemvia CLI to confirm current AOS release; CMM firmware must match - Step 4 — Redundancy requirement: If deploying 1+1 redundancy, order two identical CMM units (same part number and revision)
- Step 5 — New vs. refurbished: For production environments, specify new units; for lab or backup, tested-refurbished units are cost-effective
Quality Assurance & Sourcing
- All units sourced through authorized distribution channels or verified secondary market suppliers
- Each module undergoes functional power-on testing and port-level verification before shipment
- Serialized traceability maintained for every unit — original manufacturer labels preserved
- Packaging: ESD-safe anti-static bag + foam-lined carton for international shipping
- Warranty: 90-day replacement warranty on all tested units; 12-month warranty on new stock
- Export compliance: HTS classification and export documentation available on request
How to Order
- Online: Add to cart directly from this page — specify quantity and condition (new / refurbished)
- RFQ / Bulk: Email support@konmask.com with part number, quantity, and required delivery date
- Phone / WhatsApp: +0086 19859288691 (Mon–Fri, 09:00–18:00 CST)
- Lead Time: In-stock units ship within 1–3 business days; special orders 7–15 business days
- Payment: T/T bank transfer, PayPal, credit card via Shopify Payments
- Shipping: DHL / FedEx / UPS international express; sea freight available for bulk orders
Replacement & Compatibility FAQ
Q: Can I use an OS9700-CMM in an OS9600 chassis?
A: The OS9600/OS9700-CMM part number covers both chassis. However, always verify the hardware revision label on your chassis before installation. Contact us for confirmation.
Q: Is the OS9600/OS9700-CMM hot-swappable?
A: Yes. The CMM supports hot-swap replacement. If a redundant CMM is installed, the secondary takes over automatically during the swap with no traffic interruption.
Q: What AOS version is required for this CMM?
A: The OS9600/OS9700-CMM is compatible with AOS 6.x and 7.x releases. Ensure the CMM firmware matches the chassis AOS version before installation.
Q: Do you provide a certificate of conformance or test report?
A: Yes. A functional test report is available for all refurbished units. Certificate of conformance available for new stock upon request.
Q: Can I return a module if it is not compatible?
A: Yes. We accept returns within 30 days for unused modules in original packaging. Please contact support before returning.
