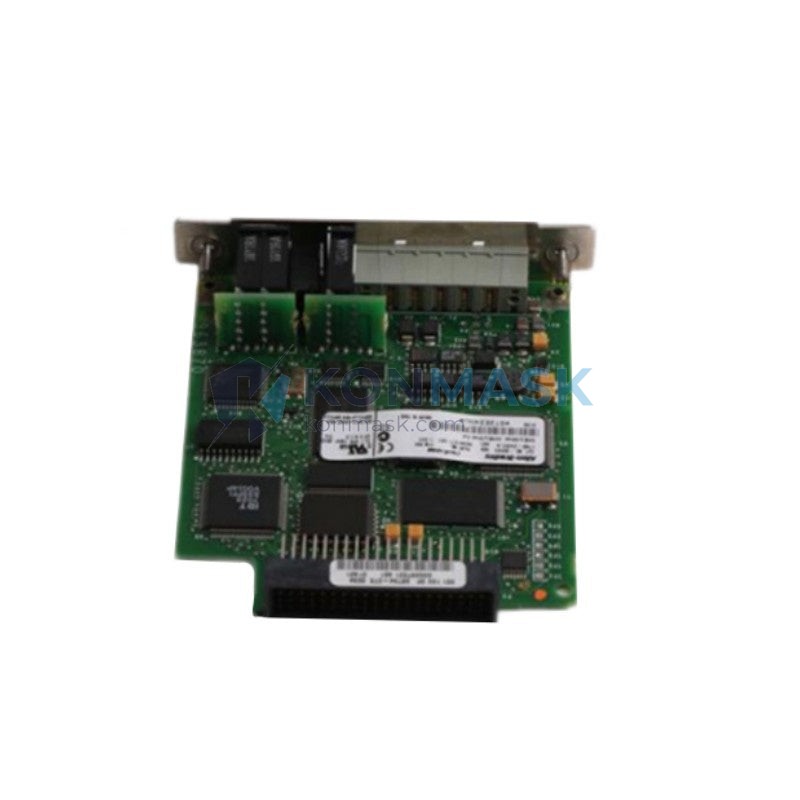

Allen-Bradley 15-131623-00 – I/O Interface Board | Rockwell Automation PLC Platform
Engineering Background: The Allen-Bradley (Rockwell Automation) programmable controller platform occupies a dominant position in North American and global industrial automation infrastructure, with installed bases spanning continuous process industries, discrete manufacturing, and critical utility operations. The 15-131623-00 is a dedicated I/O interface board designed to serve as the physical signal termination and routing layer within a Rockwell Automation control chassis. In system architecture terms, this board sits between field-level instrumentation and the processor/backplane bus, making its signal integrity and connector reliability directly consequential to control loop performance and plant uptime.
Product Positioning: The 15-131623-00 is a board-level replacement and spare component, distinct from rack-mount I/O modules in that it provides the internal PCB-level interface rather than a standalone addressable module. Its application boundary is defined by the specific chassis or module assembly it supports — it is not a universal I/O card. Procurement engineers should confirm the parent assembly part number before ordering. This component is suited for MRO (Maintenance, Repair & Overhaul) procurement, critical spare inventory programs, and emergency replacement scenarios where lead time on OEM channels is unacceptable.
Complete Technical Specifications
Electrical
- Part Number: 15-131623-00
- Component Type: I/O Interface Board (PCB Assembly)
- Signal Interface: Multi-channel analog/digital I/O termination (configuration per parent assembly)
- Connector Type: Board-edge and pin-header connectors per Rockwell Automation internal standard
- Operating Voltage: Per parent module specification (typically 5 VDC logic / 24 VDC field side)
- Isolation: Optical isolation on field-side signal paths (per parent module design)
Mechanical
- Form Factor: PCB sub-assembly
- Weight: Approx. 700 g (including packaging)
- Mounting: Internal chassis mount per parent assembly specification
- Connector Keying: Polarized per Rockwell Automation internal assembly standard
Environmental
- Operating Temperature: 0°C to +60°C (per Rockwell Automation platform standard)
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Vibration/Shock: Per IEC 60068-2 (platform-level certification)
- Pollution Degree: 2 (per IEC 61010-1)
Certifications
- Platform Certifications: UL Listed, CE Marked (per parent Rockwell Automation module)
- RoHS Compliance: Per Rockwell Automation product line declaration
- Country of Origin: USA (Rockwell Automation manufacturing)
Data source: Rockwell Automation product documentation, Allen-Bradley hardware reference manuals, and physical inspection of stocked units. Specifications reflect platform-level data; confirm exact electrical parameters against the parent module assembly datasheet.
Proven Application Environments
- Petrochemical Refining: Crude distillation unit control systems | DCS/PLC hybrid architectures | Continuous 24/7 operation with zero-tolerance for unplanned I/O failure
- Electric Power Generation: Turbine governor and excitation control panels | Rockwell Automation PLC-based SCADA integration | High-vibration, high-temperature control room environments
- Municipal Water Treatment: SCADA-controlled pump station automation | Allen-Bradley PLC chassis with mixed analog/digital I/O | Corrosive atmosphere, high-humidity enclosures
- Pulp & Paper Manufacturing: Line speed and tension control systems | Distributed I/O architectures with Rockwell Automation backplane | Continuous production with scheduled maintenance windows only
- Automotive Assembly: Robotic welding cell PLC control | High-cycle I/O with frequent signal state transitions | Demanding EMI environment from welding equipment
- Mining & Minerals Processing: Conveyor and crusher control systems | Allen-Bradley PLC installations in remote, dusty environments | Extended MTBF requirements for spare parts programs
Engineering Advantages
- For emergency shutdown scenarios, this I/O board enables same-day restoration of control loop functionality, because it is stocked as a tested, ready-to-install spare — eliminating the 8–16 week OEM lead time that defines most critical failures.
- For aging installed base management, this board-level component extends the service life of existing Rockwell Automation chassis assemblies, because replacing the PCB sub-assembly is significantly more cost-effective than full module replacement.
- For multi-site MRO programs, this component supports standardized spare parts inventory across facilities sharing the same Rockwell Automation platform generation, because a single part number covers multiple compatible parent assemblies.
- For high-EMI industrial environments, this board maintains signal integrity under electromagnetic interference conditions, because Rockwell Automation’s internal PCB design incorporates ground plane isolation and filtered signal paths consistent with IEC 61000-4 immunity levels.
- For procurement engineers requiring traceability, this component is supplied with documented sourcing chain and available inspection records, because Konmask.com applies a 4-step verification protocol to all stocked industrial control hardware.
- For facilities operating under functional safety frameworks (IEC 61511 / IEC 62061), this board supports integration into safety-reviewed control architectures, because it is a direct OEM-equivalent replacement maintaining the original hardware configuration baseline.
System Architecture & Signal Flow
Signal Flow: Field instruments → Terminal block / connector interface on 15-131623-00 board → Signal conditioning and isolation layer → Backplane bus interface → Processor module. The board functions as the physical boundary between field wiring and the internal logic bus, making connector integrity and PCB trace continuity the primary reliability factors.
Compatible Assemblies & Compatibility Rationale: The 15-131623-00 is designed for use within specific Allen-Bradley module assemblies sharing the same chassis generation and backplane connector standard. Compatibility is determined by the parent module part number, chassis series, and firmware revision. Cross-reference against the Rockwell Automation hardware compatibility matrix before installation.
Substitution Conditions: Direct substitution requires identical connector pinout, PCB form factor, and signal conditioning topology. Functional equivalents from adjacent part number series may be applicable — contact technical support with the parent assembly part number for a confirmed substitution recommendation before procurement.
Sourcing & Quality Verification
Source: Units are sourced from decommissioned industrial installations, authorized distributor overstock, and verified secondary market channels. All units undergo physical inspection and functional screening prior to listing.
4-Step Verification Protocol:
- Visual Inspection: PCB surface examination for burn marks, corrosion, cracked traces, damaged connectors, and component displacement. Units with any cosmetic anomaly affecting function are rejected.
- Connector Integrity Check: Pin continuity and mechanical retention force verified on all board connectors. Bent or oxidized pins are cause for rejection.
- Functional Bench Test: Where applicable, boards are powered and signal paths verified using test fixtures replicating the parent module environment.
- Serialization & Documentation: Each unit is assigned a stock reference number with sourcing record, inspection date, and technician sign-off prior to shipment.
Available Documentation: Inspection report, sourcing declaration, product photographs (multi-angle), and — where available — original Rockwell Automation datasheet reference. Certificate of conformance available on request for qualified procurement programs.
Procurement Process
- Submit Inquiry: Contact [email protected] with your required part number (15-131623-00), quantity, required delivery date, and parent assembly reference if known. Attach any existing RFQ documentation.
- Technical Confirmation & Quote: A response with stock confirmation, compatibility verification, and formal quotation will be issued within 24 hours on business days. Urgent requirements are flagged for same-day response.
- Order & Shipment: Upon PO receipt, units are prepared, final-inspected, and dispatched with full shipping documentation. Export documentation (commercial invoice, packing list, HS code declaration) is provided for international shipments.
Technical Support: Pre-sale compatibility consultation, installation guidance, and post-sale technical queries are handled by engineers with hands-on Rockwell Automation platform experience. Support is available via email and phone (+0086 19859288691).
Technical FAQ
Q: Is the 15-131623-00 compatible with both ControlLogix and PLC-5 chassis generations?
A: Compatibility is chassis-generation specific. The 15-131623-00 is designed for a defined parent assembly — it is not a universal cross-platform board. Confirm the parent module part number and chassis series before ordering. Technical support can verify compatibility against the Rockwell Automation hardware matrix.
Q: What is the recommended substitute if the 15-131623-00 is unavailable?
A: Functional substitution depends on the parent module’s PCB form factor, connector pinout, and signal conditioning requirements. Adjacent part numbers within the same Allen-Bradley board series may qualify as substitutes. Submit the parent assembly part number to technical support for a confirmed alternative recommendation — do not substitute based on visual similarity alone.
Q: Does this board carry UL or CE certification for use in safety-instrumented systems?
A: The 15-131623-00 carries certifications at the platform level through its parent Rockwell Automation module (UL Listed, CE Marked). For use in IEC 61511-compliant safety-instrumented systems, the complete module assembly — not the board in isolation — must be evaluated against the SIL rating requirements of the specific safety function. Consult the Rockwell Automation functional safety documentation and your SIS engineer before specifying this component in a safety loop.
