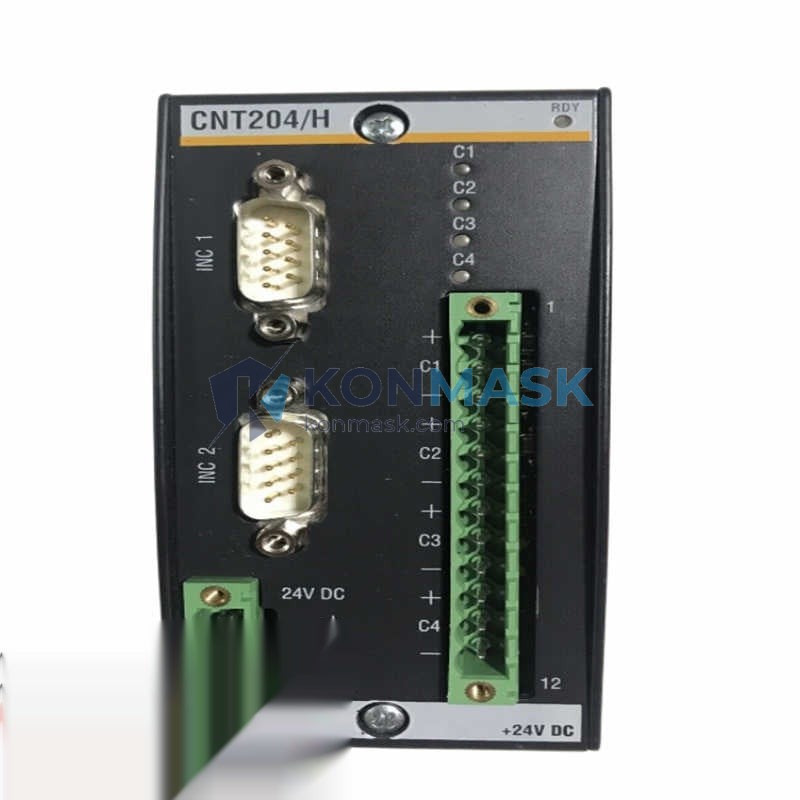

Genuine BACHMANN CNT204 Counter Module | MPC Series – Verified Source
Konmask.com is a dedicated industrial automation components supplier specializing in genuine BACHMANN hardware. Every unit we ship undergoes our documented 4-step quality verification process before dispatch. When your control system uptime depends on part authenticity, source matters.
Technical Specifications
- Manufacturer: BACHMANN Electronic GmbH
- Part Number / Model: CNT204
- Module Type: Counter Module
- Series: MPC (Modular Process Controller)
- Channels: 4 independent counter channels
- Input Frequency: Up to 1 MHz (channel-dependent)
- Counter Width: 32-bit
- Input Signal: HTL / TTL compatible
- Operating Voltage: 24 V DC (via backplane)
- Operating Temperature: 0 °C to +55 °C
- Weight: 400 g (approx.)
- Communication: BACHMANN MPC backplane bus
- Certifications: CE, UL (refer to OEM datasheet for full compliance list)
Note: Always cross-reference with the official BACHMANN CNT204 datasheet for your specific firmware revision. Contact us if you need the datasheet PDF.
Our 4-Step Quality Verification Process
Every BACHMANN CNT204 unit sourced through Konmask.com passes the following inspection before shipment:
- Visual Inspection — Housing integrity, label authenticity, connector pin condition, and absence of counterfeit markings checked against OEM reference samples.
- Firmware & Label Cross-Check — Part number, revision code, and date code verified against BACHMANN published product matrix.
- Functional Bench Test — Where test equipment is available, modules are powered and basic I/O response is confirmed prior to packaging.
- Secure Packaging & Documentation — Units are anti-static bagged, boxed with protective foam, and shipped with a Konmask inspection certificate and packing list.
Key Features & Benefits
- ✅ 4-channel independent counting — simultaneous multi-axis position or event tracking without CPU load
- ✅ High-speed input up to 1 MHz — suitable for encoder feedback and high-frequency pulse counting
- ✅ 32-bit counter resolution — eliminates overflow issues in long-run production processes
- ✅ HTL & TTL compatibility — integrates with a wide range of industrial sensors and encoders
- ✅ Hot-swap capable (system-dependent) — minimizes planned downtime during module replacement
- ✅ Seamless MPC backplane integration — plug-and-play within existing BACHMANN MPC rack systems
Typical Applications
- CNC machine tool position feedback and spindle speed monitoring
- Conveyor belt speed and product counting in packaging lines
- Rotary encoder integration for servo and stepper motor control
- Flow meter pulse counting in process automation
- Cam and shaft position tracking in press and stamping machinery
- Wind turbine pitch and rotor speed monitoring (BACHMANN is widely used in wind energy)
Compatible System Components
The CNT204 is designed for use within the BACHMANN MPC modular controller ecosystem. Commonly paired components include:
- BACHMANN MPC240 / MPC265 / MPC270 CPU Modules
- BACHMANN DIO216 / DIO232 Digital I/O Modules
- BACHMANN AIO288 Analog I/O Modules
- BACHMANN MPC rack backplanes (4-slot, 8-slot, 16-slot)
- BACHMANN SolutionCenter engineering software
Need help confirming compatibility with your existing rack configuration? Contact our technical team.
Global Sourcing & Shipping Capabilities
- Stock Status: In-stock units ship within 1–3 business days; sourced/allocated units typically 5–15 business days
- Shipping Methods: DHL Express, FedEx International Priority, UPS Worldwide, sea freight for bulk orders
- Export Compliance: We handle commercial invoices, packing lists, and HS code documentation (HS: 8537.10)
- Regions Served: Asia-Pacific, Europe, Middle East, Americas, Africa
- Minimum Order: 1 unit (bulk pricing available for 5+ units — request a quote)
- Lead Time Transparency: We confirm lead time before payment — no surprises
Certifications & Compliance Statement
BACHMANN Electronic GmbH manufactures products in compliance with applicable EU directives including the Machinery Directive and Low Voltage Directive. The CNT204 carries CE marking. Konmask.com supplies only hardware sourced through verified industrial channels. We do not sell refurbished units as new. All units are represented accurately as new, surplus-new, or tested-used where applicable — clearly stated at time of quotation.
Konmask.com is not an authorized BACHMANN distributor. We are an independent industrial parts supplier. For warranty claims on new OEM units, please contact BACHMANN directly or your regional authorized distributor.
How to Order
- Add to Cart — Proceed directly for standard single-unit orders.
- Request a Quote — For bulk orders (5+ units), OEM pricing, or lead time confirmation, email [email protected] with your required quantity and delivery timeline.
- Payment — We accept T/T (bank transfer), PayPal, and major credit cards. LC available for large orders.
- Shipping Confirmation — Tracking number and commercial invoice provided within 24 hours of dispatch.
- After-Sales Support — DOA (Dead on Arrival) claims accepted within 7 days of receipt with photographic evidence.
Authenticity & Trust FAQ
Q: How do I know the CNT204 I receive is genuine?
A: Every unit passes our 4-step visual and functional inspection. We provide an inspection certificate with each shipment. If you have concerns upon receipt, contact us within 7 days with photos and we will resolve it.
Q: Are you an authorized BACHMANN distributor?
A: No. Konmask.com is an independent industrial automation parts supplier. We source from verified surplus, OEM overstock, and secondary market channels. This allows us to supply discontinued or long-lead-time parts that authorized distributors cannot.
Q: Can I get a datasheet or technical documentation?
A: Yes. Email [email protected] with your part number and we will provide the available BACHMANN technical documentation.
Q: What if the module is DOA or incompatible?
A: We accept DOA returns within 7 days of confirmed delivery. Compatibility issues due to incorrect ordering are the buyer’s responsibility — please confirm your system requirements before purchasing or ask us to verify.
Q: Do you offer volume discounts?
A: Yes. Request a formal quotation for 5+ units. We offer tiered pricing for regular B2B buyers and can establish blanket order agreements.
