RC Vehicle & UAV Motor Control Solution – Blomiky ZJBX-25-464 | ZJBX Series
Where This Product Is Used

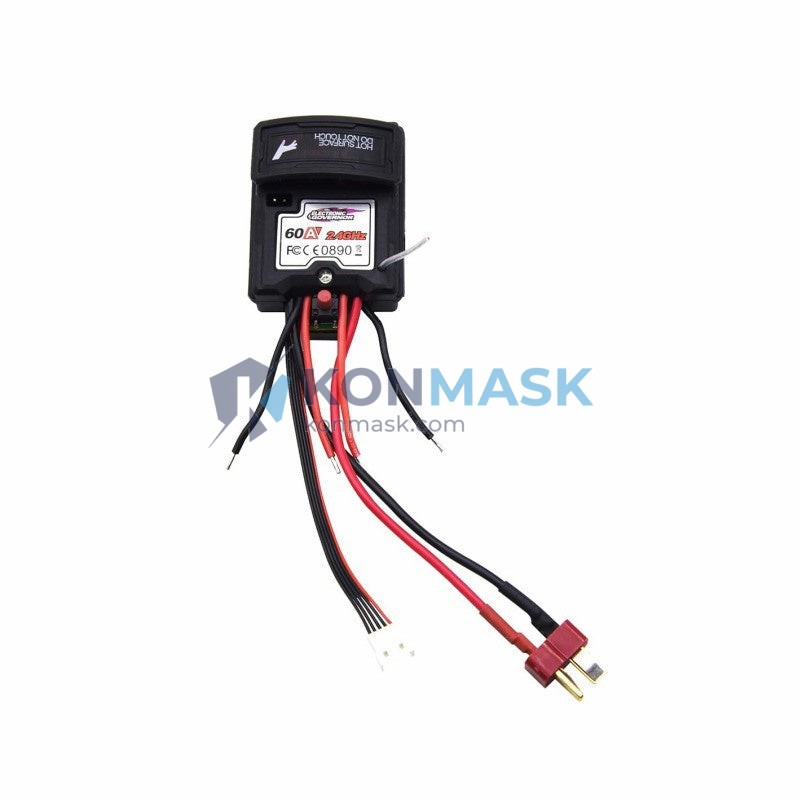

The Blomiky ZJBX-25-464 Electronic Speed Controller (ESC) is engineered for applications requiring precise brushless motor speed regulation. Typical deployment environments include:
- RC Cars & Trucks – 1/10 to 1/8 scale off-road and on-road platforms requiring 25A continuous current handling
- UAV / Multirotor Drones – Fixed-wing and quadcopter builds where compact ESC footprint and reliable BEC output are critical
- Robotics & Automation Platforms – Mobile robot drive systems using brushless DC motors up to the rated amperage
- Marine RC Vessels – Waterproof-compatible installations in RC boat motor control circuits
- DIY Power Systems – Custom electric vehicle prototypes and maker projects requiring a proven, off-the-shelf ESC solution
Technical Specifications
| Parameter | Value |
|---|---|
| Model / SKU | ZJBX-25-464 |
| Brand | Blomiky |
| Series | ZJBX |
| Continuous Current | 25A |
| Motor Type Supported | Brushless (3-phase BLDC) |
| Input Voltage | 2S–3S LiPo (7.4V–11.1V) |
| BEC Output | 5V / 2A (linear BEC) |
| Signal Interface | Standard PWM (1000–2000 µs) |
| Programming | Transmitter stick programming / programming card compatible |
| Protection Features | Low-voltage cutoff, over-temperature, throttle signal loss |
| Weight | ~30 g (without wires) |
| Connector | 3.5mm bullet connectors (motor side) |
Why Engineers Specify This Model
- Proven ZJBX Series Reliability – The ZJBX platform is a field-tested ESC line with consistent firmware behavior across production batches
- 25A Headroom for Burst Loads – Handles transient current spikes common in aggressive acceleration profiles without thermal shutdown
- Integrated BEC – Eliminates the need for a separate receiver power supply, simplifying wiring harness design
- Broad Compatibility – Works with standard RC receivers, flight controllers (Betaflight, ArduPilot), and PWM-capable microcontrollers (Arduino, STM32)
- Compact Form Factor – Low-profile PCB fits tight chassis bays in 1/10 scale platforms
Complete System Bill of Materials
For a complete brushless drive system using the ZJBX-25-464, the following components are typically required:
- Blomiky ZJBX-25-464 ESC (this unit)
- Brushless outrunner/inrunner motor (2S–3S compatible, matched KV rating)
- 2S or 3S LiPo battery pack with XT60 or Deans connector
- RC receiver or PWM signal source (flight controller / microcontroller)
- ESC programming card (optional, for parameter adjustment without transmitter)
- Heat shrink tubing and bullet connector crimping tools for installation
Compliance & Industry Standards
- Designed for compliance with CE marking requirements for electronic modules sold in the EU market
- RoHS-compliant PCB and component materials
- PWM signal interface conforms to standard RC industry timing specifications (1000–2000 µs pulse width)
- Note: This ESC is intended for RC and hobby/light robotics applications. It is not certified for safety-critical industrial machinery control per IEC 61508 or ISO 13849.
Quality Assurance & Sourcing
All Blomiky ESC units supplied through Konmask.com are sourced directly from authorized Blomiky distribution channels. Each unit undergoes:
- Incoming inspection for physical damage and connector integrity
- Functional power-on verification prior to dispatch
- Anti-static packaging for PCB protection during transit
We maintain traceability records for all stock batches to support warranty and returns processing.
How to Source This Part
- Add to Cart – Click the purchase button above to order directly from Konmask.com with secure checkout
- Request a Quote – For bulk orders (10+ units), contact [email protected] for volume pricing
- Lead Time – Standard orders ship within 1–3 business days from our warehouse; international orders subject to customs clearance timelines
- OEM / Project Sourcing – If you need a customized ESC specification or a matched motor-ESC kit, contact our technical team with your application requirements
Application-Specific FAQ
Q: Is the ZJBX-25-464 compatible with sensored brushless motors?
A: No. This ESC is designed for sensorless brushless motors. For sensored motor applications, a sensored-compatible ESC is required.
Q: Can I use this ESC with a 4S LiPo battery?
A: No. The maximum input voltage is 3S (11.1V). Operating above this rating will damage the ESC and void any warranty.
Q: Does this ESC support reverse / brake functions?
A: Yes. Forward, brake, and reverse modes are programmable via transmitter stick sequence or programming card.
Q: What is the maximum burst current rating?
A: The ZJBX-25-464 is rated at 25A continuous. Burst current tolerance depends on thermal conditions; adequate airflow or heat sink mounting is recommended for sustained high-load operation.
Q: Is this ESC suitable for use in a drone / quadcopter?
A: It can be used in fixed-wing RC aircraft with a standard receiver. For multirotor applications, a dedicated multirotor ESC with active braking and fast PWM response is generally preferred.
