B&R 7CP570.60-1 CPU Module | Replacement, Equivalent & Selection Guide

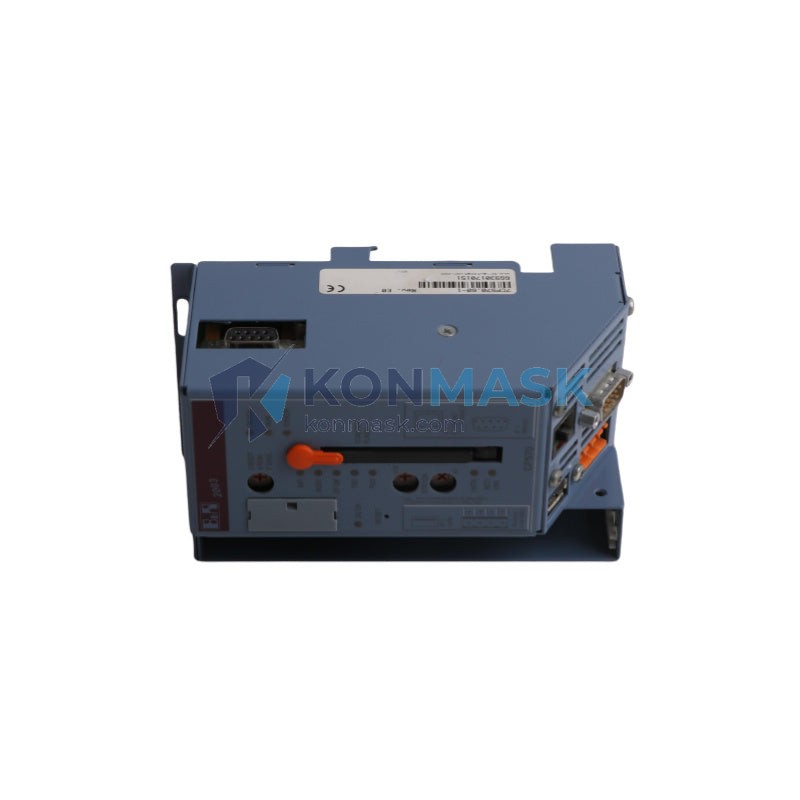

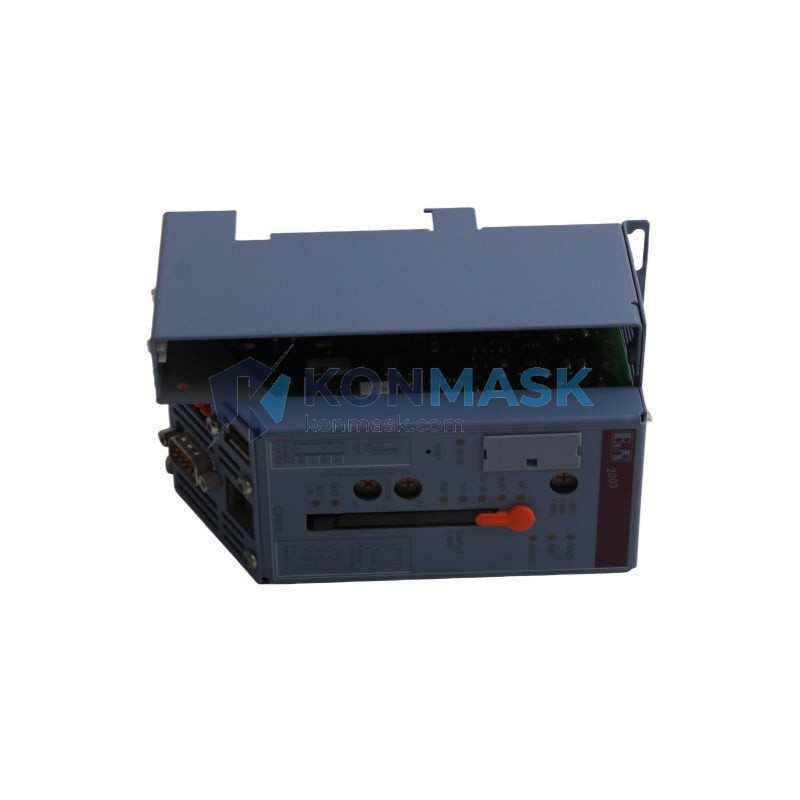

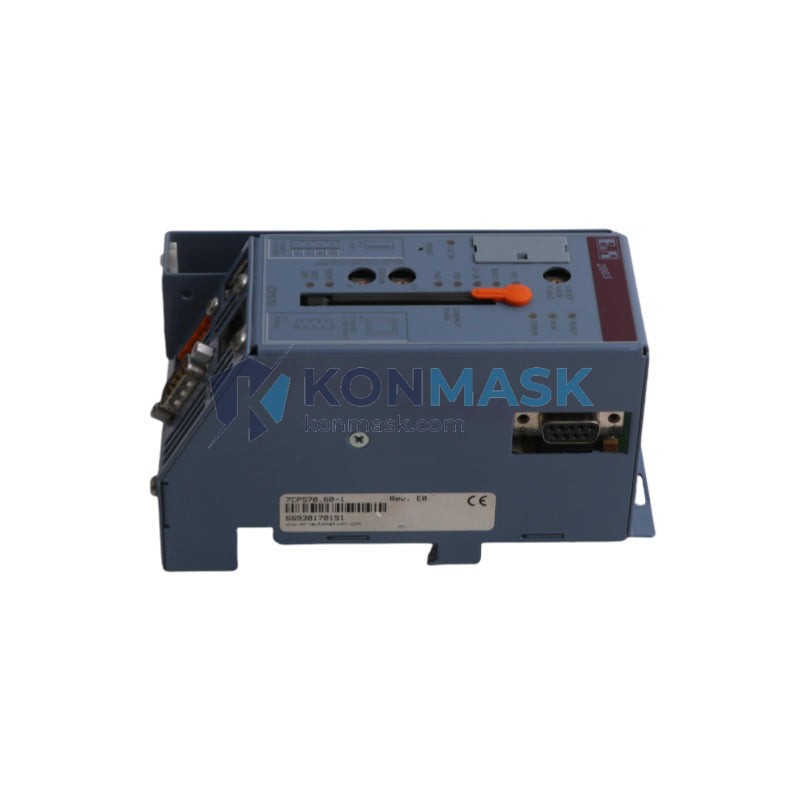

The B&R 7CP570.60-1 is a high-performance CPU module designed for the B&R X20 automation platform. This controller delivers reliable real-time processing for demanding industrial applications. At Konmask.com, we specialize in sourcing genuine and compatible automation components — helping engineers select, compare, and replace industrial controllers with confidence.
Technical Specifications
- Part Number: 7CP570.60-1
- Manufacturer: B&R (Bernecker + Rainer)
- Series: X20 System
- Module Type: CPU / Controller Module
- Processor: Intel Atom E3815 (1.46 GHz, single-core)
- RAM: 1 GB DDR3
- Flash Storage: 4 GB onboard
- Operating System: B&R Automation Runtime (AR)
- Communication Interfaces: 2× Ethernet (POWERLINK / standard), 1× USB 2.0, 1× CompactFlash slot
- Fieldbus Support: POWERLINK, Modbus TCP, OPC UA
- Power Supply: 24 VDC
- Operating Temperature: 0 °C to +55 °C
- Protection Rating: IP20
- Weight: 660 g
- Certifications: CE, UL, cUL
Compatible Replacement & Equivalent Models
If the 7CP570.60-1 is unavailable or you need a cost-effective alternative, the following models offer compatible functionality within the B&R X20 ecosystem or from third-party platforms:
- B&R 7CP574.60-1 — Upgraded variant with enhanced memory; direct drop-in replacement in most X20 configurations
- B&R 7CP570.60-2 — Revised hardware revision; functionally equivalent, check firmware compatibility
- B&R 7CP476.60-1 — Lower-spec CPU for cost-sensitive applications; reduced I/O throughput
- Siemens S7-1500 CPU 1511-1 PN — Cross-brand alternative for new system designs; requires full re-engineering
- Beckhoff CX2020 — PC-based controller alternative; suitable for TwinCAT-based migration projects
Note: Cross-brand replacements require system re-engineering. Always verify firmware, backplane, and software compatibility before substitution.
Why Choose the Original Model
- ✅ Seamless integration with existing B&R X20 backplanes and I/O modules
- ✅ Full support for B&R Automation Studio programming environment
- ✅ Proven reliability in 24/7 industrial production environments
- ✅ Native POWERLINK real-time Ethernet for deterministic motion control
- ✅ Long-term availability and manufacturer support lifecycle
Typical Applications
- Machine automation and CNC control systems
- Packaging and material handling lines
- Robotics and motion control integration
- Process automation in food, pharma, and automotive industries
- SCADA and HMI gateway applications
System Compatibility
- Platform: B&R X20 System backplane
- Software: B&R Automation Studio 4.x and above
- Fieldbus: POWERLINK V2, Modbus TCP, OPC UA
- I/O Expansion: Compatible with full X20 I/O module range
- Power Supply Modules: X20PS9400, X20PS9402 series
Selection Guide
Use the following criteria to select the right CPU module for your application:
- Processing demand: For standard machine control → 7CP570.60-1 is sufficient. For high-axis-count motion → consider 7CP574.60-1 or higher.
- Memory requirements: Applications with large data logging or vision integration may require upgraded RAM variants.
- Communication needs: Confirm required fieldbus protocols (POWERLINK, Profibus, EtherNet/IP) before selection.
- Environmental conditions: Standard IP20 rating; for harsh environments, consider X20 system enclosure solutions.
- Budget: Refurbished 7CP570.60-1 units are available for cost-sensitive retrofit projects — contact us for pricing.
Quality Assurance & Sourcing
- 🔍 All units undergo functional verification before shipment
- 📦 Original packaging preserved where available
- 🏭 Sourced from authorized distributors and certified secondary market channels
- 📋 Traceability documentation available upon request
- 🛡️ 90-day warranty on all stocked units
How to Order
- Add the B&R 7CP570.60-1 to your cart directly on this page
- For bulk orders (>5 units) or urgent requirements, contact us at support@konmask.com
- Lead time: In-stock units ship within 1–3 business days; sourced units 7–15 business days
- Export documentation (CO, packing list, commercial invoice) available for international orders
Replacement & Compatibility FAQ
Q: Can I replace 7CP570.60-1 with 7CP574.60-1 without reprogramming?
A: In most cases yes — the 7CP574.60-1 is backward compatible. However, always verify the Automation Studio project hardware configuration and update accordingly.
Q: Is the 7CP570.60-1 compatible with older X20 backplanes?
A: Yes, it is compatible with standard X20 backplane segments. Verify power supply capacity when adding high-current I/O modules.
Q: Do you supply refurbished units?
A: Yes. Refurbished units are tested, cleaned, and carry a 90-day warranty. Contact us for availability and pricing.
Q: Can this module be used as a standalone controller?
A: The 7CP570.60-1 requires an X20 backplane and power supply module. It is not designed for standalone DIN-rail mounting without the X20 system infrastructure.
Q: What programming software is required?
A: B&R Automation Studio 4.x or later. Contact B&R or your local integrator for licensing.
