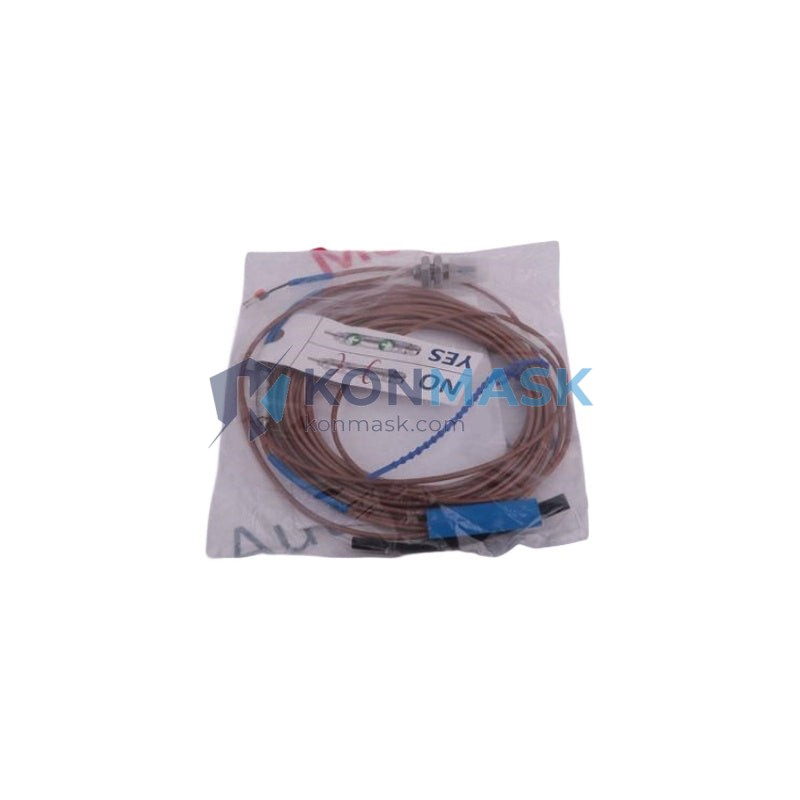

EPRO PR6424/010-040-CN CON021 – Eddy Current Transducer for Rotating Machinery | PR6424 Series
Engineering Background: The EPRO PR6424 series is a globally recognized eddy current (non-contact) transducer platform engineered for continuous vibration and displacement monitoring of rotating machinery. Developed to meet the stringent demands of turbomachinery OEMs and end-users, the PR6424 series is fully compatible with Emerson CSI, Bently Nevada 3500/3300, and EPRO MMS6000 monitoring systems.
Product Positioning: The PR6424/010-040-CN CON021 is a 10 mm diameter probe with a 40 mm cable extension, designed for radial shaft vibration and axial position measurement in high-temperature, high-speed rotating equipment. The CON021 connector variant ensures direct plug-in compatibility with EPRO and third-party signal conditioners. This model is the preferred choice for procurement engineers sourcing replacement or expansion sensors for existing PR6424-based monitoring loops.
Complete Technical Specifications
- Manufacturer: EPRO (Emerson)
- Part Number / SKU: PR6424/010-040-CN CON021
- Series: PR6424
- Sensor Type: Eddy Current (Non-Contact) Transducer / Proximity Probe
- Probe Diameter: 10 mm
- Cable Length: 40 mm (extension cable)
- Connector Type: CON021
- Measurement: Radial shaft vibration, axial position displacement
- Sensitivity: 8 mV/µm (200 mV/mil) nominal
- Linear Range: 0–4 mm (0–160 mil) typical
- Frequency Response: 0–10,000 Hz
- Operating Temperature: -35°C to +120°C (probe tip)
- Target Material: Steel / Stainless Steel (AISI 4140 / 316L)
- Supply Voltage: -24 VDC (via signal conditioner)
- Output Signal: DC voltage proportional to gap distance
- Ingress Protection: IP67 (probe body)
- Weight: Approx. 300 g (probe + cable assembly)
- Compliance: CE, API 670 compatible
Proven Application Environments
- Steam & Gas Turbines: Continuous radial vibration monitoring of journal bearings; early detection of rotor imbalance and misalignment in power generation turbines (50–500 MW class).
- Centrifugal Compressors: Axial thrust position monitoring in multi-stage compressors at petrochemical and LNG plants; trip-level protection per API 670.
- Pumps & Fans: Shaft orbit analysis in large boiler feed pumps and induced-draft fans at thermal power stations.
- Gearboxes: Gear mesh frequency monitoring and bearing clearance trending in high-speed gearboxes.
- Marine Propulsion: Shaft displacement monitoring in ship propulsion systems operating in high-humidity, salt-spray environments.
- Paper & Steel Mills: Roll position and vibration monitoring in continuous process lines requiring 24/7 uptime.
Engineering Advantages
- Non-Contact Measurement: Zero mechanical wear; no influence on rotor dynamics; suitable for shaft speeds up to 100,000 RPM.
- High Frequency Response: Captures sub-synchronous, synchronous, and super-synchronous vibration components up to 10 kHz.
- CON021 Plug Compatibility: Direct replacement for existing EPRO PR6424 loops without rewiring; reduces maintenance downtime.
- API 670 Ready: Meets the machinery protection standard for critical rotating equipment in oil & gas and power generation.
- Wide Temperature Range: Operates reliably in hot-section environments adjacent to turbine casings and exhaust ducts.
- Long-Term Stability: Hermetically sealed probe tip resists oil, steam, and process gas ingress over multi-year service intervals.
System Architecture & Signal Flow
The PR6424/010-040-CN CON021 operates as part of a three-component eddy current measurement chain:
- 1. Probe (PR6424/010-040-CN CON021): Generates a high-frequency electromagnetic field; detects gap change as impedance variation.
- 2. Extension Cable (CON021 interface): Transmits the RF signal from probe tip to driver/oscillator with minimal loss; matched impedance design.
- 3. Signal Conditioner / Driver: Compatible with EPRO CON021 drivers (e.g., PR9268 series), Bently Nevada 3300 XL, and MMS6000 I/O modules. Converts impedance change to a calibrated DC voltage output (typically -2 VDC to -18 VDC for full-scale gap range).
The DC output feeds directly into a vibration monitor (e.g., EPRO MMS6823, Bently Nevada 3500/40M) for alarm, trip, and trending functions.
Sourcing & Quality Verification
- Origin: Genuine EPRO (Emerson) manufactured component; traceable to EPRO production batch records.
- Inspection: Each unit undergoes dimensional verification (probe diameter, cable length), sensitivity calibration check, and connector integrity test prior to shipment.
- Packaging: Anti-static foam insert; individual serial number label; original EPRO documentation included where available.
- Lead Time: In-stock units ship within 3–5 business days; expedited options available for shutdown/turnaround projects.
- Warranty: 12-month warranty against manufacturing defects; return/exchange policy for DOA units.
Procurement Process
- Confirm part number: PR6424/010-040-CN CON021 matches your existing signal conditioner and cable system.
- Verify target material (steel grade) and gap range against your machinery OEM specification.
- Submit RFQ via support@konmask.com with quantity, delivery address, and required lead time.
- Receive proforma invoice with HS code 9026.80 for customs clearance.
- Payment via T/T, PayPal, or trade finance; DHL/FedEx express shipping with full tracking.
Technical FAQ
Q: Is the PR6424/010-040-CN CON021 a direct replacement for PR6424/010-040-CN without the CON021 suffix?
A: The CON021 suffix denotes the connector type. Verify your existing driver/conditioner connector before ordering. Contact us if you need cross-reference assistance.
Q: Can this probe work with Bently Nevada 3300 XL proximitors?
A: Yes, with appropriate adapter cables. The PR6424 series is electrically compatible with 3300 XL drivers when gap and sensitivity are recalibrated per Bently Nevada guidelines.
Q: What is the maximum shaft speed this transducer can monitor?
A: The 10 kHz frequency response supports shaft speeds up to approximately 600,000 RPM for 1× vibration; practical limit for most applications is 100,000 RPM.
Q: Do you provide calibration certificates?
A: Factory calibration data is available upon request. Third-party NIST-traceable calibration can be arranged for critical applications.
Q: What is the minimum order quantity?
A: Single units are available. Volume pricing applies for orders of 5+ units.
