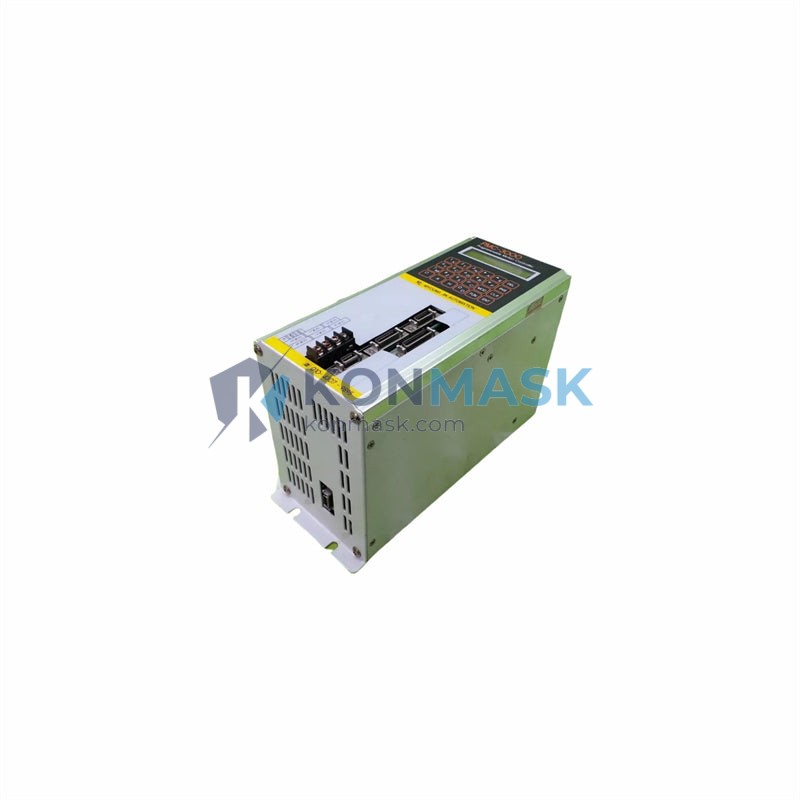

FAGOR PMC-3000 8070-OL-ICU-RS CN70-10U-OL-B4S1-RS-4 Motion Controller – 8070 Open CNC Series
When a motion controller fails on a live production line, every minute of downtime translates directly into lost output, missed delivery windows, and escalating maintenance costs. In multi-axis CNC machining centers, the motion controller is the nerve center that synchronizes axis interpolation, spindle coordination, and real-time feedback loops — without it, the entire machine is inoperable. No substitute module, no workaround, no bypass: the line stops until the correct part is restored.
The FAGOR PMC-3000 (8070-OL-ICU-RS / CN70-10U-OL-B4S1-RS-4) is a high-performance motion controller module within FAGOR’s flagship 8070 Open CNC Series — one of the most widely deployed open-architecture CNC platforms in European and Asian precision manufacturing. Designed for demanding multi-axis machining environments, this module combines real-time motion processing with an open PC-based architecture, making it a preferred choice for OEM machine builders and retrofit integrators worldwide.
Technical Specifications
- Part Number / SKU: PMC-3000 8070-OL-ICU-RS CN70-10U-OL-B4S1-RS-4
- Brand: FAGOR Automation
- Series: 8070 Open CNC Series
- Module Type: Motion Controller / ICU (Interpolator & Control Unit)
- Architecture: Open PC-based CNC platform
- Communication Interface: RS (SERCOS / RS-422 compatible)
- Axis Configuration: Multi-axis interpolation support
- Form Factor: Rack-mount / panel-mount industrial module
- Operating Environment: Industrial grade, suitable for machine tool cabinets
- Weight: Approx. 200 g
- Compatibility: FAGOR 8070 CNC system ecosystem
Note: All specifications are based on FAGOR official documentation. Do not rely on third-party sources for safety-critical parameters.
Key Features & Benefits
- Open CNC Architecture: The 8070 OL (Open Linux) platform allows deep customization of HMI, PLC logic, and motion parameters — ideal for OEM builders requiring machine-specific adaptations.
- Real-Time Motion Processing: The ICU (Interpolator & Control Unit) handles high-speed multi-axis interpolation with deterministic cycle times, ensuring precision contouring in milling, turning, and grinding applications.
- SERCOS / RS Interface: High-speed digital drive communication via RS interface enables tight synchronization between the controller and FAGOR or third-party servo drives.
- Modular System Design: The CN70-10U-OL-B4S1-RS-4 configuration supports scalable axis expansion, making it suitable for both compact 3-axis machining centers and complex 5-axis or multi-channel systems.
- Industrial Reliability: Engineered for 24/7 continuous operation in harsh factory environments with vibration, EMI, and temperature resistance.
- Drop-in Replacement Compatibility: Maintains backward compatibility within the 8070 series ecosystem, minimizing reconfiguration time during maintenance replacements.
Industry & Equipment Applications
- CNC Machining Centers: Vertical and horizontal machining centers requiring high-precision multi-axis motion control.
- CNC Turning Centers & Lathes: Multi-turret and multi-spindle turning machines with complex C-axis and Y-axis requirements.
- 5-Axis Milling Machines: Simultaneous 5-axis contouring for aerospace, mold & die, and medical device manufacturing.
- Grinding Machines: Surface, cylindrical, and profile grinding with sub-micron positioning accuracy.
- Retrofit & Modernization Projects: Upgrading legacy FAGOR 8055 or 8065 systems to the 8070 open platform.
- OEM Machine Builders: European and Asian machine tool manufacturers integrating FAGOR CNC as their standard control platform.
System Integration & Compatible Parts
The PMC-3000 8070-OL-ICU-RS module operates within the broader FAGOR 8070 CNC ecosystem. Typical system configurations include:
- FAGOR 8070 OL Operator Panel – HMI display and keyboard unit
- FAGOR AXD / SPD Servo Drives – Digital servo amplifiers communicating via SERCOS/RS interface
- FAGOR FXM / FKM Servo Motors – Matched servo motors for axis and spindle drives
- FAGOR I/O Expansion Modules – Remote I/O nodes for PLC signal management
- FAGOR 8070 Power Supply Module – Dedicated DC bus power supply for the control rack
Contact our technical team at support@konmask.com for system configuration advice and compatibility verification before ordering.
Our Quality Assurance Process
At Konmask.com, every FAGOR module undergoes a rigorous sourcing and inspection process before shipment:
- Authentic Sourcing: All units are sourced from verified industrial channels — OEM surplus, authorized distributors, or decommissioned systems with documented service history.
- Visual & Physical Inspection: Each module is inspected for physical damage, connector integrity, label authenticity, and firmware version markings.
- Functional Verification: Where applicable, modules are bench-tested or powered-on verified prior to dispatch.
- Anti-Counterfeit Checks: We apply multi-point authentication against known FAGOR part markings and serial number formats.
- Secure Packaging: ESD-safe packaging with shock-absorbing foam inserts for international freight.
How to Order
- Submit an inquiry via the “Request a Quote” button on this page, or email support@konmask.com directly.
- Provide your full part number (PMC-3000 8070-OL-ICU-RS CN70-10U-OL-B4S1-RS-4), required quantity, and destination country.
- Our team will confirm stock availability, lead time, and pricing within 24 business hours.
- Upon agreement, we issue a Proforma Invoice and arrange payment via T/T, PayPal, or other agreed methods.
- Shipment via DHL / FedEx / UPS with full tracking and export documentation provided.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on CNC, PLC, DCS, and servo drive components — not a general electronics marketplace.
- Global B2B Supply Network: Serving manufacturers, system integrators, and MRO teams across Europe, Southeast Asia, the Middle East, and the Americas.
- Fast Emergency Response: Expedited sourcing for production-critical breakdowns — because downtime is not an option.
- Technical Pre-Sales Support: Our engineers can advise on compatibility, firmware versions, and system configuration before you commit to a purchase.
- Transparent Documentation: Full traceability documentation available on request, including inspection reports and shipping records.
Frequently Asked Questions
- Q: Is the PMC-3000 8070-OL-ICU-RS CN70-10U-OL-B4S1-RS-4 a new or refurbished unit?
- A: We supply both new-old-stock (NOS) and professionally refurbished units depending on availability. The condition is clearly stated in your quotation. All units pass our QA inspection regardless of condition grade.
- Q: Can this module replace my existing FAGOR 8070 ICU without reprogramming?
- A: In most cases, yes — provided the firmware version and hardware revision match your existing system. We recommend sharing your current system configuration with our technical team before ordering to confirm compatibility.
- Q: What is the typical lead time?
- A: Stock items ship within 3–5 business days. For sourced items, lead time is typically 7–15 business days. Emergency expediting is available — contact us for urgent requirements.
- Q: Do you provide a warranty?
- A: Yes. We offer a standard 90-day warranty against DOA (Dead on Arrival) and functional defects. Extended warranty options are available upon request.
- Q: Can you supply other FAGOR 8070 series components?
- A: Absolutely. We maintain an extensive inventory of FAGOR 8070 series modules including operator panels, servo drives, I/O modules, and power supplies. Contact us with your full BOM for a consolidated quote.
