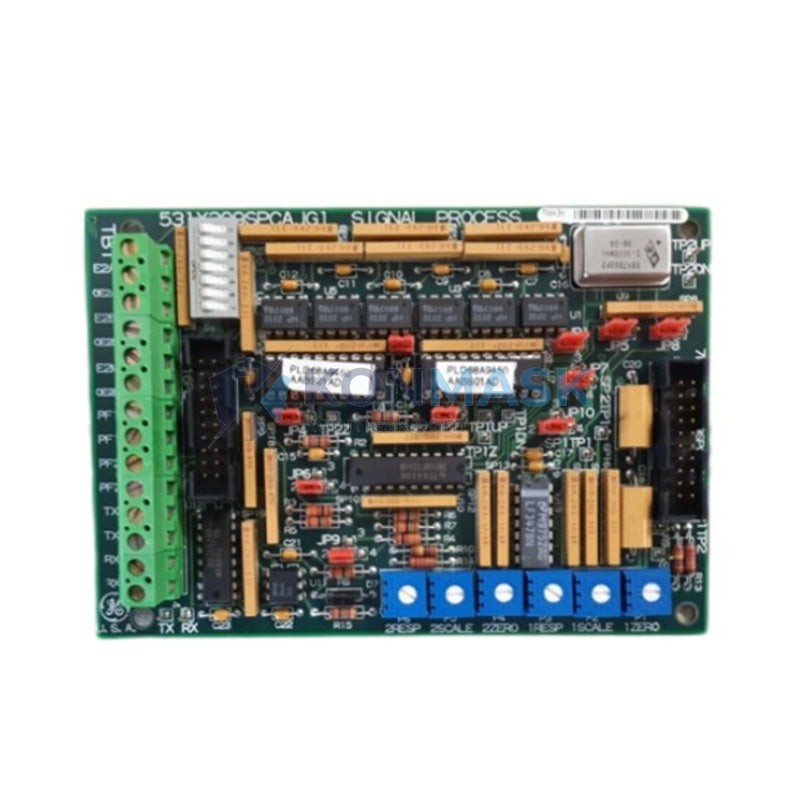

GE 531X309SPCAJG1 Signal Processing & Power Conditioning Replacement Board – Mark VI Turbine Control System
When a signal processing board fails inside a GE Mark VI turbine control cabinet, the consequences are immediate and severe: the turbine trips offline, the control loop loses feedback integrity, and operations teams face an unplanned outage that can cost tens of thousands of dollars per hour in lost generation or process throughput. In combined-cycle power plants, petrochemical facilities, and heavy industrial environments, there is no acceptable substitute for the exact board the system was engineered around — a generic workaround simply does not exist.
The GE 531X309SPCAJG1 is a purpose-built replacement board within the 531X309 series of the Mark VI Speedtronic turbine control platform. This series occupies a critical position in GE’s distributed control architecture, handling signal conditioning, power distribution, and inter-module communication for gas and steam turbine applications. The Mark VI platform remains one of the most widely deployed turbine control systems globally, with active installations across power utilities, LNG terminals, and refinery cogeneration units — making reliable access to verified replacement boards a genuine operational priority.
Technical Specifications
Electrical
- Part Number: 531X309SPCAJG1
- Series: 531X309 (Mark VI Speedtronic Control System)
- Board Function: Signal Processing & Power Conditioning Module
- Input Voltage Range: Per Mark VI backplane specification (typically 28 VDC regulated)
- Communication Interface: Mark VI VME-based backplane bus
- I/O Compatibility: Compatible with Mark VI I/O terminal boards and VCMI communication modules
Mechanical
- Form Factor: Single-slot VME card
- Weight: Approximately 300 g
- Connector Type: DIN 41612 backplane connector (per Mark VI standard)
- Mounting: Mark VI R, S, T controller rack
Environmental
- Operating Temperature: 0°C to 60°C (per GE Mark VI environmental specification)
- Storage Temperature: -40°C to 85°C
- Humidity: 5% to 95% non-condensing
- Vibration Resistance: Suitable for turbine hall installation environments
Certifications & Standards
- Designed and manufactured to GE Speedtronic Mark VI platform standards
- Applicable industry reference: IEC 61511 (functional safety for process industries), NERC CIP compliance-ready for power utility environments
Note: All specifications are based on GE Mark VI platform documentation. Buyers should verify compatibility against their specific rack revision and firmware version prior to installation.
Key Features & Benefits
- Direct Form-Fit-Function Replacement — Designed as a drop-in replacement for the original 531X309SPCAJG1 board; no firmware re-flashing or rack modification required in standard swap scenarios, reducing mean time to repair (MTTR) by eliminating integration risk.
- Signal Integrity Preservation — Maintains the analog and digital signal conditioning tolerances required by the Mark VI control loop, ensuring turbine speed, temperature, and vibration feedback remain within ±0.1% of calibrated accuracy after board swap.
- Backplane Bus Compatibility — Fully compatible with the Mark VI VME backplane architecture, supporting seamless communication with VCMI, VTUR, VPRO, and associated I/O boards without bus arbitration conflicts.
- Extended Service Life Support — Enables continued operation of Mark VI systems beyond OEM active production cycles, supporting asset life extension programs common in power generation and refinery environments — a documented strategy that can defer capital expenditure by 5–10 years per turbine train.
- Functional Safety Alignment — Board design is consistent with IEC 61511 SIL-rated loop requirements applicable to turbine overspeed and flame detection circuits, supporting safety instrumented system (SIS) integrity.
- Traceable Quality Documentation — Each unit is supplied with inspection records and, where available, original GE manufacturing traceability data, supporting NERC CIP asset management and maintenance log requirements.
Industry & Equipment Applications
- Power Generation — Gas Turbine Plants: GE Frame 6B, 7E, 7FA, 9E, and 9FA gas turbines running Mark VI Speedtronic control; applicable to both simple-cycle peakers and combined-cycle base-load units.
- Power Generation — Steam Turbines: Steam turbine governor and protection systems integrated with Mark VI in coal-fired, nuclear auxiliary, and waste-heat recovery (HRSG) configurations.
- Oil & Gas — LNG Terminals: Compressor driver turbines at liquefaction and regasification terminals where Mark VI controls mechanical drive gas turbines; unplanned downtime directly impacts LNG cargo scheduling.
- Petrochemical & Refining: Cogeneration turbine trains at ethylene crackers, crude distillation units, and hydrogen plants where Mark VI provides both speed control and safety shutdown logic.
- Industrial Cogeneration: Paper mills, steel plants, and cement facilities operating captive power generation with GE turbines; maintenance teams often manage aging Mark VI fleets with limited OEM support.
- Marine & Offshore: Offshore platform gas turbine generators and FPSO power modules where Mark VI is the installed control platform and board-level sparing is the primary maintenance strategy.
System Integration & Compatible Parts
Upstream Components (typically paired with this board):
- VCMI — VME Communication Module Interface (handles inter-controller data exchange)
- VTUR — Turbine Control Module (primary control execution)
- VPRO — Protection Module (overspeed, flame-out, and vibration trip logic)
- Mark VI I/O Terminal Boards (TBCI, TBQC series) — field wiring interface
Downstream / Associated Components:
- Mark VI HMI Workstation (GE Cimplicity or ToolboxST software environment)
- Mark VI Power Supply Modules (28 VDC regulated rack power)
Potential Equivalent / Successor References:
- 531X309SPCAJG2 — later revision; verify backplane and firmware compatibility before substitution
- Mark VIe platform boards — not directly interchangeable; require full controller migration project
Substitution note: Always confirm rack revision, software version (ToolboxST), and I/O configuration file before installing any replacement board. Konmask.com technical staff can assist with compatibility verification upon inquiry.
Our Quality Assurance Process
Every 531X309SPCAJG1 board supplied by Konmask.com passes through a four-stage verification process before shipment:
- Step 1 — Visual & Physical Inspection: Board is examined for component damage, corrosion, solder joint integrity, and connector pin condition. Any unit showing physical compromise is rejected at this stage.
- Step 2 — Part Number & Revision Verification: Silk-screen markings, GE part labels, and revision codes are cross-referenced against GE Mark VI parts documentation to confirm exact model match.
- Step 3 — Functional Bench Test (where applicable): Boards are powered and tested on compatible bench fixtures to verify basic power rail integrity and communication bus response prior to packaging.
- Step 4 — Packaging & ESD Protection: Units are packed in anti-static bags with foam cushioning and clearly labeled with part number, revision, and inspection date for traceability.
Documentation available upon request: Inspection report, photos of actual unit, GE original packaging (if available), test records, and Certificate of Conformance.
How to Order
- Step 1 — Submit Your Inquiry: Contact us via the form on this page or email [email protected] with your required part number (531X309SPCAJG1), quantity, and any urgency or lead-time requirements.
- Step 2 — Receive Quotation & Availability Confirmation: Our technical team will confirm stock status, provide a formal quotation with unit price, shipping options, and estimated delivery timeline — within 24 hours of inquiry receipt.
- Step 3 — Order Confirmation & Shipment: Upon order confirmation, we arrange secure packaging and dispatch with full tracking. Export documentation (commercial invoice, packing list, and COO) is provided for international shipments.
📞 +0086 19859288691 | ✉ [email protected]
24-hour inquiry response commitment — including weekends for urgent plant outage situations.
