GE DS200QTBAG1ADC Termination Board | Replacement, Equivalent & Selection Guide

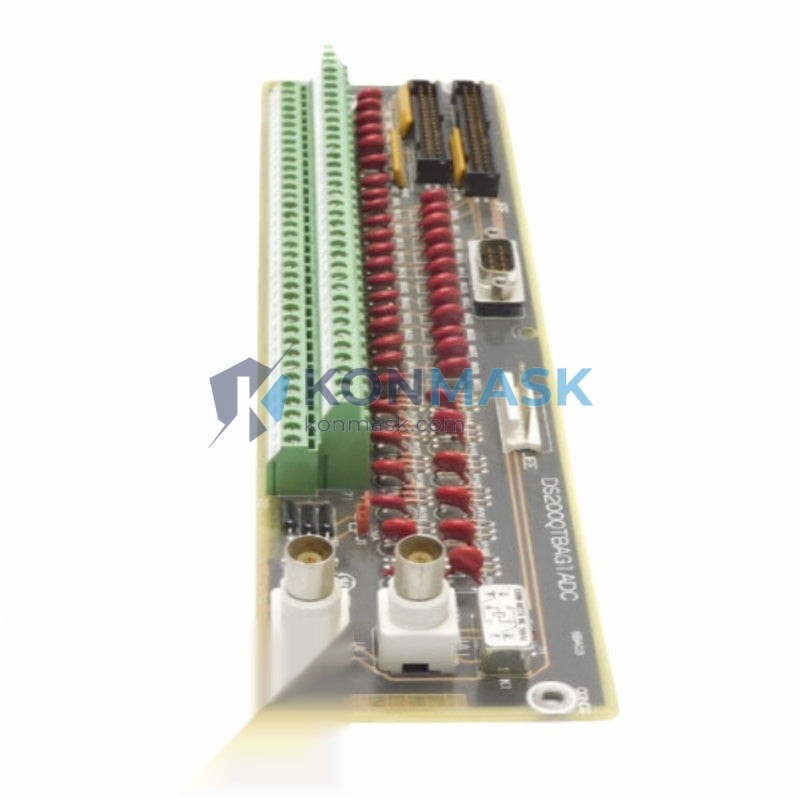

The GE DS200QTBAG1ADC is a Termination Board designed for use in General Electric’s Mark V and Mark VI turbine control systems. It serves as a critical I/O interface board, providing reliable signal termination between field wiring and the control system backplane. Konmask.com supplies both original and verified-compatible replacement units to minimize downtime in industrial automation environments.
Technical Specifications
- Part Number: DS200QTBAG1ADC
- Manufacturer: General Electric (GE)
- Board Type: Termination Board
- Compatible System: GE Mark V / Mark VI Turbine Control
- Form Factor: PCB Module
- Weight: ~100 g
- Condition Available: New, Refurbished, Tested
- Warranty: 12 months (Konmask standard)
Compatible Replacement & Equivalent Models
When the DS200QTBAG1ADC is unavailable or end-of-life, the following models may serve as functional equivalents depending on your system revision. Always verify firmware and backplane compatibility before substitution:
- DS200QTBAG1AFC – Revised suffix variant; same functional role, check connector pinout
- DS200QTBAG1BDC – B-revision board; compatible in most Mark VI configurations
- DS200QTBAG2ADC – Generation 2 variant; verify slot compatibility
- DS215QTBAG1AZZ – Cross-series equivalent for certain Mark VI upgrades
- IS200QTBAG1A – IS200 series equivalent; confirm I/O mapping with GE documentation
Note: Konmask engineers can assist with cross-reference validation. Contact us before ordering a substitute.
Why Choose the Original Model
- Guaranteed Compatibility: Factory-matched to GE Mark V/VI backplane specifications
- Signal Integrity: Precision termination resistors maintain signal accuracy across all I/O channels
- Regulatory Compliance: Meets OEM standards for safety-critical turbine control applications
- Reduced Integration Risk: No firmware or configuration changes required when using the original part number
- Long Service Life: Industrial-grade PCB construction rated for continuous operation in harsh environments
Typical Applications
- Gas turbine and steam turbine control systems (GE Frame 5, 6, 7, 9)
- Combined-cycle power plant DCS integration
- Compressor station automation and monitoring
- Refinery and petrochemical process control
- Emergency shutdown system (ESD) I/O termination
- OEM turbine panel retrofits and upgrades
System Compatibility
- GE Mark V Speedtronic: Full compatibility confirmed
- GE Mark VI Speedtronic: Full compatibility confirmed
- GE Mark VIe: Verify with system integrator — may require adapter
- Third-party DCS (ABB, Siemens, Emerson): Not directly compatible; consult Konmask for interface solutions
Selection Guide
Use the following criteria to confirm the correct part for your application:
- Step 1 – Identify your Mark series: Confirm whether your system is Mark V or Mark VI by checking the controller cabinet label or GE system documentation.
- Step 2 – Check the suffix code: The suffix (e.g., ADC, AFC, BDC) indicates hardware revision. Match the suffix to your existing board or consult GE’s cross-reference table.
- Step 3 – Verify slot position: Termination boards are slot-specific. Confirm the physical slot number in your I/O rack before ordering.
- Step 4 – Confirm I/O channel count: Ensure the replacement board supports the same number and type of I/O channels as the original.
- Step 5 – Contact Konmask: Send your existing part number, system model, and application details to support@konmask.com for a free compatibility check.
Quality Assurance & Sourcing
- All units are sourced from authorized distributors or directly from OEM-certified channels
- Each board undergoes functional testing prior to shipment
- Refurbished units are cleaned, inspected, and re-tested to OEM specifications
- Counterfeit prevention: Konmask performs component-level authentication on all GE boards
- Traceability documentation available upon request (test reports, CoC)
How to Order
- Online: Add to cart directly from this page
- Email: support@konmask.com — include part number, quantity, and required condition (new/refurbished)
- Phone/WhatsApp: +0086 19859288691
- Lead Time: In-stock units ship within 1–3 business days; sourced units typically 5–15 business days
- Payment: T/T, PayPal, credit card, and trade assurance accepted
- Export: Worldwide shipping with full customs documentation support
Replacement & Compatibility FAQ
Q: Can DS200QTBAG1ADC be used as a direct drop-in replacement for DS200QTBAG1AFC?
A: In most cases yes, but suffix differences may indicate minor hardware revisions. We recommend confirming with your GE system documentation or contacting Konmask before substitution.
Q: Is a refurbished DS200QTBAG1ADC reliable for critical turbine control?
A: Yes, when properly tested and certified. Konmask’s refurbished units pass the same functional tests as new boards and include a 12-month warranty.
Q: How do I know if my DS200QTBAG1ADC has failed?
A: Common symptoms include I/O communication faults, HMI alarm codes referencing the termination board slot, or visible physical damage (burn marks, corrosion). Contact us for remote diagnostic support.
Q: Do you provide installation support?
A: Konmask provides technical documentation and remote guidance. On-site installation services can be arranged through our partner network.
Q: What is the lead time for a new DS200QTBAG1ADC?
A: In-stock units ship within 1–3 business days. If sourcing is required, typical lead time is 5–15 business days.
