GE DS200SHVMG1ACC – High Voltage M-Frame Interface Board | Mark VI Turbine Control Platform

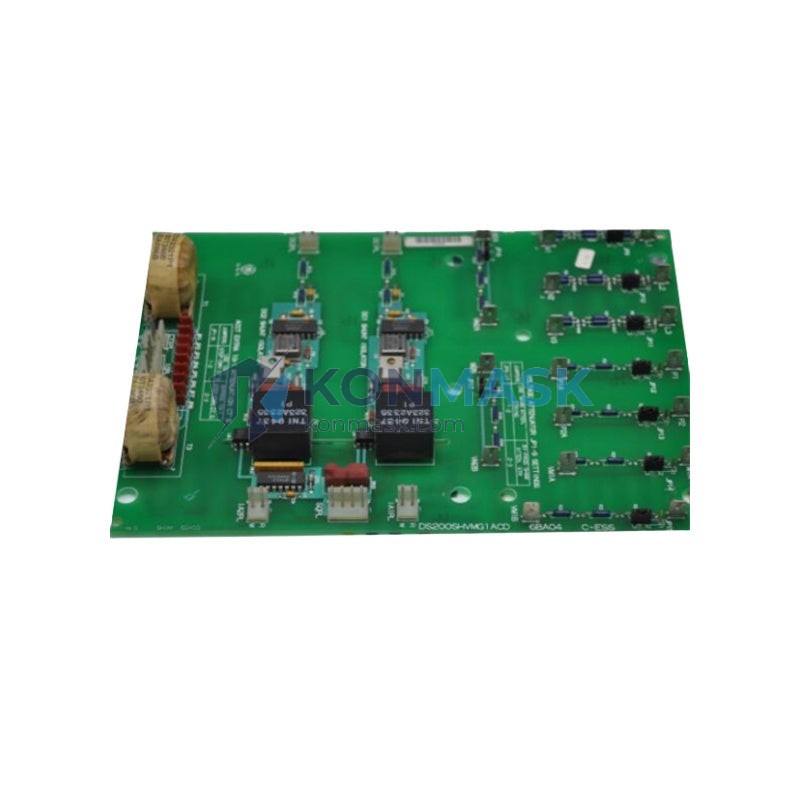

Engineering Background: The DS200SHVMG1ACC is a high-voltage interface board engineered by GE as part of the DS200 series — the backbone I/O and signal conditioning layer within GE’s Mark VI Distributed Control System (DCS). Designed to operate inside the M-frame turbine control enclosure, this board bridges high-voltage field signals with the Mark VI controller’s logic layer, enabling precise, real-time monitoring and protection of gas turbines, steam turbines, and combined-cycle power generation units.
Product Positioning: This board is a critical replacement and spare part for power generation facilities running GE Mark VI control architecture. It is specified by control systems engineers and reliability teams seeking OEM-equivalent performance with verified provenance. Konmask.com supplies this part with full functional inspection, traceability documentation, and rapid global dispatch — minimizing unplanned downtime in mission-critical generation assets.
Complete Technical Specifications
- Part Number: DS200SHVMG1ACC
- Manufacturer: GE (General Electric)
- Series: DS200 / Mark VI Turbine Control
- Board Type: High Voltage M-Frame Interface Board
- Form Factor: M-Frame PCB Module
- Weight: 360 g
- Operating Environment: Industrial control enclosure (Mark VI M-frame cabinet)
- Signal Function: High-voltage field signal interface and conditioning
- Compatibility: GE Mark VI DCS, EX2100 excitation systems, LM-series gas turbine control panels
- Mounting: Direct M-frame rack mount
- Condition: Refurbished / New Old Stock (NOS) — verified functional
Proven Application Environments
- Gas Turbine Power Plants: Installed in GE Frame 6, Frame 7, and Frame 9 gas turbine control enclosures running Mark VI architecture for real-time protection and sequencing.
- Steam Turbine Facilities: Used in combined-cycle and cogeneration plants where Mark VI governs steam turbine speed, load, and trip logic.
- Offshore Oil & Gas Platforms: Deployed in compressor driver control systems where high-voltage signal isolation is mandatory for personnel safety and equipment protection.
- LNG Liquefaction Trains: Integrated into GE LM2500/LM6000 aero-derivative turbine control panels for refrigerant compressor drive applications.
- Industrial Cogeneration: Supports district heating and industrial steam supply plants requiring continuous, uninterrupted turbine operation.
- Emergency Replacement / MRO: Stocked as a critical spare by plant maintenance teams to reduce mean time to repair (MTTR) during unplanned outages.
Engineering Advantages
- OEM-Equivalent Performance: Manufactured to GE’s original design specifications — no performance compromise versus new OEM supply.
- High-Voltage Signal Isolation: Provides robust galvanic isolation between field-side HV signals and the Mark VI logic layer, protecting sensitive controller hardware.
- Plug-and-Play Replacement: Direct form-fit-function replacement for failed or degraded DS200SHVMG1ACC boards — no firmware changes or recalibration required in most installations.
- Reduced Lead Time: Available from Konmask.com stock versus 16–52 week OEM lead times, enabling rapid return-to-service.
- Functional Test Verified: Each unit undergoes bench-level functional verification prior to dispatch.
System Architecture & Signal Flow
Within the Mark VI M-frame enclosure, the DS200SHVMG1ACC sits at the field-interface tier. High-voltage signals from turbine field devices (e.g., excitation feedback, generator terminal voltage sensing) enter the board’s input conditioning stage, where they are scaled, filtered, and isolated before being passed to the Mark VI VCMI or VCRC controller cards via the internal backplane. The board’s output stage provides conditioned, low-voltage analog or digital representations of field quantities to the controller, enabling protection relay logic, load control, and sequencing algorithms to operate on accurate, noise-free data.
Sourcing & Quality Verification
- All DS200SHVMG1ACC units sourced through verified industrial MRO channels and decommissioned plant inventories.
- Each board inspected for physical damage, component integrity, and connector condition prior to listing.
- Functional bench test performed where test fixtures are available.
- Serialization and revision level documented and disclosed to buyer prior to shipment.
- Anti-static packaging with humidity indicator card for safe international transit.
- Certificate of conformance available upon request.
Procurement Process
- Submit Inquiry: Contact support@konmask.com with your plant name, unit number, and current board revision if known.
- Receive Quote: Our technical team confirms availability, revision compatibility, and pricing within 24 hours.
- Order Confirmation: Purchase order accepted via email or through the Konmask.com checkout.
- Inspection Report: Pre-shipment inspection report and photos provided upon request.
- Dispatch: Ships within 2–5 business days via DHL Express, FedEx International Priority, or customer-nominated freight forwarder.
- After-Sales Support: 30-day return window for DOA (dead on arrival) units with full replacement or refund.
Technical FAQ
Q: Is the DS200SHVMG1ACC compatible with all Mark VI revisions?
A: The board is designed for the Mark VI M-frame platform. Compatibility depends on the specific Mark VI revision (MKVI, MKVIe) and enclosure configuration. Please provide your system’s BOM or panel drawing number for confirmation.
Q: Does this board require any software configuration after installation?
A: In most cases, no. The DS200SHVMG1ACC is a hardware interface board with no onboard firmware. However, the Mark VI Toolbox may require I/O configuration verification after board swap — consult your site’s control system engineer.
Q: What is the typical failure mode for this board?
A: Common failure modes include capacitor degradation on the HV input stage, connector oxidation, and trace damage from transient overvoltage events. Konmask inspects all units for these conditions prior to sale.
Q: Can you supply multiple units for a fleet spare program?
A: Yes. Konmask.com supports bulk procurement for fleet spare programs. Contact us for volume pricing and staggered delivery scheduling.
Q: What export documentation is available?
A: We provide commercial invoice, packing list, certificate of origin, and ECCN classification documentation for international shipments.
