GE Fanuc IC693MDL654 32-Point 24VDC Input Module | Series 90-30

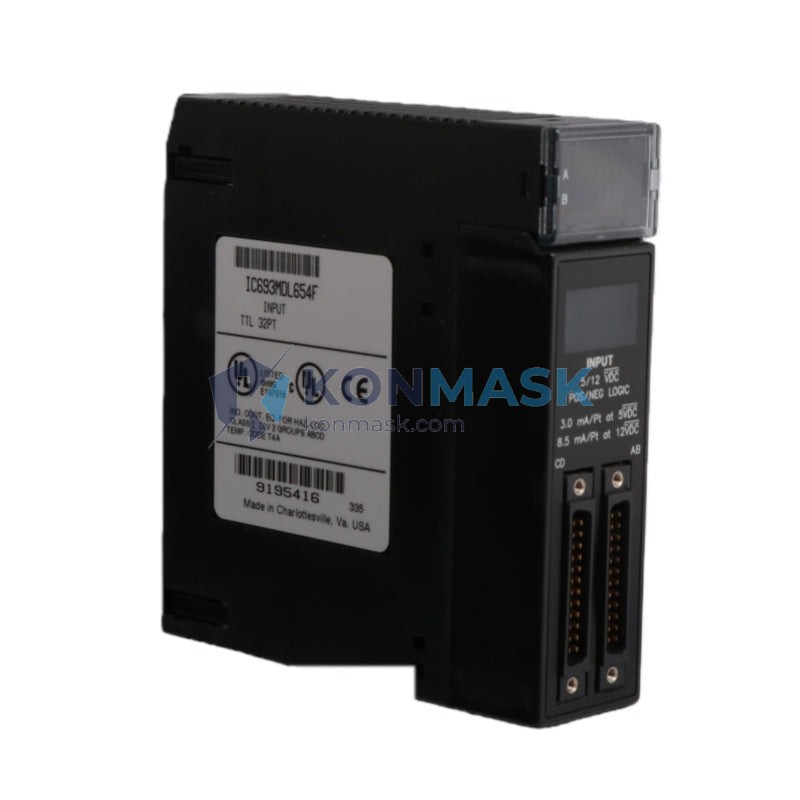

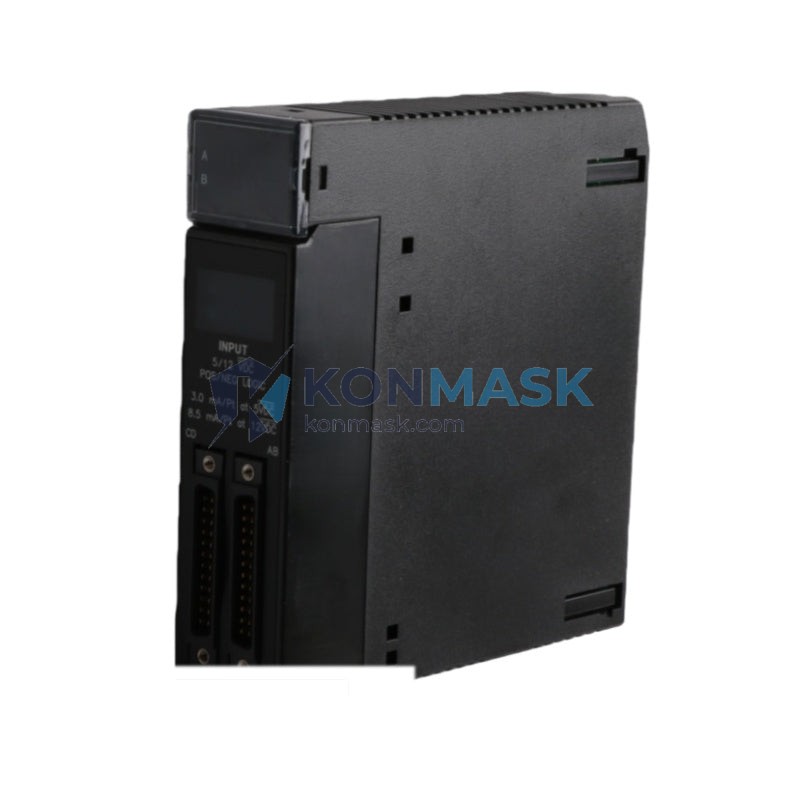

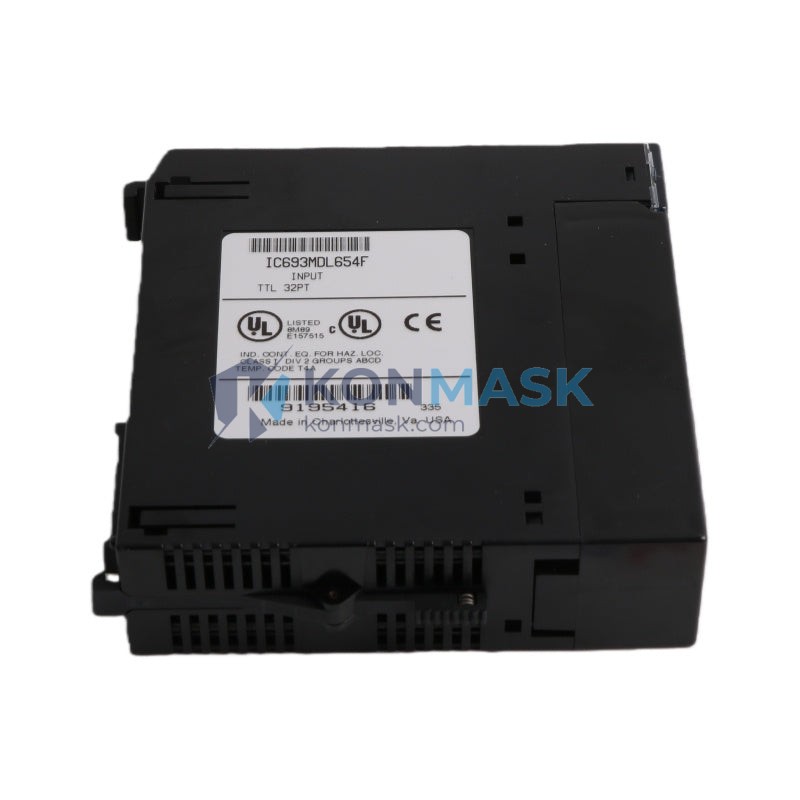

GE Fanuc IC693MDL654 32-Point 24VDC Discrete Input Module – Series 90-30

When a discrete input module fails on a live production line, the consequences are immediate and severe: the PLC loses visibility into field-level signals, safety interlocks go blind, and the entire automated sequence halts. Operators are forced into manual override, maintenance teams scramble for a replacement, and every minute of unplanned downtime translates directly into lost output and escalating costs. The GE Fanuc IC693MDL654 is the precision component that stands between your process and that scenario — a high-density, 32-point 24VDC discrete input module engineered for continuous, reliable signal acquisition in the most demanding industrial environments.

Within the GE Fanuc Series 90-30 PLC ecosystem — one of the most widely deployed modular control platforms in North American and global manufacturing — the IC693MDL654 occupies a critical role as the high-density digital input workhorse. Its 32-point capacity doubles the I/O density of standard 16-point modules, making it the preferred choice for machine builders and system integrators who need to maximize rack utilization without sacrificing signal integrity. Backed by GE’s legacy of industrial-grade engineering, this module continues to be a cornerstone component in automotive, food & beverage, water treatment, and discrete manufacturing applications worldwide.

Technical Specifications

• Part Number: IC693MDL654
• Series: GE Fanuc Series 90-30
• Module Type: Discrete Input Module
• Number of Input Points: 32
• Input Voltage: 24VDC
• Input Groups: 2 groups of 16 points (isolated commons)
• Backplane Compatibility: Series 90-30 CPU and expansion racks
• Connector Type: 40-pin removable terminal block
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C
• Relative Humidity: 5% to 95% non-condensing
• Weight: Approx. 260 g
• Agency Approvals: UL, CE (refer to GE documentation for full certifications)

Note: All specifications are sourced from GE Fanuc official documentation. Konmask.com does not modify or fabricate technical parameters.

Key Features & Benefits

• High-Density I/O: 32 discrete input points per module slot — maximize rack space and reduce hardware costs in large-scale systems.
• Dual Isolated Groups: Two independent 16-point groups with isolated commons allow connection to multiple field voltage sources without cross-interference.
• 24VDC Compatibility: Directly interfaces with standard 24VDC field devices including proximity sensors, pushbuttons, limit switches, and photoelectric sensors.
• Hot-Swap Capable: Supports module replacement without full system shutdown in compatible rack configurations, minimizing maintenance downtime.
• LED Status Indicators: Per-point LED diagnostics enable rapid field-level troubleshooting without test equipment.
• Removable Terminal Block: Field wiring stays connected to the terminal block during module swap — no rewiring required during replacement.
• Series 90-30 Native: Fully compatible with all Series 90-30 CPUs and programming software (Proficy Machine Edition / Logicmaster 90).

Industry & Equipment Applications

• Automotive Manufacturing: Body assembly lines, welding cell interlocks, conveyor position sensing
• Food & Beverage: Filling machine control, packaging line sensors, CIP system monitoring
• Water & Wastewater Treatment: Pump status monitoring, valve position feedback, level switch inputs
• Discrete Manufacturing: CNC machine tool interfaces, press control, material handling systems
• Oil & Gas: Field instrument signal acquisition, safety system inputs, pipeline monitoring
• Building Automation: HVAC control panels, access control integration, fire alarm input interfaces

System Integration & Compatible Parts

The IC693MDL654 is designed for seamless integration within the GE Fanuc Series 90-30 platform. Compatible and commonly paired components include:

• CPUs: IC693CPU311, IC693CPU313, IC693CPU321, IC693CPU323, IC693CPU331, IC693CPU340, IC693CPU341, IC693CPU350, IC693CPU360, IC693CPU363, IC693CPU364, IC693CPU374
• Power Supplies: IC693PWR321, IC693PWR322, IC693PWR330, IC693PWR331
• Expansion Racks: IC693CHS391, IC693CHS392, IC693CHS393
• Output Modules: IC693MDL740, IC693MDL741, IC693MDL752, IC693MDL753
• Communications: IC693CMM311, IC693CMM321 (Ethernet), IC693PBS301 (PROFIBUS)

Our Quality Assurance Process

At Konmask.com, every GE Fanuc IC693MDL654 unit undergoes a rigorous multi-stage inspection before shipment:

• Visual Inspection: Board-level examination for physical damage, corrosion, or component anomalies
• Functional Verification: Power-on testing to confirm module initialization and backplane communication
• I/O Point Testing: All 32 input channels verified for correct signal response
• Firmware Check: Firmware version documented and confirmed against GE specifications
• ESD-Safe Packaging: Anti-static bags and foam-lined boxes for safe international transit
• Traceability: Each unit ships with an inspection report and serial number record

How to Order

1. Submit an inquiry via our Contact Form or email support@konmask.com
2. Provide your required quantity, delivery timeline, and destination country
3. Receive a formal quotation within 24 business hours
4. Confirm order and arrange payment via T/T, L/C, or other agreed terms
5. Module ships with full documentation and tracking information

For urgent requirements or large-volume orders, please call or WhatsApp: +0086 19859288691

Why Choose Konmask.com?

• ✅ Specialized in Industrial Automation: 100% focus on PLC, DCS, HMI, and automation components — not a general electronics reseller
• ✅ Global B2B Supply: Serving OEMs, system integrators, and MRO teams across 50+ countries
• ✅ Obsolete & Hard-to-Find Parts: Extensive inventory of discontinued GE Fanuc modules no longer available through standard channels
• ✅ Technical Support: Engineering team available to assist with compatibility verification and system configuration
• ✅ Fast Quotation: Inquiry-to-quote in under 24 hours for standard requests
• ✅ Secure Packaging & Reliable Logistics: ESD-safe packing, DHL/FedEx/UPS express options, full export documentation

Frequently Asked Questions

Q: Is the IC693MDL654 compatible with all Series 90-30 CPUs?

A: Yes. The IC693MDL654 is compatible with all standard Series 90-30 CPU modules and can be installed in any slot of a Series 90-30 base or expansion rack.

Q: What is the difference between IC693MDL654 and IC693MDL655?

A: The IC693MDL654 is a 32-point 24VDC input module. The IC693MDL655 is a 32-point 120VAC input module. The key difference is the input voltage range — select based on your field device voltage.

Q: Can I replace the module without rewiring?

A: Yes. The IC693MDL654 uses a removable terminal block. Field wiring remains on the terminal block, which can be unplugged from the module and reconnected to a replacement unit without disturbing field wiring.

Q: Do you supply new or refurbished units?

A: Konmask.com supplies both new-in-box and professionally refurbished units. All units are clearly labeled and tested. Please specify your preference when submitting an inquiry.

Q: What is the lead time for IC693MDL654?

A: Lead time depends on current stock levels. In-stock units typically ship within 1–3 business days. Contact us for real-time availability and expedited options.

Q: Do you provide export documentation for customs clearance?

A: Yes. We provide commercial invoices, packing lists, and certificates of origin as required. Additional documentation (e.g., FORM E, EUR.1) can be arranged upon request.

---
