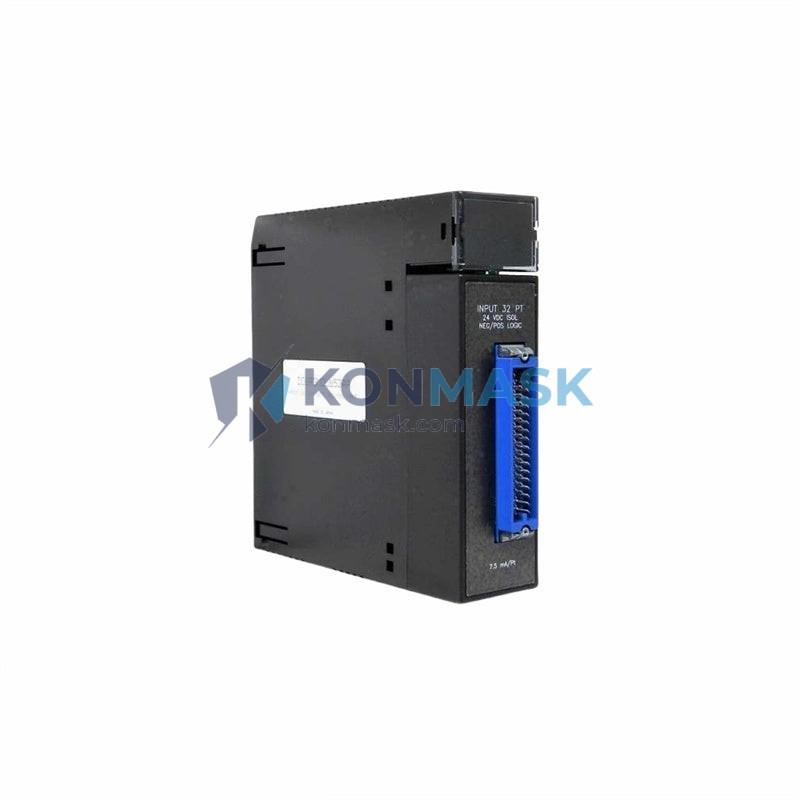

GE IC693MDL653 – 24VDC Logic Input Module | Series 90-30 PLC Platform
Engineering Background: The IC693MDL653 is a 16-point, 24VDC discrete input module designed for GE’s Series 90-30 programmable logic controller platform — one of the most widely deployed mid-range PLC families in North American and global industrial automation. Originally developed under GE Fanuc Automation and now supported under Emerson / GE Automation & Controls, this module remains a critical component in legacy and active control systems across process, discrete, and hybrid manufacturing environments.
Product Positioning: The IC693MDL653 serves procurement engineers and MRO teams requiring a direct OEM-equivalent replacement or expansion module for Series 90-30 racks. Its 24VDC logic-level compatibility, isolated input design, and rack-native backplane interface make it the preferred choice for facilities standardized on the IC693 hardware ecosystem.
Complete Technical Specifications
- Part Number: IC693MDL653
- Platform: GE Series 90-30 PLC (IC693 family)
- Module Type: Discrete Logic Input
- Number of Input Points: 16 points
- Input Voltage: 24VDC
- Input Logic Level: Positive logic (sourcing)
- ON State Voltage Range: 15–30 VDC
- OFF State Voltage Range: 0–5 VDC
- Input Current (per point): ~7 mA @ 24VDC
- Isolation: Optical isolation between field and backplane
- Backplane Interface: Series 90-30 IC693 rack-native
- Compatible Racks: IC693CHS391, IC693CHS392, IC693CHS393, IC693CHS398, IC693CHS399
- Compatible CPUs: IC693CPU311, IC693CPU313, IC693CPU321, IC693CPU331, IC693CPU340, IC693CPU341, IC693CPU350, IC693CPU360, IC693CPU363, IC693CPU364, IC693CPU374
- Wiring: Field wiring via removable terminal block (RTB)
- LED Indicators: Per-point status LEDs for real-time diagnostics
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5–95% non-condensing
- Module Weight: Approx. 1,380 g (with RTB)
- Agency Approvals: UL Listed, CE Marked, CSA
- Firmware: Compatible with Proficy Machine Edition (PME) and Logicmaster 90-30
Proven Application Environments
- Automotive Manufacturing: Body-in-white assembly lines, conveyor interlocks, press control
- Oil & Gas: Wellhead monitoring, pipeline valve position feedback, compressor station I/O
- Water & Wastewater: Pump station control, level switch inputs, SCADA integration
- Food & Beverage: Filling line sensors, packaging machine interlocks, CIP cycle monitoring
- Power Generation: Turbine auxiliary control, switchgear status monitoring
- Discrete Manufacturing: Machine tool I/O, robotic cell interlocks, safety circuit monitoring
Engineering Advantages
- Direct OEM Replacement: 100% form-fit-function compatible with original GE Fanuc IC693MDL653 — no firmware changes or rack reconfiguration required
- Optical Isolation: Protects backplane and CPU from field-side transients and ground loops
- Per-Point LED Diagnostics: Enables rapid fault isolation without test equipment
- Removable Terminal Block: Allows module swap without rewiring field cables — minimizes downtime
- Wide Operating Range: Accepts 15–30VDC input signals, tolerating real-world voltage fluctuations in industrial environments
- Rack Flexibility: Compatible with all standard Series 90-30 rack sizes (5, 10, and expansion slots)
System Architecture & Signal Flow
The IC693MDL653 occupies a single slot in any Series 90-30 rack. Field devices (proximity sensors, limit switches, pushbuttons, relay contacts) connect to the 16 input terminals on the RTB. Each input point is optically isolated before the signal is conditioned and passed to the backplane. The CPU reads input states via the rack backplane during each PLC scan cycle. Input data is mapped to the CPU’s %I (discrete input) reference table, addressable in Ladder Diagram, Function Block Diagram, or Structured Text via Proficy Machine Edition.
Typical Wiring Configuration: 24VDC common (0V) connected to module common terminal; field device sourcing 24VDC to each input point. Sinking (NPN) field devices require external pull-up resistor or use of a compatible sinking input module.
Sourcing & Quality Verification
- Source: Procured from authorized distributors, OEM surplus channels, and verified industrial resellers
- Inspection Protocol: Visual inspection for physical damage, label authenticity verification, firmware version check, and functional I/O point test prior to shipment
- Condition: New surplus (sealed OEM packaging where available) or refurbished-to-spec with full test documentation
- Warranty: 12-month operational warranty against manufacturing defects
- Counterfeit Mitigation: All units sourced through traceable supply chains; serial number verification available on request
Procurement Process
- Confirm Compatibility: Verify your rack model and CPU firmware version against the compatibility list above
- Request Quote: Contact support@konmask.com with quantity, required condition (new/refurbished), and delivery timeline
- Order Confirmation: Purchase order accepted via email; proforma invoice issued within 1 business day
- Quality Hold: Unit reserved and final inspection completed before shipment
- Shipping: DHL Express / FedEx International Priority; export documentation (commercial invoice, packing list, COO) included
- Post-Delivery Support: Technical commissioning support available via email or video call
Technical FAQ
Q: Is IC693MDL653 compatible with IC693MDL654?
A: No. The MDL654 is a 120VAC input module. The MDL653 is 24VDC only. They are not interchangeable.
Q: Can this module be used in a hot-standby redundancy configuration?
A: Yes, when used with compatible redundancy CPUs (e.g., IC693CPU374) and the appropriate redundancy module (IC693RCM300).
Q: What programming software is required?
A: Proficy Machine Edition (PME) v8.0 or later is recommended. Legacy Logicmaster 90-30 is also compatible for older CPU firmware.
Q: Does the module support diagnostics reporting to the CPU?
A: The IC693MDL653 provides per-point LED status indication. Advanced fault reporting (module health, I/O fault tables) is managed by the CPU and accessible via PME online monitoring.
Q: What is the lead time for out-of-stock units?
A: Typical lead time for sourced units is 3–10 business days. Contact us for urgent requirements.
