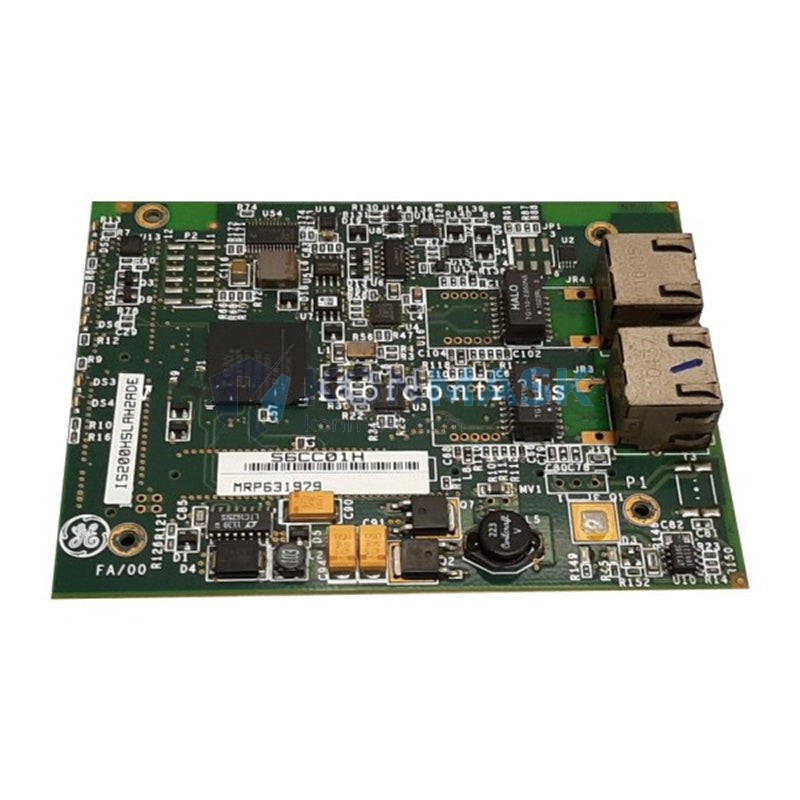

GE IS200HSLAH2A – High-Speed Serial Link Interface Board | Mark VI/VIe Control Platform
Engineering Background
The GE Mark VI and Mark VIe Turbine Control Systems are the backbone of gas turbine, steam turbine, and combined-cycle power generation facilities worldwide. These platforms demand ultra-reliable, deterministic communication between control processors and I/O packs. The IS200HSLAH2A is the dedicated PC board responsible for managing high-speed serial link (HSSL) communications — the critical data highway that synchronizes real-time control signals across the Mark VI/VIe architecture.
Product Positioning
Designed for OEM-level integration within GE’s Mark VI/VIe control cabinets, the IS200HSLAH2A is specified by controls engineers who require deterministic, low-latency serial communication between the
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | IS200HSLAH2A |
| Manufacturer | General Electric (GE) |
| Series / Platform | Mark VI / Mark VIe Turbine Control System |
| Board Type | PC Board — High-Speed Serial Link (HSSL) Interface |
| Communication Protocol | GE Proprietary High-Speed Serial Link (HSSL) |
| Form Factor | PCB module, rack-mount compatible with Mark VI/VIe cabinet |
| Operating Voltage | +5 VDC / +24 VDC (system-supplied via backplane) |
| Operating Temperature | 0°C to +60°C (standard industrial range) |
| Weight | Approx. 100 g |
| Connector Interface | Multi-pin edge connector, GE Mark VI backplane standard |
| Firmware | Factory-loaded; field-upgradeable via GE Toolbox |
| Replacement Compatibility | Direct drop-in for IS200HSLAH2A in Mark VI/VIe cabinets |
| Condition Available | New OEM / Refurbished / Tested Surplus |
Proven Application Environments
- Gas Turbine Power Plants — GE Frame 6B, 7E, 7F, 9E, 9F series turbines running Mark VI/VIe control systems rely on HSSL boards for real-time I/O synchronization between the VCMI controller and distributed terminal boards (TREG, TTUR, TPRO, etc.).
- Steam Turbine Control — Combined-cycle and cogeneration plants use IS200HSLAH2A to maintain deterministic communication between the steam turbine control processor and speed/load I/O packs.
- Combined-Cycle Power Generation — Multi-shaft CCGT plants with redundant Mark VIe controllers depend on HSSL link integrity for cross-controller synchronization and hot-standby failover.
- Compressor Stations — Pipeline and industrial compressor applications using GE Mark VI for anti-surge and load-sharing control require reliable HSSL communication for fast-loop response.
- MRO & Capital Spares Programs — Utilities and IPPs maintaining strategic spare parts inventories for Mark VI/VIe systems specify IS200HSLAH2A as a critical-path spare due to its role in the communication backbone.
Engineering Advantages
- Deterministic Low-Latency Communication — The HSSL protocol implemented on IS200HSLAH2A delivers cycle-synchronous data transfer, essential for turbine protection and fast-response control loops operating at <10 ms scan rates.
- Redundancy Support — Compatible with GE’s TMR (Triple Modular Redundancy) and dual-redundant Mark VIe architectures, enabling hot-standby operation without communication interruption.
- Noise Immunity — Designed for the electrically harsh environment of power generation switchgear rooms, with robust EMI shielding and differential signal transmission.
- Direct OEM Replacement — IS200HSLAH2A is a direct form-fit-function replacement within existing Mark VI/VIe cabinets — no firmware reconfiguration required when replacing a like-for-like board.
- GE Toolbox Compatible — Fully supported by GE’s Mark VI/VIe Toolbox software for diagnostics, firmware updates, and communication link health monitoring.
System Architecture & Signal Flow
Within the Mark VI/VIe control architecture, the IS200HSLAH2A resides in the controller module rack and manages the HSSL fiber-optic or copper serial links that connect the central
- Controller → IS200HSLAH2A: Control output commands (setpoints, valve positions, trip signals) are serialized and transmitted via HSSL to the appropriate I/O terminal board.
- I/O Terminal Board → IS200HSLAH2A: Process feedback signals (speed, temperature, pressure, flame detection) are received, deserialized, and passed to the control processor for closed-loop computation.
- Redundancy Voting: In TMR configurations, IS200HSLAH2A participates in the 2-out-of-3 voting logic by maintaining synchronized communication across all three controller channels.
- Diagnostics: The board continuously monitors link integrity and reports communication faults to the Mark VI/VIe alarm system via the GE Toolbox diagnostic interface.
Sourcing & Quality Verification
Konmask.com applies a multi-stage verification process to all GE Mark VI/VIe boards:
- Visual Inspection — Component-level inspection for physical damage, corrosion, burnt traces, and connector integrity.
- Functional Bench Test — Where applicable, boards are powered and tested for communication link establishment and signal integrity.
- Firmware Version Check — Firmware revision is documented and disclosed prior to shipment to ensure compatibility with the customer’s Mark VI/VIe Toolbox version.
- Traceability Documentation — Each unit ships with a test report, condition disclosure, and sourcing chain documentation upon request.
- Anti-Counterfeit Screening — All GE boards are cross-referenced against known OEM markings, PCB revision codes, and component date codes to screen for non-genuine parts.
Procurement Process
- Submit RFQ — Contact Konmask.com via email or phone with your part number (IS200HSLAH2A), required quantity, and condition preference (new OEM / refurbished / tested surplus).
- Receive Quote & Availability Confirmation — Our technical team will confirm stock status, firmware revision, and lead time within 24 business hours.
- Review Documentation — Request test reports, photos, and traceability documents before committing to purchase.
- Place Order & Arrange Shipping — Secure packaging with ESD protection; worldwide shipping via DHL, FedEx, or UPS with full tracking.
- Post-Delivery Support — Konmask.com provides installation guidance and technical consultation for Mark VI/VIe integration questions.
Technical FAQ
Q: Is IS200HSLAH2A compatible with both Mark VI and Mark VIe systems?
A: Yes. The IS200HSLAH2A is designed for use across the GE Mark VI and Mark VIe turbine control platform families. Always verify the specific cabinet configuration and firmware revision with your GE Toolbox version before installation.
Q: Can this board be used in a TMR (Triple Modular Redundant) configuration?
A: Yes. IS200HSLAH2A supports TMR architectures. In a TMR system, three boards operate in parallel with voting logic to ensure fault-tolerant communication. All three boards must be of the same hardware revision for proper TMR operation.
Q: What firmware revision does the board ship with?
A: Firmware revision varies by unit. Konmask.com documents and discloses the firmware revision for each unit prior to shipment. Firmware can be updated via GE Toolbox if required.
Q: Do you provide a warranty on refurbished IS200HSLAH2A boards?
A: Yes. Refurbished and tested surplus units are covered by Konmask.com’s standard warranty. Contact us for specific warranty terms applicable to your order.
Q: What is the lead time for IS200HSLAH2A?
A: In-stock units ship within 1–3 business days. For units requiring sourcing or refurbishment, lead time is typically 5–15 business days. Contact us for current availability.
Q: Can Konmask.com provide a certificate of conformance or test report?
A: Yes. Test reports and condition disclosure documents are available upon request. Certificate of conformance can be provided for new OEM units with full traceability.
