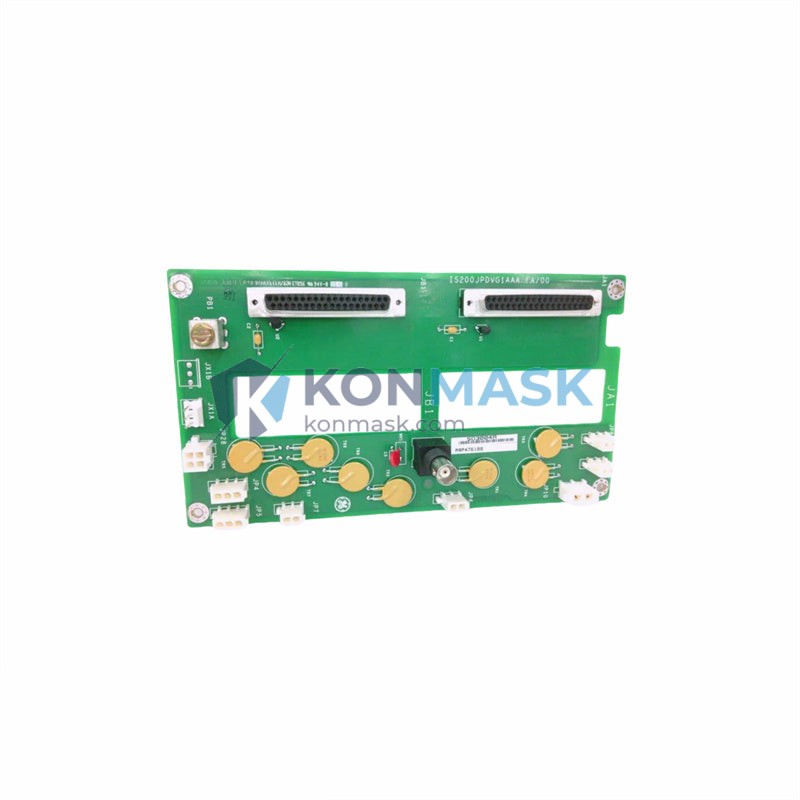

GE IS200JPDVG1AAA – Power Distribution Board | Mark VIe Turbine Control Platform
Engineering Background: The GE IS200JPDVG1AAA is a dedicated Power Distribution Board engineered for GE’s Mark VIe turbine control architecture — one of the most widely deployed distributed control platforms in gas turbine, steam turbine, and combined-cycle power generation facilities worldwide. This board serves as the centralized power routing hub within the Mark VIe I/O cabinet, ensuring stable, conditioned DC power delivery to all downstream control and I/O modules.
Product Positioning: Designed for mission-critical continuous operation, the IS200JPDVG1AAA is specified by OEM engineers and plant maintenance teams who require exact form-fit-function replacement parts. It is not a generic power board — it is a precision-engineered GE OEM component with defined voltage rails, connector pinouts, and thermal ratings matched to the Mark VIe system envelope.
Complete Technical Specifications
- Part Number: IS200JPDVG1AAA
- Manufacturer: GE (General Electric)
- Series / Platform: Mark VIe Turbine Control System
- Board Type: Power Distribution Board (PDV)
- Function: DC power distribution and conditioning to Mark VIe I/O and control modules
- Mounting: DIN rail / backplane-integrated within Mark VIe I/O enclosure
- Operating Temperature: 0°C to +60°C (standard industrial range)
- Weight: Approx. 1,000 g
- Compliance: CE, UL, IEC 61508 (functional safety), IEEE 1613
- Condition Available: New OEM, Refurbished, Tested Surplus
Proven Application Environments
- Gas Turbine Power Plants — GE Frame 6B, 7E, 7F, 9E, 9FA units running Mark VIe control
- Steam Turbine Facilities — Combined-cycle and cogeneration plants with Mark VIe DCS integration
- LNG & Compressor Stations — Pipeline compression trains requiring high-availability control power
- Offshore Platforms — Marine-grade turbine control cabinets with redundant power architectures
- Industrial Cogeneration — Refinery and petrochemical turbine-driven generator sets
- Emergency Replacement — Unplanned outage recovery where OEM lead times are unacceptable
Engineering Advantages
- OEM Form-Fit-Function: Direct drop-in replacement — no firmware re-flashing or reconfiguration required in most applications
- Redundant Power Rail Support: Designed to interface with Mark VIe dual-redundant power supply architecture (PPDA/PPDB)
- Isolated Distribution Channels: Independent power rails prevent cross-module interference, protecting signal integrity on I/O boards
- Thermal Management: Conformal-coated PCB with thermal vias rated for continuous industrial duty cycles
- Plug-and-Play Connectors: Keyed backplane connectors eliminate mis-installation risk during emergency maintenance
- Long Service Life: Designed to GE’s 20+ year turbine lifecycle standards
System Architecture & Signal Flow
Within the Mark VIe cabinet, the IS200JPDVG1AAA receives primary DC input from the PPDA/PPDB power supply modules and distributes conditioned voltage rails to the following downstream boards:
- VCMI — VME Communication Module Interface
- TREG / TTUR — Turbine Regulation and Turbine Trip boards
- TCCA / TCQB — I/O terminal boards
- UCSB — Universal Controller board (where applicable)
The board incorporates onboard fusing and status indication LEDs, enabling maintenance engineers to isolate power faults at the distribution level without removing downstream modules.
Sourcing & Quality Verification
- All units sourced from verified OEM channels, authorized distributors, or decommissioned plant inventories with full traceability
- Pre-shipment functional test: power rail output verification, connector integrity check, visual PCB inspection
- Anti-static packaging with humidity indicator cards for international freight
- Serialized documentation available upon request (test report, photos, COO declaration)
- Counterfeit-prevention: boards inspected against GE OEM markings, PCB revision codes, and component date codes
Procurement Process
- Submit RFQ — Contact support@konmask.com with your part number, required quantity, and delivery timeline
- Receive Quote — Pricing, lead time, and condition grade confirmed within 24 business hours
- Order Confirmation — Pro-forma invoice issued; payment via T/T, PayPal, or trade terms for qualified accounts
- Quality Inspection — Pre-shipment test report and photos provided before dispatch
- Shipping — DHL / FedEx express worldwide; EXW Xiamen or CIF available; export documentation included
- After-Sales Support — 90-day warranty on tested units; technical support available via email and WhatsApp
Technical FAQ
Q: Is the IS200JPDVG1AAA compatible with Mark VI (non-VIe) systems?
A: The IS200JPDVG1AAA is designed for the Mark VIe platform. While some physical similarities exist with Mark VI boards, cross-platform compatibility must be verified against your specific cabinet BOM before ordering.
Q: What is the difference between IS200JPDVG1AAA and IS200JPDVG1BAA?
A: The suffix revision (AAA vs BAA) typically denotes a PCB revision or component change. Functional compatibility is usually maintained, but confirm with your GE system documentation or contact us for cross-reference verification.
Q: Can this board be repaired if damaged?
A: Board-level repair is possible for certain fault types (blown fuses, failed capacitors). Contact our technical team with fault symptoms for a repair feasibility assessment.
Q: Do you provide a test report with each unit?
A: Yes. All refurbished and tested-surplus units ship with a pre-shipment test report. New OEM units include original GE packaging and documentation where available.
Q: What is the typical lead time?
A: In-stock units ship within 3–5 business days. For sourced units, typical lead time is 2–4 weeks depending on global inventory availability.
