GOSSEN CAMILLE SINEAX V604 – Programmable Universal Transducer | SINEAX Measurement Platform
Engineering Background: The SINEAX V604 is part of GOSSEN CAMILLE BAUER’s renowned SINEAX series — a platform trusted by power utilities, process engineers, and panel builders across Europe and Asia for decades. Designed to bridge the gap between legacy field instrumentation and modern SCADA/DCS architectures, the V604 accepts virtually any AC or DC input signal and converts it to a standardized analog output, making it the universal adapter of industrial measurement.

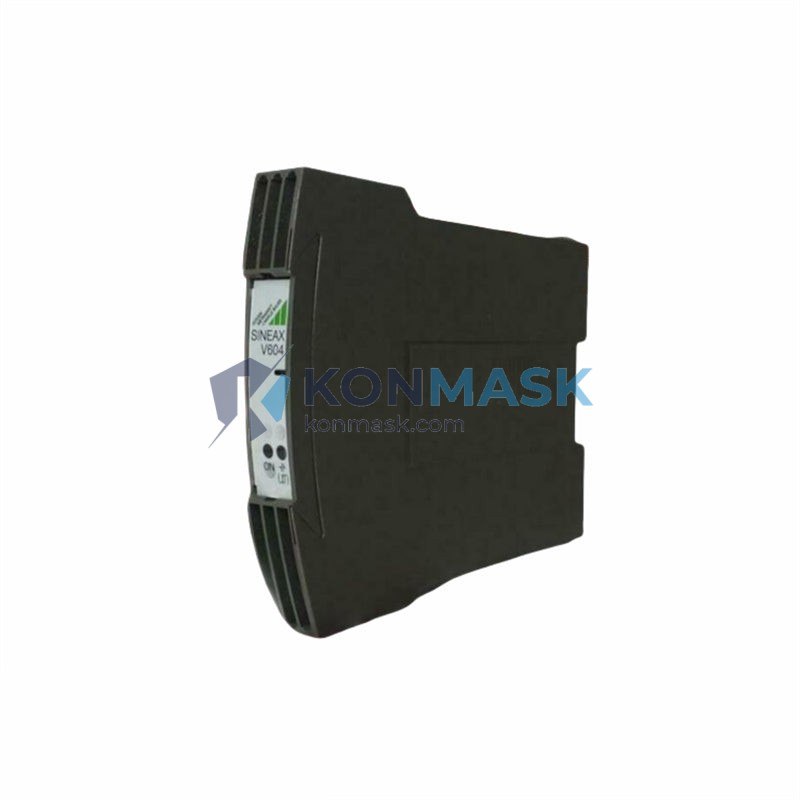

Product Positioning: The SINEAX V604 (Part No. 604-112) is a DIN-rail-mounted programmable transducer engineered for demanding industrial environments where signal accuracy, galvanic isolation, and flexible configuration are non-negotiable. It is the preferred choice of procurement engineers who need a single SKU to cover multiple measurement tasks across a plant.
Complete Technical Specifications
- Model: SINEAX V604 | Part No. 604-112
- Manufacturer: GOSSEN CAMILLE BAUER (GCB), Germany
- Function: Programmable Universal Transducer (AC/DC)
- Input: Programmable — AC current, AC voltage, DC current, DC voltage, frequency, power factor
- Output: Programmable analog output (0–20 mA / 4–20 mA / 0–10 V)
- Galvanic Isolation: Input / Output / Auxiliary supply — 3-way isolated
- Auxiliary Supply: Wide-range AC/DC auxiliary power input
- Accuracy Class: Class 0.2 / 0.5 (IEC 60688)
- Mounting: DIN rail (EN 60715 / TS 35)
- Housing: Compact plug-in module with screw terminals
- Operating Temperature: -10 °C to +55 °C
- Weight: 1,120 g (with packaging)
- Origin: Germany (DE)
- SKU: SINEAX-V604-604-112
Proven Application Environments
- Power Distribution Panels: Converting CT/VT secondary signals to 4–20 mA for remote SCADA monitoring of current, voltage, and power factor
- Water & Wastewater Treatment Plants: Pump motor current monitoring with isolated analog output to PLC analog input cards
- Oil & Gas Facilities: Hazardous-area panel integration where galvanic isolation is mandatory for intrinsic safety barriers
- Renewable Energy (Wind/Solar): Grid-tie inverter output monitoring — frequency and power factor measurement to energy management systems
- Building Automation (BMS): Sub-metering of HVAC electrical loads with standardized 0–10 V output to BACnet/Modbus gateways
- Steel & Cement Plants: Drive and motor monitoring in high-noise electrical environments, leveraging the V604’s robust isolation
- Marine & Offshore: Shipboard power monitoring panels requiring compact DIN-rail transducers with wide auxiliary supply range
Engineering Advantages
- Universal Input Programmability: One module covers current, voltage, frequency, and power factor — reduces spare-parts inventory by up to 60%
- 3-Way Galvanic Isolation: Eliminates ground loops and protects sensitive PLC/DCS analog inputs from field-side transients
- Class 0.2 Accuracy: Meets IEC 60688 — suitable for revenue-grade sub-metering and compliance reporting
- Wide Auxiliary Supply Range: Single SKU works on both AC and DC auxiliary buses — simplifies panel design and procurement
- Compact DIN-Rail Form Factor: Minimizes panel real estate; plug-in terminal blocks allow module swap without rewiring
- Long-Term Availability: SINEAX platform has 20+ years of production continuity — critical for long-lifecycle plant assets
System Architecture & Signal Flow
The SINEAX V604 sits at the field-to-control boundary in a typical instrumentation loop:
- Field Side → CT/VT secondary or direct AC/DC measurement signal enters the programmable input stage
- Isolation Barrier → 3-way galvanic isolation block separates field, output, and auxiliary supply circuits
- Signal Processing → True RMS or mean-value conversion (model-dependent) with programmable scaling and zero/span adjustment
- Output Stage → Standardized 4–20 mA or 0–10 V analog signal feeds PLC analog input card, data logger, or panel meter
- Auxiliary Supply → Independent wide-range AC/DC supply powers the module without affecting signal integrity
This architecture makes the V604 a drop-in replacement for legacy transducers in retrofit projects without requiring PLC reprogramming.
Sourcing & Quality Verification
- Authorized Supply Chain: All SINEAX V604 units at Konmask.com are sourced from verified industrial distributors and OEM channels
- Pre-Shipment Inspection: Each unit undergoes visual inspection, label verification (part number, serial, date code), and packaging integrity check
- Authenticity Documentation: Original manufacturer labels, CE markings, and calibration certificates available upon request
- Traceability: Full lot traceability maintained — serial number records available for quality audit purposes
- Warranty: 12-month warranty against manufacturing defects; DOA replacement within 7 business days
Procurement Process
- Confirm Part Number: Verify 604-112 matches your BOM — contact us if you need cross-reference to alternative part numbers
- Request Quote: Email support@konmask.com with quantity and required delivery date for volume pricing
- Order Placement: Purchase directly via Konmask.com or via PO for B2B accounts
- Lead Time: In-stock units ship within 2–3 business days; ETA confirmation provided at order
- Documentation Package: Datasheet, CE declaration, and packing list included with every shipment
Technical FAQ
Q: Can the SINEAX V604 604-112 measure both AC and DC signals?
A: Yes. The V604 is a universal transducer — it is programmable to accept AC current, AC voltage, DC current, DC voltage, frequency, and power factor inputs via front-panel or PC configuration tool.
Q: What is the output signal range?
A: The output is programmable: 0–20 mA, 4–20 mA, or 0–10 V DC, selectable to match your PLC/DCS analog input card specification.
Q: Is the 604-112 the same as the SINEAX V604 standard version?
A: The 604-112 is a specific ordering code within the SINEAX V604 family, defining the input/output configuration and auxiliary supply variant. Contact us to confirm it matches your exact application requirement.
Q: Does it comply with IEC 60688?
A: Yes. The SINEAX V604 is designed and tested to IEC 60688 (Electrical measuring transducers for converting AC electrical quantities to analogue or digital signals), Class 0.2/0.5.
Q: Can I use this as a drop-in replacement for an older SINEAX transducer?
A: In most cases, yes. The V604 uses the same DIN-rail footprint and plug-in terminal block system as earlier SINEAX generations. Verify auxiliary supply voltage and terminal assignment before installation.
Q: Do you provide a datasheet or wiring diagram?
A: Yes — the official GOSSEN CAMILLE BAUER datasheet and wiring diagram are available upon request. Email support@konmask.com with your order reference.
