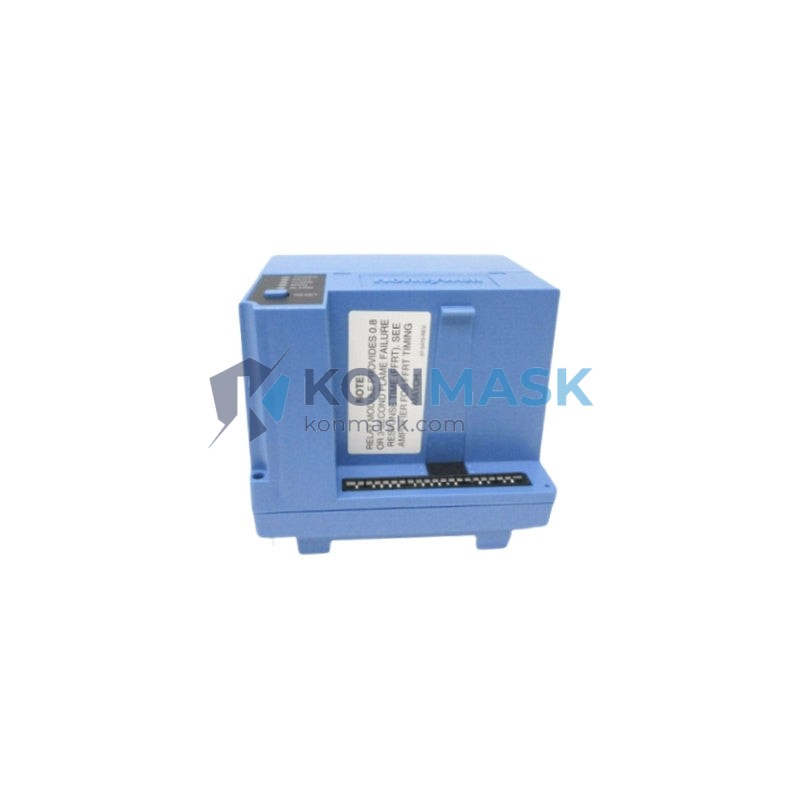

Honeywell RM7890A1015 Burner Control Relay Module | Replacement, Equivalent & Selection Guide
The Honeywell RM7890A1015 is a programmable burner control relay module from the industry-leading 7800 Series. Designed for industrial and commercial combustion systems, it provides reliable flame supervision, safety shutdown, and burner sequencing. This page serves as a comprehensive selection guide for engineers and procurement teams sourcing the RM7890A1015 or evaluating compatible replacements.
Technical Specifications
- Part Number / SKU: RM7890A1015
- Brand: Honeywell (Resideo / Honeywell Process Solutions)
- Series: 7800 Series Burner Controls
- Type: Burner Control Relay Module
- Supply Voltage: 120 VAC, 60 Hz
- Flame Detector Input: Compatible with UV, IR, and self-check UV scanners
- Safety Shutdown: Automatic lockout on flame failure
- Ignition Trial Time: Configurable via plug-in subbase
- Operating Temperature: -40°C to +60°C (–40°F to +140°F)
- Enclosure: Plug-in module, mounts on R7847 / R7848 / R7849 amplifier subbase
- Approvals: UL Listed, CSA Certified, CE Marked
- Weight: Approx. 800 g (with packaging)
Compatible Replacement & Equivalent Models
When the RM7890A1015 is unavailable or under evaluation, the following models are commonly considered as functional equivalents or drop-in replacements. Always verify electrical and mechanical compatibility before substitution.
- RM7890A1014 — Earlier revision; functionally equivalent, verify firmware compatibility
- RM7890B1000 — Enhanced version with expanded diagnostics; backward-compatible subbase
- RM7895A1014 — 7800 Series with integrated display module; suitable for upgraded installations
- RM7840L1018 — Alternative 7800 Series module for single-burner applications
- EC7890A1000 — European CE variant; confirm voltage and approval requirements
- Siemens LME73 Series — Third-party equivalent for select burner OEM applications (requires wiring adaptation)
Note: Konmask.com recommends using genuine Honeywell OEM parts for safety-critical combustion control applications. Contact our team for cross-reference verification.
Why Choose the Original RM7890A1015
- ✅ Proven Safety Record — UL/CSA/CE certified for industrial combustion safety
- ✅ Plug-in Modularity — Hot-swap capable on 7800 Series subbase without rewiring
- ✅ Wide Flame Detector Compatibility — Supports UV, IR, and self-check scanner types
- ✅ Diagnostic LED Indicators — Simplifies field troubleshooting and commissioning
- ✅ Long Service Life — Designed for continuous duty in demanding industrial environments
- ✅ Global Approvals — Accepted by major inspection bodies worldwide
Typical Applications
- Industrial boilers and process heaters
- Commercial HVAC burner systems
- Thermal oxidizers and incinerators
- Kilns, ovens, and dryers with gas or oil burners
- Power generation auxiliary burners
- Marine and offshore heating systems
System Compatibility
The RM7890A1015 is designed to operate within the Honeywell 7800 Series burner control ecosystem. Compatible system components include:
- Amplifiers / Subbases: R7847A, R7848A, R7849A
- Display Modules: S7800A1001 Keyboard Display Module (KDM)
- Flame Scanners: C7027, C7035, C7044, C7076 series UV/IR detectors
- Wiring Bases: Q7800A, Q7800B series
- Remote Reset: Compatible with S7820A remote reset module
Selection Guide
Use the following criteria to confirm the RM7890A1015 is the correct module for your application:
- Supply Voltage: Confirm 120 VAC / 60 Hz availability at the control panel
- Flame Detector Type: Match scanner type (UV / IR / self-check) to amplifier subbase
- Burner Type: Single-burner, gas or oil, atmospheric or forced-draft
- Trial for Ignition (TFI): Verify required TFI timing matches subbase configuration
- Purge Time: Confirm pre-purge requirements align with system design
- Regulatory Requirements: Check local codes (NFPA 85, EN 298, etc.) for approval requirements
If your application requires 240 VAC, integrated display, or multi-burner control, contact Konmask.com for alternative model recommendations.
Quality Assurance & Sourcing
All Honeywell products supplied by Konmask.com are sourced through verified industrial distribution channels. Each unit undergoes:
- Visual inspection and packaging integrity check
- Serial number and date code verification
- Authenticity validation against Honeywell manufacturer records
- Secure anti-static packaging for safe international shipping
We supply to OEMs, system integrators, MRO procurement teams, and end-users globally. Expedited sourcing available for urgent shutdown and maintenance requirements.
How to Order
- Online: Add to cart directly on this page
- Email: support@konmask.com — include part number, quantity, and delivery location
- Phone / WhatsApp: +0086 19859288691
- Lead Time: In-stock items ship within 1–3 business days; ex-stock lead times quoted on request
- Payment: T/T, PayPal, credit card, and trade account options available
- Shipping: DHL, FedEx, UPS worldwide; sea freight for bulk orders
Replacement & Compatibility FAQ
Q: Can I replace RM7890A1015 with RM7890A1014?
A: In most cases yes — both are 7800 Series modules sharing the same subbase footprint. Verify firmware revision compatibility with your system integrator.
Q: Is the RM7890A1015 compatible with 240 VAC systems?
A: No. The A1015 suffix designates 120 VAC / 60 Hz. For 240 VAC applications, consult Konmask.com for the correct variant.
Q: Can I use a Siemens LME series module as a replacement?
A: Siemens LME modules are not direct plug-in replacements — they require different wiring bases and scanner inputs. Cross-brand substitution should only be performed by qualified combustion engineers.
Q: Does Konmask.com provide warranty on this product?
A: Yes. We offer a 12-month warranty against manufacturing defects on all genuine OEM parts. Contact support@konmask.com for warranty claims.
Q: How do I verify authenticity of my Honeywell module?
A: Check the holographic label, date code, and serial number. Konmask.com provides documentation of supply chain traceability upon request.
