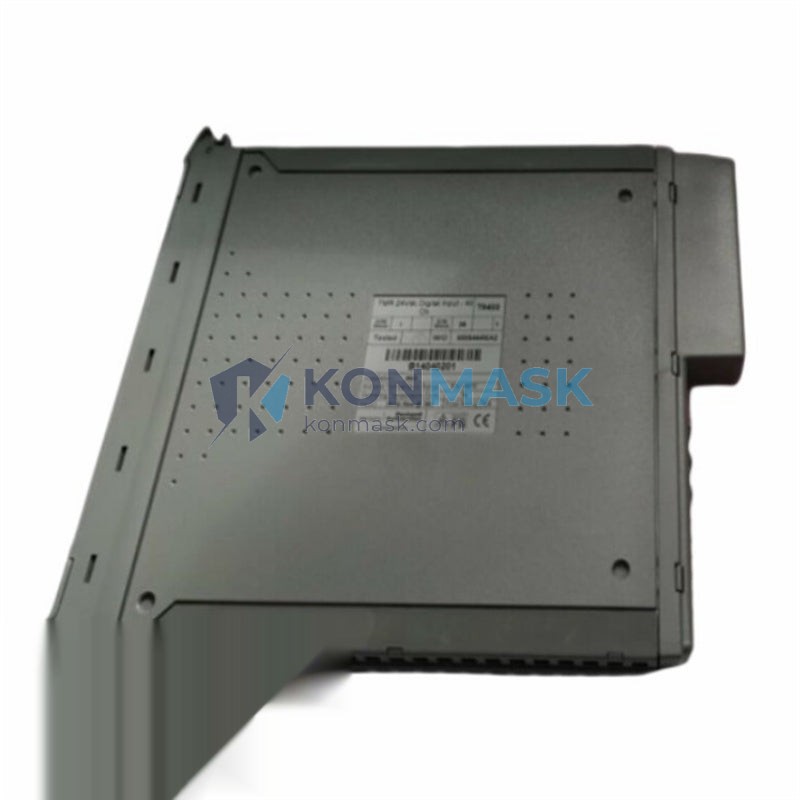

ICS TRIPLEX T8403 – Trusted Expander Module | Trusted TMR Safety Platform
Engineering Background
The ICS TRIPLEX T8403 is a core I/O expansion module designed for the Trusted TMR (Triple Modular Redundancy) safety PLC platform — one of the most widely deployed SIL 3-rated control architectures in global process industries. The T8403 extends the I/O capacity of Trusted controllers while maintaining the platform’s hallmark fault-tolerant, voted-output architecture. It is engineered for continuous operation in safety-critical environments where unplanned shutdowns carry significant operational and safety consequences.
Product Positioning
Konmask.com supplies the T8403 to procurement engineers and MRO teams requiring verified replacement or expansion modules for existing Trusted TMR installations. Whether supporting a brownfield retrofit, a spare-parts inventory build, or an emergency replacement, the T8403 sourced through Konmask undergoes documented quality verification before dispatch.
Complete Technical Specifications
- Part Number: T8403
- Manufacturer: ICS TRIPLEX (Rockwell Automation)
- Module Type: Trusted Expander Module
- Platform Compatibility: Trusted TMR Safety PLC System
- Architecture: Triple Modular Redundancy (TMR) — 2-out-of-3 voting logic
- Safety Integrity Level: SIL 3 (IEC 61508)
- Backplane Interface: Trusted system backplane (proprietary high-speed bus)
- Operating Temperature: 0°C to +60°C (32°F to 140°F)
- Storage Temperature: -40°C to +85°C
- Humidity: 5% to 95% RH, non-condensing
- Power Consumption: Per Trusted system power budget (refer to system documentation)
- Weight: 1,200 g (approx.)
- Certifications: TÜV-certified, IEC 61508 SIL 3, CE
- Form Factor: Standard Trusted chassis plug-in module
- Firmware: Compatible with current Trusted system firmware revisions
Proven Application Environments
- Oil & Gas: Emergency Shutdown Systems (ESD), High Integrity Pressure Protection Systems (HIPPS), compressor and turbine control
- Petrochemical & Refining: Burner Management Systems (BMS), reactor safety interlocks, fired heater protection
- Power Generation: Turbine protection, boiler safety systems, load-shedding logic
- LNG & Offshore: Platform ESD, fire & gas integration, wellhead control
- Chemical Processing: Batch reactor interlocks, toxic release prevention, SIS layer integration
- Water & Utilities: Critical pump and valve control with SIL-rated safety loops
Engineering Advantages
- TMR Fault Tolerance: Three independent processing channels with continuous cross-comparison — single-channel faults do not interrupt output or trigger spurious trips
- Online Replacement: Supports hot-swap replacement in qualified Trusted chassis configurations, minimizing maintenance downtime
- Diagnostic Coverage: High internal diagnostic coverage rate consistent with SIL 3 PFD targets; continuous self-test without process interruption
- Deterministic Response: Predictable scan-cycle execution ensures safety function response times meet SIL 3 requirements
- Backward Compatibility: Designed for integration into existing Trusted TMR installations without controller replacement
- Long Service Life: Ruggedized PCB design with conformal coating for industrial EMI and vibration environments
System Architecture & Signal Flow
The T8403 plugs directly into the Trusted chassis backplane, where it communicates with the Trusted controller module via the proprietary TMR bus. Each of the three redundant channels independently processes I/O signals. The TMR voting logic arbitrates channel outputs — a 2-out-of-3 majority vote determines the final output state, ensuring that a single channel failure neither causes a spurious trip nor masks a genuine process fault. Diagnostic data from the T8403 is continuously reported to the Trusted system’s fault management layer and is accessible via the engineering workstation for predictive maintenance planning.
Sourcing & Quality Verification
All T8403 modules supplied by Konmask.com are subject to the following pre-shipment process:
- Visual Inspection: PCB, connectors, and housing examined for physical damage, corrosion, or counterfeit indicators
- Label & Serialization Check: Part number, revision, and serial number verified against manufacturer records where available
- Functional Verification: Bench-level power-on and communication test performed where test infrastructure permits
- Packaging: ESD-safe anti-static bag, foam-lined carton, and moisture barrier for international transit
- Documentation: Certificate of conformance and inspection report available upon request
Konmask does not supply unchecked grey-market stock. All modules are traceable to documented sourcing channels.
Procurement Process
- Submit Inquiry: Contact us via email or phone with your required part number, quantity, and delivery timeline
- Quotation: Receive a formal quotation with pricing, lead time, and available stock confirmation within 1 business day
- Order Confirmation: Issue a purchase order; Konmask issues a proforma invoice
- Quality Check & Dispatch: Module undergoes pre-shipment inspection; dispatched with tracking and documentation package
- Delivery: DHL / FedEx / UPS express available; sea freight for bulk orders; export documentation provided for cross-border shipments
- After-Sales Support: Technical queries and warranty claims handled directly by Konmask engineering support
Technical FAQ
Q: Is the T8403 compatible with all Trusted TMR chassis generations?
A: The T8403 is designed for the Trusted TMR platform. Compatibility depends on chassis revision and firmware version. Contact Konmask with your existing system details for a compatibility confirmation before ordering.
Q: Can the T8403 be replaced online without shutting down the process?
A: Hot-swap capability is supported in qualified Trusted chassis configurations. Verify your specific chassis and controller firmware revision supports online replacement per the ICS TRIPLEX system documentation.
Q: What is the typical lead time?
A: In-stock units ship within 2–5 business days after order confirmation. Out-of-stock lead times vary; contact us for current availability.
Q: Do you provide a warranty?
A: Yes. Konmask provides a standard 12-month warranty against defects in materials and workmanship for all verified modules. Terms available on request.
Q: Can you supply multiple units for a spare-parts program?
A: Yes. Konmask supports bulk procurement for MRO spare-parts programs. Volume pricing is available — contact us for a tailored quotation.
Q: Is an IEC 61508 certificate of conformance available?
A: Documentation packages including CoC and inspection reports are available upon request for qualified orders.
