Industrial Automation Solution — IEI NOVA-8522G2-R10 | NOVA Series

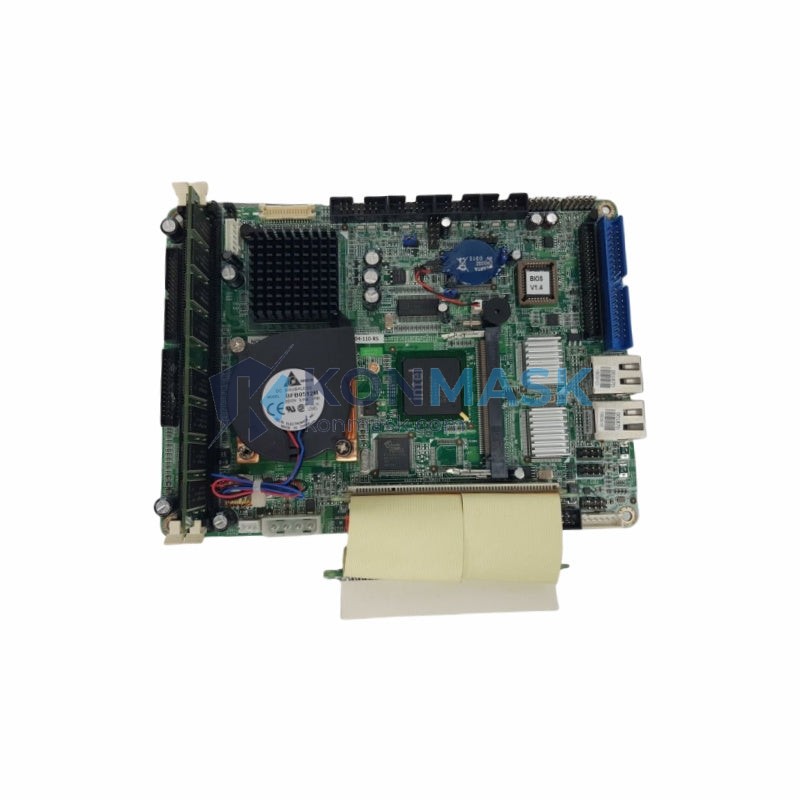

The IEI NOVA-8522G2-R10 is a rugged industrial motherboard engineered for demanding embedded computing environments. Built on the Socket 478 platform and designed to IEI’s NOVA series standards, it delivers reliable, long-lifecycle performance across factory automation, HMI terminals, machine vision, and transportation control systems.
Where This Product Is Used
The NOVA-8522G2-R10 is specified by engineers across a wide range of industrial verticals:
- Factory Automation & PLC Integration: Serves as the computing core in industrial PCs interfacing with PLCs, SCADA systems, and field I/O modules. Its stable Socket 478 platform ensures long-term availability for production-line deployments.
- HMI (Human-Machine Interface) Terminals: Powers operator panels and touch-screen workstations in manufacturing cells, providing the processing headroom needed for real-time visualization and control.
- Machine Vision & Inspection Systems: Supports frame-grabber cards and high-bandwidth camera interfaces in automated optical inspection (AOI) and quality-control stations.
- Transportation & Traffic Management: Deployed in vehicle-mounted computers, toll systems, and railway trackside units where vibration resistance and wide-temperature operation are mandatory.
- Medical Imaging Equipment: Used in diagnostic workstations and bedside terminals requiring certified, long-lifecycle components with stable supply chains.
- Energy & Utilities SCADA: Integrated into substation automation and remote terminal units (RTUs) for power grid monitoring and control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NOVA-8522G2-R10 |
| Manufacturer | IEI Integration Corp. |
| Series | NOVA |
| Form Factor | Industrial SBC (Single Board Computer) |
| CPU Socket | Socket 478 (Intel Pentium 4 / Celeron) |
| Chipset | Intel 852GM + ICH4 |
| Memory | Up to 1 GB DDR SDRAM (2× SO-DIMM) |
| Graphics | Integrated Intel Extreme Graphics 2 |
| Display Output | VGA + LVDS (dual display) |
| Storage Interface | 2× IDE (ATA-100), 1× CompactFlash |
| Expansion Slots | 1× AGP 4×, 3× PCI |
| Ethernet | 2× 10/100 Mbps (Intel 82551QM) |
| Serial Ports | 4× RS-232 / 1× RS-232/422/485 |
| USB | 4× USB 2.0 |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 80°C |
| Power Input | ATX / AT |
| Weight | ~500 g |
| Revision | R10 |
Why Engineers Specify This Model
- Long Product Lifecycle: IEI’s NOVA series is designed for 5–7 year production runs, reducing redesign costs for OEMs and system integrators.
- Dual Display Support: Simultaneous VGA + LVDS output enables multi-screen HMI configurations without add-in cards.
- Rich Legacy I/O: Multiple RS-232/422/485 ports and IDE interfaces ensure compatibility with existing industrial peripherals and legacy field devices.
- Rugged Construction: Wide-temperature rating, conformal coating options, and industrial-grade components meet the demands of 24/7 factory environments.
- Proven Chipset Stability: Intel 852GM + ICH4 is a well-characterized platform with extensive driver support across Windows XP/7 and Linux kernels.
Complete System Bill of Materials
For a complete embedded computing system based on the NOVA-8522G2-R10, engineers typically specify:
- CPU: Intel Pentium 4 or Celeron Socket 478 processor
- Memory: DDR 333/400 SO-DIMM modules (512 MB or 1 GB)
- Storage: CompactFlash card (industrial grade) or 2.5″ IDE HDD
- Chassis: IEI RACK-360 or compatible 4U rackmount industrial chassis
- Power Supply: ATX industrial PSU (250 W minimum)
- Display: LVDS panel (10.4″–17″) or standard VGA monitor
- OS: Windows XP Embedded, Windows 7, or Linux (kernel 2.6+)
Compliance & Industry Standards
- CE Marking (EMC Directive 2014/30/EU)
- FCC Part 15 Class A
- RoHS 2 Compliant (Directive 2011/65/EU)
- ISO 9001:2015 — IEI Manufacturing Quality System
- BSMI (Taiwan Bureau of Standards)
Quality Assurance & Sourcing
Konmask.com sources the IEI NOVA-8522G2-R10 exclusively through authorized distribution channels and verified industrial surplus networks. Every unit undergoes:
- Visual inspection for physical damage, corrosion, and component integrity
- Power-on test and POST verification
- I/O port functional testing (serial, USB, LAN, display)
- Anti-static packaging with humidity indicator cards
- Serialized traceability records retained for 3 years
We provide a 90-day warranty on all tested units and offer exchange or full refund for DOA (Dead on Arrival) items.
How to Source This Part
- Click Add to Cart or Request a Quote on this page.
- For bulk orders (5+ units), email support@konmask.com for volume pricing.
- Lead time: In-stock units ship within 1–3 business days; sourced units typically 7–15 business days.
- Export documentation (commercial invoice, packing list, CO) provided for international shipments.
- Payment: T/T (wire transfer), PayPal, credit card via Shopify Payments.
Application-Specific FAQ
Q: Can the NOVA-8522G2-R10 run Windows 10?
A: The Intel 852GM chipset does not have official Windows 10 drivers. Windows XP Embedded and Windows 7 (32-bit) are the recommended operating systems. Linux with kernel 2.6+ is also supported.
Q: Is the LVDS interface compatible with standard industrial panels?
A: Yes. The LVDS output supports single-channel 18/24-bit panels. A compatible LVDS cable and backlight inverter are required — contact us for panel-matching assistance.
Q: What is the maximum RAM supported?
A: The board supports up to 1 GB DDR SDRAM across two SO-DIMM slots (2× 512 MB).
Q: Can this board be used in a fanless enclosure?
A: Yes, with a low-TDP Celeron processor (e.g., 2.0 GHz or below) and a passive heatsink, fanless operation is achievable in environments up to 45°C ambient.
Q: Do you provide the original IEI manual and driver CD?
A: We provide a digital copy of the user manual and driver package download link with every order. Physical media is available on request.
Q: What is the difference between R10 and earlier revisions?
A: Revision R10 incorporates PCB-level improvements for enhanced EMI suppression and updated BIOS firmware supporting newer Pentium 4 Prescott-core CPUs.
