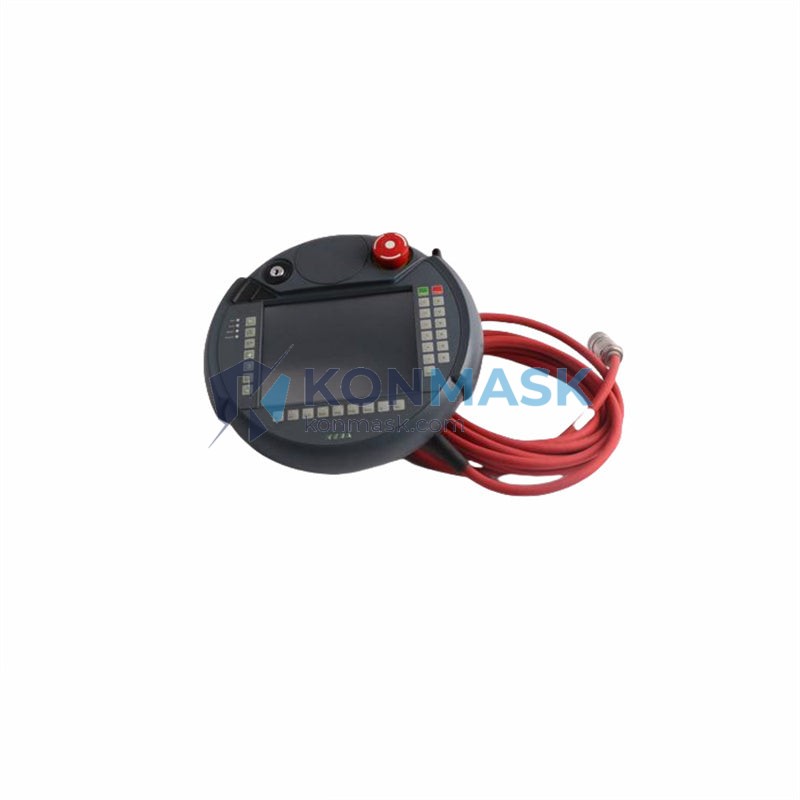

KEBA KETOP T50 R01 VX/69908/14 – Handheld Operator Terminal | KETOP T50 Platform
Engineering Background
The KEBA KETOP T50 series represents KEBA’s flagship handheld operator terminal platform, engineered for demanding industrial machine control environments. KEBA AG, headquartered in Linz, Austria, has over 50 years of expertise in industrial automation, robotics, and drive technology. The KETOP T50 is the successor to the T40 series, incorporating enhanced processing power, improved ergonomics, and expanded communication interfaces to meet the requirements of modern CNC, robotics, and special-purpose machine builders.
Product Positioning
The KETOP T50 R01 VX/69908/14 is a rugged, handheld teach pendant and operator panel designed for direct machine interaction in production and commissioning environments. It serves as the primary human-machine interface (HMI) for KEBA KeMotion and compatible third-party control platforms, enabling operators and engineers to perform real-time monitoring, parameter adjustment, program execution, and safety-rated emergency stop functions from a mobile, ergonomic device.
Complete Technical Specifications
| Part Number | KETOP T50 R01 VX/69908/14 |
| Manufacturer | KEBA AG (Austria) |
| Series / Platform | KETOP T50 |
| Device Type | Handheld Operator Terminal / Teach Pendant |
| Display | Color TFT touchscreen, high-brightness, glare-resistant |
| Operating System | Embedded Linux / KEBA runtime environment |
| Communication Interface | Ethernet (RJ45), USB, proprietary KEBA bus connector |
| Safety Function | Integrated 3-position enabling switch (EN 60204-1), Emergency Stop button (SIL 2 / PLd capable) |
| Enclosure Rating | IP65 (front panel), suitable for industrial environments |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -20 °C to +70 °C |
| Weight | Approx. 1,220 g (incl. cable) |
| Power Supply | Supplied via control cabinet cable harness (24 VDC nominal) |
| Keypad | Membrane keypad with function keys, navigation keys, and application-specific soft keys |
| Compliance | CE, UL/cUL (where applicable), EN ISO 13849, IEC 62061 |
| Condition | New / Surplus / Refurbished (specify at inquiry) |
Proven Application Environments
- CNC Machine Tools — Milling centers, lathes, grinding machines requiring mobile operator access during setup and tool change
- Industrial Robotics — Robot teach-in, trajectory programming, and safety-rated jog operations on KEBA KeMotion robot controllers
- Injection Molding Machines — Process parameter adjustment and mold change operations at the machine face
- Special-Purpose Automation — Assembly lines, test rigs, and custom automation cells requiring a portable, rugged HMI
- Commissioning & Maintenance — Field engineers performing drive tuning, I/O diagnostics, and firmware updates on-site
Engineering Advantages
- Safety-Rated Enabling Device — 3-position enabling switch and E-stop meet EN ISO 13849 PLd / SIL 2 requirements, eliminating the need for external safety relays in many configurations
- Ergonomic Handheld Design — Balanced weight distribution and contoured grip reduce operator fatigue during extended commissioning sessions
- High-Visibility Display — Sunlight-readable TFT panel with touch input supports complex HMI applications without external monitor
- Seamless KEBA Ecosystem Integration — Plug-and-play compatibility with KeMotion CNC and robot controllers; no additional driver configuration required
- Robust Industrial Construction — IP65-rated front panel, shock-resistant housing, and industrial-grade connectors rated for continuous production use
- Flexible Connectivity — Ethernet and USB ports support data logging, program upload/download, and remote diagnostics
System Architecture & Signal Flow
The KETOP T50 R01 VX/69908/14 connects to the KEBA control cabinet via a dedicated cable harness that carries power (24 VDC), Ethernet communication, and safety-rated signals on a single, strain-relieved connector. The enabling switch and E-stop signals are routed through a hardwired safety circuit independent of the communication bus, ensuring that safety functions remain active even during communication faults. The Ethernet link carries HMI application data, real-time process values, and program management traffic between the pendant and the KeMotion controller. USB provides local file transfer and service access.
Sourcing & Quality Verification
All KEBA components supplied by Konmask.com are sourced through verified industrial distribution and surplus channels. Each unit undergoes the following verification process before dispatch:
- Visual inspection for physical damage, connector integrity, and label authenticity
- Functional power-on test where applicable
- Cross-reference of part number, revision code, and date code against KEBA documentation
- Anti-static packaging with humidity indicator card for international shipment
Certificates of conformity and test reports are available upon request for OEM and system integrator procurement.
Procurement Process
- Submit Inquiry — Contact us via the product page or email [email protected] with your required quantity and delivery timeline
- Quotation & Lead Time Confirmation — We respond within 1 business day with pricing, availability, and estimated delivery
- Order Placement — Purchase order or online checkout; T/T bank transfer, credit card, and PayPal accepted
- Quality Check & Dispatch — Unit inspected, packed, and shipped with tracking; DHL / FedEx / UPS express available
- After-Sales Support — Technical assistance, return authorization, and warranty claims handled by our engineering team
Technical FAQ
Q: Is the KETOP T50 R01 VX/69908/14 compatible with third-party (non-KEBA) controllers?
A: The KETOP T50 is primarily designed for KEBA KeMotion platforms. Limited compatibility with third-party controllers may be achievable via Ethernet/IP or Modbus TCP, but requires custom integration work. Contact our team for a compatibility assessment.
Q: What is the difference between revision R01 and other KETOP T50 revisions?
A: Revision codes denote hardware and firmware baseline changes. R01 is the initial production release of the T50 platform. Always verify revision compatibility with your existing KEBA controller firmware version before ordering.
Q: Can the enabling switch be bypassed for testing purposes?
A: No. The enabling switch is a safety-rated component per EN ISO 13849. Bypassing it violates machine safety standards and voids any applicable certifications. Use the KEBA service mode functions within the KeMotion software for controlled testing.
Q: What warranty is provided?
A: Konmask.com provides a 90-day functional warranty on all verified units. Extended warranty and exchange programs are available for volume orders. OEM warranty terms apply to new-in-box stock where available.
Q: Do you provide export documentation for international shipments?
A: Yes. We provide commercial invoice, packing list, certificate of origin, and HS code documentation (HS 8537.10) for all international orders. ECCN classification and export license support available on request.
