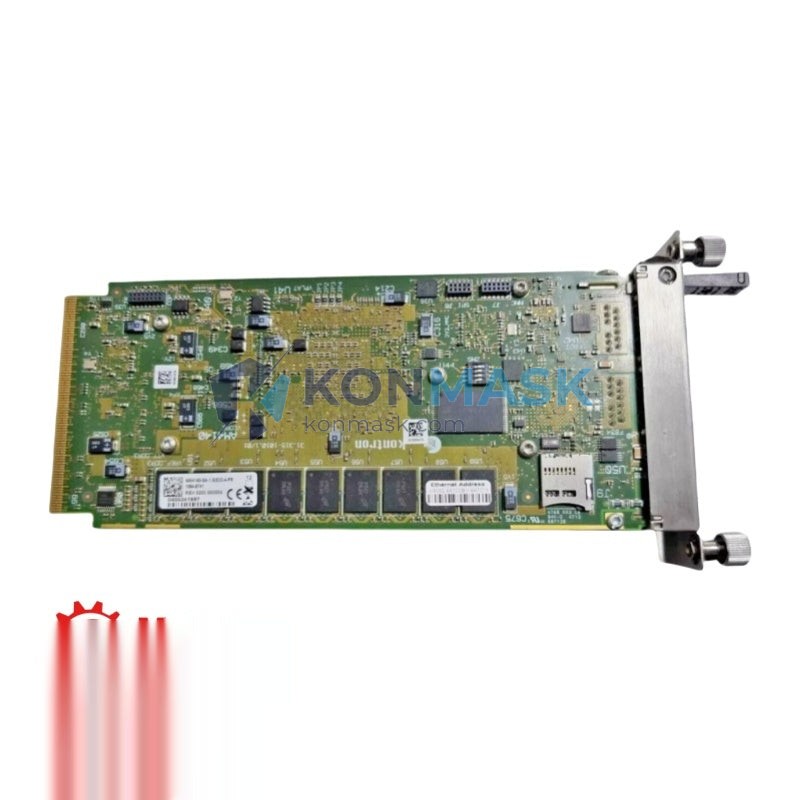

Kontron AM4140 – Quad-Core PowerPC AMC Processor Module | AdvancedMC Platform
Engineering Background: The Kontron AM4140 is a high-performance AdvancedMC (AMC) processor module built on the PICMG AMC.0 R2.0 standard. Designed for mission-critical embedded computing in telecommunications, defense, and industrial automation, it delivers deterministic real-time processing in compact MicroTCA and ATCA chassis environments.
Product Positioning: Targeting system architects and procurement engineers who require a proven, long-lifecycle compute blade for carrier-grade platforms, the AM4140 combines a Quad-Core PowerPC architecture with dual Gigabit Ethernet fabric ports and a robust thermal envelope — making it the preferred choice for high-availability deployments where downtime is not an option.
Complete Technical Specifications
- Part Number: AM4140
- Manufacturer: Kontron
- Form Factor: AMC (AdvancedMC) — Full-Size, Single-Width
- Standard: PICMG AMC.0 R2.0
- Processor: Quad-Core PowerPC (Freescale QorIQ family)
- Memory: Up to 4 GB DDR3 ECC SDRAM
- Storage: Onboard Flash / optional SATA SSD via AMC.1
- Fabric Interfaces: 2× Gigabit Ethernet (AMC.2 Type E2)
- Management: IPMI 2.0 compliant MMC (Module Management Controller)
- Operating Temperature: 0°C to +55°C (commercial); extended range available
- Power Consumption: Typically ≤ 30 W (12 V payload power)
- Dimensions: 73.8 mm × 181.5 mm (Full-Size AMC)
- Weight: ~1,000 g
- OS Support: VxWorks, Linux (LTSI), Wind River Linux
- Compliance: RoHS, CE, NEBS Level 3 (optional)
Proven Application Environments
- Telecommunications: LTE/4G base station processing, IMS core nodes, media gateways in MicroTCA chassis
- Defense & Aerospace: Radar signal processing, C4ISR platforms, ruggedized ATCA subsystems
- Industrial Automation: Real-time control in high-availability PLC/DCS backplane architectures
- Test & Measurement: Protocol analyzers, network emulators, and high-throughput data acquisition systems
- Medical Imaging: Embedded compute for MRI/CT data processing pipelines requiring ECC memory
Engineering Advantages
- Deterministic Real-Time Performance: Quad-Core PowerPC with hardware ECC ensures data integrity in safety-critical loops
- Hot-Swap Capable: Full IPMI 2.0 MMC support enables live insertion/extraction without chassis downtime
- Long Lifecycle Availability: Kontron’s extended product lifecycle program supports 7–10 year procurement windows
- Fabric Flexibility: Dual GbE AMC.2 ports support both Base and Fabric interfaces for multi-topology chassis designs
- Thermal Robustness: Designed for forced-air cooling in standard MicroTCA/ATCA shelves; conduction-cooled variants available
System Architecture & Signal Flow
The AM4140 slots into any PICMG AMC.0-compliant MicroTCA shelf or ATCA blade carrier. The Quad-Core PowerPC payload communicates upstream via the AMC connector’s fabric lanes (GbE/PCIe) to the MCH (MicroTCA Carrier Hub) or ATCA switch blade. The onboard MMC manages power sequencing, IPMI sensor reporting, and hot-swap signaling independently of the payload processor — ensuring management plane continuity even during payload resets. Storage traffic routes via AMC.1 SATA to onboard flash or an optional rear-transition module (RTM).
Sourcing & Quality Verification
- All Kontron AM4140 units sourced by Konmask.com are inspected against Kontron’s published hardware revision matrix
- Firmware version and MMC revision verified prior to shipment
- Anti-static packaging with humidity indicator cards for long-haul freight
- Traceability documentation (serial number, revision, test report) included on request
- Counterfeit-prevention: units cross-referenced against Kontron authorized distributor records
Procurement Process
- Step 1: Submit RFQ via support@konmask.com with quantity, target delivery, and destination country
- Step 2: Receive formal quotation with lead time, unit price (HKD/USD), and shipping options within 24 hours
- Step 3: Confirm PO — T/T bank transfer, PayPal, or trade assurance accepted
- Step 4: Pre-shipment inspection report issued; DHL/FedEx/UPS express with full tracking
- Step 5: Post-delivery technical support available via email or WhatsApp
Technical FAQ
Q: Is the AM4140 compatible with MicroTCA.4 (MTCA.4) shelves?
A: Yes, provided the shelf MCH supports AMC.0 R2.0 slot profiles. Verify slot power budget (≥30 W) before installation.
Q: Can the AM4140 run a real-time OS alongside Linux?
A: Yes. The Quad-Core architecture supports AMP (Asymmetric Multi-Processing) configurations — e.g., cores 0–1 running VxWorks for real-time tasks, cores 2–3 running Linux for management.
Q: What firmware version is current?
A: Kontron periodically releases MMC and BIOS updates. Konmask.com ships units with the latest stable firmware available at time of order; update packages provided on request.
Q: Do you provide a warranty?
A: All units carry a 90-day functional warranty. Extended warranty and spare-part agreements available for volume orders.
Q: Can you supply matching MCH or power modules for a complete MicroTCA shelf?
A: Yes. Contact us with your full BOM and we will source compatible Kontron or third-party MCH, PM, and cooling modules.
