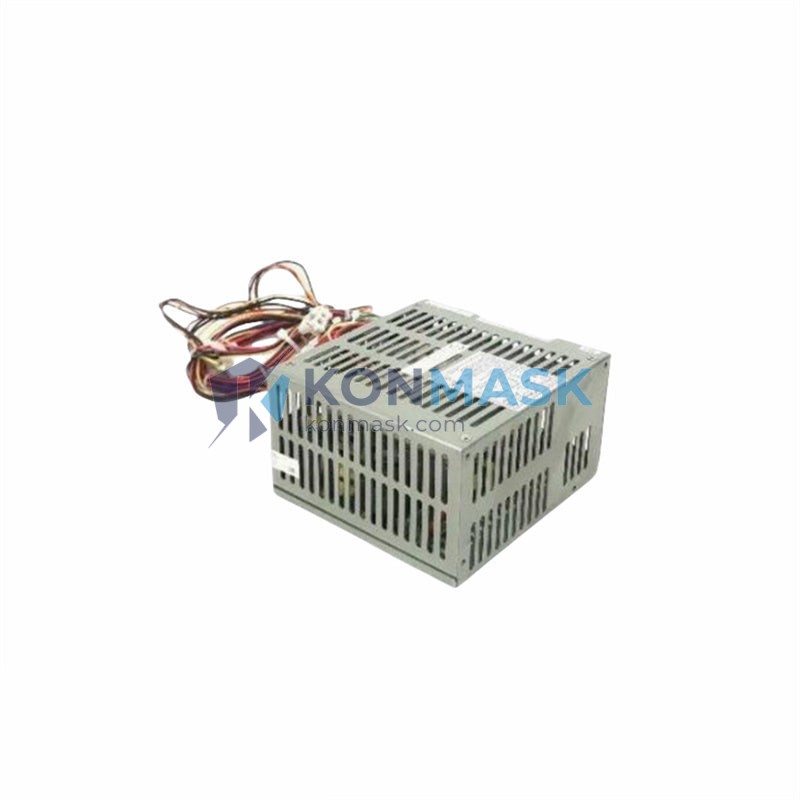

Robot Controller Power Solution – KUKA SPS-DY150H 00-105-904 | KRC Series
Where This Product Is Used
The KUKA SPS-DY150H (Part No. 00-105-904) is a dedicated power supply unit engineered for KUKA KRC robot controller cabinets. It is widely deployed across the following industrial environments:
- Automotive Body-in-White (BIW) Lines – Sustains uninterrupted 24 V DC logic power to KRC2/KRC4 controllers driving spot-welding and seam-sealing robots.
- Tier-1 Automotive Stamping Plants – Provides stable regulated power in high-vibration press-tending cells where voltage fluctuation causes servo faults.
- General Assembly & Material Handling – Powers controller logic boards in palletizing, pick-and-place, and conveyor-tracking robot cells.
- Aerospace Component Machining – Supports KUKA heavy-payload robots (KR 120–500) in milling and drilling fixtures requiring continuous duty power.
- Electronics & Consumer Goods Manufacturing – Used in cleanroom-adjacent controller cabinets for SCARA and articulated arm robots.
- MRO & Spare Parts Inventory – Stocked by maintenance teams as a critical spare to minimize Mean Time To Repair (MTTR) during unplanned downtime.
Technical Specifications
- Manufacturer: KUKA Robotics
- Part Number: 00-105-904
- Model: SPS-DY150H
- Series: KRC Controller Power Supply
- Output Power: 150 W
- Output Voltage: 24 V DC (regulated)
- Input Voltage: 100–240 V AC, 50/60 Hz (universal input)
- Form Factor: DIN-rail / cabinet-mount module
- Weight: 2,000 g (approx.)
- Compatible Controllers: KUKA KRC2, KRC4 series
- Cooling: Convection / forced-air (cabinet-dependent)
- Protection Class: Overvoltage, overcurrent, short-circuit protection
Why Engineers Specify This Model
- OEM-Exact Replacement: KUKA part number 00-105-904 ensures pin-compatible, drop-in installation with zero firmware changes.
- 150 W Headroom: Adequate reserve capacity prevents thermal derating under full I/O load — a common failure mode with undersized aftermarket units.
- Universal AC Input: Operates on 100–240 V AC, making it suitable for both domestic (220 V) and export (110 V) production lines without rewiring.
- Regulated 24 V DC Output: Tight voltage regulation protects sensitive KRC logic boards and fieldbus communication cards from transient damage.
- Proven MTBF: KUKA-qualified components deliver the reliability expected in 24/7 automotive production environments.
- Fast Swap: Modular design allows replacement in under 30 minutes, minimizing production downtime.
Complete System Bill of Materials
When specifying this power supply for a KRC controller rebuild or spare-parts kit, consider the following complementary components:
- KUKA KRC2 / KRC4 Main Computer Board
- KUKA KPS 600 / KPS 27 Servo Power Supply
- KUKA DSE-IBS / DSE-RDW Drive System Electronics
- KUKA SmartPAD / KCP2 Teach Pendant
- KUKA Cabinet Fan / Filter Mat (maintenance kit)
- 24 V DC UPS Buffer Module (for brownout protection)
Compliance & Industry Standards
- CE Marking: Compliant with EU Low Voltage Directive (LVD) 2014/35/EU
- RoHS: Manufactured in accordance with RoHS 2 Directive 2011/65/EU
- ISO 10218: Designed for use in robot systems conforming to ISO 10218-1/2 safety requirements
- UL / cUL: Suitable for UL-listed panel installations (verify with local AHJ)
- IEC 61131-2: Compatible with PLC/controller power supply standards
Quality Assurance & Sourcing
Every KUKA SPS-DY150H 00-105-904 unit offered by Konmask.com undergoes the following verification process before dispatch:
- ✔ Visual inspection for physical damage, corrosion, and label integrity
- ✔ Input/output voltage load test under rated conditions
- ✔ Part number and serial number cross-check against KUKA OEM documentation
- ✔ Anti-static packaging with humidity indicator card
- ✔ Sourced from authorized distributors or decommissioned OEM production lines
How to Source This Part
- Add to Cart – Click the purchase button above to place your order directly.
- Request a Quote – For bulk orders (5+ units) or project BOM pricing, email [email protected].
- Urgent Requirement – Call or WhatsApp +0086 19859288691 for same-day shipping confirmation on in-stock units.
- Cross-Reference Check – Provide your KRC cabinet serial number and we will verify compatibility before shipment.
Application-Specific FAQ
Q: Is the SPS-DY150H compatible with both KRC2 and KRC4 controllers?
A: Yes. The 00-105-904 part number is used across multiple KRC generations. Please confirm your cabinet variant when ordering for KRC4 ed05 or later.
Q: Can this power supply be used as a direct replacement without reconfiguring the KRC software?
A: Yes. It is an OEM-identical hardware replacement. No software or parameter changes are required.
Q: What is the lead time for international orders?
A: In-stock units typically ship within 1–2 business days. International delivery via DHL/FedEx Express is 3–7 business days depending on destination.
Q: Do you provide a warranty?
A: Yes. All units carry a 90-day functional warranty. Extended warranty options are available — contact us for details.
Q: Can I return the unit if it does not resolve my fault?
A: We offer a 30-day return policy for unused, uninstalled units in original packaging. Tested/installed units are evaluated case by case.
