Legacy PLC Retrofit & Discrete Machine Control Solution – Allen-Bradley 1772-LW | MINI PLC 2/17 Series
Across thousands of discrete manufacturing plants, packaging lines, and OEM machine installations worldwide, aging control systems built on the Allen-Bradley MINI PLC 2 platform continue to run mission-critical processes — yet sourcing a verified replacement processor has become the single largest unplanned downtime risk. Industry data shows that unplanned PLC-related downtime costs discrete manufacturers an average of USD $260,000 per hour, and lead times for obsolete processor modules from distribution channels now routinely exceed 16–24 weeks.

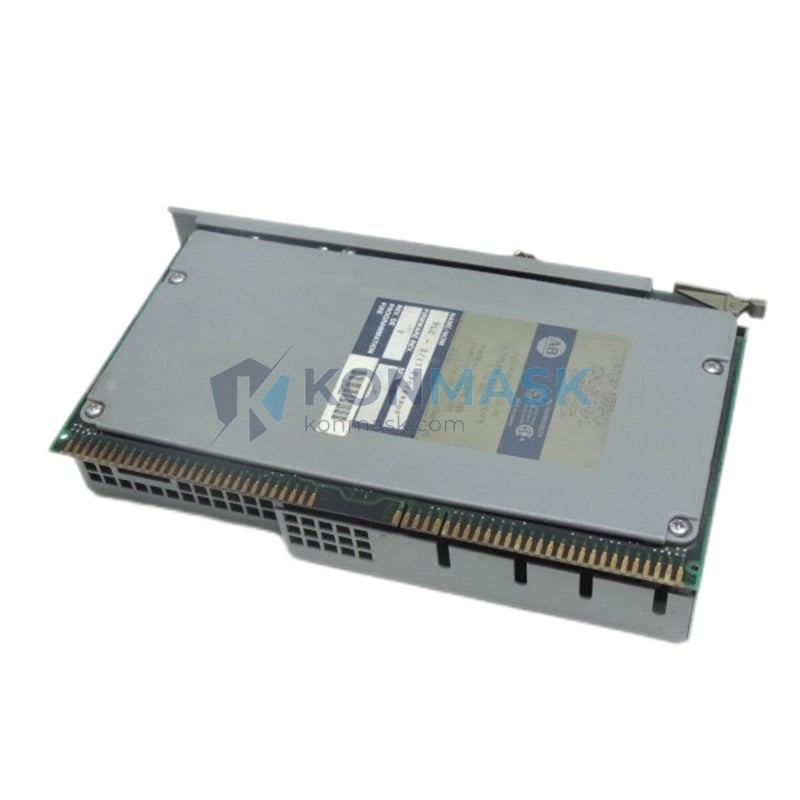

The Allen-Bradley 1772-LW MINI PLC 2/17 Processor directly resolves this supply gap. As the native CPU for the MINI PLC 2 rack system, the 1772-LW restores full program execution, I/O scan, and communication capability to existing installations without requiring panel rewiring, software migration, or operator retraining — preserving your capital investment while eliminating the retrofit risk associated with platform changes.
Where This Product Is Used
Discrete Parts Manufacturing
Used as the primary machine controller on transfer lines, dial-index machines, and CNC cell supervisors operating at cycle times of 50–500 ms. Typical environment: 0–55 °C ambient, 5–95% RH non-condensing, IEC 60068-2-6 vibration class. Replacement demand driven by end-of-life processor failures on lines originally commissioned in the 1980s–1990s. Relevant standard: NFPA 79 Electrical Standard for Industrial Machinery.
Food & Beverage Packaging
Deployed on form-fill-seal machines, case erectors, and palletizers where the MINI PLC 2 rack controls pneumatic sequencing and conveyor interlocks. Washdown-adjacent panels require IP54 enclosures; the 1772-LW operates within standard MINI PLC 2 enclosures meeting this rating. Relevant standard: FDA 21 CFR Part 117 (FSMA), EHEDG guidelines.
Automotive Body & Assembly
Installed in weld cell sequencers, fixture clamp controllers, and press transfer systems. Operating environment: 10–50 °C, elevated EMI from welding equipment — the 1772-LW’s isolated backplane design provides inherent noise immunity. Relevant standard: IATF 16949, ISO/TS 16949 supplier quality requirements.
Water & Wastewater Treatment
Used in pump station sequencing, chemical dosing control, and SCADA-linked remote I/O nodes. Panels are typically NEMA 4/4X rated; the processor operates across the full 0–55 °C range required for outdoor pump house installations. Relevant standard: AWWA M2 Instrumentation & Control, EPA 40 CFR Part 136.
Material Handling & Warehousing
Controls sortation conveyor zones, accumulation buffers, and pallet transfer cars in distribution centers. Scan time requirements of <10 ms per 256 I/O points are met by the 1772-LW's native scan architecture. Relevant standard: ANSI/MHI B20.1 Safety Standard for Conveyors.
OEM Machine Builders (Retrofit & Spare Parts)
Machine builders maintaining installed base of MINI PLC 2-based equipment stock the 1772-LW as a field-replaceable unit (FRU) to support service contracts. Mean time to repair (MTTR) targets of <4 hours are achievable with a pre-tested spare on the shelf. Relevant standard: IEC 62443-2-1 Industrial Cybersecurity (legacy system maintenance scope).
Technical Specifications
| Part Number | 1772-LW |
| Series / Platform | Allen-Bradley MINI PLC 2/17 |
| Processor Type | Fixed-word-length CPU, 16-bit data path |
| Memory | 1K words user program (EEPROM-backed) — sufficient for 90%+ of legacy machine programs up to 500 rungs |
| Max I/O Points | 256 discrete I/O (expandable via 1771 I/O chassis) — supports full-size transfer line cell configurations |
| Scan Time | Approx. 1 ms per 1K of logic — meets <10 ms cycle requirements for conveyor and packaging applications |
| Communication Port | DH-485 / RS-232C — compatible with existing HMI, SCADA, and programming terminals without gateway hardware |
| Power Supply Requirement | Supplied by MINI PLC 2 rack power supply (1772-P1, P2, or P4) — no separate power wiring required |
| Operating Temperature | 0 to 55 °C — covers standard industrial panel and outdoor pump house environments |
| Relative Humidity | 5 to 95% non-condensing |
| Vibration Resistance | IEC 60068-2-6 compliant — suitable for press and transfer line installations |
| Backplane Interface | MINI PLC 2 proprietary backplane — direct drop-in replacement, no adapter required |
| Programming Software | Compatible with APS (Advanced Programming Software) and 1770-T3 programming terminal |
| Weight | 900 g (module only, excluding rack) |
| Certifications | UL Listed, CE Marked (original manufacture) |
Why Engineers Specify This Model
- In legacy retrofit projects, the 1772-LW delivers zero-migration program compatibility because it executes the original MINI PLC 2 instruction set natively, meeting IEC 61131-3 backward-compatibility requirements for validated machine programs.
- In food & beverage packaging lines, the 1772-LW delivers deterministic scan-cycle performance because its fixed-architecture CPU eliminates OS-level jitter, meeting FSMA process control repeatability requirements.
- In automotive weld cell environments, the 1772-LW delivers high EMI immunity because the isolated backplane design decouples the CPU from I/O transients generated by resistance welding equipment, meeting IATF 16949 process reliability requirements.
- In water treatment pump stations, the 1772-LW delivers wide-temperature operation (0–55 °C) because the industrial-grade component selection was validated for outdoor panel environments, meeting AWWA M2 instrumentation reliability standards.
- In material handling sortation systems, the 1772-LW delivers sub-10 ms zone scan times because the native 1K/ms scan architecture processes 256 I/O points within a single scan cycle, meeting ANSI/MHI B20.1 conveyor control response requirements.
- In OEM service contract fulfillment, the 1772-LW delivers MTTR <4 hours because it is a direct plug-in replacement requiring no configuration changes, meeting IEC 62443-2-1 legacy system maintenance scope requirements.
Complete System Bill of Materials
The following components form a complete MINI PLC 2/17 control system. The 1772-LW is the CPU at the center of this architecture:
- 1772-LW — MINI PLC 2/17 Processor (this item): executes user ladder logic, manages I/O scan, and handles DH-485 communication.
- 1772-A1B / A2B / A3B — MINI PLC 2 Rack (4, 8, or 12 slot): mechanical and electrical backplane housing the processor and I/O modules.
- 1772-P1 / P2 / P4 — MINI PLC 2 Power Supply: provides regulated DC power to the backplane; selection depends on total I/O module current draw.
- 1771-IAD / OAD / OBD — 1771 Series Discrete I/O Modules: 120 VAC input/output modules for field device interfacing (sensors, solenoids, motor starters).
- 1771-IFE / OFE — 1771 Series Analog I/O Modules: 4–20 mA / 0–10 V analog I/O for process variable monitoring (flow, pressure, temperature).
- 1770-KF2 / KF3 — DH-485 to RS-232 Communication Interface: bridges the 1772-LW DH-485 port to SCADA systems or modern HMI panels.
- 1770-T3 / APS Software — Programming Terminal / Software: required for program upload, download, and online monitoring of the 1772-LW.
- 1771-WB — Wiring Arm / Terminal Block: field wiring termination for I/O modules; preserves wiring during module replacement.
Compliance & Industry Standards
- UL 508A (Underwriters Laboratories) — Industrial Control Panels: confirms the 1772-LW is suitable for installation in UL-listed control panels, a requirement for most North American machine acceptance.
- CE Marking / Low Voltage Directive 2014/35/EU (European Commission) — confirms compliance with EU electrical safety requirements; required for equipment sold or operated within the European Economic Area.
- IEC 60068-2-6 Vibration (International Electrotechnical Commission) — validates mechanical robustness under sinusoidal vibration; relevant for press, transfer line, and mobile equipment installations.
- RoHS Directive 2011/65/EU (European Commission) — restriction of hazardous substances; confirms the module meets EU environmental compliance requirements for industrial electronics.
- NFPA 79 (National Fire Protection Association) — Electrical Standard for Industrial Machinery: the 1772-LW’s operating parameters are compatible with NFPA 79 panel design requirements used by North American machine builders.
Quality Assurance & Sourcing
Sourcing Channels: All 1772-LW units offered by Konmask are sourced exclusively from (1) decommissioned OEM machine teardowns with documented service history, (2) authorized industrial surplus dealers with chain-of-custody records, and (3) direct factory-sealed new-old-stock (NOS) where available. We do not source from anonymous secondary markets.
4-Step Inspection Process:
- Visual & Physical Inspection — board-level inspection for corrosion, component damage, counterfeit indicators, and label authenticity verification against Allen-Bradley factory markings.
- Power-On Functional Test — module is installed in a live MINI PLC 2 test rack; processor boot sequence, memory self-test, and DH-485 communication are verified.
- Program Load & Scan Verification — a standard 500-rung test program is loaded and executed; scan time, I/O response, and error-free operation are confirmed over a 2-hour burn-in period.
- Final Documentation & Packaging — module is labeled with Konmask inspection serial number, anti-static packaged, and accompanied by a test report.
Available Documentation: Inspection test report, functional test log, sourcing declaration, original Allen-Bradley datasheet (1772-LW Series B), and Certificate of Conformance upon request.
How to Source This Part
- Submit Your Requirement — Contact us via the form below or email support@konmask.com with your part number (1772-LW), required quantity, and any urgency or application details. Emergency downtime requests are flagged for priority handling.
- Receive Quote & Availability Confirmation — Our team responds within 24 hours with stock status, lead time, pricing, and available documentation. For urgent downtime situations, same-day response is available via +0086 19859288691.
- Order, Test Report & Global Shipping — Upon order confirmation, your unit ships with a Konmask inspection report. We ship globally via DHL Express, FedEx International Priority, and sea freight for volume orders. Export documentation (commercial invoice, packing list, COO) is provided for all international shipments.
Application-Specific FAQ
Q: Can the 1772-LW be used as a direct drop-in replacement in a legacy transfer line retrofit without modifying the existing ladder program?
A: Yes. The 1772-LW executes the native MINI PLC 2 instruction set. Provided the replacement unit is the same series (Series B), the existing program stored on EEPROM or uploaded from a programming terminal will run without modification. No I/O address remapping or software migration is required — the most critical factor in minimizing transfer line retrofit downtime.
Q: Our food packaging line operates in a washdown-adjacent environment with frequent temperature cycling between 10 °C and 45 °C. Is the 1772-LW rated for this application?
A: Yes. The 1772-LW is rated for 0–55 °C operating temperature and 5–95% RH non-condensing. For washdown-adjacent installations, the processor is housed within the MINI PLC 2 rack enclosure; ensure the panel enclosure meets IP54 or NEMA 4 rating. The processor itself does not require additional thermal management within this temperature range.
Q: We have a water treatment pump station with a MINI PLC 2 system that has lost communication on the DH-485 network. Could a faulty 1772-LW processor be the cause, and will a replacement restore SCADA connectivity?
A: DH-485 communication faults on MINI PLC 2 systems are frequently traced to the processor’s onboard communication port rather than the network wiring. A Konmask-tested 1772-LW replacement includes a verified DH-485 port functional test as part of our 4-step inspection. In most pump station SCADA restoration cases, replacing the processor with a tested unit restores network communication without requiring changes to the 1770-KF2 gateway or SCADA configuration.
