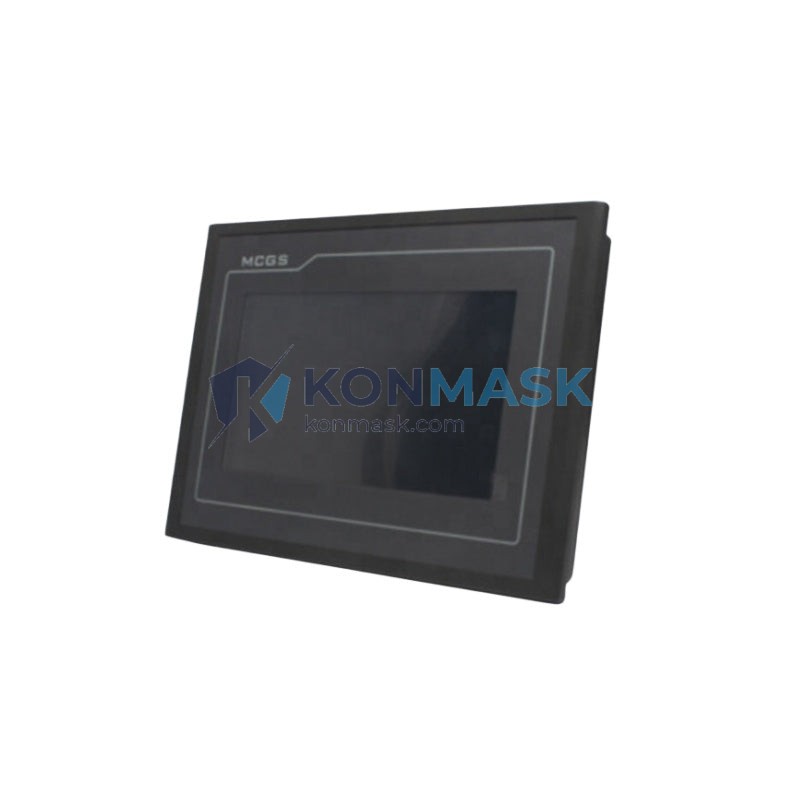

HMI Panel Solution – MCGS TPC7062HI | TPC7000 Series
Where This Product Is Used
The MCGS TPC7062HI is a 7-inch industrial Human-Machine Interface (HMI) touch panel engineered for demanding automation environments. It is widely deployed across the following sectors:
- Manufacturing & Assembly Lines – Real-time process visualization, alarm management, and operator control panels on conveyor, stamping, and packaging lines.
- Water & Wastewater Treatment – SCADA front-end display for pump stations, dosing systems, and filtration monitoring.
- Building Automation (BAS/BMS) – Central touchpoint for HVAC, lighting, and energy management systems in commercial buildings.
- Food & Beverage Processing – Hygienic-environment operator terminals for batch control, temperature monitoring, and CIP cycle management.
- Power Distribution & Energy – Substation HMI for transformer monitoring, switchgear control, and power quality visualization.
- Oil, Gas & Chemical – Panel-mount interface for flow control, pressure monitoring, and safety interlock displays.
- Textile & Printing Machinery – Recipe management and parameter adjustment on multi-axis drive systems.
Technical Specifications
| Model | TPC7062HI |
| Brand | MCGS (Beijing Kunlun Tongtai) |
| Display Size | 7.0 inch TFT LCD |
| Resolution | 800 × 480 pixels |
| Touch Type | Resistive touch screen |
| CPU | ARM Cortex-A8, 600 MHz |
| RAM | 128 MB DDR |
| Flash Storage | 256 MB |
| Operating System | Embedded Linux (MCGS Runtime) |
| Communication Ports | 1× RS-232, 1× RS-485, 1× USB Host, 1× USB Device, 1× Ethernet (RJ45) |
| Supported Protocols | Modbus RTU/TCP, Siemens S7, Mitsubishi FX/Q, Omron, Delta, and 300+ PLC drivers |
| Power Supply | DC 24V (±15%) |
| Power Consumption | ≤ 8W |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | 10% ~ 90% RH (non-condensing) |
| Protection Rating | IP65 (front panel) |
| Panel Cutout | 192 × 138 mm |
| Overall Dimensions | 214 × 158 × 45 mm |
| Weight | Approx. 0.65 kg |
| Certifications | CE, RoHS |
Why Engineers Specify This Model
- Broad PLC Compatibility – Native drivers for 300+ PLCs and controllers eliminate custom protocol development, reducing commissioning time significantly.
- IP65 Front Panel – Dust-tight and water-jet resistant front face suits wash-down and dusty industrial environments without additional enclosure upgrades.
- Ethernet + Serial Dual Connectivity – Simultaneous Modbus TCP over Ethernet and RS-485 serial allows integration into both legacy and modern network architectures.
- MCGS TPC Software Ecosystem – Free MCGS TPC configuration software with drag-and-drop screen design, recipe management, data logging, and alarm history.
- Proven Field Reliability – ARM Cortex-A8 platform with embedded Linux delivers stable 24/7 operation in high-vibration and temperature-variable environments.
- Cost-Effective HMI Tier – Delivers mid-range feature sets (Ethernet, USB, multi-protocol) at an entry-to-mid price point, optimizing BOM cost for OEM machine builders.
Complete System Bill of Materials
For a complete HMI + PLC control panel solution, engineers typically pair the TPC7062HI with:
- PLC – MCGS MCON series, Siemens S7-1200, Mitsubishi FX5U, or Delta DVP series
- Communication Cable – RS-485 shielded twisted-pair cable (Belden 9841 or equivalent); RJ45 Cat5e/Cat6 Ethernet patch cable
- Power Supply – 24VDC DIN-rail PSU (e.g., Meanwell DR-60-24 or equivalent, ≥2.5A)
- Panel Mounting Hardware – M4 stainless steel mounting clamps (included with unit); IP65 gasket (pre-installed)
- USB Programming Cable – USB Type-A to Mini-USB for project download
- Configuration Software – MCGS TPC (free download from MCGS official site)
- DIN Rail & Enclosure – Steel or stainless enclosure rated IP54 or higher for full system protection
Compliance & Industry Standards
- CE Marking – Compliant with EU Low Voltage Directive (LVD) 2014/35/EU and EMC Directive 2014/30/EU
- RoHS – Restriction of Hazardous Substances compliant; lead-free manufacturing
- IP65 – IEC 60529 ingress protection rating for front panel (dust-tight, water-jet resistant)
- EMC – Designed to operate in Class A industrial electromagnetic environments per IEC 61000 series
- Operating Standard – Manufactured under ISO 9001 quality management system
Quality Assurance & Sourcing
Konmask.com sources MCGS TPC7062HI units exclusively through authorized distribution channels and verified OEM supply networks. Every unit undergoes the following before dispatch:
- Visual and mechanical inspection (housing, connectors, screen integrity)
- Power-on functional test (display, touch calibration, communication port verification)
- Firmware version verification against MCGS official release records
- Anti-static packaging with humidity indicator card for safe international transit
Batch traceability records are maintained for all shipments. Counterfeit-free guarantee backed by supplier documentation.
How to Source This Part
- Add to Cart – Select quantity and proceed to checkout directly on this page.
- Request a Quote (RFQ) – For orders of 5+ units or project-based procurement, contact support@konmask.com for volume pricing and lead-time confirmation.
- Provide Project Details – Share your PLC model, communication protocol, and application environment so our team can confirm compatibility and recommend accessories.
- Shipping – Ships from Fujian, China. DHL Express, FedEx International, and sea freight options available. Typical lead time: 3–7 business days for in-stock units.
- Export Documentation – Commercial invoice, packing list, and certificate of origin available upon request for customs clearance.
Application-Specific FAQ
Q: Can the TPC7062HI communicate with Siemens S7-1200 via Ethernet?
A: Yes. The TPC7062HI supports Siemens S7 protocol over Ethernet natively via the MCGS TPC driver library. No additional gateway hardware is required.
Q: Is the TPC7062HI suitable for outdoor cabinet installation?
A: The front panel is IP65-rated, making it suitable for panel-mount installation in outdoor enclosures rated IP54 or higher. Direct exposure to sunlight or rain on the rear is not recommended without an appropriate enclosure.
Q: What is the maximum number of tags/variables supported?
A: The TPC7062HI supports up to 20,000 data variables within the MCGS TPC runtime environment, sufficient for most mid-scale machine and process applications.
Q: Can I log data to a USB drive?
A: Yes. The USB Host port supports data logging to FAT32-formatted USB flash drives, enabling offline data export for quality records and process audits.
Q: Is the unit compatible with Modbus TCP SCADA systems like Ignition or WonderWare?
A: The TPC7062HI can act as a Modbus TCP slave, allowing SCADA platforms such as Ignition, WonderWare, or InTouch to poll data from connected PLCs via the HMI’s Ethernet port.
Q: What warranty is provided?
A: Konmask.com provides a 12-month warranty against manufacturing defects. DOA (Dead on Arrival) units are replaced within 5 business days of confirmed fault report.
