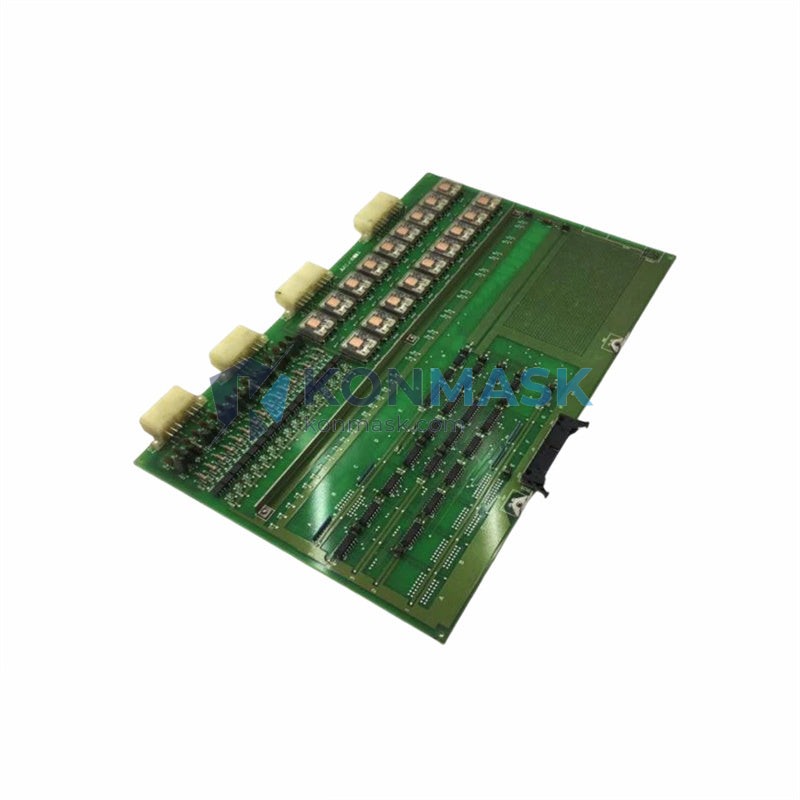

Mitsubishi KCJ-160A PCB Card Board – Drive Control Module | MELSERVO Platform
Engineering Background
The Mitsubishi KCJ-160A is a dedicated printed circuit board (PCB) control card designed for use within Mitsubishi Electric’s MELSERVO servo drive series. As a core signal-processing and control interface board, the KCJ-160A governs command interpretation, feedback processing, and drive protection logic — making it a mission-critical component in precision motion control systems across industrial automation environments.
Product Positioning
Sourced and verified by Konmask.com, this OEM-grade PCB module is positioned for procurement engineers and maintenance teams requiring a direct, specification-matched replacement or spare for MELSERVO-compatible servo drive platforms. It eliminates the need for full drive replacement, reducing downtime and total cost of ownership in high-availability production lines.
Complete Technical Specifications
| Part Number | KCJ-160A |
| Manufacturer | Mitsubishi Electric Corporation |
| Product Series | MELSERVO Servo Drive Control PCB |
| Component Type | Printed Circuit Board (PCB) / Control Card |
| Application | Servo drive signal processing, feedback control, drive protection |
| Form Factor | PCB Card Board (plug-in module) |
| Weight | 620 g (approx.) |
| Country of Origin | Japan |
| Condition | New / Refurbished (OEM-grade, tested) |
| Compliance | CE, RoHS (subject to batch verification) |
Proven Application Environments
- CNC machine tool servo axis control systems
- Industrial robot joint drive controllers
- Automated assembly line servo positioning units
- Injection molding machine servo drive platforms
- Packaging and printing machinery with MELSERVO drives
- Elevator and material handling servo control panels
Engineering Advantages
- OEM-Matched Compatibility: Direct form-fit-function replacement for MELSERVO drive platforms — no firmware modification required.
- Reduced Downtime: Board-level replacement avoids full drive swap, cutting repair time from days to hours.
- Signal Integrity: Factory-grade PCB traces and components ensure stable feedback loop performance under industrial EMI conditions.
- Thermal Reliability: Designed for continuous operation in industrial cabinet environments with standard forced-air cooling.
- Traceability: Each unit supplied with batch documentation and pre-shipment functional verification record.
System Architecture & Signal Flow
The KCJ-160A interfaces directly with the servo drive’s main power board and encoder feedback circuit. It processes position/velocity command signals from the motion controller (e.g., Mitsubishi MELSEC PLC or CNC unit), executes real-time PID loop calculations, and outputs PWM switching commands to the IGBT gate driver stage. Fault detection logic monitors overcurrent, overvoltage, encoder error, and thermal threshold conditions, triggering protective shutdown and alarm relay outputs as required.
Signal path: Motion Controller → Command Interface → KCJ-160A Control PCB → Gate Driver → IGBT Power Stage → Servo Motor
Sourcing & Quality Verification
- All units sourced through authorized industrial distribution channels or verified OEM surplus inventory.
- Pre-shipment inspection includes visual PCB inspection, component integrity check, and functional power-on test where applicable.
- Serialized batch records available upon request for MRO and regulated industry procurement.
- Anti-counterfeit verification: markings, date codes, and PCB layer inspection performed prior to listing.
Procurement Process
- Confirm compatibility: Verify your servo drive model number against KCJ-160A application list or contact our engineering team.
- Request quotation: Submit RFQ via support@konmask.com for volume pricing or expedited lead time.
- Place order: Secure checkout via Konmask.com with HKD/USD/CNY payment options.
- Shipping: DHL / FedEx / SF Express international shipping with full tracking. Typical lead time: 3–7 business days.
- Documentation: Commercial invoice, packing list, and test report provided with each shipment.
Technical FAQ
Q: Is the KCJ-160A compatible with all MELSERVO drive models?
A: The KCJ-160A is designed for specific MELSERVO series drives. Please confirm your drive model number with our team before ordering to ensure exact compatibility.
Q: Can this PCB be reprogrammed or reconfigured?
A: No. The KCJ-160A is a fixed-function OEM control board. Parameters are set via the servo drive’s front panel or communication interface, not the PCB itself.
Q: Do you offer a warranty?
A: Yes. Konmask.com provides a 90-day functional warranty on all verified PCB modules. Extended warranty available for volume orders.
Q: What if the board is DOA on arrival?
A: Contact support@konmask.com within 7 days of receipt. We will arrange replacement or full refund per our returns policy.
Q: Can you supply multiple units?
A: Yes. Volume pricing is available. Submit your BOM or RFQ list to our procurement team for a consolidated quote.
