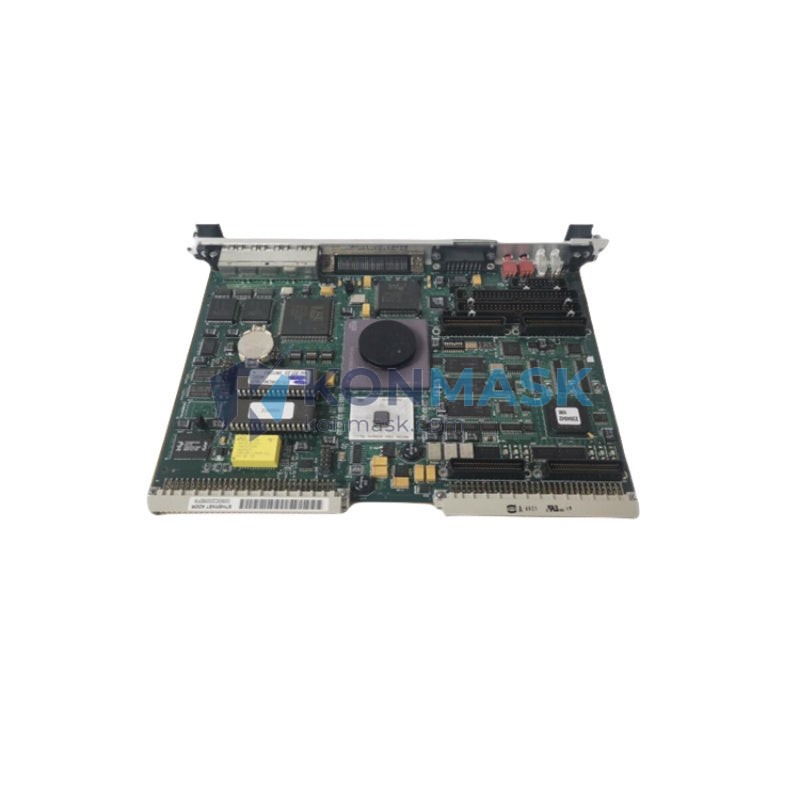

Process Control & Embedded Computing Solution — MOTOROLA VME172PA 652SE | VME Board Series
Where This Product Is Used
The MOTOROLA VME172PA 652SE is a high-performance VMEbus single-board computer deployed across demanding industrial and mission-critical environments. Typical application domains include:
- Industrial Process Control — Real-time supervisory control in chemical plants, oil & gas refineries, and power generation facilities where deterministic response and long MTBF are mandatory.
- Factory Automation & Machine Control — Embedded controller backbone for CNC machining centers, robotic welding cells, and high-speed packaging lines requiring coordinated multi-axis motion.
- Defense & Aerospace Systems — Ruggedized VMEbus platforms for radar signal processing, avionics test benches, and ground-support equipment where MIL-grade reliability is specified.
- Transportation & Rail — Onboard computing for train control management systems (TCMS) and wayside monitoring units operating in wide-temperature, high-vibration environments.
- Telecommunications Infrastructure — Carrier-grade chassis applications requiring high-bandwidth backplane I/O and hot-swap-compatible board architecture.
- Scientific Instrumentation — Data acquisition and real-time signal processing in particle accelerators, nuclear monitoring, and laboratory automation systems.
Technical Specifications
| Manufacturer | MOTOROLA (now part of Emerson / Artesyn embedded computing lineage) |
| Part Number | VME172PA 652SE |
| Board Type | VMEbus Single-Board Computer (SBC) |
| Bus Standard | VMEbus (IEEE 1014 / ANSI/VITA 1) |
| Form Factor | 6U VME |
| Processor Architecture | PowerPC / Motorola 68xxx series (model-dependent) |
| Operating Temperature | 0°C to +55°C (commercial); extended range variants available |
| I/O Interfaces | VMEbus P1/P2 connectors; serial, Ethernet, and expansion I/O |
| Weight | Approx. 100 g (board only) |
| Condition | Refurbished / Surplus — tested and verified |
Note: Full OEM datasheet available upon request. Contact support@konmask.com for detailed electrical and mechanical drawings.
Why Engineers Specify This Model
- Proven VMEbus Ecosystem Compatibility — Slots directly into existing 6U VME chassis without backplane redesign, protecting legacy infrastructure investment.
- Deterministic Real-Time Performance — PowerPC-class processing delivers the low-latency, cycle-accurate execution required by hard real-time operating systems (VxWorks, LynxOS, OS-9).
- Long Field Service Life — Motorola VME boards are renowned for decade-plus operational lifespans in continuous-duty industrial environments.
- Broad OS & BSP Support — Compatible with VxWorks, QNX, LynxOS, and Linux BSPs, enabling integration into both legacy and modernized control architectures.
- Obsolescence Management — As OEM production has ended, sourcing verified surplus units from specialist distributors like Konmask is the preferred lifecycle extension strategy.
Complete System Bill of Materials
For a complete VMEbus control system built around the VME172PA 652SE, engineers typically specify the following complementary components — all available through Konmask.com:
- 6U VMEbus chassis / crate (3U or 6U, 4–21 slot)
- VME power supply module (±5V, ±12V rails)
- VME I/O transition module or rear-transition module (RTM)
- VME analog input / digital I/O boards
- VME communication boards (Ethernet, serial, fieldbus)
- Real-time operating system license (VxWorks / QNX)
- DIN rail mounting hardware and cable management
Contact support@konmask.com for a complete BOM quotation tailored to your application.
Compliance & Industry Standards
- VMEbus Standard: IEEE 1014-1987 / ANSI/VITA 1
- EMC: Designed for CE-marked system integration; consult OEM documentation for radiated/conducted emissions data
- RoHS: Legacy board — RoHS status per original OEM specification; confirm with Konmask team for export compliance
- Export Control: May be subject to EAR / ITAR classification depending on end-use and destination — Konmask conducts end-user screening on all international orders
Quality Assurance & Sourcing
Konmask.com specializes in verified surplus and refurbished industrial automation components. Every VME172PA 652SE unit undergoes the following before shipment:
- Visual inspection for physical damage, corrosion, and component integrity
- Power-on functional test against OEM baseline parameters
- Firmware / BIOS version verification and documentation
- Anti-static packaging with humidity indicator card
- Serialized traceability record retained for 5 years
We source exclusively from decommissioned OEM systems, authorized surplus channels, and vetted industrial estates — never from unverified grey-market brokers.
How to Source This Part
- Confirm your chassis slot count and backplane revision — share your system model number with our team for compatibility verification.
- Request a quotation — email support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline.
- Review test report — we provide a unit-level functional test report with every order.
- Place order & ship — standard lead time is 3–7 business days; expedited options available.
- Post-sale support — our engineers are available for integration guidance and BSP compatibility questions.
Application-Specific FAQ
Q: Is the VME172PA 652SE compatible with VxWorks 6.x?
A: Yes. Motorola provided BSP support for VxWorks through version 6.x for the VME172 family. Contact us for BSP documentation availability.
Q: Can this board replace a VME172 without the PA or SE suffix?
A: Suffix designations typically indicate memory configuration or speed grade. Our team will cross-reference your existing board’s label and confirm drop-in compatibility before shipment.
Q: Do you offer a warranty on refurbished VME boards?
A: Yes — all units carry a 90-day functional warranty covering defects identified under normal operating conditions.
Q: Can you supply multiple units for a plant-wide upgrade?
A: Yes. Contact us with your total quantity requirement; we maintain network access to multiple verified stock pools globally.
Q: Is export to my country permitted?
A: Konmask conducts export compliance screening on all international orders. Contact us with your destination country and end-use description for a pre-shipment compliance check.
