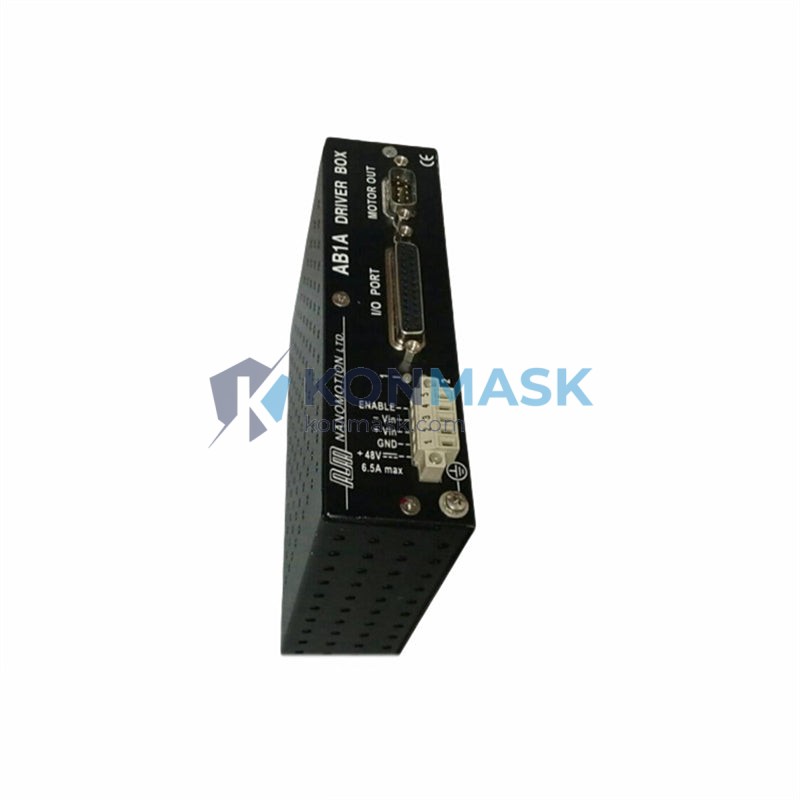

NM NANOMOTION AB1A-2A-HR-E4 Servo Driver Module – AB1A Series
When a precision servo driver fails on the production floor, the consequences are immediate and costly: motion axes freeze, robotic arms halt mid-cycle, and entire assembly lines grind to a stop. Downtime in high-precision manufacturing environments — semiconductor fabrication, medical device assembly, or optical inspection systems — can cost thousands of dollars per minute. The NM NANOMOTION AB1A-2A-HR-E4 is not a commodity component; it is the nerve center of piezoelectric ultrasonic motor control, and its absence cannot be substituted with a generic drive.
Within the NANOMOTION AB1A driver series, the AB1A-2A-HR-E4 variant is engineered for high-resolution, two-axis motion control applications demanding sub-micron positioning accuracy. NANOMOTION’s piezoelectric drive technology has established itself as the global benchmark for frictionless, non-magnetic, and vacuum-compatible motion systems — deployed in leading semiconductor OEM equipment, life sciences instrumentation, and defense-grade optical platforms worldwide.
Technical Specifications
- Model: AB1A-2A-HR-E4
- Brand: NM NANOMOTION
- Series: AB1A Driver Series
- Axes: 2-Axis (Dual Channel)
- Motor Compatibility: NANOMOTION HR Series Piezoelectric Ultrasonic Motors
- Interface: E4 (EtherCAT / Encoder Interface — per series designation)
- Drive Technology: Piezoelectric Ultrasonic Motor Driver
- Resolution: High-Resolution (HR) positioning capability
- Weight: 1,260 g
- Application Environment: Industrial, Cleanroom-compatible configurations available
Note: Detailed electrical specifications (supply voltage, current ratings, communication protocol version) should be confirmed against the official NANOMOTION AB1A-2A-HR-E4 datasheet. Konmask.com does not fabricate or alter manufacturer specifications.
Key Features & Benefits
- Dual-Axis Control: Simultaneously drives two independent HR-series piezoelectric motor channels, reducing system footprint and wiring complexity.
- High-Resolution Positioning: The HR designation ensures nanometer-level positioning repeatability, critical for optical alignment and semiconductor wafer handling.
- Frictionless Drive Technology: NANOMOTION’s ultrasonic piezo principle eliminates mechanical wear, delivering maintenance-free operation over extended duty cycles.
- Non-Magnetic Operation: Ideal for MRI-adjacent, electron beam, or magnetically sensitive environments where conventional servo drives are prohibited.
- Compact Integration: AB1A form factor is designed for OEM integration into space-constrained equipment enclosures.
- E4 Interface Compatibility: Enables seamless integration with modern motion controllers and fieldbus architectures.
- Self-Locking at Rest: Piezoelectric motors hold position without power, enhancing safety and energy efficiency in vertical or gravity-loaded axes.
Industry & Equipment Applications
- Semiconductor Manufacturing: Wafer inspection stages, lithography alignment systems, die bonding equipment
- Life Sciences & Medical Devices: Confocal microscopy stages, DNA sequencing platforms, surgical robotics
- Photonics & Optics: Fiber alignment systems, laser beam steering, interferometer positioning
- Defense & Aerospace: Gimbal stabilization, electro-optical targeting systems, satellite payload positioning
- Industrial Automation: High-precision assembly robots, vision-guided pick-and-place, metrology equipment
System Integration & Compatible Parts
The AB1A-2A-HR-E4 is designed to operate within the NANOMOTION ecosystem. Compatible and commonly paired components include:
- NANOMOTION HR1, HR2, HR4, HR8 Piezoelectric Motor Elements
- NANOMOTION AB1 Series Single-Axis Driver Variants
- NANOMOTION Edge Controller and compatible EtherCAT master controllers
- Linear and rotary stages from NANOMOTION’s XY, Z, and Theta stage families
- Encoder feedback modules compatible with E4 interface specification
For system-level BOM support or multi-axis configuration advice, contact our technical team at support@konmask.com.
Our Quality Assurance Process
At Konmask.com, every NANOMOTION AB1A-2A-HR-E4 unit sourced and supplied undergoes a structured verification process:
- Authenticity Verification: Cross-referenced against manufacturer part number databases and authorized supply chain documentation.
- Visual & Packaging Inspection: Label integrity, connector condition, and OEM packaging seal checks performed prior to dispatch.
- Documentation Package: Original manufacturer documentation, test records (where available), and Konmask inspection report provided upon request.
- Traceability: Lot and batch traceability maintained for all stocked units to support your incoming quality control process.
How to Order
- Submit an inquiry via the “Get a Quote” button or email support@konmask.com with your required quantity and delivery timeline.
- Our technical sales team will confirm availability, lead time, and provide a formal quotation within 24 business hours.
- Upon PO confirmation, we arrange secure packaging and international logistics with full shipment tracking.
- Post-delivery technical support is available for integration and commissioning queries.
Why Choose Konmask.com?
- Industrial Automation Specialists: Focused exclusively on PLC, DCS, servo, and motion control components — not a generalist distributor.
- Global B2B Supply: Serving OEMs, system integrators, and MRO procurement teams across Asia, Europe, and the Americas.
- Hard-to-Source Parts: Specializing in obsolete, long lead-time, and low-volume specialty components like the AB1A-2A-HR-E4.
- Technical Competence: Our team understands motion control architecture — we speak your engineering language.
- Responsive Service: Dedicated account management with fast quotation turnaround and flexible shipping terms.
Frequently Asked Questions
- Q: Is the AB1A-2A-HR-E4 compatible with non-NANOMOTION motors?
- A: No. The AB1A driver series is specifically engineered for NANOMOTION HR-series piezoelectric ultrasonic motors. It is not compatible with conventional electromagnetic servo motors.
- Q: What does the “E4” designation indicate?
- A: The E4 suffix in the NANOMOTION part numbering convention refers to the interface/encoder configuration of the driver. Please consult the official NANOMOTION datasheet or contact us to confirm the exact interface specification for your application.
- Q: Can you supply the AB1A-2A-HR-E4 with a warranty?
- A: Yes. Konmask.com provides a standard warranty on all supplied units. Warranty terms are confirmed at the time of quotation based on unit condition and sourcing channel.
- Q: What is the typical lead time for the AB1A-2A-HR-E4?
- A: Lead time varies based on current stock levels. Please submit an inquiry for a real-time availability and lead time confirmation.
- Q: Do you provide export documentation for international shipments?
- A: Yes. We provide commercial invoices, packing lists, and certificates of origin as required. Additional documentation can be arranged upon request.
