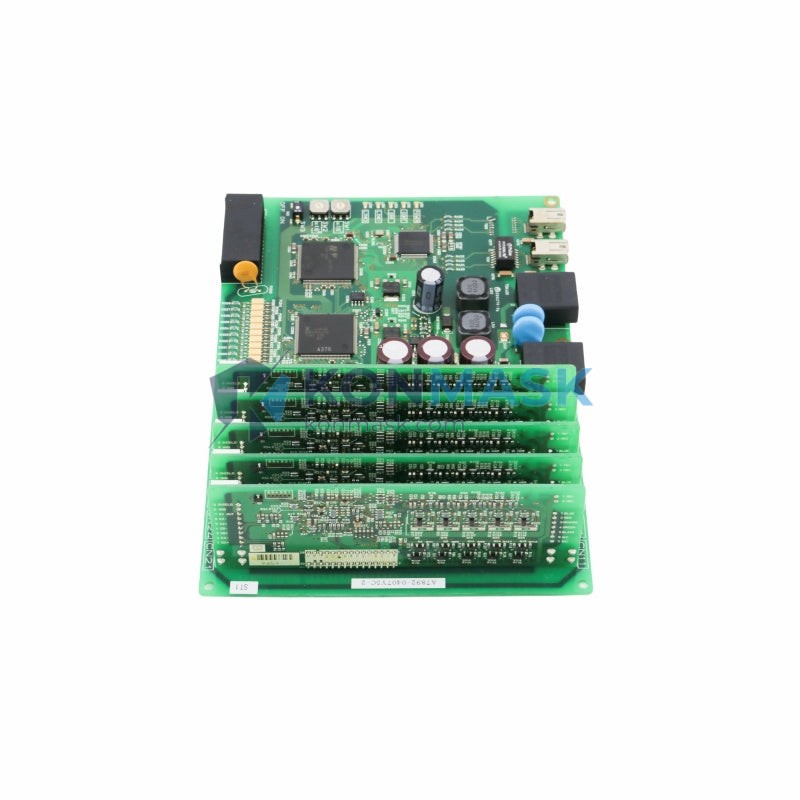

Oriental Motor A7892-0407Y5C-1 – Motor Drive PCB Assembly | CDN127R Series
When a motion control axis goes down on a production line, every minute of downtime translates directly to lost output. The Oriental Motor A7892-0407Y5C-1 Motor PCB Assembly — cross-referenced as 3870-02203 and CDN127R-9 — is the OEM-specified printed circuit board assembly that governs commutation, current regulation, and feedback processing within Oriental Motor’s CDN127R-series compact AC servo and stepper driver platforms. Konmask stocks this assembly to support rapid MRO replacement and system commissioning worldwide.
Product Positioning: This PCB assembly is a direct OEM replacement board for Oriental Motor CDN127R-9 driver units. It is not a generic aftermarket substitute — it carries the original Oriental Motor part number A7892-0407Y5C-1 and internal BOM reference 3870-02203, ensuring full electrical and mechanical compatibility with the host driver chassis without firmware re-flashing or parameter re-mapping.
Complete Technical Specifications
- Manufacturer: Oriental Motor Co., Ltd.
- OEM Part Number: A7892-0407Y5C-1
- Cross-Reference / BOM No.: 3870-02203
- Driver Series Compatibility: CDN127R-9
- Assembly Type: Motor Control PCB Assembly (Drive Board)
- Function: Motor commutation control, current loop regulation, encoder/resolver signal processing
- Form Factor: OEM plug-in PCB assembly (chassis-specific mounting)
- Connector Interface: OEM-matched multi-pin connectors per CDN127R-9 chassis specification
- Operating Temperature: 0 °C to +50 °C (ambient, per CDN127R-9 driver rating)
- Storage Temperature: −20 °C to +65 °C
- Weight: Approx. 2,600 g (packaged)
- Condition: New / Surplus New (specify at inquiry)
- Country of Origin: Japan
- HS Code: 8537.10 (control boards for industrial drives)
Proven Application Environments
- Semiconductor Wafer Handling: Precision θ-axis and Z-axis positioning stages where CDN127R-9 drivers control Oriental Motor stepper/servo units in cleanroom environments.
- PCB Assembly & SMT Equipment: Pick-and-place head drive systems requiring high-cycle, low-vibration motor control — the CDN127R-9 platform is widely deployed in this segment.
- Medical Imaging & Lab Automation: Gantry and sample-transport axes in CT, MRI table drives, and automated liquid-handling platforms.
- Packaging Machinery: Servo-controlled film-feed, cut-and-seal, and indexing axes on horizontal and vertical form-fill-seal machines.
- Robotics & Collaborative Arms: Joint-level drive boards in SCARA and Cartesian robot configurations using Oriental Motor compact servo systems.
- Textile & Printing Equipment: Tension-control and registration axes where CDN127R-series drivers manage multi-axis synchronization.
Engineering Advantages
- Zero Re-commissioning: Drop-in OEM replacement — no parameter re-entry, no firmware update, no axis re-tuning required after swap.
- Full Signal Integrity: OEM PCB layout preserves original EMI shielding geometry and trace impedance, eliminating noise-induced fault codes common with aftermarket boards.
- Dual Cross-Reference Traceability: Part number A7892-0407Y5C-1 maps directly to BOM 3870-02203 and driver assembly CDN127R-9, simplifying MRO documentation and audit trails.
- Reduced MTTR: Board-level replacement is faster than full driver unit replacement — restores axis operation in under 30 minutes for a trained technician.
- Long-Term Availability: Konmask maintains surplus OEM stock to bridge the gap when Oriental Motor factory lead times extend beyond production schedules.
System Architecture & Signal Flow
Within the CDN127R-9 driver chassis, the A7892-0407Y5C-1 PCB assembly sits at the core of the control loop:
- Input Stage: Receives step/direction or analog velocity command signals from the host controller (PLC or motion controller).
- Current Regulation: Implements PWM-based current control for the motor phase windings, maintaining torque linearity across the speed range.
- Feedback Processing: Decodes encoder or resolver signals and closes the position/velocity loop in real time.
- Protection Logic: Monitors over-current, over-temperature, and phase-loss conditions; triggers driver fault output to the host PLC on fault detection.
- Output Stage Interface: Drives the power stage gate signals via isolated gate driver interface on the CDN127R-9 power board.
Sourcing & Quality Verification
- OEM Traceability: Each unit is verified against Oriental Motor OEM part number A7892-0407Y5C-1 and BOM 3870-02203 before shipment.
- Visual & Functional Inspection: PCB assemblies are inspected for component integrity, solder joint quality, and connector condition prior to listing.
- Anti-Counterfeit Protocol: Konmask sources exclusively from documented supply chains; counterfeit or remarked boards are rejected at intake.
- Packaging: ESD-safe anti-static bag + foam-lined carton; humidity indicator card included for long-distance shipments.
- Documentation: Certificate of conformance and packing list provided with every shipment.
Procurement Process
- Step 1 — Confirm Compatibility: Verify your driver chassis label reads CDN127R-9 and the failed board carries part number A7892-0407Y5C-1 or BOM 3870-02203.
- Step 2 — Request Quote: Contact Konmask via the form below or email support@konmask.com with your required quantity and delivery timeline.
- Step 3 — Order Confirmation: Receive proforma invoice with lead time, shipping options (DHL / FedEx / sea freight), and payment terms.
- Step 4 — Shipment & Tracking: ESD-safe packed unit dispatched with full tracking; typical international delivery 3–7 business days by express courier.
- Step 5 — Installation Support: Konmask technical team available post-delivery for installation guidance and fault-code interpretation.
Technical FAQ
Q: Is A7892-0407Y5C-1 compatible with CDN127R-8 or CDN127R-10 variants?
A: This board is specified for CDN127R-9. Compatibility with adjacent revision suffixes (-8, -10) depends on chassis PCB revision — contact Konmask with your full driver nameplate data before ordering.
Q: Can this PCB be repaired rather than replaced?
A: Board-level repair is possible for some failure modes (blown gate drivers, failed capacitors), but OEM replacement is recommended for safety-critical or high-uptime applications to guarantee full specification compliance.
Q: What is the typical failure mode that requires this board?
A: Common failure triggers include over-voltage transients on the DC bus, coolant ingress, and end-of-life electrolytic capacitor degradation — all of which manifest as persistent AL (alarm) codes on the CDN127R-9 driver display.
Q: Do you offer exchange / core return pricing?
A: Yes. Konmask offers exchange pricing for customers returning a repairable core unit. Contact us for current exchange credit terms.
Q: What is the lead time if stock is depleted?
A: Konmask maintains buffer stock for high-demand Oriental Motor assemblies. If current stock is exhausted, typical replenishment lead time is 4–8 weeks. Contact us to join the priority notification list.
