Genuine PACIFIC SCIENTIFIC K42HLHN-LNK-NS-01 Hybrid Step Motor | K Series – Verified Source

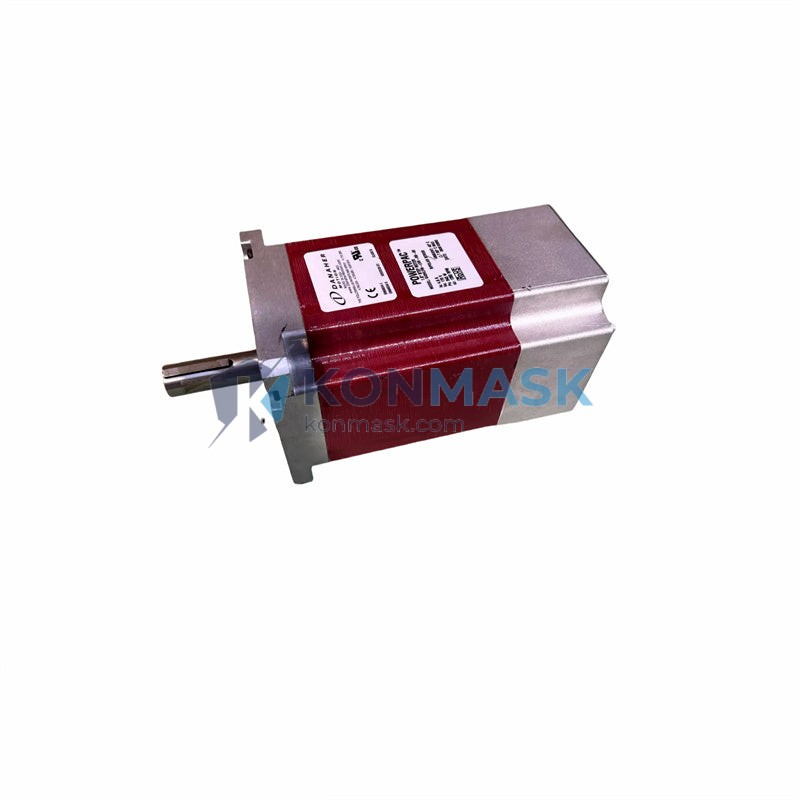

The PACIFIC SCIENTIFIC K42HLHN-LNK-NS-01 is a high-performance hybrid step motor engineered for precision motion control in demanding industrial automation environments. Sourced directly through verified supply channels, every unit sold by Konmask.com undergoes rigorous authenticity and functional verification before dispatch.
Technical Specifications
- Manufacturer: PACIFIC SCIENTIFIC (Danaher Motion)
- Part Number / SKU: K42HLHN-LNK-NS-01
- Series: K Series Hybrid Step Motor
- Motor Type: Hybrid Stepper (2-Phase)
- Frame Size: NEMA 17 (42 mm)
- Step Angle: 1.8° (200 steps/rev)
- Weight: Approx. 1,580 g
- Shaft Configuration: Single shaft, no keyway (NS)
- Connector Type: Flying leads (LNK)
- Insulation Class: Class B (130°C)
- RoHS Compliant: Yes
Our 4-Step Quality Verification Process
- Step 1 – Source Authentication: All units are procured from authorized distributors or OEM-verified surplus channels. Counterfeit parts are rejected at intake.
- Step 2 – Physical Inspection: Label integrity, housing condition, shaft runout, and connector quality are checked against OEM specifications.
- Step 3 – Electrical Bench Test: Winding resistance, insulation resistance, and step response are measured and logged before packaging.
- Step 4 – Secure Packaging: Anti-static wrap, foam cushioning, and tamper-evident sealing ensure safe transit to your facility.
Key Features & Benefits
- High holding torque-to-size ratio for compact machine designs
- Low vibration and smooth micro-stepping capability
- Robust hybrid rotor construction for long service life
- Flying-lead termination for flexible drive integration
- Drop-in replacement for legacy PACIFIC SCIENTIFIC K-Series installations
- Suitable for open-loop and closed-loop (encoder-added) configurations
Typical Applications
- CNC routers, laser cutters, and engraving machines
- Semiconductor wafer handling and pick-and-place systems
- Medical imaging and laboratory automation equipment
- Textile machinery and label printing systems
- Robotics joint actuation and conveyor indexing
Compatible System Components
- Drives: PACIFIC SCIENTIFIC SC Series, Gemini GV/GT, and third-party step/direction drives (2-phase, 4A/phase or higher)
- Controllers: Any standard PLC or motion controller with step/direction output
- Encoders: Optional encoder kits available for closed-loop retrofit
- Cables: Mating flying-lead harnesses and motor extension cables available on request
Global Sourcing & Shipping Capabilities
Konmask.com maintains an active global sourcing network for PACIFIC SCIENTIFIC and allied automation brands. We ship to North America, Europe, Southeast Asia, the Middle East, and beyond. Standard lead time is 3–7 business days for in-stock units; expedited air freight is available. All shipments include a commercial invoice, packing list, and optional Certificate of Conformance.
Certifications & Compliance Statement
- RoHS 2 (2011/65/EU): Compliant
- CE Marking: Applicable per machinery directive
- Country of Origin: USA (PACIFIC SCIENTIFIC manufacturing)
- Export Classification: EAR99 (no export license typically required)
Konmask.com does not manufacture this product. We are an independent distributor. All trademarks remain the property of their respective owners.
How to Order
- Click Add to Cart or Buy Now to proceed directly.
- For bulk orders (5+ units), email support@konmask.com for a volume quote.
- Need a specific configuration or accessory? Contact us via WhatsApp/WeChat at +0086 19859288691.
- Purchase orders (PO) accepted for verified business accounts — contact us to set up net terms.
Authenticity & Trust FAQ
Q: Are these genuine PACIFIC SCIENTIFIC parts?
A: Yes. Every K42HLHN-LNK-NS-01 unit we sell is sourced from verified supply channels and passes our 4-step inspection. We do not sell replicas or rebranded substitutes.
Q: Can I get a test report or inspection certificate?
A: Yes. A bench-test report is available upon request at no additional charge for orders of 2+ units.
Q: What is your return policy?
A: We offer a 30-day return window for units that arrive DOA or fail our described specifications. Please contact support before returning any item.
Q: Do you offer warranty?
A: All units carry a 90-day functional warranty from the date of delivery. Extended warranty options are available for volume orders.
Q: Can you source other PACIFIC SCIENTIFIC or Danaher Motion parts?
A: Absolutely. Send us your full BOM or part number list and we will respond with availability and pricing within 24 hours.
