Parker AH387775U001 Encoder Feedback Card | Replacement, Equivalent & Selection Guide

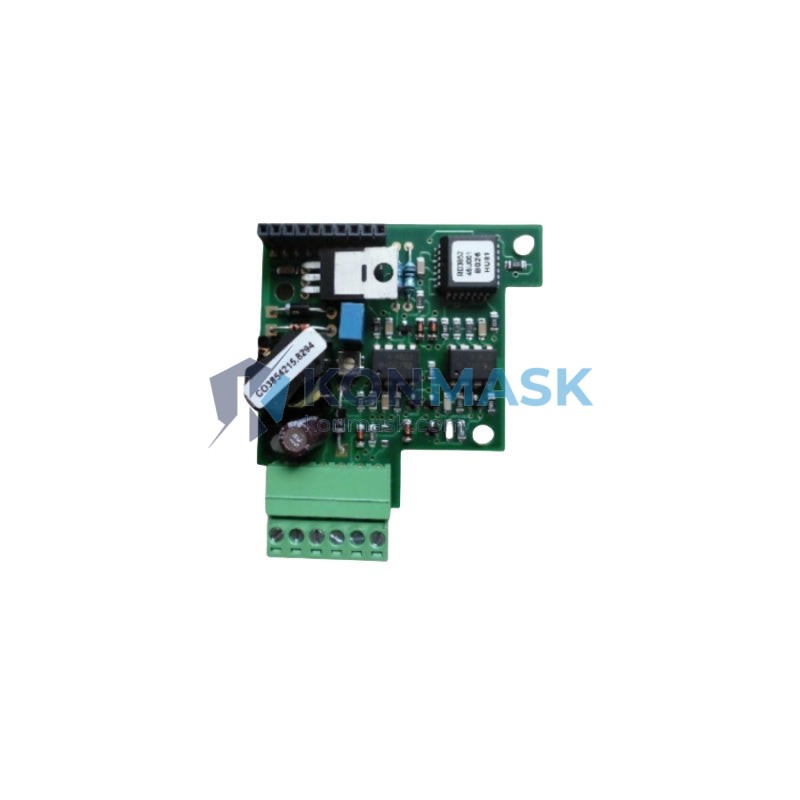

The Parker AH387775U001 is an Encoder Feedback Card designed for use with Parker’s AC890 series variable speed drives. It provides precise closed-loop speed and position feedback, enabling high-performance motion control in demanding industrial automation environments. This page serves as a comprehensive selection, replacement, and compatibility reference for engineers and procurement teams.
Technical Specifications
- Part Number: AH387775U001
- Manufacturer: Parker Hannifin
- Series: AC890
- Type: Encoder Feedback Option Card
- Function: Closed-loop encoder feedback for speed/position control
- Compatible Drive Series: Parker AC890 Variable Speed Drive
- Encoder Interface: Incremental encoder (TTL/HTL)
- Weight: Approx. 300 g
- Form Factor: Plug-in option card
- Condition Available: New, Surplus, Refurbished
Compatible Replacement & Equivalent Models
If the AH387775U001 is unavailable or discontinued, the following models may serve as functional equivalents or replacements depending on your drive configuration:
- Parker AH387775U002 – Upgraded revision of the same feedback card series
- Parker AH500942U001 – Alternative encoder option card for AC890 platform
- Parker SSD 890 Encoder Card – Legacy SSD Drives equivalent (verify firmware compatibility)
- Generic TTL Encoder Interface Cards – Third-party options; confirm pinout and signal voltage before installation
⚠ Always verify drive firmware version and option slot compatibility before substituting parts. Contact Konmask.com for pre-sales compatibility verification.
Why Choose the Original Model
- ✅ Guaranteed OEM Compatibility – Plug-and-play with Parker AC890 drives, no firmware workarounds required
- ✅ Certified Signal Integrity – Factory-calibrated encoder interface ensures accurate speed/position feedback
- ✅ Full Parker Diagnostics Support – Recognized by Parker DSE Lite and AC890 commissioning tools
- ✅ Reduced Commissioning Risk – Eliminates compatibility unknowns common with third-party alternatives
- ✅ Warranty & Traceability – Sourced from authorized channels with full documentation
Typical Applications
- Closed-loop speed control on conveyor and winding systems
- Precision position feedback in crane and hoist drives
- Tension control in paper, film, and textile processing lines
- Pump and compressor variable speed applications requiring encoder feedback
- Retrofit and upgrade of existing AC890 drive installations
System Compatibility
- Drive Platform: Parker AC890 Series (all frame sizes)
- Option Slot: Standard option card slot on AC890 drive
- Encoder Types Supported: Incremental TTL (5 V) and HTL (10–30 V) encoders
- Control Software: Compatible with Parker DSE Lite configuration software
- Not Compatible With: Parker 690+ series, 590 DC drives, or Eurotherm drives without adapter
Selection Guide
Use the following criteria to confirm AH387775U001 is the correct part for your application:
- Step 1 – Confirm Drive Model: Verify your drive is a Parker AC890 series unit
- Step 2 – Check Option Slot: Confirm an available option card slot in your drive chassis
- Step 3 – Encoder Voltage: Identify whether your encoder outputs TTL (5 V) or HTL (10–30 V) signals
- Step 4 – Firmware Version: Check AC890 firmware supports the AH387775U001 (recommended: v5.x or later)
- Step 5 – Quantity & Lead Time: Contact us for stock availability and delivery schedule
Not sure which card you need? Send your drive nameplate data and encoder specifications to support@konmask.com for a free selection recommendation.
Quality Assurance & Sourcing
- All units are inspected and tested prior to dispatch
- Sourced from authorized Parker distributors and verified surplus channels
- Anti-static packaging with full ESD protection
- Batch traceability records available on request
- Certificate of conformance available for critical applications
How to Order
- Add Parker AH387775U001 to cart and proceed to checkout
- For bulk orders (>3 units), email support@konmask.com for a volume quote
- Specify required condition: New / Surplus / Refurbished
- Include your drive model and serial number for compatibility confirmation
- Typical lead time: 3–7 business days (stock-dependent)
Replacement & Compatibility FAQ
Q: Can AH387775U001 replace AH387775U002?
A: In most cases yes, but U002 may include minor hardware revisions. Verify with Parker documentation or contact us before substituting.
Q: Is this card compatible with Parker 690+ drives?
A: No. The AH387775U001 is designed exclusively for the AC890 platform. Different option cards are required for 690+ series drives.
Q: Can I use a third-party encoder card instead?
A: Third-party cards may work electrically, but Parker DSE Lite may not recognize them, limiting diagnostics and parameter access. We recommend OEM parts for critical applications.
Q: Do you offer repair or exchange service for faulty AH387775U001 cards?
A: Yes. Contact us with your faulty unit details for a repair/exchange quotation.
Q: What is the warranty on this product?
A: New units carry a 12-month warranty. Surplus/refurbished units carry a 90-day warranty. Full terms available on request.
