Phoenix Contact QUINT-PS-100-240AC/24DC/10 – Primary-Switched DIN-Rail Power Supply | QUINT POWER Series
Engineering Background
The QUINT POWER series represents Phoenix Contact’s flagship line of industrial power supplies, engineered for mission-critical automation infrastructure where voltage stability and fault resilience are non-negotiable. Introduced to address the growing demand for intelligent power management in IEC 61131-compliant control cabinets, the QUINT-PS-100-240AC/24DC/10 has become a benchmark reference in PLC panel design across process, manufacturing, and building automation sectors.
Product Positioning

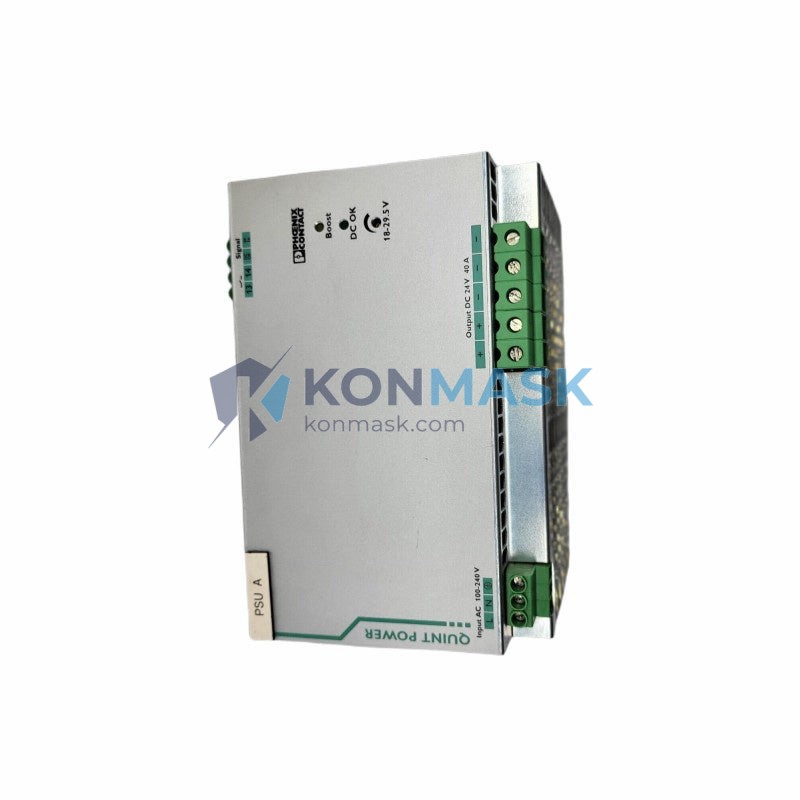

The QUINT-PS-100-240AC/24DC/10 (Order No. 2938604) is a 240 W, single-phase primary-switched power supply delivering a regulated 24 VDC / 10 A output from a universal 100–240 VAC input. Its patented Static Boost (SFB) technology provides up to 200% peak current for reliable downstream device startup and selective fuse tripping — a critical differentiator for engineers designing fault-tolerant 24 VDC distribution buses.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Order Number | 2938604 |
| Model | QUINT-PS-100-240AC/24DC/10 |
| Manufacturer | Phoenix Contact |
| Input Voltage Range | 100 – 240 VAC (85 – 264 VAC wide range) |
| Input Frequency | 47 – 63 Hz |
| Output Voltage | 24 VDC (adjustable 18 – 29.5 VDC) |
| Output Current | 10 A nominal |
| Rated Output Power | 240 W |
| SFB Peak Current | Up to 200% (20 A) for ≥12 ms |
| Efficiency | ≥ 93% at full load |
| Ripple & Noise | < 50 mV peak-to-peak |
| Hold-Up Time | ≥ 20 ms at 100% load |
| Inrush Current | < 20 A (cold start, 25 °C) |
| Operating Temperature | -25 °C to +70 °C (derating above 60 °C) |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5 – 95% RH, non-condensing |
| Protection Class | IP20 |
| Mounting | 35 mm DIN rail (EN 60715) |
| Dimensions (W × H × D) | 55 × 130 × 125 mm |
| Weight | 280 g |
| Output Connector | Screw terminals, 0.2 – 6 mm² |
| Signaling | DC OK relay contact (24 VDC / 1 A), LED status indicator |
| Parallel Operation | Yes (redundancy & power boost) |
| HS Code | 850440 |
| Country of Origin | Germany |
| Certifications | UL 508, CE, cULus, GL, ATEX Zone 2, IECEx |
| MTBF | > 500,000 hours (IEC 61709, 40 °C) |
Proven Application Environments
- PLC & DCS Control Panels — Primary 24 VDC bus supply for Siemens S7, Allen-Bradley ControlLogix, Schneider Modicon, and Beckhoff CX series controllers
- Process Automation — Field instrument power distribution in oil & gas, chemical, and water treatment plants (ATEX Zone 2 rated)
- Machine Building — OEM panel integration for servo drives, I/O modules, and HMI systems requiring stable 24 VDC rails
- Building Automation (BAS/BMS) — HVAC controllers, access control, and fire detection panel power
- Railway & Transportation — EN 50155 compatible installations (with GL certification)
- Redundant Power Architectures — Parallel operation with Powerbridge modules for N+1 redundancy
Engineering Advantages
- SFB (Static Boost) Technology — Delivers 200% rated current for ≥12 ms, ensuring reliable startup of capacitive loads and selective tripping of downstream miniature circuit breakers without nuisance trips
- Universal Input Range — 85–264 VAC operation eliminates the need for input voltage selection; suitable for global deployment without hardware modification
- Adjustable Output Voltage — 18–29.5 VDC trim range compensates for long cable runs and voltage drop in distributed I/O architectures
- DC OK Signaling — Potential-free relay contact enables PLC-level power fault detection and alarm integration without additional monitoring hardware
- High Efficiency ≥93% — Reduces thermal dissipation in sealed enclosures; extends panel component lifespan and reduces cooling requirements
- Parallel Redundancy — Native support for N+1 configurations using Phoenix Contact Powerbridge decoupling modules (no external diodes required)
- Compact DIN-Rail Footprint — 55 mm width minimizes panel real estate; compatible with standard 35 mm DIN rail per EN 60715
System Architecture & Signal Flow
The QUINT-PS-100-240AC/24DC/10 operates as a primary-switched, isolated AC/DC converter. The AC input is rectified and filtered, then processed through a high-frequency PWM switching stage (typically 100–200 kHz). The transformer-isolated secondary is regulated via feedback control to maintain 24 VDC ±1% under all load conditions.
Typical Panel Wiring Architecture:
- L1/N/PE → Input terminals (fused at 6 A MCB, C-curve recommended)
- +24V / 0V → Output bus bar or terminal block distribution
- DC OK relay → PLC digital input (fault monitoring)
- Parallel units → Powerbridge module for redundancy decoupling
Grounding: PE terminal must be connected to protective earth. Output 0V may be grounded or floating per system design. Functional earth (FE) terminal available for EMC shielding.
Sourcing & Quality Verification
- Authorized Supply Chain — All Phoenix Contact units at Konmask.com are sourced through verified industrial distribution channels with full traceability to Phoenix Contact’s manufacturing facilities in Blomberg, Germany
- Authenticity Verification — Each unit ships with original Phoenix Contact packaging, datasheet, and CE/UL markings. Batch certificates available on request
- Counterfeit Risk Mitigation — Konmask performs incoming inspection including label verification, weight check (280 g ±5%), and functional output voltage test before dispatch
- Warranty — 12-month Konmask commercial warranty; Phoenix Contact manufacturer warranty terms apply per original purchase documentation
Procurement Process
- Step 1 — Inquiry: Submit RFQ via [email protected] or WhatsApp +0086 19859288691 with quantity, delivery timeline, and destination port
- Step 2 — Quotation: Receive formal quotation within 1 business day including unit price, lead time, and shipping options (DHL Express / sea freight)
- Step 3 — Order Confirmation: Confirm PO; 30% deposit for orders >10 units; full payment for spot stock orders
- Step 4 — Dispatch: In-stock units ship within 2 business days; EXW Xiamen or CIF destination available
- Step 5 — Documentation: Commercial invoice, packing list, COO (Germany), and test report provided with each shipment
Technical FAQ
Q: Can two QUINT-PS-100-240AC/24DC/10 units be paralleled for 20 A output?
A: Yes. Use Phoenix Contact Powerbridge (e.g., QUINT-ORING/24DC/2X10/1X20) for lossless current sharing and decoupling. Direct parallel connection without decoupling is not recommended.
Q: Is this unit suitable for ATEX Zone 2 installations?
A: Yes, with appropriate enclosure. The unit holds ATEX II 3 G certification for Zone 2 gas hazardous areas when installed in a certified Ex e or Ex d enclosure.
Q: What MCB rating is recommended for the AC input?
A: Phoenix Contact recommends a 6 A, C-curve MCB. B-curve breakers may nuisance-trip due to inrush current at cold start.
Q: Can the output voltage be adjusted under load?
A: Yes. The output trim potentiometer is accessible from the front panel and can be adjusted from 18 to 29.5 VDC while the unit is energized.
Q: What is the DC OK relay contact rating?
A: The DC OK relay is rated 24 VDC / 1 A (resistive load). It closes when output voltage is within the normal operating window and opens on undervoltage or output fault.
Q: Does Konmask provide a Certificate of Origin for customs clearance?
A: Yes. A COO (Country of Origin: Germany) is included with every shipment. HS Code 850440 applies for import classification in most jurisdictions.
