Industrial Control Panel Solution — Phoenix Contact QUINT-PS/1AC/48DC/10 | QUINT Series

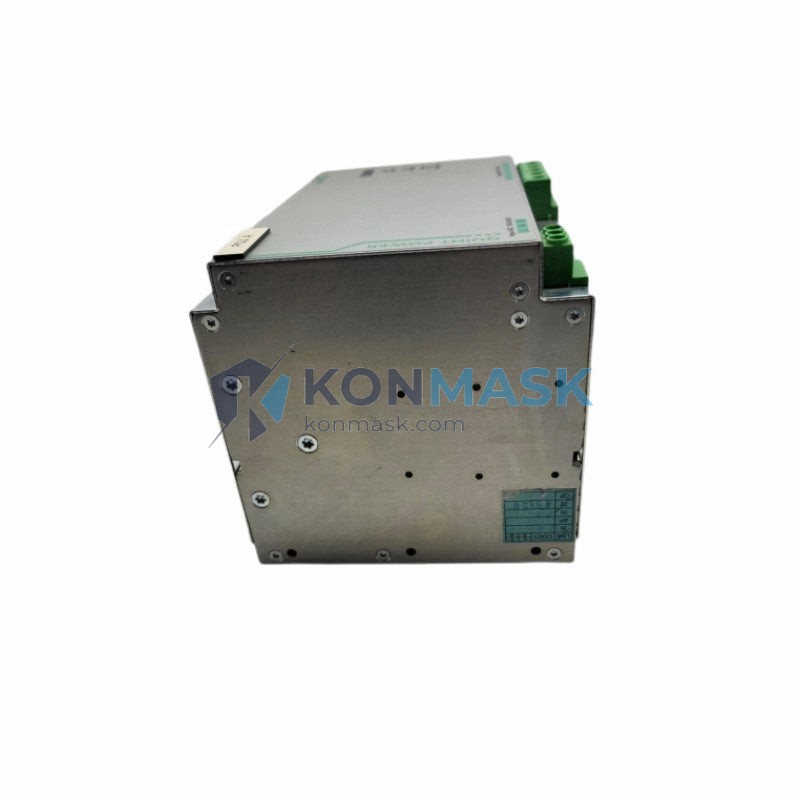

The Phoenix Contact QUINT-PS/1AC/48DC/10 (Part No. 2866682) is a high-performance, single-phase DIN-rail power supply delivering 48 VDC at 10 A (480 W). Engineered for demanding industrial environments, the QUINT series is the benchmark choice for system integrators, panel builders, and automation engineers who require uncompromising reliability and intelligent diagnostics in a compact form factor.
Where This Product Is Used
This power supply is specified across a broad range of industrial and infrastructure applications:
- PLC Control Panels — Provides stable 48 VDC bus power for Siemens, Allen-Bradley, Mitsubishi, and Omron PLC racks and I/O modules requiring 48 V logic supply.
- Process Automation & DCS Systems — Powers field transmitters, HART devices, and distributed I/O nodes in oil & gas, chemical, and water treatment plants.
- Telecommunications & Network Infrastructure — Supplies 48 VDC to PoE switches, routers, and telecom equipment in industrial Ethernet cabinets.
- Railway & Transportation Signalling — Meets the rugged demands of trackside control cabinets and rolling stock auxiliary power systems.
- Building Automation (BAS/BMS) — Powers HVAC controllers, access control panels, and fire detection systems requiring 48 V supply.
- Machine Safety Systems — Feeds safety relays, light curtain controllers, and emergency-stop circuits where a stable, monitored 48 V rail is mandatory.
- Renewable Energy & Battery Management — Used in solar inverter auxiliary circuits and battery management system (BMS) control boards.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 2866682 |
| Model | QUINT-PS/1AC/48DC/10 |
| Input Voltage | 85 – 264 VAC (1-phase) / 90 – 350 VDC |
| Input Frequency | 45 – 65 Hz |
| Output Voltage | 48 VDC (adjustable 45 – 56 V) |
| Output Current | 10 A nominal |
| Output Power | 480 W |
| QUINT BOOST | Up to 150% (15 A) for 4 seconds |
| Efficiency | ≥ 93% |
| Ripple & Noise | < 50 mV peak-to-peak |
| Mounting | DIN rail (EN 60715 TH35) |
| Protection Class | IP20 |
| Operating Temperature | −25 °C to +70 °C |
| Dimensions (W × H × D) | 60 × 130 × 125 mm |
| Weight | approx. 1.0 kg |
| MTBF | > 500,000 h (IEC 61709) |
| Signalling | Relay output + DC OK LED |
Why Engineers Specify This Model
- QUINT BOOST Technology — Delivers 150% rated current for up to 4 seconds to reliably trip upstream circuit breakers and start high-inrush loads, eliminating nuisance shutdowns.
- Active Power Factor Correction (PFC) — Reduces harmonic distortion on the AC supply, protecting sensitive upstream equipment and meeting EN 61000-3-2 Class A.
- SFB (Selective Fuse Breaking) Technology — Detects and clears downstream short circuits without affecting other branches, maintaining system uptime.
- Integrated Signalling Relay — Provides a potential-free contact for PLC or SCADA alarm integration, enabling predictive maintenance workflows.
- Wide Input Range — Accepts 85–264 VAC globally, making it suitable for international machine builds without hardware changes.
- Conformal Coating Option — Available for harsh environments with humidity, condensation, or airborne contaminants.
- Compact 60 mm Width — Maximises panel real estate in space-constrained enclosures.
Complete System Bill of Materials
Typical panel designs pairing the QUINT-PS/1AC/48DC/10 with complementary Phoenix Contact components:
- UPS Buffer Module — QUINT-BUFFER/24DC/40 for bridging mains interruptions
- Redundancy Module — QUINT-ORING/24DC/2X10/1X20 for N+1 redundant PSU configurations
- DC Distribution Terminal — PTFIX 6/6X2,5-NS35A for 48 V bus distribution
- Electronic Circuit Breaker — CLIPLINE CB E4 48VDC/6A for branch protection
- Surge Protection — TRABTECH PT 2X1-BE/48DC for transient voltage suppression on the 48 V rail
- DIN Rail — NS 35/7.5 PERF (1 m) for mounting
- End Clamps — E/NS 35 N for securing the assembly
Compliance & Industry Standards
- CE Marking — EU Low Voltage Directive 2014/35/EU & EMC Directive 2014/30/EU
- UL 508 Listed — Industrial Control Equipment
- cULus — Canadian market compliance
- IEC/EN 60950-1 & IEC/EN 62368-1 — Safety of information technology equipment
- EN 61000-6-2 — EMC immunity for industrial environments
- EN 61000-3-2 Class A — Harmonic current emissions
- ATEX / IECEx — Suitable for use in Zone 2 hazardous areas (with appropriate enclosure)
- GL / DNV — Marine type approval for shipboard applications
- RoHS 2 Compliant — Restriction of Hazardous Substances
Quality Assurance & Sourcing
At Konmask.com, every Phoenix Contact component is sourced through authorised distribution channels or directly from factory-certified stock. Each unit undergoes the following before dispatch:
- Visual inspection against Phoenix Contact cosmetic and labelling standards
- Verification of part number, date code, and country of origin markings
- Functional power-on test: output voltage, current limit, and signalling relay continuity
- Anti-static packaging with humidity indicator card for long-term storage integrity
- Full traceability documentation available on request (COC, test report)
How to Source This Part
- Add to Cart — In-stock units ship within 1–2 business days from our warehouse.
- Request a Quote — For project quantities ≥ 5 units, contact us for volume pricing and lead-time commitment.
- Urgent Requirement? — Call or WhatsApp +0086 19859288691 for same-day quotation on expedited orders.
- Cross-Reference / Substitution — Need an equivalent from another brand? Our engineers can recommend compatible alternatives.
- OEM / System Integrator Accounts — Email support@konmask.com to set up a trade account with net payment terms.
Application-Specific FAQ
Q: Can this PSU power a 48 V PoE switch directly?
A: Yes. The QUINT-PS/1AC/48DC/10 output is compatible with IEEE 802.3bt (PoE++) switches rated for 48–57 VDC input. Verify the switch’s maximum input voltage before connecting.
Q: Is the output voltage adjustable for 56 V telecom applications?
A: Yes. The output is adjustable from 45 V to 56 V via the front-panel potentiometer, making it suitable for ETSI 300 132-2 compliant telecom installations.
Q: Can two units be paralleled for redundancy?
A: Direct paralleling is not recommended without a QUINT-ORING module. The QUINT-ORING/24DC/2X10/1X20 (re-rated for 48 V) provides true diode-ORing with active MOSFET switching for lossless redundancy.
Q: What is the derating at elevated ambient temperatures?
A: Full 10 A output is available up to +60 °C. Above +60 °C, derate linearly to 6 A at +70 °C. Ensure adequate convection airflow (minimum 50 mm clearance above and below).
Q: Does this unit support remote on/off control?
A: The standard QUINT-PS/1AC/48DC/10 does not include a remote inhibit input. For remote control functionality, consider the QUINT4-PS series with integrated remote on/off.
Q: What is the warranty?
A: Phoenix Contact provides a 3-year manufacturer warranty. Konmask.com additionally offers a 12-month return-to-base warranty on all units sold through our platform.
