Pump & Fan Speed Control Solution — Allen-Bradley 22B-D6P0N104 | PowerFlex 40 Series
Where This Product Is Used

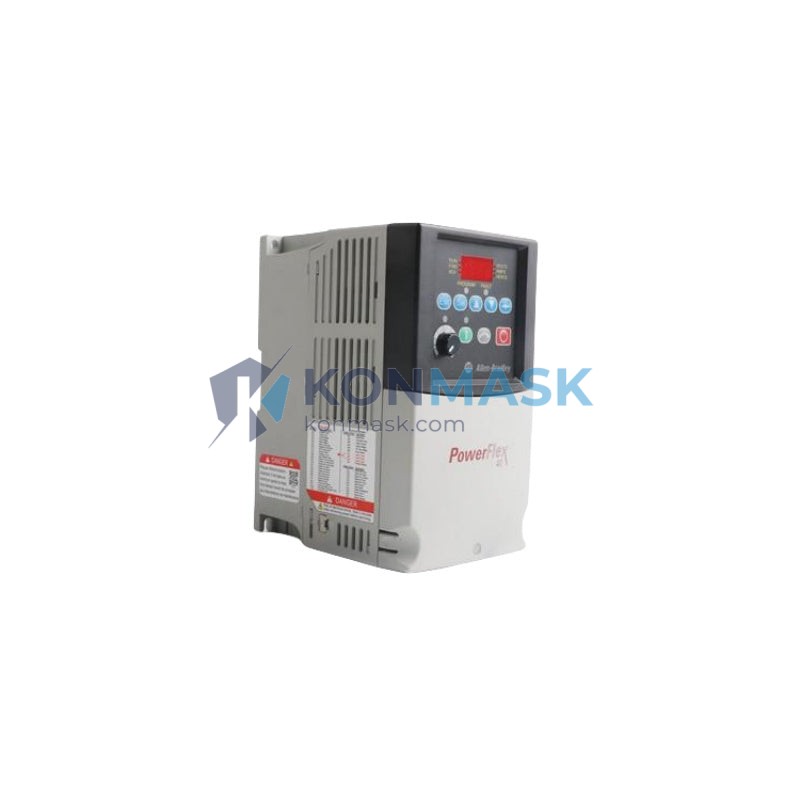

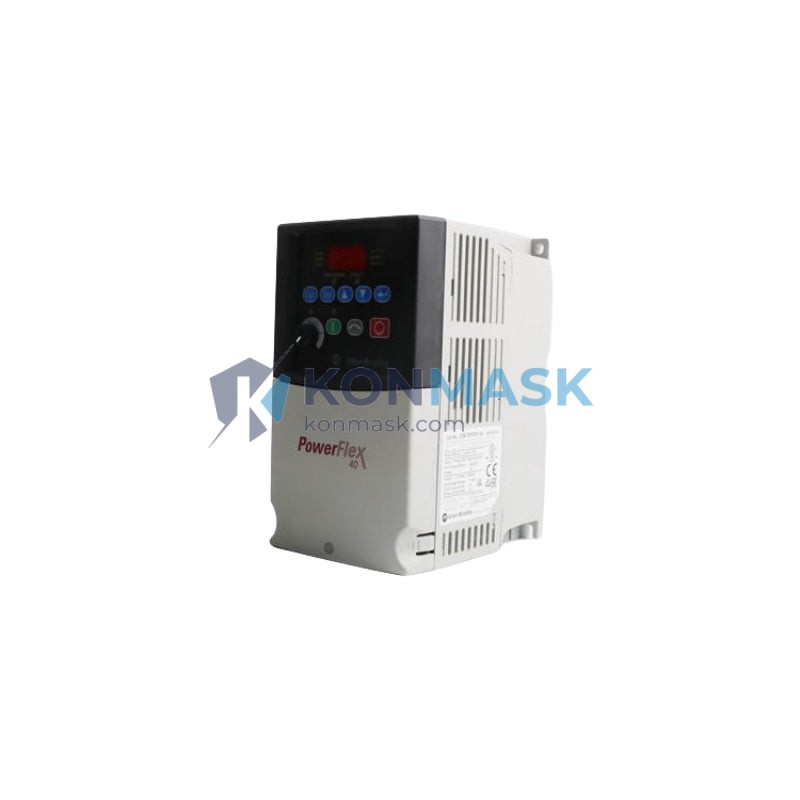

The Allen-Bradley PowerFlex 40 (22B-D6P0N104) is a compact, general-purpose AC variable frequency drive engineered for demanding industrial environments. Engineers and system integrators specify this drive across a wide range of motion-control applications:
- HVAC Systems — Supply and return fan speed regulation in commercial buildings and industrial facilities, delivering measurable energy savings versus fixed-speed operation.
- Pump Stations — Pressure-controlled water supply, irrigation, and process fluid transfer where soft-start and variable flow are critical to system longevity.
- Conveyor & Material Handling — Precise belt speed control in packaging lines, logistics sortation, and food processing conveyors.
- Compressors — Load-matched speed control for air compressors and refrigeration compressors to reduce energy consumption and mechanical wear.
- Mixers & Agitators — Torque-controlled mixing in chemical, pharmaceutical, and food & beverage production.
- Machine Tool Spindles — Spindle speed control in CNC routers, lathes, and milling machines requiring smooth acceleration profiles.
Technical Specifications
| Catalog Number | 22B-D6P0N104 |
| Series | PowerFlex 40 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Output Power | 2.2 kW (3 HP) |
| Input Voltage | 480V AC, 3-Phase |
| Input Frequency | 47–63 Hz |
| Output Current | 6.0 A (Normal Duty) / 6.0 A (Heavy Duty) |
| Output Frequency Range | 0–500 Hz |
| Control Method | V/Hz, Sensorless Vector (SVC) |
| Enclosure Rating | IP20 / NEMA Type 1 (with optional conduit kit) |
| Communication | DSI port (RS-485); optional DeviceNet, EtherNet/IP, PROFIBUS via adapter |
| Braking | Dynamic braking transistor built-in (external resistor required) |
| Ambient Temperature | -10°C to +50°C (operating) |
| Weight | 1.72 kg |
| Certifications | UL, cUL, CE, C-Tick |
Why Engineers Specify This Model
- Compact Footprint — Panel-space-efficient design allows installation in tight control cabinets without sacrificing performance.
- Sensorless Vector Control — Delivers high starting torque (150% at 3 Hz) without the cost and complexity of encoder feedback.
- Built-in EMC Filter — Reduces conducted emissions, simplifying CE compliance in European installations.
- Integrated PID Controller — Enables closed-loop process control (pressure, flow, temperature) without an external PLC for simple applications.
- Flexible I/O — 6 digital inputs, 2 analog inputs (0–10V / 4–20mA), 1 analog output, and 2 relay outputs support diverse machine architectures.
- DriveExplorer / Studio 5000 Compatible — Seamless integration into existing Rockwell Automation control architectures.
- Energy Savings Mode — Automatic energy optimization for variable-torque loads (fans, pumps) reduces operating costs.
Complete System Bill of Materials
For a fully commissioned PowerFlex 40 installation, engineers typically specify the following complementary components:
- Input Line Reactor — 22-RF014-BL (reduces harmonic distortion and protects drive input)
- Dynamic Braking Resistor — AK-R2-091P3 (for applications requiring fast deceleration)
- Remote Operator Interface — 22-HIM-A3 (remote LCD keypad for panel-door mounting)
- Communication Adapter — 22-COMM-E (EtherNet/IP adapter for network integration)
- NEMA 1 Conduit Kit — 22B-KITNA-F2 (upgrades IP20 to NEMA 1 for UL compliance)
- Output Filter — 22-RF014-BL (protects motor windings in long-cable installations)
Compliance & Industry Standards
- UL 508C — Power Conversion Equipment (North America)
- IEC 61800-3 — Adjustable Speed Electrical Power Drive Systems (EMC)
- IEC 61800-5-1 — Safety requirements for adjustable speed drive systems
- CE Marking — Low Voltage Directive (LVD) and EMC Directive compliant
- RoHS Compliant — Restriction of Hazardous Substances
- C-Tick — Australian Communications and Media Authority approval
Quality Assurance & Sourcing
Konmask.com sources industrial automation components through verified supply channels with documented traceability. Every unit undergoes the following quality checks before dispatch:
- Visual inspection for physical damage, counterfeit markings, and label authenticity
- Firmware version verification against Rockwell Automation published release notes
- Functional power-on test where applicable
- Packaging integrity check with anti-static protection for sensitive electronics
We maintain sourcing records for all stocked units and can provide documentation upon request for regulated industries (pharmaceutical, food & beverage, defense).
How to Source This Part
- In-Stock Orders — Add to cart and complete checkout. Orders placed before 17:00 CST ship same business day.
- Bulk / Project Quantities — Contact support@konmask.com for volume pricing and lead-time commitments on quantities of 5+ units.
- Urgent / Emergency Procurement — Call or WhatsApp +0086 19859288691 for expedited sourcing and same-day quotation.
- OEM / System Integrator Accounts — Registered integrators receive priority allocation and net-30 payment terms upon credit approval.
- Export Orders — We ship internationally with full commercial invoice, packing list, and HS code documentation (HS: 8504.40).
Application-Specific FAQ
Q: Can the 22B-D6P0N104 control a single-phase motor?
A: No. This drive requires a 3-phase 480V input and outputs 3-phase power. For single-phase motor applications, a different drive family is required.
Q: What is the maximum motor cable length before an output filter is required?
A: Rockwell Automation recommends an output filter for cable runs exceeding 30 meters (100 ft) to prevent reflected wave damage to motor windings.
Q: Is this drive compatible with Rockwell’s Studio 5000 / Logix Designer?
A: Yes, with the 22-COMM-E EtherNet/IP adapter installed, the drive can be fully configured and monitored from Studio 5000 Logix Designer via Add-On Profile (AOP).
Q: Can I use this drive for a hoisting / crane application?
A: The PowerFlex 40 is not rated for hoist duty. Rockwell Automation recommends the PowerFlex 525 or PowerFlex 755 with Safe Torque Off (STO) for lifting applications.
Q: What is the warranty on this unit?
A: Konmask.com provides a 12-month warranty against manufacturing defects. Warranty claims are processed within 5 business days of receipt of the returned unit.
Q: Do you provide a Certificate of Conformance (CoC)?
A: Yes. A CoC can be provided upon request at the time of order for regulated-industry customers.
