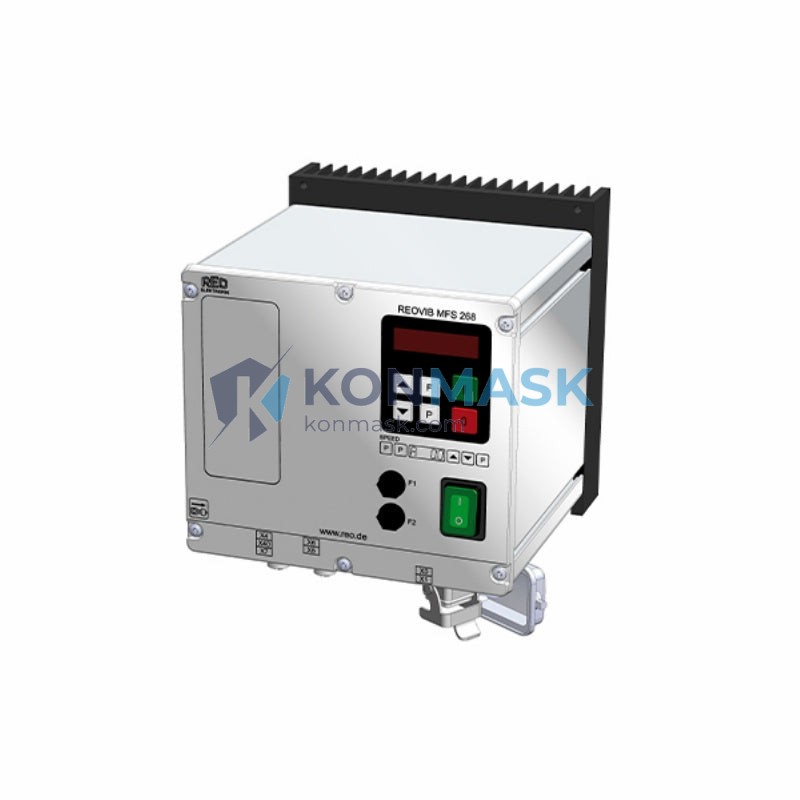

REOVIB MFS 268-8A-IP54 Frequency Converter – Precision Vibratory Feeder Controller | MFS 26BUL Platform
Engineering Background: The REOVIB MFS 268 series is engineered by MFS (Maschinenfabrik Sievert), a German specialist in vibratory conveying and feeding technology. The MFS 26BUL platform represents the industrial-grade line designed for continuous-duty environments where amplitude stability and electromagnetic compatibility are non-negotiable. The MFS 268-8A-IP54 is the field-hardened variant, rated IP54 for dust and splash resistance, making it the preferred choice for open-floor automation cells.
Product Positioning: This unit serves as the dedicated frequency converter and amplitude controller for electromagnetic vibratory feeders and bowl feeders. It replaces legacy thyristor-based half-wave controllers with a full-wave, phase-angle controlled output that delivers smoother, more consistent part flow — directly reducing jamming rates and improving downstream assembly throughput. Procurement engineers specify this model when the installation environment involves coolant mist, metal dust, or washdown-adjacent conditions.
Complete Technical Specifications
- Model / SKU: REOVIB MFS 268-8A-IP54
- Platform Series: MFS 26BUL / REOVIB MFS 268
- Manufacturer: REOVIB (MFS – Maschinenfabrik Sievert), Germany
- Function: Frequency converter & amplitude controller for electromagnetic vibratory feeders
- Output Current: 8 A (continuous rated)
- Protection Rating: IP54 (dust-protected, splash-proof enclosure)
- Control Method: Phase-angle control (full-wave)
- Input Voltage: 230 V AC, 50/60 Hz (single-phase)
- Output Frequency: 50 Hz / 60 Hz selectable
- Amplitude Adjustment: Continuous 0–100% via potentiometer or external 0–10 V signal
- Enclosure Material: Powder-coated steel housing
- Weight: 3.6 kg
- Country of Origin: Germany
- Compliance: CE marked, EMC Directive 2014/30/EU
Proven Application Environments
- Automotive parts assembly lines – bowl feeder amplitude stabilization
- Pharmaceutical blister packaging – precise micro-part orientation
- Electronics SMT feeding – component singulation at high speed
- Food & beverage – washdown-adjacent vibratory conveyors (IP54 rated)
- Metal stamping & die casting – coolant-mist environments
- Plastics injection molding – runner and sprue separation feeders
Engineering Advantages
- IP54 Enclosure: Operates reliably in dusty and splash-prone production floors without additional protective housing
- Full-Wave Phase Control: Eliminates the DC offset inherent in half-wave designs, reducing coil heating and extending electromagnet service life
- 8 A Output Rating: Supports medium-to-large bowl feeders (typically 200–500 mm diameter) without derating
- Analog Reference Input (0–10 V): Direct integration with PLC analog output cards for closed-loop feed rate control
- German Engineering Pedigree: MFS/REOVIB units are specified by OEMs across Europe and Asia for their long MTBF and consistent amplitude repeatability
- Drop-in Replacement: Electrically and mechanically compatible with existing MFS 26BUL panel cutouts
System Architecture & Signal Flow
The MFS 268-8A-IP54 sits between the plant power distribution (230 V AC) and the electromagnetic vibratory feeder coil. A PLC analog output (0–10 V DC) connects to the reference input terminal, commanding amplitude setpoint. The controller’s internal phase-angle circuit modulates the AC output accordingly. An optional external potentiometer can serve as a manual override. Status feedback (run/fault) is available via dry-contact relay output for integration into the machine safety circuit or SCADA system.
Typical wiring path: PLC AO → MFS 268 Reference Input → Phase-Angle Controller → Feeder Coil → Vibratory Bowl
Sourcing & Quality Verification
- Units sourced directly from authorized REOVIB/MFS distribution channels and verified OEM surplus
- Each unit inspected for label integrity, terminal condition, and enclosure seal before shipment
- Serial number and date code recorded for full traceability
- Functional test report available upon request for critical-path procurement
- Konmask.com maintains stock of MFS 26BUL platform accessories including replacement coils and mounting hardware
Procurement Process
- Lead Time: In-stock units ship within 1–3 business days; EXW Xiamen, China
- MOQ: 1 unit
- Payment Terms: T/T, PayPal, credit card via Shopify Payments
- Export Documentation: Commercial invoice, packing list, and CE declaration of conformity included
- Customs HS Code: 8504.40 (Static converters)
- Warranty: 12 months from shipment date against manufacturing defects
- RFQ / Bulk Pricing: Contact support@konmask.com for orders of 3+ units
Technical FAQ
Q: Is the MFS 268-8A-IP54 compatible with 60 Hz feeder coils?
A: Yes. The output frequency is selectable between 50 Hz and 60 Hz via internal DIP switch, making it suitable for both European and North American feeder coil designs.
Q: Can I control amplitude from a Siemens S7 PLC analog output?
A: Yes. The 0–10 V DC reference input is compatible with standard PLC analog output modules (e.g., Siemens SM 332, Allen-Bradley 1769-OF4). Ensure the AO channel is configured for voltage output mode.
Q: What is the difference between MFS 268-8A-IP54 and MFS 268-8A (without IP54)?
A: The IP54 variant features a sealed enclosure rated for dust ingress protection (IP5x) and water splash protection (IPx4). The non-IP54 version is open-panel mount only, suitable for clean control cabinet installations.
Q: Does this unit support soft-start for the feeder?
A: The MFS 268 series includes a configurable ramp-up time to prevent mechanical shock on feeder startup. Ramp duration is adjustable via internal trimmer.
Q: What replacement parts are available?
A: Konmask.com stocks MFS 26BUL platform accessories. Contact us with your serial number for specific spare part availability.
