RITTAL SK3325024 Fan Filter Unit | Replacement, Equivalent & Selection Guide

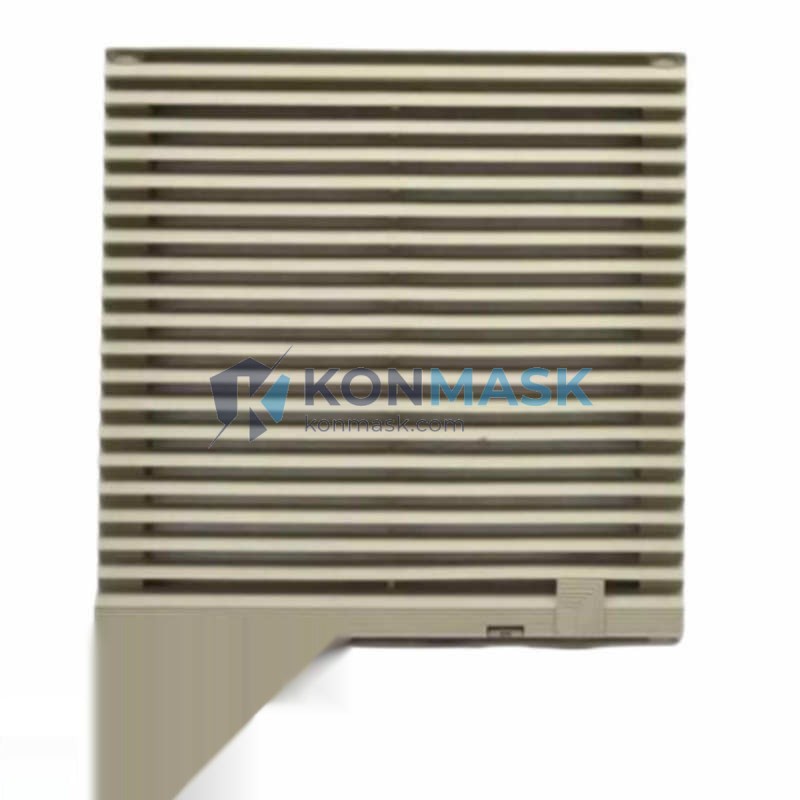

The RITTAL SK3325024 is a high-performance fan filter unit designed for enclosure climate control in industrial automation environments. This page provides full technical specifications, compatible replacement models, application guidance, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
| Manufacturer | RITTAL |
| Part Number | SK3325024 |
| Product Type | Fan Filter Unit (FFU) |
| Voltage | 230 V AC, 50/60 Hz |
| Airflow (free-blowing) | Approx. 20 m³/h |
| Filter Class | G2 (coarse dust filtration) |
| Protection Rating | IP 54 (with filter mat installed) |
| Mounting | Panel cut-out, snap-in |
| Cut-out Dimensions | Approx. 119 × 119 mm |
| Overall Dimensions (W×H×D) | Approx. 150 × 150 × 71 mm |
| Weight | Approx. 500 g |
| Operating Temperature | -25 °C to +70 °C |
| Noise Level | ≤ 38 dB(A) |
| Colour | RAL 7035 (light grey) |
| Standards | EN 60529, UL 508A |
Note: Specifications are based on published RITTAL data. Always verify against the official RITTAL datasheet for your specific application.
Compatible Replacement & Equivalent Models
The following models are commonly used as direct or near-direct replacements for the SK3325024. Compatibility should be verified against your enclosure cut-out dimensions and voltage requirements before ordering.
| Part Number | Brand | Airflow | Voltage | Notes |
|---|---|---|---|---|
| SK3325100 | RITTAL | 20 m³/h | 115 V AC | 115 V variant of SK3325024 |
| SK3326024 | RITTAL | 30 m³/h | 230 V AC | Higher airflow upgrade option |
| SK3327024 | RITTAL | 55 m³/h | 230 V AC | High-capacity replacement |
| FFU-150-230 | Generic/OEM | ~20 m³/h | 230 V AC | Same cut-out; verify filter mat compatibility |
| LV8U230 | Stego | ~22 m³/h | 230 V AC | Cross-brand equivalent; confirm dimensions |
Important: Third-party equivalents may differ in connector type, filter mat size, or airflow curve. Always cross-reference the datasheet before substitution in safety-critical enclosures.
Why Choose the Original Model
- Guaranteed fit: Designed specifically for RITTAL TS 8, AX, and SE enclosure series with snap-in installation.
- Certified performance: IP 54 rating validated with RITTAL-approved filter mats (SK 3329.100).
- Long service life: Brushless EC motor option available for reduced maintenance intervals.
- Global compliance: Meets EN 60529, UL 508A, and CE marking requirements.
- Spare parts ecosystem: Replacement filter mats, fan blades, and grilles are readily available from RITTAL.
Typical Applications
- Industrial control panels and MCC (Motor Control Centre) enclosures
- PLC and DCS cabinet ventilation in manufacturing plants
- Electrical distribution boards in dusty or humid environments
- Automation enclosures in food & beverage, automotive, and chemical industries
- Outdoor telecom and utility cabinets requiring IP 54 protection
- Server and network enclosures in light industrial settings
System Compatibility
The SK3325024 is compatible with the following RITTAL enclosure families and third-party enclosures with equivalent cut-out dimensions:
- RITTAL TS 8 – Full compatibility; standard snap-in fit
- RITTAL AX – Compatible with appropriate adapter plate
- RITTAL SE / KX – Verify cut-out size (119 × 119 mm required)
- Third-party enclosures – Compatible if cut-out is 119 × 119 mm and panel thickness ≤ 3 mm
- Filter mat compatibility: RITTAL SK 3329.100 (standard), SK 3329.110 (fine filtration)
Selection Guide
Use the following decision framework to confirm the SK3325024 is the right unit for your application, or to identify a more suitable alternative:
- Step 1 – Determine required airflow: Calculate enclosure heat dissipation (W) and required airflow (m³/h). SK3325024 suits enclosures with ≤ 15–20 W heat load at standard ambient temperatures.
- Step 2 – Confirm supply voltage: SK3325024 = 230 V AC. For 115 V AC, select SK3325100. For 24 V DC, consider SK3305230.
- Step 3 – Verify cut-out dimensions: Required panel cut-out is 119 × 119 mm. Measure your enclosure before ordering.
- Step 4 – Assess filtration requirement: Standard G2 filter mat is included. For fine dust environments, upgrade to SK 3329.110 filter mat.
- Step 5 – Check IP rating need: SK3325024 achieves IP 54 with filter mat installed. For IP 55+, consider sealed cooling units.
- Step 6 – Consider airflow upgrade: If heat load exceeds 20 W, evaluate SK3326024 (30 m³/h) or SK3327024 (55 m³/h).
Quality Assurance & Sourcing
- All units sourced through authorised distribution channels or verified surplus stock with full traceability.
- Each unit undergoes incoming inspection: visual check, label verification, and functional test where applicable.
- Genuine RITTAL parts supplied with original manufacturer packaging where available.
- Compatible/equivalent units are clearly labelled and distinguished from OEM parts.
- Konmask.com specialises in industrial automation components for B2B buyers — we prioritise spec accuracy and reliable lead times.
How to Order
- Online: Add to cart directly on this page. Bulk pricing available — contact us for quotes on 5+ units.
- Email: support@konmask.com — include your part number, quantity, and required delivery date.
- Phone/WhatsApp: +0086 19859288691 (Mon–Fri, 09:00–18:00 CST)
- Lead time: In-stock items ship within 1–3 business days. Out-of-stock items: contact us for ETA.
- Payment: T/T bank transfer, PayPal, and major credit cards accepted.
Replacement & Compatibility FAQ
Q: Can I use a third-party fan filter unit to replace the SK3325024?
A: Yes, provided the cut-out dimensions (119 × 119 mm), voltage (230 V AC), and airflow rating match. However, IP 54 certification may not be guaranteed with non-RITTAL filter mats.
Q: What is the replacement filter mat part number?
A: The standard replacement filter mat is RITTAL SK 3329.100. For finer filtration, use SK 3329.110.
Q: Is the SK3325024 compatible with RITTAL AX enclosures?
A: Yes, with an appropriate adapter plate. Contact us or refer to the RITTAL AX accessory catalogue for the correct adapter part number.
Q: How often should the filter mat be replaced?
A: RITTAL recommends inspection every 3–6 months depending on ambient dust levels. Replace when airflow is visibly restricted or pressure drop increases significantly.
Q: Do you supply the SK3325024 with a warranty?
A: Yes. Genuine RITTAL units carry the manufacturer’s standard warranty. Compatible units carry a 12-month Konmask.com warranty. Contact us for details.
Q: Can I order a sample unit before committing to a bulk order?
A: Yes. Single-unit orders are welcome. Contact us for bulk pricing on 5+ units.
