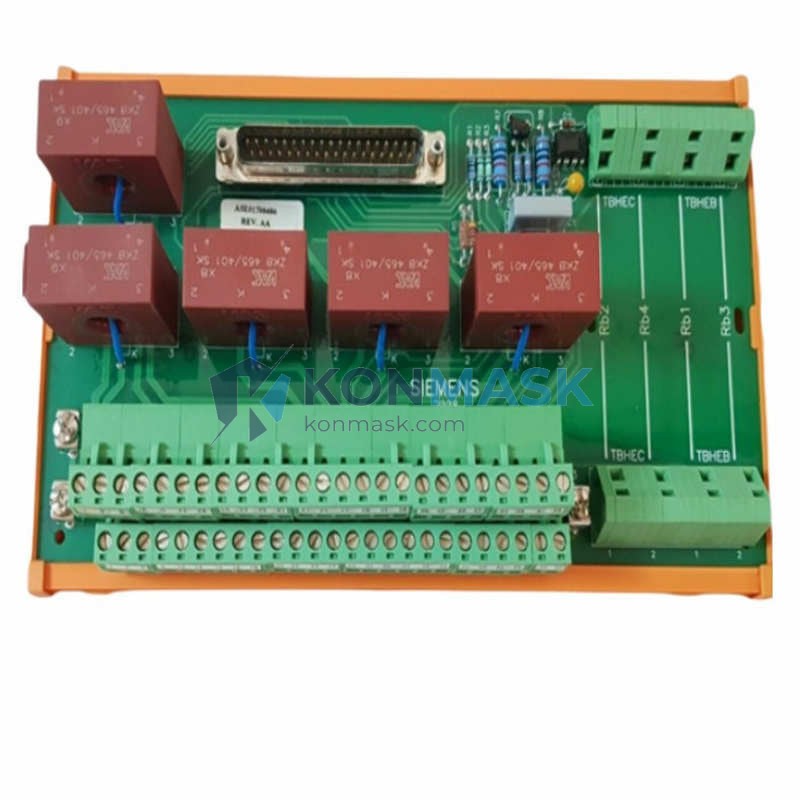

Variable Frequency Drive Signal Control Solution — ROBICON A5E01708486 | Perfect Harmony Series
Where This Product Is Used
The ROBICON A5E01708486 Signal Control Board is a core signal processing and control interface component deployed across demanding industrial drive applications. Engineers and maintenance teams specify this board in the following environments:
- Oil & Gas: Compressor drives, pump control systems, and subsea variable speed drive panels where signal integrity is mission-critical.
- Power Generation & Utilities: Medium-voltage VFD systems in turbine auxiliaries, boiler feed pumps, and cooling tower fan drives.
- Mining & Minerals Processing: Conveyor belt drives, ball mill drives, and hoisting systems requiring robust signal conditioning under high-vibration conditions.
- Water & Wastewater Treatment: Variable speed pump stations and aeration blower drives where precise flow control depends on accurate signal feedback.
- Steel & Metals: Rolling mill drives, furnace fan control, and continuous casting auxiliary drives.
- Marine & Offshore: Thruster drive systems and HVAC variable speed applications on vessels and platforms.
- Chemical & Petrochemical: Hazardous-area drive systems requiring stable, noise-immune signal control boards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | A5E01708486 |
| Manufacturer | ROBICON (Siemens Perfect Harmony) |
| Board Type | Signal Control Board |
| Series Compatibility | ROBICON Perfect Harmony Medium-Voltage VFD |
| Function | Signal conditioning, feedback processing, inter-board communication |
| Weight | Approx. 900 g |
| Condition Available | New OEM, Refurbished, Tested Used |
| Warranty | 12 months (new); 6 months (refurbished) |
Contact us for full electrical ratings, firmware revision compatibility, and connector pinout documentation.
Why Engineers Specify This Model
- OEM Signal Integrity: Designed to ROBICON’s original signal-to-noise specifications — critical in high-power drive environments where interference causes nuisance trips.
- Plug-and-Play Replacement: Direct form-fit-function replacement for failed or degraded signal boards in existing Perfect Harmony drive cabinets — no re-engineering required.
- Proven Reliability: Deployed in thousands of medium-voltage drive installations globally across the most demanding process industries.
- Firmware Compatibility: Available in revision variants matched to your specific drive software version — specify your drive serial number for confirmation.
- Reduced Downtime: Ex-stock availability means same-day dispatch is possible, minimizing costly production outages.
Complete System Bill of Materials
The A5E01708486 Signal Control Board is typically used alongside the following ROBICON Perfect Harmony components. Konmask.com can source the complete BOM:
- ROBICON Power Cell Boards (various part numbers by drive rating)
- ROBICON Gate Driver Boards
- ROBICON Fiber Optic Interface Boards
- ROBICON Control Power Supply Boards
- ROBICON HMI / Keypad Interface Panels (e.g., A1A460A68.23M)
- ROBICON Bypass Contactors and Protection Relays
- Cooling fans, capacitor banks, and bus bar assemblies
Request a full BOM quote: support@konmask.com
Compliance & Industry Standards
- Manufactured to IEC 61800 (Adjustable Speed Electrical Power Drive Systems) standards
- Compatible with drives certified to IEEE 519 harmonic distortion requirements
- Suitable for use in UL 508A listed control panel assemblies (verify with your panel builder)
- RoHS compliance status available on request
- CE marking applicable to original OEM production runs
Quality Assurance & Sourcing
Every ROBICON A5E01708486 Signal Control Board supplied by Konmask.com undergoes a rigorous quality process:
- Visual Inspection: PCB, connectors, and components checked for physical damage, corrosion, and counterfeit indicators.
- Functional Bench Test: Signal I/O, communication interfaces, and power rails verified against OEM test parameters.
- Traceability: Batch records and sourcing documentation retained for each unit.
- Secure Packaging: Anti-static ESD packaging with foam cushioning for safe international transit.
- Authenticity Guarantee: We do not supply counterfeit or unmarked boards. All units are traceable to authorized distribution or OEM surplus channels.
How to Source This Part
- Confirm Compatibility: Provide your drive model, serial number, and existing board revision — our engineers will verify fit.
- Request a Quote: Email support@konmask.com or call +0086 19859288691 with your part number and required quantity.
- Receive Proforma Invoice: We issue a detailed PI with unit price, lead time, shipping options, and payment terms.
- Order Confirmation & Dispatch: Payment confirmed → quality check → dispatch within 1–3 business days for in-stock units.
- Delivery & Support: DHL / FedEx / UPS express worldwide. Post-delivery technical support included.
Application-Specific FAQ
Q: Can this board be used in all ROBICON Perfect Harmony drive sizes?
A: The A5E01708486 is compatible with specific Perfect Harmony drive configurations. Please provide your drive nameplate data and we will confirm compatibility before shipment.
Q: Is a firmware update required when replacing this board?
A: In most cases, no. However, if your drive has been updated to a newer software revision, we recommend confirming the board hardware revision matches. Our team can advise.
Q: Do you supply refurbished units?
A: Yes. Refurbished units are fully tested and carry a 6-month warranty. New OEM units carry a 12-month warranty. Specify your preference when requesting a quote.
Q: What is the typical lead time?
A: In-stock units ship within 1–3 business days. For sourced units, lead time is typically 5–15 business days depending on origin.
Q: Can you supply the complete drive or just the board?
A: Both. We supply individual boards, complete drive assemblies, and full system BOM packages. Contact us for a system-level quote.
