Analog Signal Conditioning Solution – Seica AA-ACLAM007-00 | DSP Analog Module
Where This Product Is Used

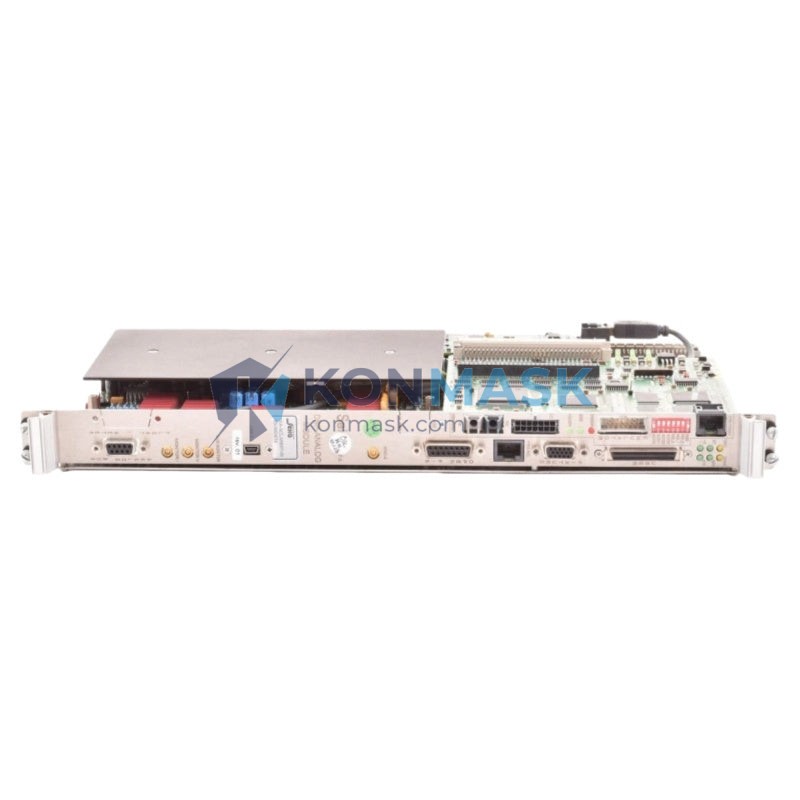

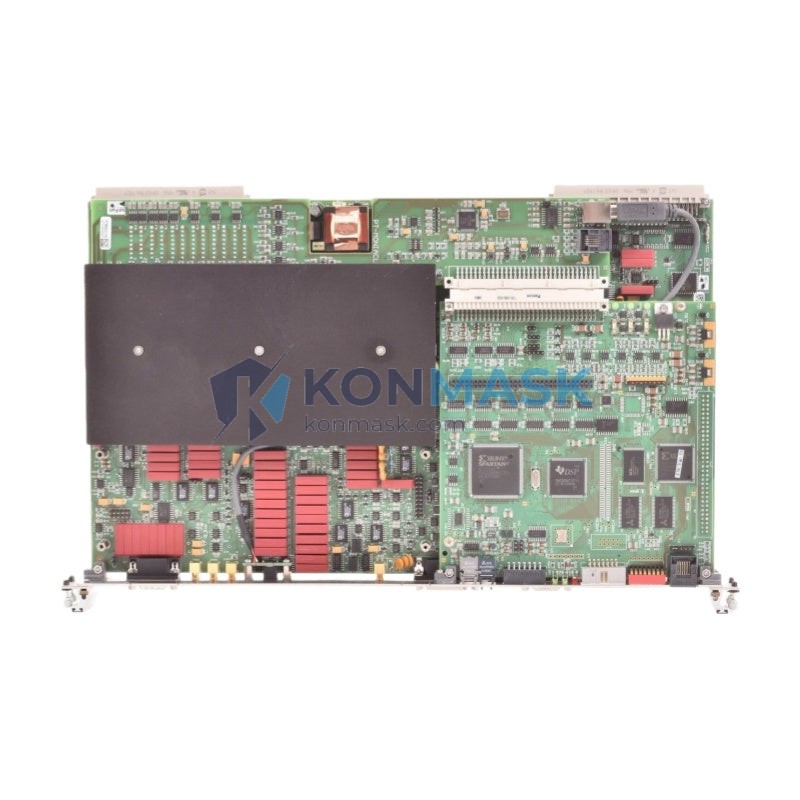

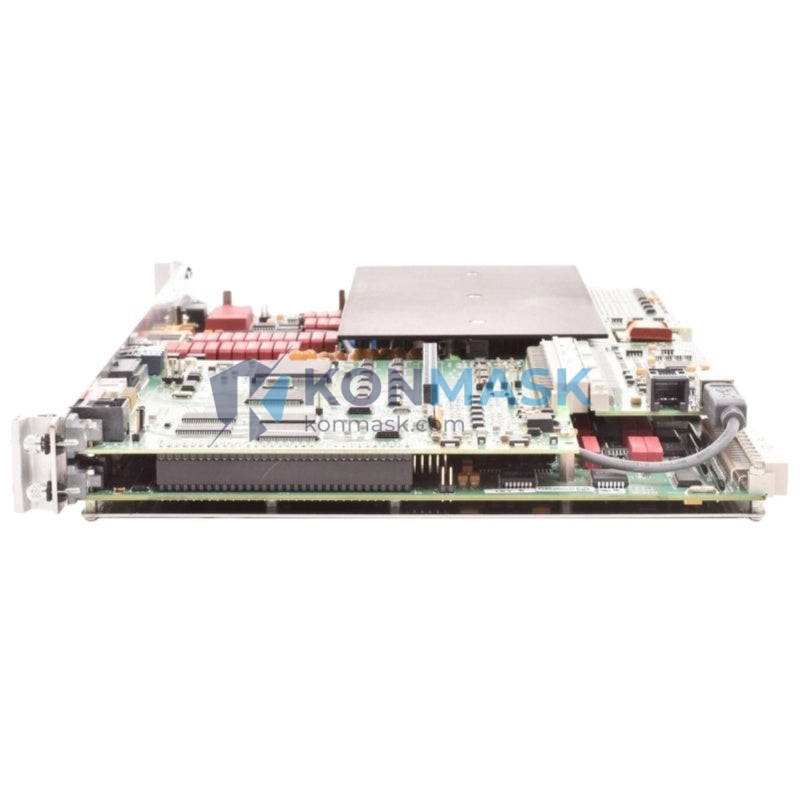

The Seica AA-ACLAM007-00 DSP Analog Module is a precision analog signal conditioning board designed for integration into Seica flying probe test systems (Pilot, Viva, and compatible platforms). It is deployed across high-reliability electronics manufacturing environments where accurate analog measurement is critical to test integrity.
Typical deployment scenarios include:
- PCB Functional Test Lines – Provides analog channel expansion for multi-point in-circuit testing (ICT) of assembled boards in automotive, aerospace, and industrial electronics production.
- Semiconductor & Component Validation Labs – Used by QA engineers to verify passive component values (resistance, capacitance, inductance) with high-resolution analog acquisition.
- Defense & Avionics MRO Facilities – Supports maintenance, repair, and overhaul of mission-critical PCBs where signal fidelity and traceability are mandatory.
- Contract Electronics Manufacturing (CEM) – Enables flexible test coverage across mixed-technology boards in high-mix, low-volume production environments.
- R&D Prototype Validation – Accelerates bring-up testing of new board designs by providing configurable analog measurement channels within the Seica test framework.
Technical Specifications
| Attribute | Detail |
|---|---|
| Part Number / SKU | AA-ACLAM007-00 |
| Manufacturer | Seica S.p.A. |
| Module Type | DSP Analog Module |
| Series / Platform | Seica Flying Probe Test System (Pilot / Viva Series) |
| Function | Analog signal conditioning & DSP-based measurement |
| Form Factor | PCB plug-in module (OEM replacement board) |
| Weight | 750 g (approx.) |
| Condition | New / Refurbished (specify at inquiry) |
| Compatibility | Seica Pilot, Viva, and compatible flying probe platforms |
| Lead Time | Contact us for current stock availability |
Why Engineers Specify This Model
- OEM-Matched Performance – The AA-ACLAM007-00 is the factory-specified analog module for Seica flying probe systems, ensuring full compatibility with existing test programs and calibration routines without software modification.
- DSP-Enhanced Accuracy – Onboard digital signal processing delivers superior noise rejection and measurement repeatability compared to generic analog boards, critical for sub-milliohm resistance and low-pF capacitance measurements.
- Minimized Downtime Risk – Sourcing a genuine or certified-equivalent replacement module eliminates the risk of test system downtime caused by analog channel failure — a single failed module can halt an entire production line.
- Plug-and-Play Replacement – Designed for direct swap-in replacement; no re-calibration of the full system is required when replacing a like-for-like module.
- Long Service Life – Built to Seica’s industrial-grade specifications for continuous operation in 24/7 production environments.
Complete System Bill of Materials
The AA-ACLAM007-00 is typically used alongside the following Seica system components. Contact Konmask for availability on any of these parts:
- Seica Flying Probe Test System (Pilot / Viva mainframe)
- Seica DSP Digital Module (companion digital channel board)
- Seica Power Supply Module (system PSU board)
- Seica Probe Head Assembly & Probe Needles
- Seica Interface Cables & Connectors (board-to-board)
- Seica Test Software License (Viva SW / Pilot SW)
- Seica System Controller / CPU Board
Compliance & Industry Standards
- IPC-A-610 – Acceptability of Electronic Assemblies (relevant to PCB test environments where this module is deployed)
- IEC 61010-1 – Safety requirements for electrical equipment for measurement, control, and laboratory use
- RoHS Directive 2011/65/EU – Restriction of hazardous substances in electrical and electronic equipment
- CE Marking – Conformity with applicable EU directives for electronic test equipment
- ISO 9001 – Seica S.p.A. operates under ISO 9001-certified quality management systems
Please request the original Seica Declaration of Conformity (DoC) documentation at time of order if required for your quality records.
Quality Assurance & Sourcing
Konmask.com specializes in the global sourcing of industrial automation and electronic test equipment components. Every unit of the Seica AA-ACLAM007-00 offered through our platform is subject to the following quality controls:
- Visual Inspection – All modules are inspected for physical damage, corrosion, and connector integrity prior to listing.
- Traceability – Serial number and batch records are documented where available to support your incoming inspection process.
- Authentic Sourcing – Units are sourced from authorized distributors, certified MRO suppliers, or directly from decommissioned Seica systems with documented service history.
- Packaging – Shipped in ESD-safe anti-static packaging with foam cushioning to prevent transit damage.
- Warranty – 90-day replacement warranty against DOA (Dead on Arrival) defects. Extended warranty available on request.
How to Source This Part
- Confirm Compatibility – Verify your Seica system model and current module part number against your system’s BOM or service manual before ordering.
- Request a Quote – Contact us at support@konmask.com or via the product page with your required quantity and delivery timeline.
- Stock Confirmation – Our team will confirm current stock status, condition (new/refurbished), and lead time within 1 business day.
- Order & Ship – We support DHL, FedEx, and UPS international express shipping with full export documentation (commercial invoice, packing list, COO).
- Incoming Inspection Support – We can provide photos, serial numbers, and test reports upon request to support your incoming QC process.
Application-Specific FAQ
Q: Is the AA-ACLAM007-00 compatible with all Seica flying probe models?
A: This module is designed for Seica Pilot and Viva series flying probe systems. Compatibility with other Seica platforms should be confirmed against your system’s service documentation. Contact us with your system model for verification.
Q: Can this module be used as a direct replacement without recalibrating the full system?
A: In most cases, yes — the AA-ACLAM007-00 is a plug-in replacement. However, we recommend running the Seica system’s built-in self-calibration routine after any module swap to verify measurement accuracy.
Q: Do you supply both new and refurbished units?
A: Yes. We source both new (surplus) and professionally refurbished units. Condition is clearly stated at the time of quotation. Refurbished units undergo functional testing prior to shipment.
Q: What is the typical lead time for this part?
A: Lead time varies by current stock. In-stock units ship within 3–5 business days internationally. Out-of-stock units typically have a 2–6 week sourcing lead time. Contact us for real-time availability.
Q: Can you provide export documentation for customs clearance?
A: Yes. We provide full export documentation including commercial invoice, packing list, country of origin certificate, and HS code classification to support smooth customs clearance in your destination country.
