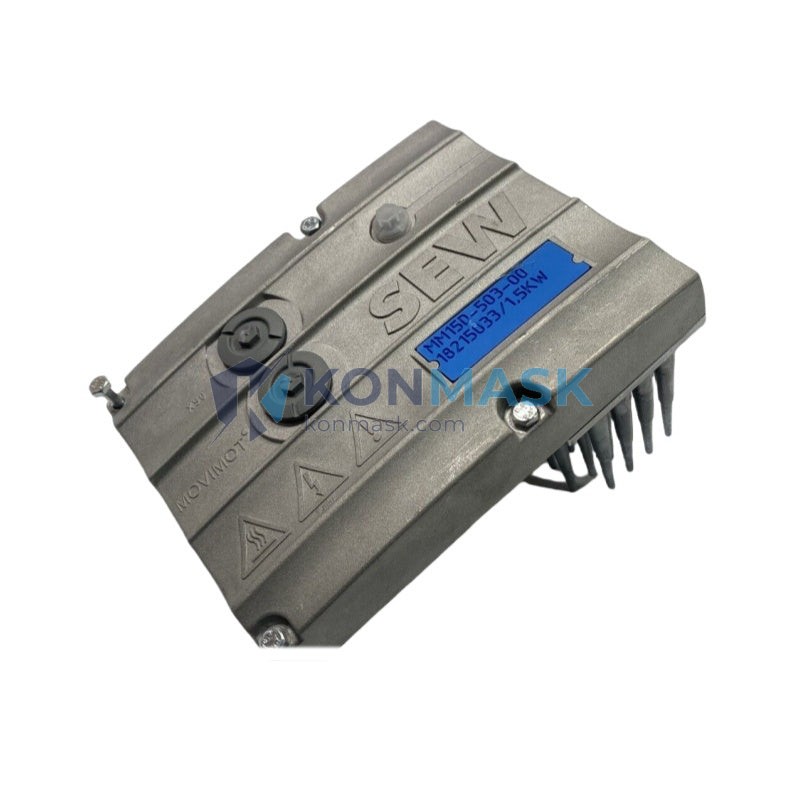

SEW-EURODRIVE MM15D-503-00 – Compact MOVIMOT Integrated Servo Drive | MOVIMOT MM15D Platform
Engineering Background: The SEW-EURODRIVE MOVIMOT series represents a landmark in decentralized drive technology — integrating a frequency inverter directly onto the motor housing to eliminate separate control cabinet wiring. The MM15D-503-00 is a 1.5 kW variant engineered for precision motion control in distributed automation architectures, widely deployed across material handling, conveyor, and packaging lines globally.
Product Positioning: Designed for procurement engineers and system integrators who require a verified, drop-in replacement or expansion unit for existing MOVIMOT installations. The MM15D-503-00 delivers deterministic speed control, fieldbus compatibility, and IP65 environmental protection — making it the preferred choice for demanding industrial environments where panel space is at a premium.
Complete Technical Specifications
- Part Number / SKU: MM15D-503-00
- Manufacturer: SEW-EURODRIVE
- Series / Platform: MOVIMOT MM15D
- Rated Power: 1.5 kW (2.0 HP)
- Supply Voltage: 3 × AC 380–500 V, 50/60 Hz
- Output Current: 3.7 A (nominal)
- Speed Range: 0–3,000 RPM (adjustable via fieldbus or potentiometer)
- Control Mode: V/f characteristic (voltage-frequency), integrated inverter
- Communication Interface: RS-485 (MOVIBUS); optional AS-Interface / DeviceNet / PROFIBUS DP
- Protection Class: IP65 (motor + inverter housing)
- Ambient Temperature: -20 °C to +40 °C (operating); -25 °C to +70 °C (storage)
- Enclosure Material: Die-cast aluminum alloy
- Mounting: B3 / B5 / B14 flange (IEC standard)
- Weight: Approx. 4.5 kg
- Country of Origin: Germany
- Compliance: CE, UL, cUL
Proven Application Environments
- Roller conveyor and belt conveyor systems (automotive, logistics, e-commerce fulfillment)
- Packaging machinery — horizontal flow wrappers, case erectors, palletizers
- Airport baggage handling and sortation systems
- Food & beverage processing lines (washdown-compatible with IP65)
- Intralogistics AGV auxiliary drives and transfer stations
- Textile and printing machine feed drives
Engineering Advantages
- Decentralized Architecture: Inverter mounted directly on motor — eliminates long motor cables, reduces EMI, and cuts panel space by up to 60%.
- Plug-and-Play Replacement: Fully backward-compatible with existing MOVIMOT MM15D installations; no re-parameterization required when replacing like-for-like.
- Integrated Brake Option: Available with spring-applied electromagnetic brake for vertical axis or safety-stop applications.
- Energy Efficiency: IE2 motor efficiency class; DC bus link capability for energy recovery in multi-drive systems.
- Diagnostics: Onboard LED status indicators and fault memory accessible via MOVITOOLS® MotionStudio software.
System Architecture & Signal Flow
The MM15D-503-00 operates within SEW-EURODRIVE’s MOVIMOT decentralized drive topology:
- Power Supply: 3-phase AC mains → MOVIMOT power bus (daisy-chain capable, up to 8 units per segment)
- Control Signal: Master PLC/controller → RS-485 MOVIBUS or AS-Interface fieldbus → MM15D integrated inverter
- Speed Setpoint: Digital (fieldbus word) or analog (0–10 V / 4–20 mA via optional module)
- Feedback: Status word returned to master via fieldbus; optional encoder feedback for closed-loop positioning
- Safety: STO (Safe Torque Off) via external safety relay or integrated safety module (option)
Sourcing & Quality Verification
- Stock Status: Verified surplus / new-old-stock (NOS) — inspected prior to shipment
- Authenticity: All units sourced from authorized distributors or OEM decommissions; serial number traceable
- Inspection Protocol: Visual inspection, label verification, functional power-on test available on request
- Warranty: 12-month Konmask warranty against manufacturing defects
- Documentation: Original SEW-EURODRIVE datasheet and wiring diagram provided with shipment
Procurement Process
- Submit RFQ via support@konmask.com or WhatsApp +0086 19859288691
- Receive stock confirmation and lead time within 24 business hours
- Review proforma invoice — payment via T/T, PayPal, or trade assurance
- Unit inspected, packed, and dispatched with tracking number
- Post-delivery technical support available from Konmask engineering team
Technical FAQ
Q: Is the MM15D-503-00 compatible with PROFIBUS DP?
A: Yes, with the optional DFP21B PROFIBUS DP fieldbus interface module installed on the MOVIMOT unit.
Q: Can this unit be used as a direct replacement for an MM11D-503-00?
A: No — the MM11D is rated at 1.1 kW. The MM15D is 1.5 kW. Mechanical mounting is identical (B5 flange), but motor current and inverter parameters differ. Verify application load requirements before substitution.
Q: What software is required for commissioning?
A: SEW-EURODRIVE MOVITOOLS® MotionStudio (free download from SEW website). USB11A PC interface cable required for direct connection.
Q: Is a brake version available?
A: Yes — specify MM15D-503-00 with /BM brake option at time of order. Contact us to confirm brake voltage (24 VDC or 205 VDC).
Q: What is the minimum order quantity?
A: Single unit orders accepted. Volume pricing available for 3+ units.
