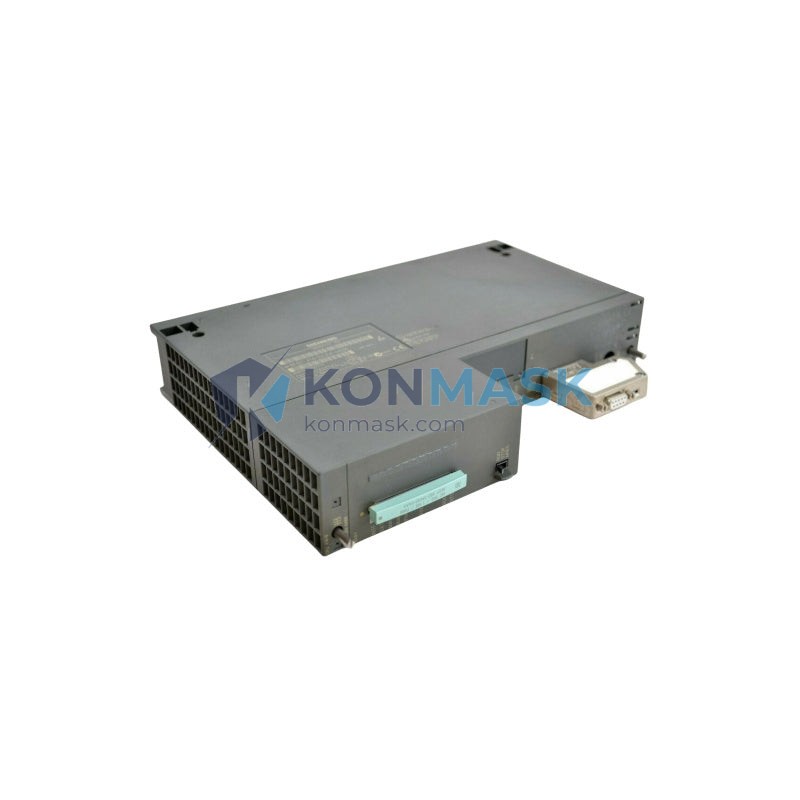

SIEMENS 6ES7414-3XJ04-0AB0 Central Processing Unit – SIMATIC S7-400 Series
When a central processing unit fails in a large-scale industrial control system, the consequences extend far beyond a simple production halt. Entire manufacturing lines go dark, safety interlocks lose their master controller, and the cascading downtime can cost thousands of dollars per hour. In process industries — petrochemical plants, power generation facilities, automotive assembly lines — the CPU is the brain that orchestrates every I/O signal, every PID loop, and every safety sequence. Without a reliable, high-performance CPU, the entire automation architecture collapses.
The SIEMENS 6ES7414-3XJ04-0AB0 is a flagship CPU module within the SIMATIC S7-400 series — Siemens’ premier platform for high-end process control and factory automation. Positioned at the upper tier of the S7-400 CPU lineup, the 414-3 variant is engineered for demanding applications that require large program memory, fast cycle times, and robust communication capabilities. The S7-400 platform has been deployed in critical infrastructure worldwide for decades, and the 6ES7414-3XJ04-0AB0 represents one of its most capable and widely trusted configurations.
Technical Specifications
- Model: 6ES7414-3XJ04-0AB0
- Series: SIMATIC S7-400
- Module Type: Central Processing Unit (CPU)
- Manufacturer: Siemens AG
- Work Memory: 4 MB (expandable via memory card)
- Load Memory: Integrated 256 KB RAM + external memory card slot (up to 64 MB)
- Processing Speed: 0.1 µs per binary operation
- Communication Interfaces: MPI/DP (integrated), 2× PROFIBUS DP master/slave interfaces
- Max. I/O Addresses: 16 KB input / 16 KB output
- Counters / Timers: 2048 / 2048
- Data Blocks: Up to 8191
- Supply Voltage: DC 24 V (via backplane bus)
- Operating Temperature: 0 °C to +60 °C
- Dimensions (W×H×D): 25 mm × 290 mm × 219 mm
- Weight: Approx. 0.9 kg
- Certifications: CE, UL, cULus, ATEX (zone 2)
Note: Specifications are based on Siemens published datasheets. Always verify against the official Siemens product documentation for your specific application.
Key Features & Benefits
- High-Speed Processing: 0.1 µs binary instruction execution enables real-time control of complex, multi-axis and multi-loop processes without cycle-time bottlenecks.
- Large Program Memory: 4 MB work memory accommodates extensive ladder logic, function block diagrams, and structured text programs — ideal for large-scale plant-wide control.
- Dual PROFIBUS DP Interfaces: Integrated dual DP master/slave ports allow simultaneous connection to distributed I/O networks and intelligent field devices without additional communication modules.
- Isochronous Mode Support: Enables deterministic, clock-synchronized control for motion and drive applications requiring precise timing.
- Hot-Swap Capability: Designed for the S7-400 rack’s hot-swap architecture, minimizing maintenance downtime in live production environments.
- Redundancy Ready: Compatible with S7-400H redundancy configurations for fault-tolerant system designs in critical process applications.
- Proven Reliability: MTBF rated for continuous industrial operation; widely deployed in power plants, chemical facilities, and automotive OEM lines globally.
Industry & Equipment Applications
- Oil & Gas: Pipeline SCADA systems, compressor station control, wellhead automation
- Power Generation: Turbine control systems, substation automation, load management
- Automotive Manufacturing: Body-in-white welding lines, paint shop conveyors, press shop automation
- Chemical & Petrochemical: Batch reactor control, distillation column management, safety instrumented systems (SIS)
- Water & Wastewater: Pump station control, treatment plant SCADA, remote telemetry
- Metals & Mining: Rolling mill drives, conveyor systems, crusher control
- Pharmaceutical: Clean-room process control, CIP/SIP automation, batch management (ISA-88)
System Integration & Compatible Parts
The 6ES7414-3XJ04-0AB0 is designed to operate within the SIMATIC S7-400 modular rack system. Compatible and commonly paired components include:
- Power Supply Units: 6ES7407-0DA02-0AA0, 6ES7407-0KA02-0AA0
- Rack / Backplane: 6ES7400-1JA01-0AA0 (UR1), 6ES7400-2JA00-0AA0 (UR2)
- Digital I/O Modules: SM 421 / SM 422 series
- Analog I/O Modules: SM 431 / SM 432 series
- PROFIBUS DP Slaves: ET 200M, ET 200S distributed I/O stations
- Memory Cards: 6ES7952-1KK00-0AA0 (64 MB Flash)
- Programming Software: SIMATIC STEP 7 V5.x (Classic), TIA Portal V15+ with S7-400 support pack
Our Quality Assurance Process
At Konmask.com, every SIEMENS module we supply undergoes a rigorous multi-stage verification process before shipment:
- Source Verification: All units are sourced from authorized distributors or verified surplus channels with full traceability documentation.
- Visual Inspection: Each module is inspected for physical integrity — PCB condition, connector pins, label authenticity, and firmware version markings.
- Functional Testing: Where applicable, modules are bench-tested for power-on self-test (POST) completion and basic communication response.
- Anti-Counterfeit Screening: We cross-reference serial numbers and date codes against known counterfeit indicators specific to the S7-400 product line.
- Packaging & ESD Protection: Units are shipped in anti-static packaging with desiccant, inside reinforced cartons to prevent transit damage.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page or email support@konmask.com.
- Provide your required quantity, delivery timeline, and any specific firmware or hardware revision requirements.
- Our technical team will confirm availability, lead time, and issue a formal quotation within 1 business day.
- Upon PO confirmation, we arrange inspection, packaging, and dispatch with full shipping documentation (packing list, commercial invoice, COO if required).
- Track your shipment via the provided AWB/tracking number. Our team remains available for post-delivery technical support.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, HMI, and drive components — not a generalist electronics marketplace.
- Global Supply Network: Access to both new and certified surplus inventory across Siemens, Rockwell, ABB, Schneider, and other leading brands.
- Technical Expertise: Our team includes engineers with hands-on S7-400 system experience — we speak your language.
- Fast Response: RFQ responses within 24 hours. Urgent requirements handled with priority sourcing.
- Secure Transactions: T/T, L/C, and other B2B payment terms available. Export documentation fully supported.
- Long-Term Partnership: We support your MRO and project procurement needs with consistent quality and competitive pricing.
Frequently Asked Questions
- Q: Is the 6ES7414-3XJ04-0AB0 still in production by Siemens?
- A: The S7-400 series has reached end-of-sale for new production. However, Siemens continues to provide spare parts and repair services. Konmask.com maintains access to surplus and refurbished stock to support installed base maintenance.
- Q: What is the difference between 6ES7414-3XJ04-0AB0 and 6ES7414-3EM05-0AB0?
- A: The 414-3XJ04 features dual integrated PROFIBUS DP interfaces and 4 MB work memory, while the 414-3EM05 is an earlier revision with different memory and communication specifications. Always verify the exact part number for your system’s compatibility requirements.
- Q: Can this CPU be used in an S7-400H redundant system?
- A: The 414-3 CPU supports redundancy configurations when paired with the appropriate sync modules and H-system rack setup. Please consult the Siemens S7-400H system manual or contact our team for configuration guidance.
- Q: Do you provide a warranty on this module?
- A: Yes. We offer a standard warranty period on all supplied modules. Specific warranty terms are confirmed at the time of quotation based on the unit’s source and condition grade.
- Q: What programming software is required?
- A: The 6ES7414-3XJ04-0AB0 is programmed using Siemens SIMATIC STEP 7 (V5.5 or later) or TIA Portal V15+ with the S7-400 support package installed.
