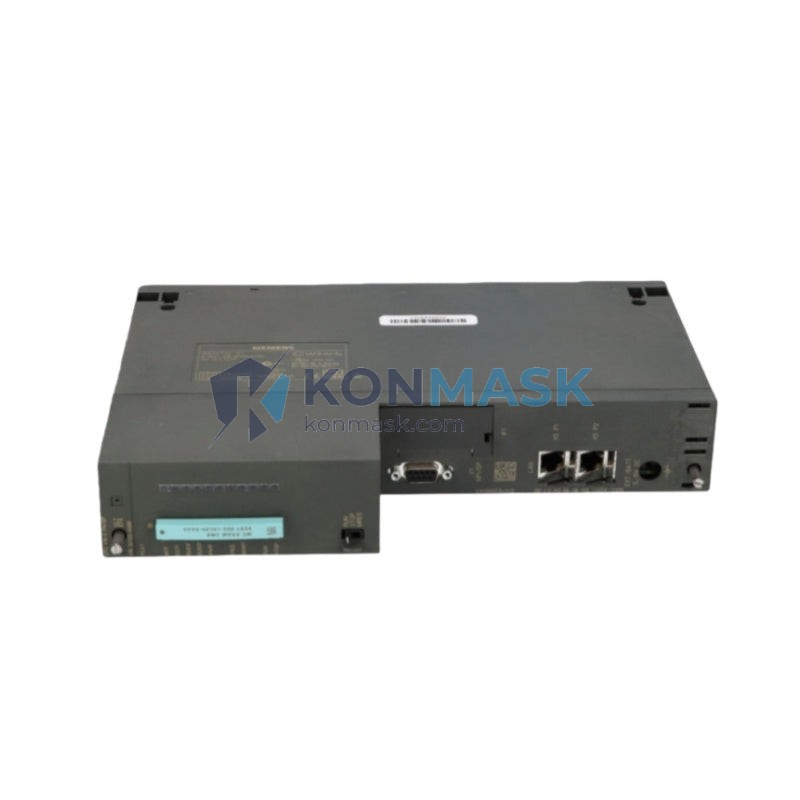

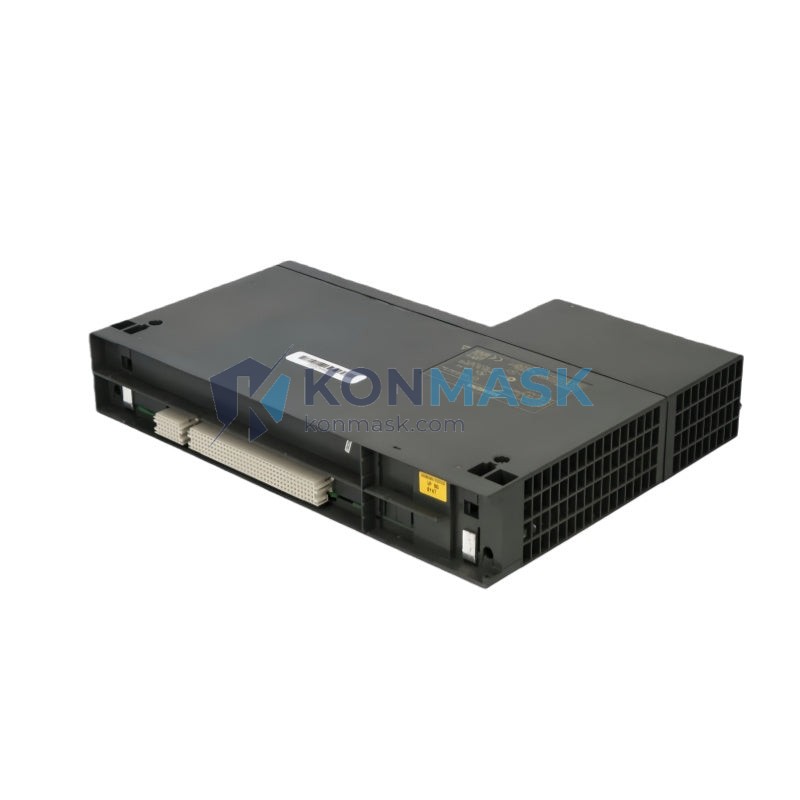

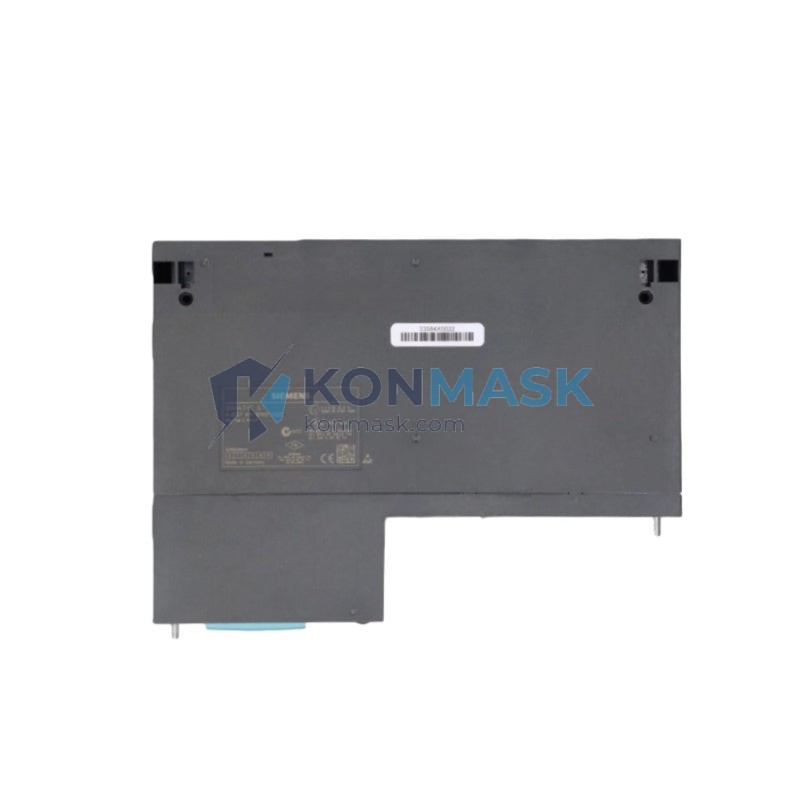

Siemens 6ES7416-3ER05-0AB0 – High-Performance CPU Module | SIMATIC S7-400 Platform
Engineering Background: The SIMATIC S7-400 series represents Siemens’ flagship programmable logic controller platform, engineered for mission-critical process automation in heavy industry, power generation, and large-scale manufacturing. The 6ES7416-3ER05-0AB0 is a high-end CPU within this family, designed to handle complex, multi-axis control tasks with deterministic real-time response.
Product Positioning: Targeted at procurement engineers and system integrators sourcing replacement or expansion CPUs for existing S7-400 installations, this module delivers the processing headroom and communication flexibility required in distributed control architectures. It is fully compatible with the S7-400 rack ecosystem and supports seamless integration with PROFIBUS DP, MPI, and PROFINET networks.
Complete Technical Specifications
- Order Number (MLFB): 6ES7416-3ER05-0AB0
- Platform: SIMATIC S7-400
- CPU Series: CPU 416-3 DP
- Work Memory: 64 MB (expandable via memory card)
- Load Memory: 64 MB integrated Flash EPROM
- Processing Speed (Bit Operations): 0.025 µs
- Processing Speed (Word Operations): 0.05 µs
- Processing Speed (Floating Point): 0.1 µs
- Interfaces: 1× MPI/DP (12 Mbit/s), 1× DP (12 Mbit/s), 1× Ethernet/PROFINET (optional via CP)
- Max. I/O Addresses: 16 KB input / 16 KB output
- Max. Configurable Modules: 32 racks × 32 slots
- Counters: 2048
- Timers: 2048
- Data Blocks: Up to 16,000
- Nesting Depth: 24 levels
- Supply Voltage: 24 V DC (via backplane bus)
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +70 °C
- Degree of Protection: IP20
- Dimensions (W × H × D): 50 × 290 × 219 mm
- Weight: Approx. 900 g
- Certifications: CE, UL, cUL, FM, ATEX (Zone 2)
- Firmware Version: V5.x (05 revision)
- Country of Origin: Germany
Proven Application Environments
- Oil & Gas: Pipeline SCADA systems, compressor station control, emergency shutdown (ESD) integration
- Power Generation: Turbine governor control, substation automation, load dispatch coordination
- Chemical & Petrochemical: Batch process control, reactor management, safety instrumented systems (SIS)
- Automotive Manufacturing: Body-in-white welding lines, paint shop conveyors, press shop automation
- Water & Wastewater: Pump station control, SCADA integration, remote telemetry
- Steel & Metals: Rolling mill drives, furnace temperature control, material handling
- Pharmaceutical: GMP-compliant batch control, clean-room HVAC automation
Engineering Advantages
- High-Speed Execution: 0.025 µs bit processing enables deterministic control of fast-response processes
- Dual DP Interface: Supports simultaneous master/slave PROFIBUS DP configurations for complex distributed I/O topologies
- Large Address Space: 16 KB I/O addressing accommodates large-scale installations without gateway overhead
- Hot-Swap Capability: Module replacement without full system shutdown minimizes production downtime
- Integrated Diagnostics: Onboard LED status indicators and STEP 7 diagnostic buffer for rapid fault isolation
- Backward Compatibility: Drop-in replacement for earlier CPU 416 variants within the same rack
- Redundancy Ready: Supports H-system (high-availability) configurations with S7-400H rack pairing
System Architecture & Signal Flow
The 6ES7416-3ER05-0AB0 operates as the central processing node within an S7-400 rack. The CPU communicates with distributed I/O via PROFIBUS DP at up to 12 Mbit/s, polling remote ET 200 stations and third-party DP slaves. The MPI interface provides programming access via STEP 7 / TIA Portal and peer-to-peer communication with HMI panels (e.g., SIMATIC TP/MP series). Program execution follows a cyclic scan model with configurable interrupt-driven OBs (OB10–OB47 for time-based, OB40–OB47 for process interrupts). The integrated memory card slot accepts Siemens Flash EPROM cards for program backup and firmware updates without a programming device.
Sourcing & Quality Verification
- Source: Authorized distribution channels and verified industrial surplus with full traceability
- Inspection: Each unit undergoes visual inspection, firmware version verification, and functional power-on test prior to shipment
- Packaging: ESD-safe anti-static bag, foam-lined carton, humidity indicator card
- Documentation: Original Siemens product label, order number verification, and test report available on request
- Warranty: 12-month replacement warranty against manufacturing defects
- Counterfeit Prevention: All units verified against Siemens MLFB database; holographic labels and serial number cross-check performed
Procurement Process
- Confirm Compatibility: Verify your existing S7-400 rack type (UR1/UR2/UR2-H) and power supply rating before ordering
- Request Quote: Contact us with your required quantity and delivery timeline for volume pricing
- Order Placement: Purchase via this listing or submit a PO to [email protected]
- Lead Time: In-stock units ship within 1–3 business days; ex-stock orders confirmed within 24 hours
- Shipping: DHL Express / FedEx International Priority with full tracking and insurance
- After-Sales: Technical support available via email or WhatsApp for integration assistance
Technical FAQ
Q: Is the 6ES7416-3ER05-0AB0 compatible with TIA Portal?
A: Yes. From TIA Portal V13 SP2 onwards, the CPU 416-3 DP is supported for online diagnostics and program upload/download. Full programming requires STEP 7 V5.x for optimal feature access.
Q: Can this CPU replace a 6ES7416-3ES06-0AB0?
A: The -3ER05 and -3ES06 share the same hardware platform. Firmware differences may require a STEP 7 hardware configuration update. Consult your project’s HW Config before substitution.
Q: What memory card is required?
A: Siemens Flash EPROM cards (6ES7952-xxxx series) are compatible. The CPU supports cards up to 64 MB. Third-party cards are not recommended.
Q: Does this unit support PROFINET?
A: The onboard interfaces are MPI/DP and DP only. PROFINET connectivity requires an additional CP 443-1 communication processor installed in the same rack.
Q: What is the minimum STEP 7 version required?
A: STEP 7 V5.4 SP5 or higher is required to configure the -3ER05 firmware revision correctly.
