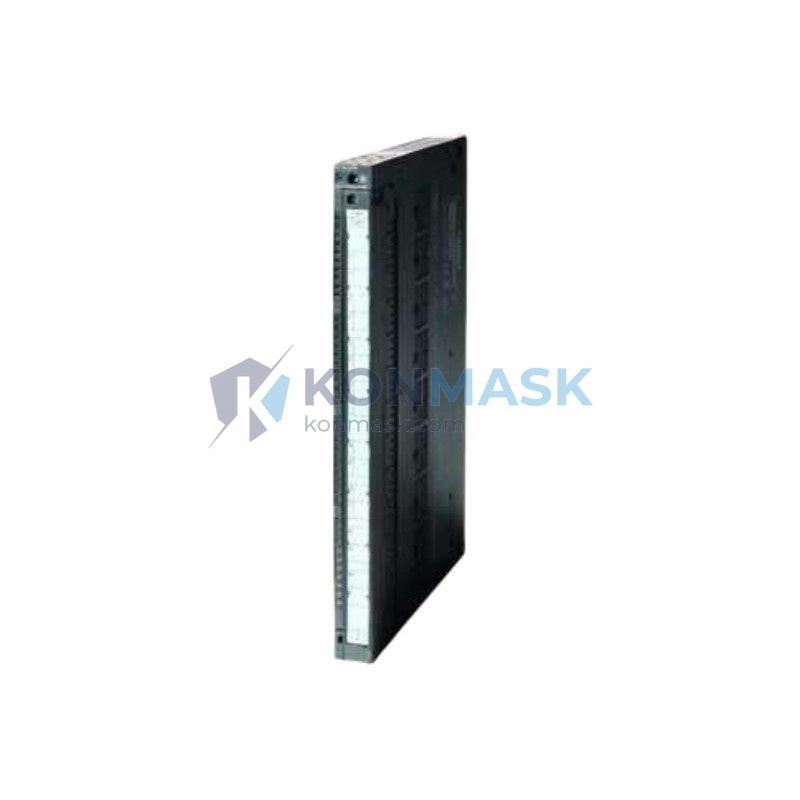

SIEMENS 6ES7431-7KF00-6AA0 – Front Connector for Thermocouple Analog Input | SIMATIC S7-400 Platform
Engineering Background
In high-temperature process industries — steel smelting, glass manufacturing, petrochemical cracking, and power generation — thermocouple signals are the primary means of measuring critical temperatures that determine product quality and operational safety. When a front connector fails or is missing, the entire analog input channel loses its field wiring interface: thermocouples cannot be terminated, signals cannot reach the PLC, and the control loop goes blind. A single unmonitored temperature excursion can trigger emergency shutdowns, damage refractory linings, or compromise batch integrity. The 6ES7431-7KF00-6AA0 is the precision-engineered front connector that closes this gap — providing a reliable, vibration-resistant termination point between field thermocouple wiring and the SIMATIC S7-400 analog input module.
Product Positioning
The 6ES7431-7KF00-6AA0 is the designated front connector accessory for SIEMENS SIMATIC S7-400 thermocouple (T/C) analog input modules, including the SM 431 series. Within the S7-400 ecosystem — Siemens’ flagship high-availability PLC platform for large-scale process and manufacturing automation — this connector serves as the critical mechanical and electrical interface between field instrumentation and the control system backplane. Its screw-terminal design accommodates the fine-gauge, compensating-cable wiring typical of thermocouple installations, and its keyed housing prevents incorrect module mating. Globally, the S7-400 platform is deployed in thousands of continuous-process facilities, making this connector an essential spare and maintenance item for plant engineers and MRO procurement teams worldwide.
Complete Technical Specifications
- Part Number: 6ES7431-7KF00-6AA0
- Product Family: SIMATIC S7-400 Accessories
- Type: Front Connector for Analog Input Module (Thermocouple / T/C)
- Compatible Module Series: SM 431 Thermocouple Analog Input Modules (S7-400)
- Terminal Type: Screw terminals for field wiring
- Wiring Accommodation: Suitable for thermocouple compensating cables (fine-gauge)
- Mechanical Coding: Keyed housing to prevent incorrect module insertion
- Weight: Approx. 1,100 g (as shipped with packaging)
- Manufacturer: Siemens AG, Germany
- Product Status: Standard catalog item (verify current lifecycle with Siemens)
Note: All specifications are based on published Siemens documentation. Konmask.com does not fabricate or alter manufacturer specifications. For the latest datasheet, refer to the official Siemens Industry Online Support portal.
Proven Application Environments
- Steel & Metallurgy: Furnace temperature monitoring, ladle preheating control, continuous casting temperature loops
- Petrochemical & Refining: Reactor temperature measurement, distillation column control, fired heater management
- Glass & Ceramics: Kiln temperature profiling, annealing lehr control
- Power Generation: Boiler temperature monitoring, turbine exhaust measurement
- Pharmaceutical & Food Processing: Sterilization cycle validation, pasteurization temperature control (where S7-400 is deployed)
- MRO & Spare Parts Inventory: Plant maintenance teams maintaining S7-400 systems requiring connector spares for rapid channel restoration
Engineering Advantages
- Plug-and-Replace Maintenance: Front connector design allows field wiring to remain intact while the module is swapped — minimizing downtime during maintenance or module replacement
- Thermocouple-Optimized Termination: Screw terminals engineered for the small cross-section compensating cables used with Type K, J, T, and other thermocouple types
- Mechanical Keying: Prevents accidental connection to incompatible module types, reducing wiring errors during commissioning or maintenance
- Vibration Resistance: Robust housing construction maintains reliable contact in industrial environments subject to mechanical vibration
- OEM Compatibility: Genuine Siemens accessory ensures full compatibility with S7-400 SM 431 module mechanical and electrical specifications
- Reduced Commissioning Risk: Pre-wired connectors can be prepared offline and snapped onto modules during planned maintenance windows
System Architecture & Signal Flow
In a SIMATIC S7-400 thermocouple measurement loop, the signal path is: Thermocouple → Compensating Cable → 6ES7431-7KF00-6AA0 Front Connector → SM 431 T/C Analog Input Module → S7-400 Backplane Bus → CPU. The front connector is the first point of entry for the millivolt-level thermocouple signal into the control system. Its terminal integrity directly affects measurement accuracy, cold junction compensation performance, and channel availability. A loose or corroded terminal at this stage introduces noise, offset errors, or complete signal loss — making connector quality a first-order concern for instrumentation engineers.
Compatible system components include: SIMATIC S7-400 racks (UR1, UR2, UR2-H), SM 431 thermocouple analog input modules, S7-400 power supply modules (PS 405, PS 407), and STEP 7 / TIA Portal engineering software for channel configuration and diagnostics.
Sourcing & Quality Verification
Konmask.com sources SIEMENS components through established industrial distribution channels. Every unit offered undergoes the following verification process before dispatch:
- Visual inspection of housing, terminal blocks, and mechanical coding elements
- Verification of part number markings against Siemens labeling standards
- Packaging integrity check to confirm undamaged, properly stored condition
- Cross-reference of serial/batch markings where applicable
We do not offer counterfeit, refurbished-as-new, or specification-altered components. If you require a Certificate of Conformity or third-party inspection report, please state this in your inquiry.
Procurement Process
- Submit Inquiry: Contact us via the form on this page or email support@konmask.com with your required quantity and delivery timeline
- Receive Quotation: Our technical team will respond within 1 business day with pricing, lead time, and availability confirmation
- Order Confirmation: Review and approve the proforma invoice; confirm shipping address and preferred freight method
- Payment & Dispatch: Payment processed; unit prepared, inspected, and dispatched with tracking information provided
- After-Sales Support: Technical questions on installation or compatibility answered by our engineering team post-delivery
For urgent MRO requirements or large-volume orders, please indicate priority in your inquiry subject line.
Technical FAQ
- Q: Is the 6ES7431-7KF00-6AA0 compatible with all S7-400 analog input modules?
- A: No. This front connector is specifically designed for the SM 431 thermocouple (T/C) analog input modules. Other S7-400 analog modules (e.g., voltage/current input SM 431 variants) use different front connectors. Always verify the module order number before ordering the connector.
- Q: Can I pre-wire the connector before the module arrives?
- A: Yes. One of the key advantages of the S7-400 front connector system is that field wiring can be terminated to the connector independently of the module. This allows parallel preparation and reduces installation time during commissioning or module replacement.
- Q: What thermocouple types are supported by the compatible SM 431 module?
- A: The SM 431 T/C module supports multiple thermocouple types (e.g., Type K, J, T, E, N, R, S, B) as configured in STEP 7 or TIA Portal. The front connector itself is type-agnostic — it provides the mechanical termination; thermocouple type selection is a software parameter.
- Q: What is the minimum order quantity?
- A: We supply from single-unit quantities upward. Please submit your inquiry with the required quantity for an accurate quotation.
- Q: Do you provide documentation or datasheets with the order?
- A: Official Siemens datasheets are publicly available via the Siemens Industry Online Support portal. We can provide links to relevant documentation. For project-specific documentation packages, please specify requirements in your inquiry.
