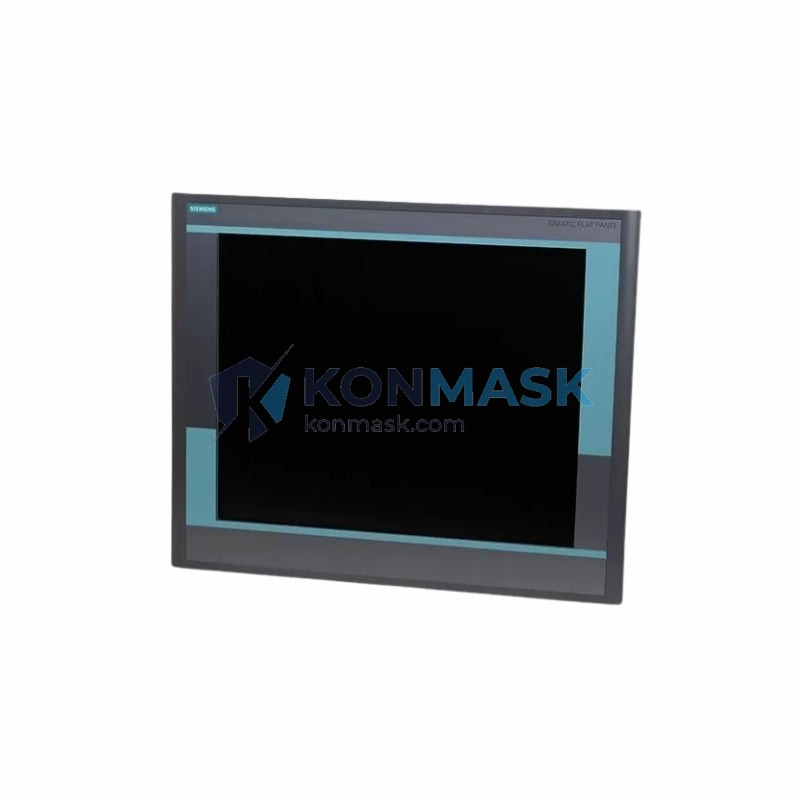

Siemens 6GF6221-2CA11 SIMATIC HMI Touch Screen | Replacement, Equivalent & Selection Guide
The Siemens 6GF6221-2CA11 is an industrial-grade SIMATIC HMI touch screen designed for demanding automation environments. Whether you are sourcing an original unit, evaluating compatible replacements, or selecting the right HMI for your control system, this guide provides the technical depth and cross-reference data you need to make a confident decision.
Technical Specifications
- Manufacturer: Siemens
- Part Number / SKU: 6GF6221-2CA11
- Product Series: SIMATIC HMI (6GF Series)
- Device Type: Industrial Touch Screen / HMI Panel
- Interface: Touch-sensitive display panel
- Application: Machine-level HMI for industrial automation
- Weight: 750 g
- Origin: Germany / EU (Siemens production)
- Condition Available: New OEM, Refurbished, Exchange
Compatible Replacement & Equivalent Models
When the original 6GF6221-2CA11 is unavailable or discontinued, the following models may serve as functional equivalents depending on your system configuration. Always verify electrical and mechanical compatibility before substitution.
- Siemens 6GF6221-2CA10 – Prior revision; functionally similar, verify firmware compatibility
- Siemens 6GF6221-2CA12 – Successor revision; check mounting and connector pinout
- Siemens SIMATIC TP177B 6″ PN/DP – Alternative panel in the TP177 family for comparable screen size applications
- Siemens SIMATIC KTP600 Basic PN – Cost-effective alternative for basic HMI requirements
- Third-party compatible panels – Contact Konmask for cross-reference evaluation and compatibility assessment
Note: Replacement compatibility depends on software version, communication protocol, and physical mounting. Konmask engineers can assist with cross-reference validation.
Why Choose the Original Model
- Guaranteed OEM compatibility – No firmware conflicts or protocol mismatches with existing Siemens SIMATIC systems
- Certified performance – Meets Siemens factory specifications for display brightness, touch accuracy, and EMC compliance
- Long-term support – Original spare parts ensure continued access to Siemens TIA Portal and WinCC configuration tools
- Warranty integrity – Using OEM parts preserves system warranty and CE/UL certification status
- Proven reliability – Validated in thousands of global industrial installations across automotive, food & beverage, and process industries
Typical Applications
- Machine tool control panels and CNC operator interfaces
- Conveyor and material handling system HMI stations
- Packaging line operator terminals
- Water treatment and utility plant SCADA front-ends
- Automotive assembly line control interfaces
- Building automation and HVAC control panels
- Food & beverage processing line operator stations
System Compatibility
- PLC Integration: Siemens S7-300, S7-400, S7-1200, S7-1500 via PROFIBUS DP / PROFINET
- Software: Siemens SIMATIC WinCC flexible, TIA Portal (with appropriate migration)
- Communication: MPI, PROFIBUS DP, Ethernet/PROFINET (verify by revision)
- Power Supply: 24 V DC (typical for 6GF series)
- Panel Cutout: Standard SIMATIC HMI mounting dimensions – confirm with datasheet before installation
Selection Guide
Use the following criteria to determine whether the 6GF6221-2CA11 is the right choice for your application:
- Screen size requirement: Confirm display diagonal matches operator ergonomic needs
- Communication protocol: Verify PROFIBUS DP or PROFINET availability on your controller
- Environment rating: Check IP rating for front panel protection against dust and moisture
- Software version: Ensure WinCC flexible project version is compatible with panel firmware
- Replacement scenario: If replacing a failed unit, match the exact part number including revision suffix (-2CA11) to avoid configuration rework
- Budget vs. OEM: For non-critical auxiliary stations, a compatible alternative may reduce cost; for primary control panels, OEM is recommended
Quality Assurance & Sourcing
- Direct sourcing from authorized Siemens distribution channels and verified secondary market suppliers
- Pre-shipment inspection including visual check, power-on test, and touch calibration verification
- Traceability documentation available upon request (batch records, test reports)
- Anti-counterfeit measures: All units inspected for genuine Siemens labeling, serial number format, and PCB markings
- Packaging: ESD-safe packaging with humidity indicator cards for safe international transit
How to Order
- Step 1: Confirm part number: 6GF6221-2CA11 and required quantity
- Step 2: Contact Konmask via email or phone for real-time stock check and pricing
- Step 3: Receive formal quotation with lead time and shipping options
- Step 4: Confirm order and receive proforma invoice
- Step 5: Shipment with tracking number and inspection report
Email: support@konmask.com | Tel: +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace 6GF6221-2CA11 with a different revision suffix?
A: Minor revision changes (e.g., -2CA10 to -2CA11) are often compatible but may require firmware updates. Always verify with Siemens documentation or contact Konmask for guidance.
Q: Is a third-party replacement panel safe to use?
A: Third-party panels can work in non-safety-critical applications, but may void system certifications. For safety-rated or certified installations, OEM parts are strongly recommended.
Q: How do I know if my 6GF6221-2CA11 is genuine?
A: Genuine units have a Siemens holographic label, correct serial number format, and matching PCB markings. Konmask provides authenticity documentation with every shipment.
Q: What is the typical lead time?
A: In-stock units ship within 1-3 business days. Out-of-stock items typically have a 2-6 week lead time depending on sourcing channel.
Q: Do you offer exchange or repair services?
A: Yes. Konmask offers exchange programs and can coordinate repair evaluation for failed units. Contact us for details.
